30A 4-8V Brushed Electric Speed Controller ESC Brush Electronic Motor Speed Controller with JST Wire for RC Car

Descriere 30A 4-8V Brushed Electric Speed Controller ESC Brush Electronic Motor Speed Controller with JST Wire for RC Car

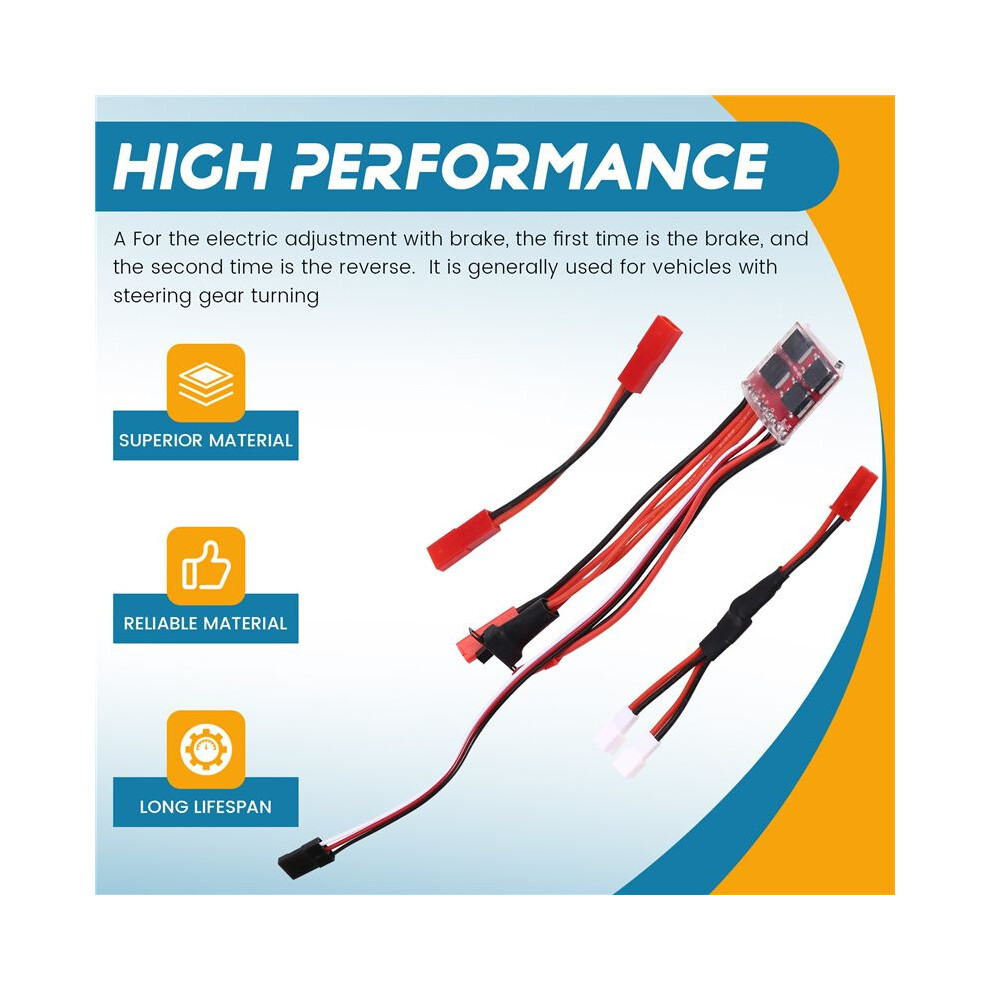

A For the electric adjustment with brake, the first is the brake, and the second is the reverse. It is generally used for vehicles with steering gear turning
B Electric regulation without brake, direct forward and reverse rotation, applicable to similar tanks, turning with differential speed of two motors, and double paddle ships
Voltage support: 4-8v can be directly connected to 2s lithium battery (7.4v) Current parameters: forward 30A, instantaneous 40A, Back 20A, Brake 40A

UBEC output: voltage 5.7V, current 1A. (Power supply for receiver and steering gear)
Size: L25mm, W23mm, H5mm
Weight: 13g (with wire)
The default is] ST with .

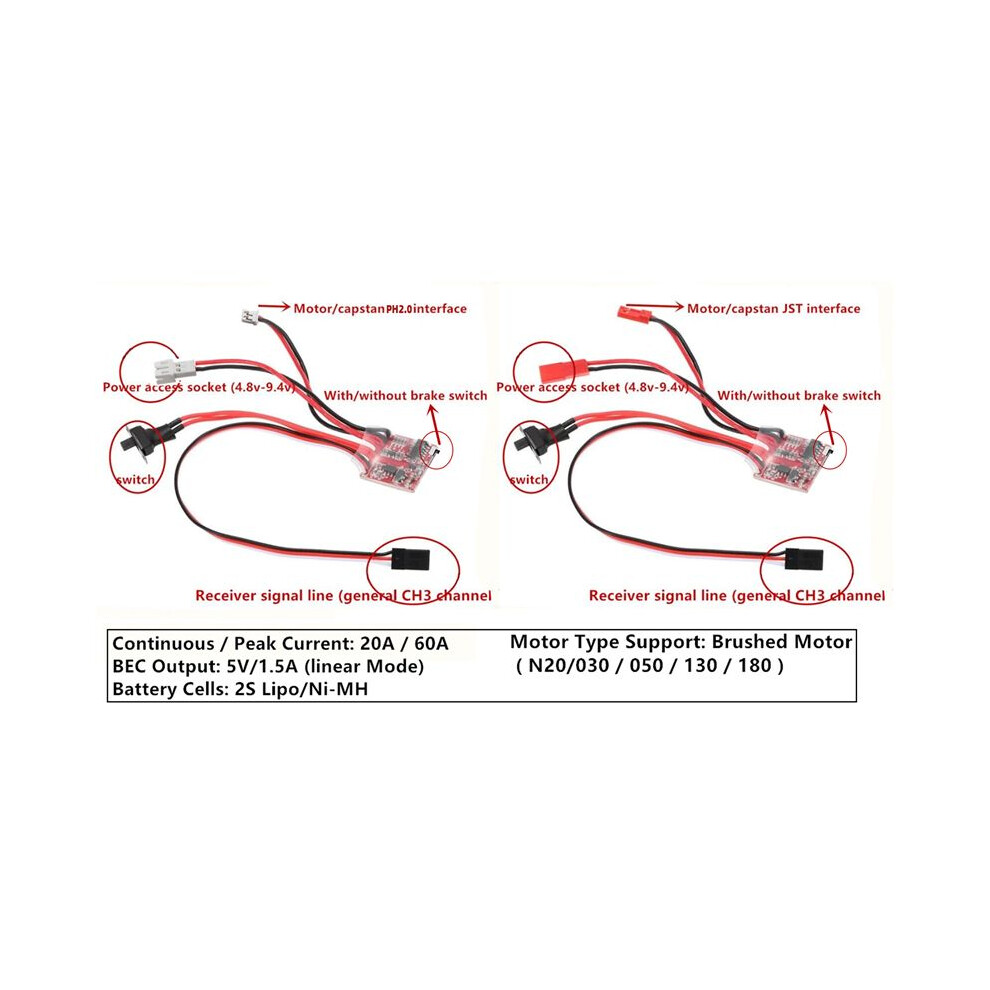

Wiring: short red black battery (dividend must be positive black negative)
Long red black motor (regardless of positive and negative)
The ch2 of the black, red and white three wire receiver (usually the black is outside, and the self color is the sticker)

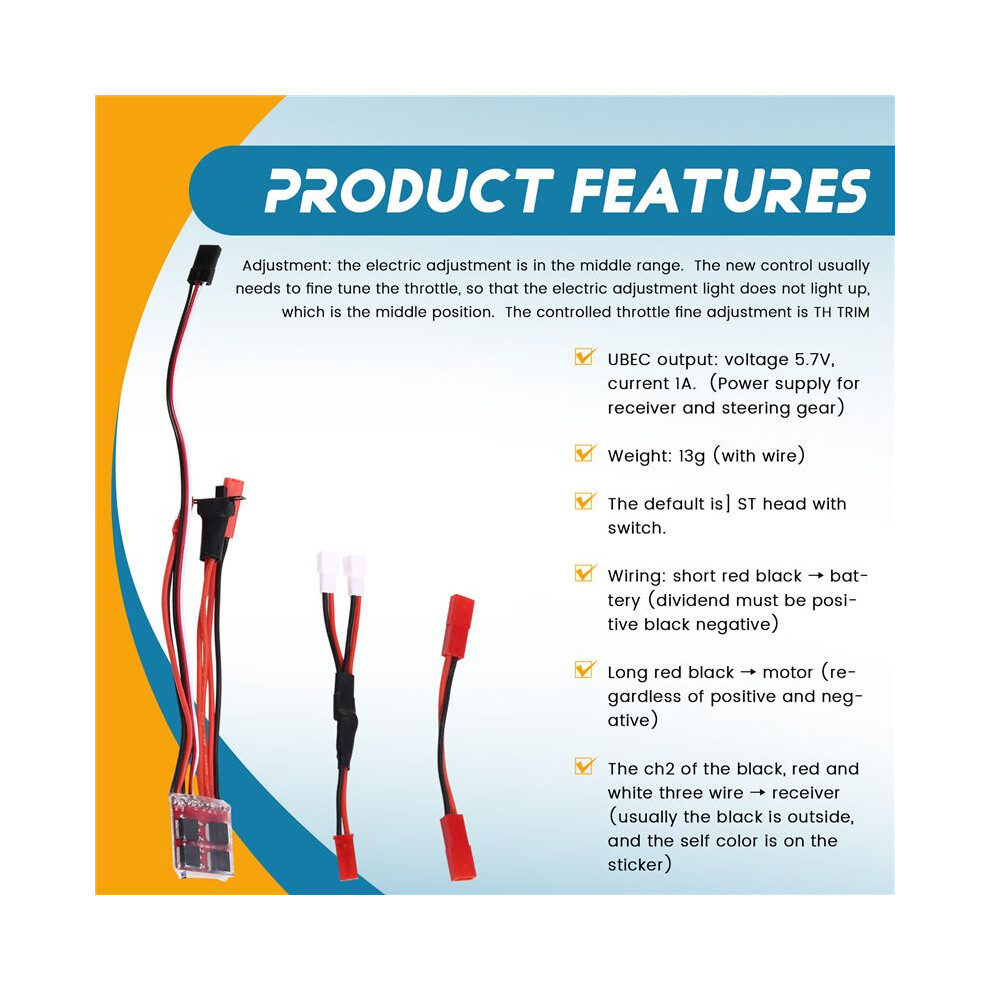

Adjustment: the electric adjustment is in the middle range. The new control usually needs to fine tune the throttle, so that the electric adjustment light does not light , which is the middle position. The controlled throttle fine adjustment is TH TRIM
Color: As shown
Material: composite material

Package Contents:
1 * rc upgrade parts kit
