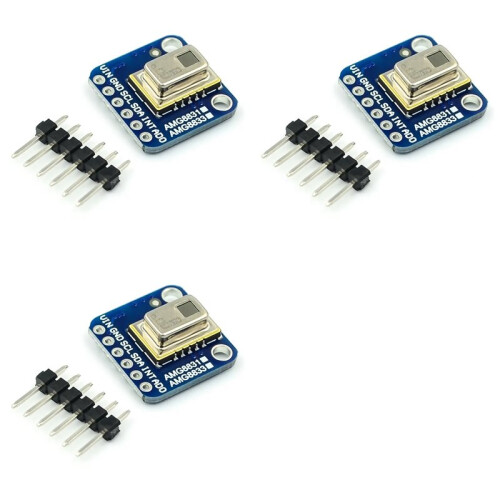

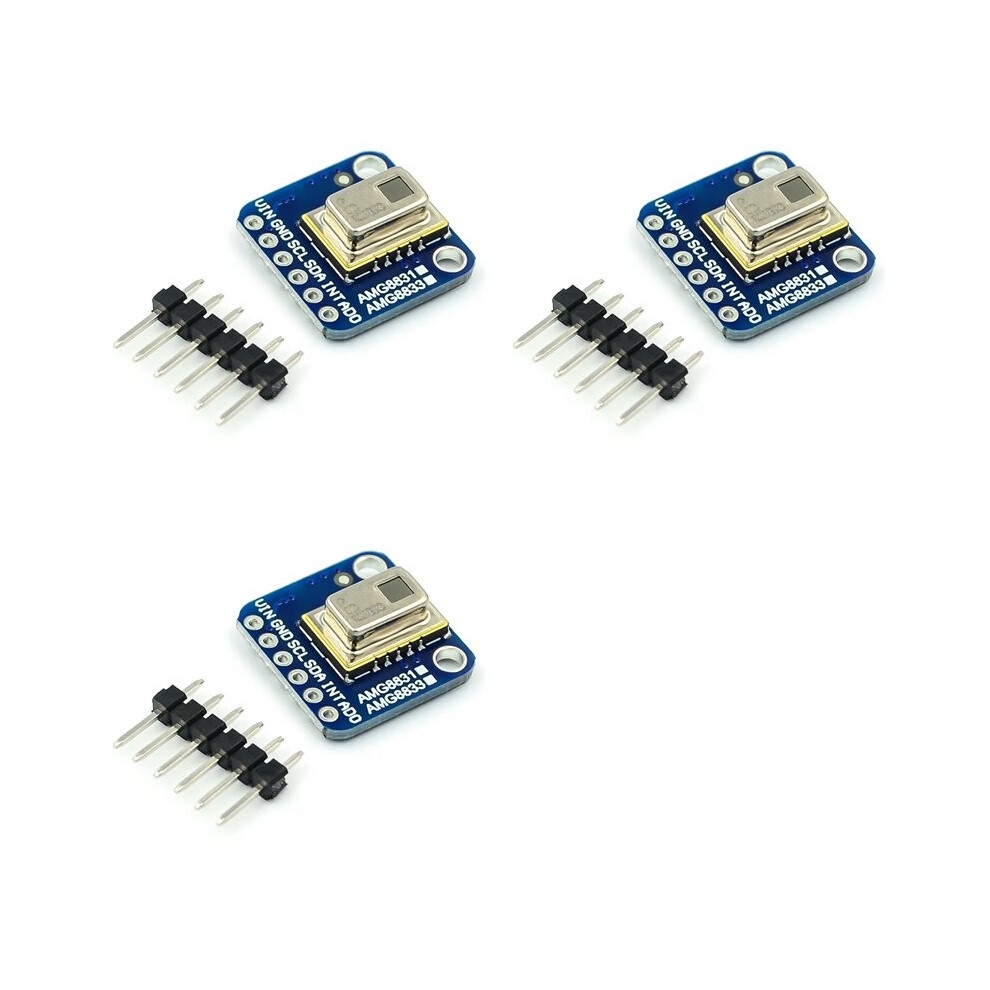

3X AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module 8x8 Infrared Camera Sensor
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 128,000 de recenzii cu evaluare “Excelent”
498,37 RON
687,47 RON
Reducere de 28%!
+21,21 RON livrare
1%
Câștigați 4,98 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | mar 14 - sâm 18 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Adaptoare și instrumente pentru cartele SIM pentru telefoane mobile
Descriere & Detalii
Rezumat
- Add heat-vision to your project and with an AMG8833 Grid-EYE Breakout from Tronixlabs Australia! This sensor from is an 8x8 array of IR thermal sensors. When connected to your microcontroller (or for raspberry Pi) it will return an array of 64 individual infrared temperature readings over I2C. It's like those fancy thermal cameras, but compact and simple enough for easy integration.
- This part will measure temperatures ranging from 0℃ to 80℃ (32℉ to 176℉) with an accuracy of +- 2.5℃ (4.5℉). It can detect a human from a distance of up to 7 meters (23) feet. With a maximum frame rate of 10Hz, It's perfect for creating your own human detector or mini thermal camera.
- We have code for using this breakout on an for Arduino or compatible (the sensor communicates over I2C) or on a for Raspberry Pi with Python. On the Pi, with a bit of image processing help from the SciPy python library we were able to interpolate the 8x8 grid and get some pretty nice results!

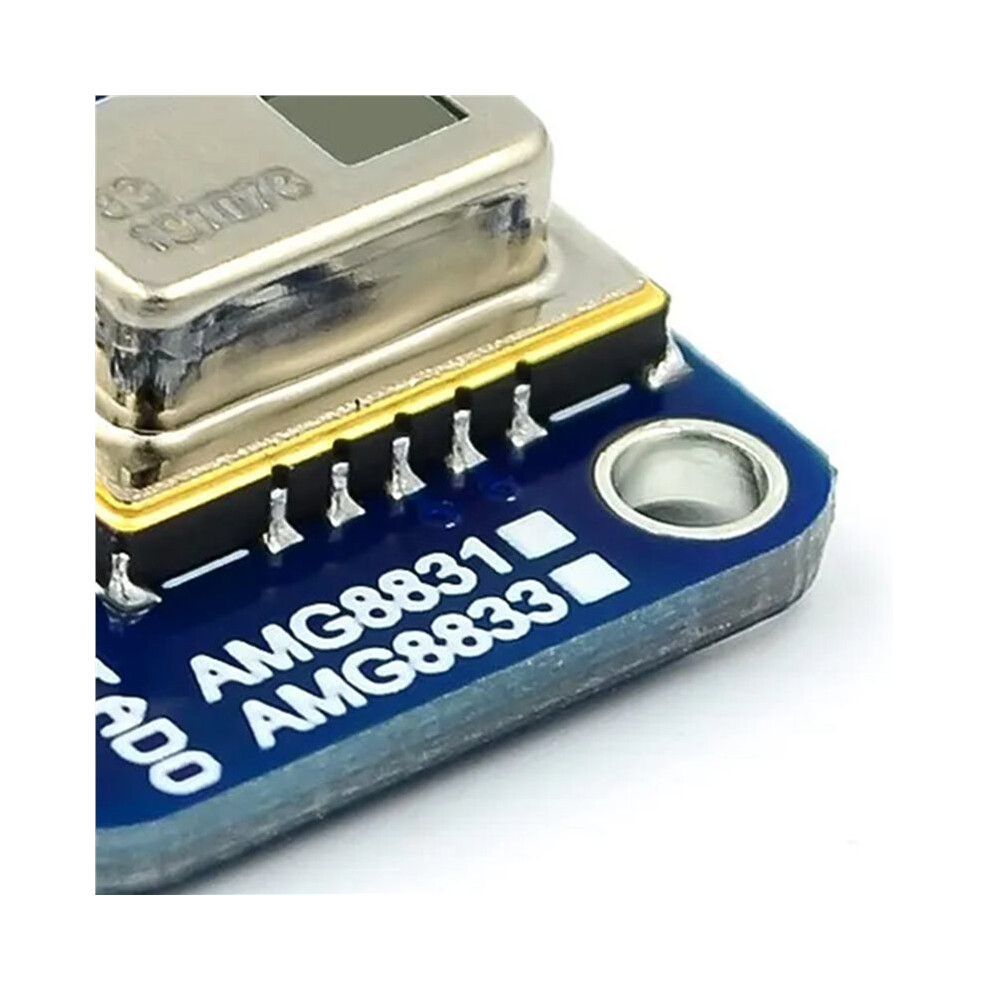

- The AMG8833 is the next generation of 8x8 thermal IR sensors from, and offers higher performance than it's predecessor the AMG8831. The sensor only supports I2C, and has a configurable interrupt pin that can fire when any individual pixel goes above or below a threshold that you set.

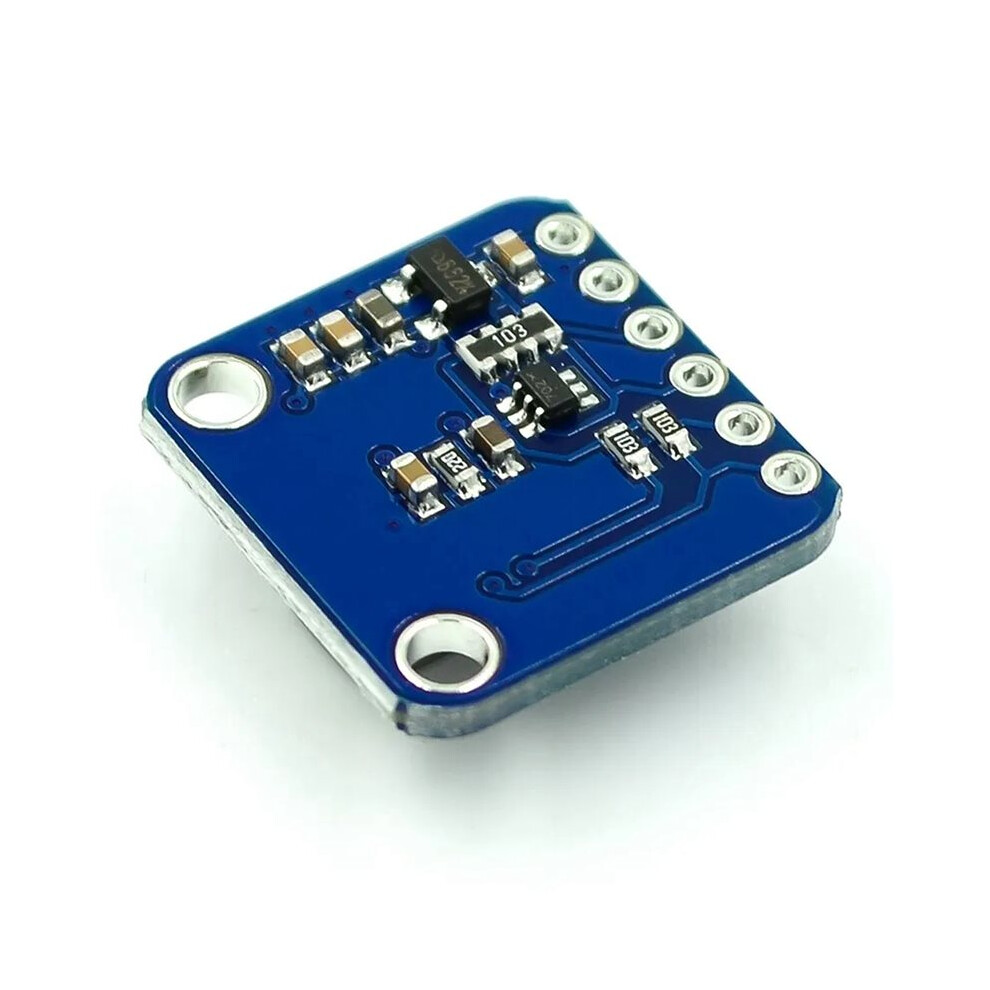

- To make it easy to use, we pick & placed it on a breakout board with a 3.3V regulator and level shifting. So you can use it with any 3V or 5V microcontroller or computer. Even better - Adafruit have done all the hard work here, with example code and supporting software libraries to get you up in running in just a few lines of code!
Descriere 3X AMG8833 IR 8x8 Thermal Imager Array Temperature Sensor Module 8x8 Infrared Camera Sensor
Add heat-vision to your project and with an AMG8833 Grid-EYE Breakout from Tronixlabs Australia! This sensor from is an 8x8 array of IR thermal sensors. When connected to your microcontroller (or for raspberry Pi) it will return an array of 64 individual infrared temperature readings over I2C. It's like those fancy thermal cameras, but compact and simple enough for easy integration.
This part will measure temperatures ranging from 0 to 80 (32 to 176) with an accuracy of +- 2.5 (4.5). It can detect a human from a distance of to 7 meters (23) feet. With a maximum frame rate of 10Hz, It's perfect for creating your own human detector or thermal camera.
We have code for using this breakout an for or compatible (the sensor communicates over I2C) or a for Raspberry Pi with Python. the Pi, with a bit of image processing help from the SciPy python library we were able to interpolate the 8x8 grid and get some pretty nice results!
The AMG8833 is the next generation of 8x8 thermal IR sensors from, and offers higher performance than it's predecessor the AMG8831. The sensor only supports I2C, and has a configurable interrupt pin that can fire when any individual pixel goes above or below a threshold that you set.
To make it easy to use, we pick & placed it a breakout board with a 3.3V regulator and level shifting. So you can use it with any 3V or 5V microcontroller or computer. Even better - Adafruit have done all the hard work here, with example code and supporting software libraries to get you in running in just a few lines of code!
Product Dimensions:25.8mm x 25.5mm x 6.0mm /1.0x 1.0x 0.2Inch
Due to different product batches, the appearance may vary, which does not affect the use.
Colour:As Shown
Material:PC
Package Contents:
3 x Sensor
Detalii
| OPC | PVYHX98 |
|---|---|
| Brand | ISTOVO |
| Coduri | 4713099739480 (EAN) |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 2cm |
| Length | 2cm |
| Weight | 0.009kg |
| Colour | As Shown |
| Material | PC |
