3X Test Board Kit VNA Test Demo Board Vector Network Analyzer Test Board
Brand Torribaly
New
197,70 RON
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat
- The test board kit is used for the convenient measurement plug-ins and SMT devices of NanoVNA or other vector network analyzers.
- This test board contains a plug-in test circuit compatible with VNWA Testboard, and adds a set of 0805 and 1206 patch test circuits. The SMT circuit cannot fully consider various test conditions. Some devices may need to be cut over. Please make sure you have enough Hands-on ability. This circuit board has not been soldered before shipment. Please bring your own soldering tools. Please build a test circuit according to your own test needs.
- vector network analyzer
- nano vna antenna analyzer
- Vector Network Analyzer Testboard
Descriere 3X Test Board Kit VNA Test Demo Board Vector Network Analyzer Test Board
The test board kit is used for the convenient measurement plug-ins and SMT devices of or other vector network analyzers.
This test board contains a plug-in test circuit compatible with VNWA Testboard, and adds a set of 0805 and 1206 patch test circuits. The SMT circuit cannot fully consider various test conditions. Some devices may need to be cut over. Please make sure you have enough Hands- ability. This circuit board has not been soldered before shipment. Please bring your own soldering tools. Please build a test circuit according to your own test needs.
Colour:As shown
Material:ABS+metal

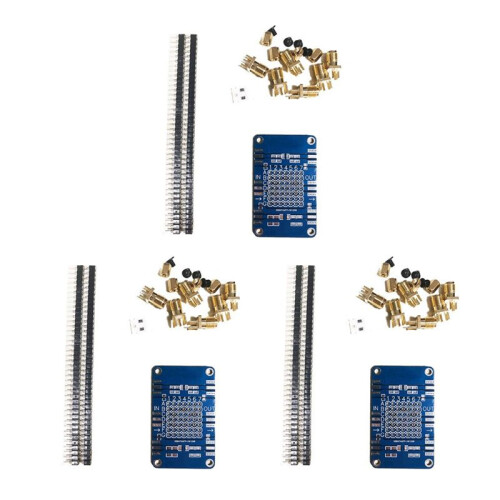

Package Contents:
3 x Testboard motherboard
18 x SMA female
12 x 6mm copper stud
12 x M2.5 screw
6 x 40pin round row
6 x 0805 49R9 calibration resistance
Detalii
| OPC | PWK89TM |
|---|---|
| Brand | Torribaly |
| Coduri | 6031199764255 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.078kg |
| Colour | As Shown |
| Material | ABS+metal |
