4CH 7-36V Wifi Module Wireless Relay APP Remote Control Timer 10A Home

Descriere 4CH 7-36V Wifi Module Wireless Relay APP Remote Control Timer 10A Home

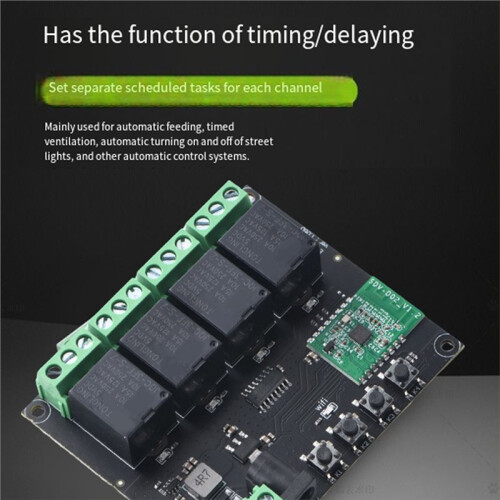

It has a timer/delay function.Set a separate timed task for each channel Mainly used in automatic control systems such as automatic feeding, timed ventilation, and timed /off of streetlights
This eWeLink product does not currently support older router versions prior to 2013, such as TL-WR882N and TL-WR885N/WR841N V11 models. Future platform upgrades and compatibility optimizations will be implemented; please stay tuned
1. Features signal indicator lights and 4 relay activation indicator lights;
2. The board's power consumption is less than 1W, with a static current of 0.08A and an operating current of 0.3A.
3. Control the rated current to within 10A and the switching voltage to within 250V;
4. Four 10A relay outputs;
5. The relay has a lifespan of over 1,000,000 cycles;
6. Electrical insulation resistance: 100MΩ;
7. Contact withstand voltage 1000V;
8. The maximum pull-in of the relay is 15ms.
9. The maximum release of the relay is 5 milliseconds;
10. Operating temperature: -40C to +70C;
11. Operating humidity: 40%~80%RH.
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: PCB

Package Contents:
1*4CH 10A Wireless Relay
