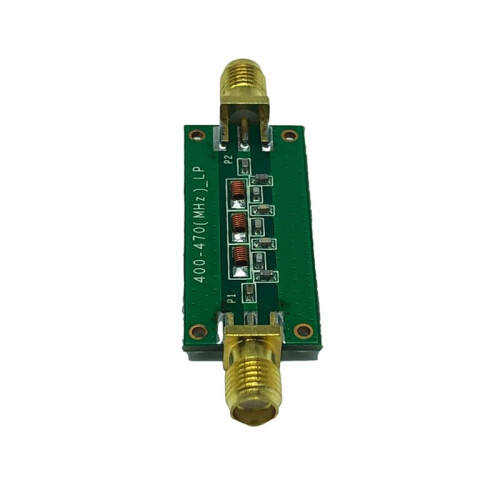

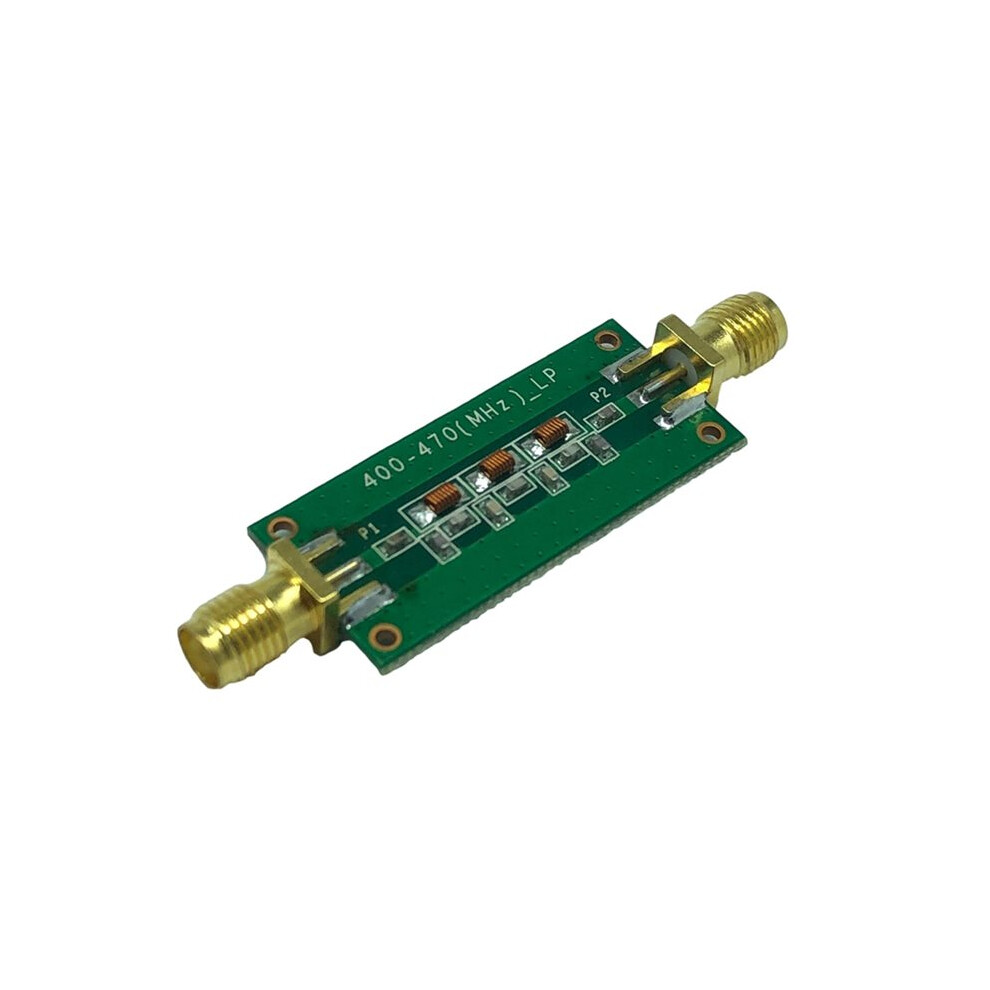

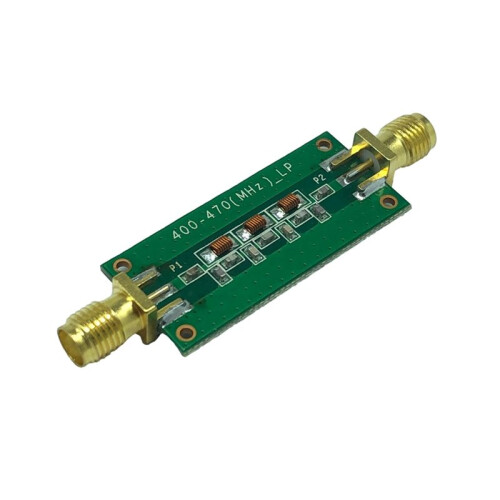

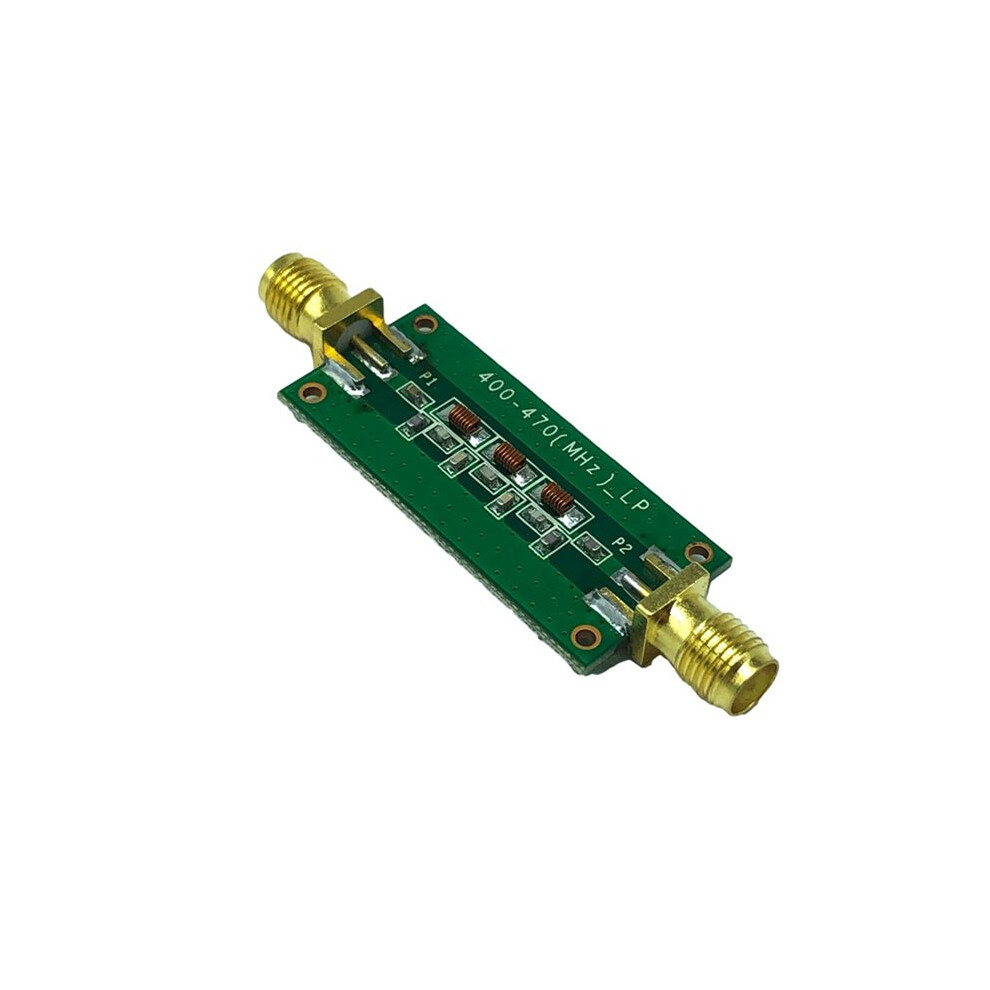

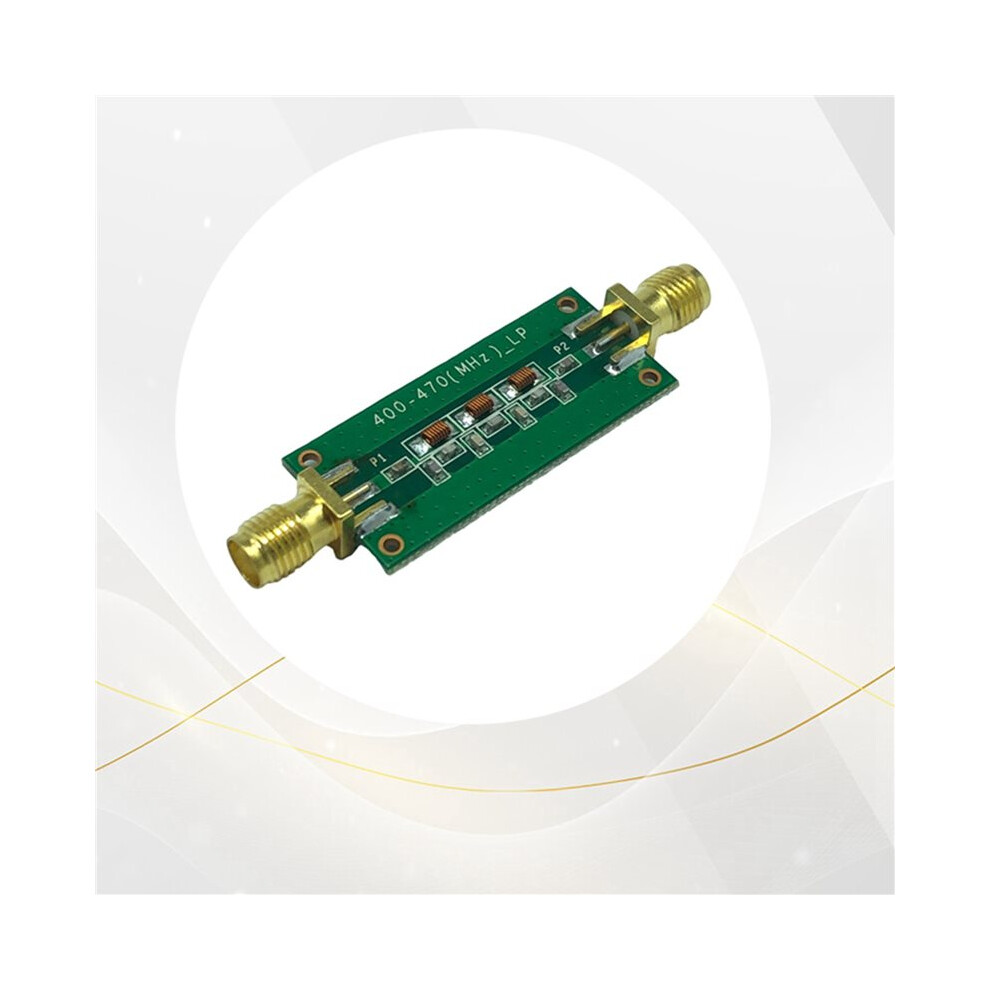

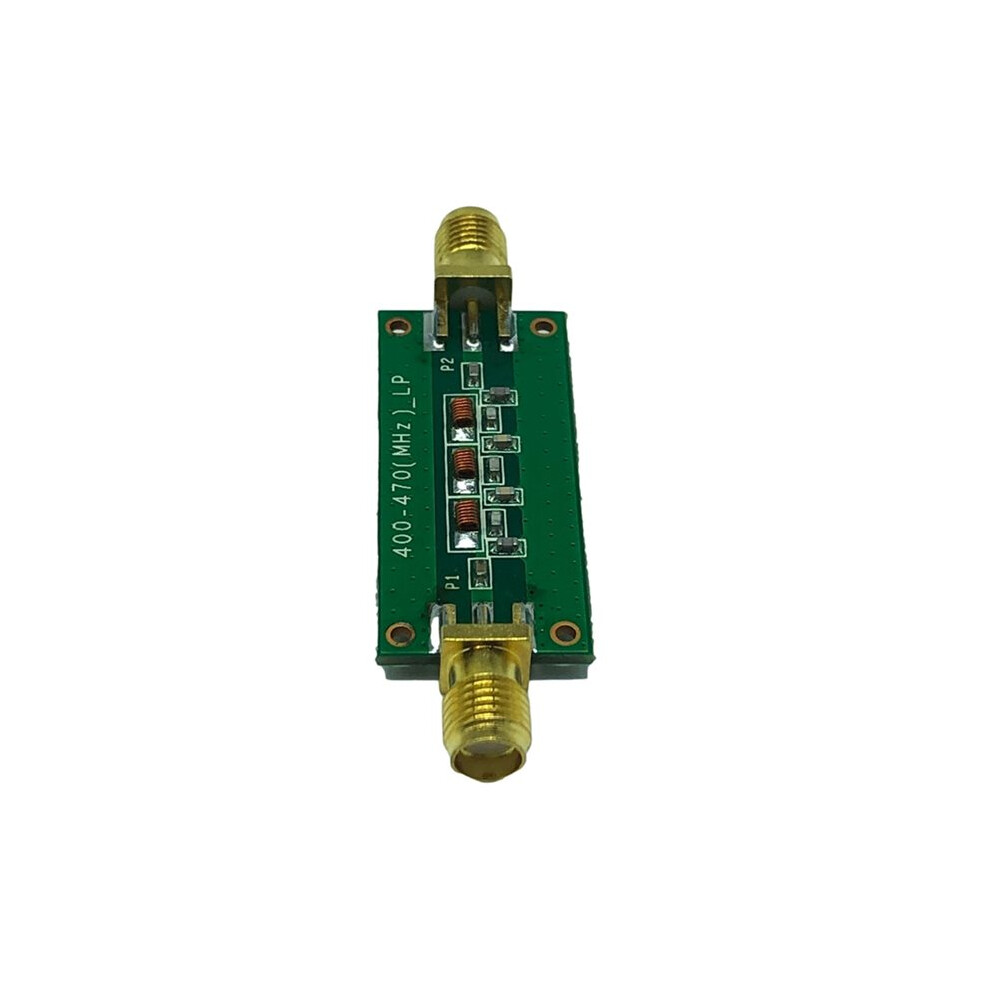

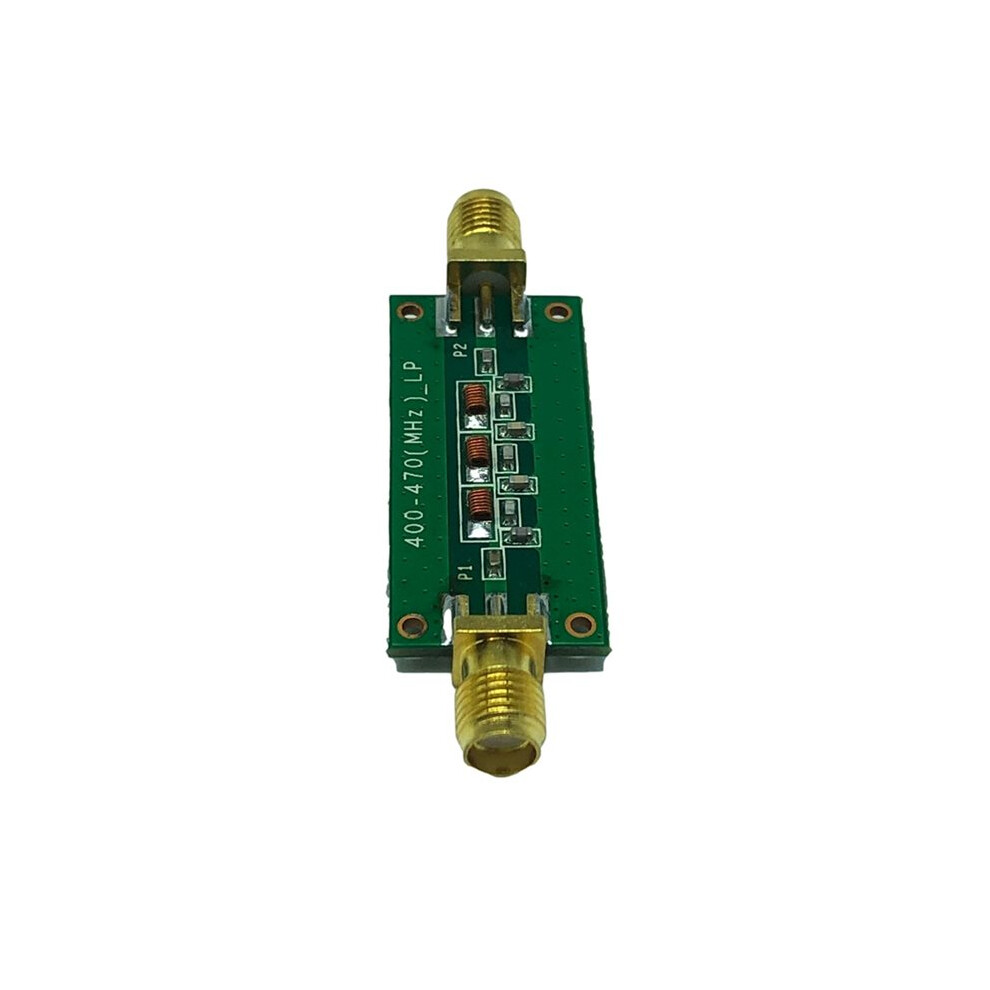

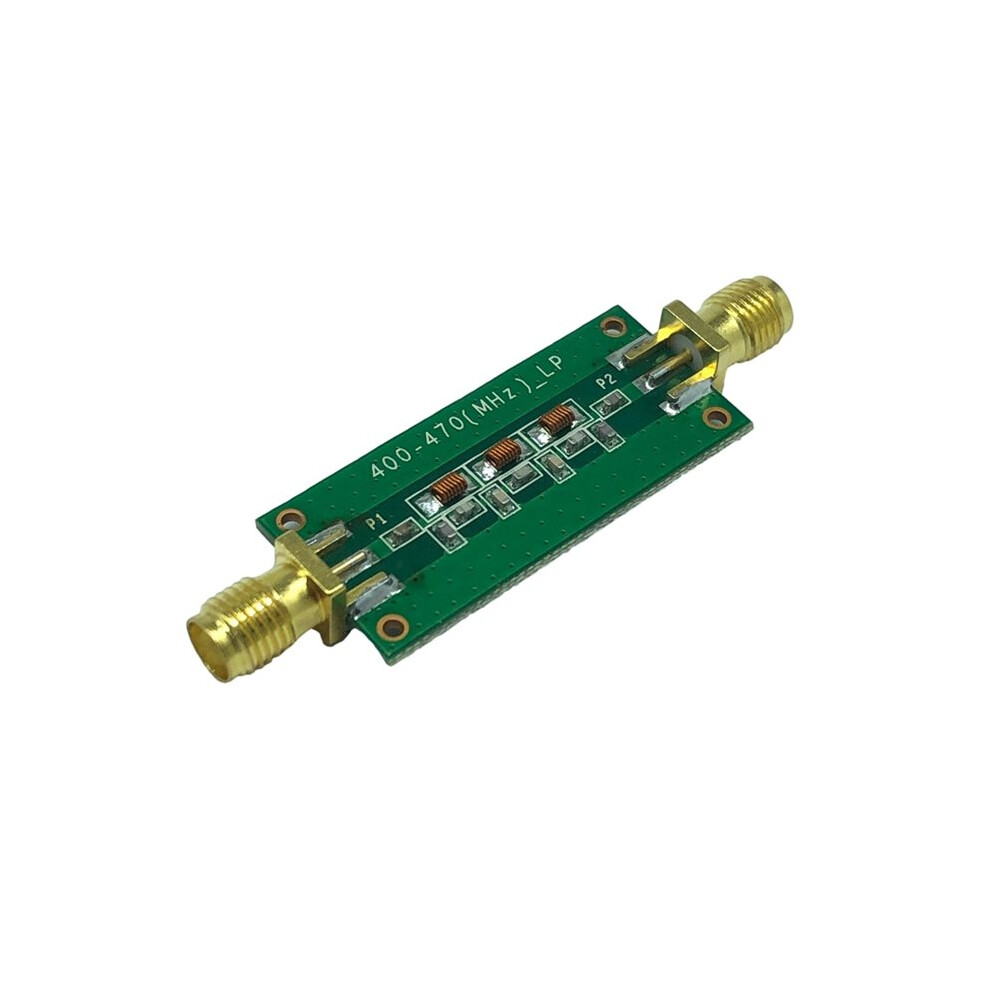

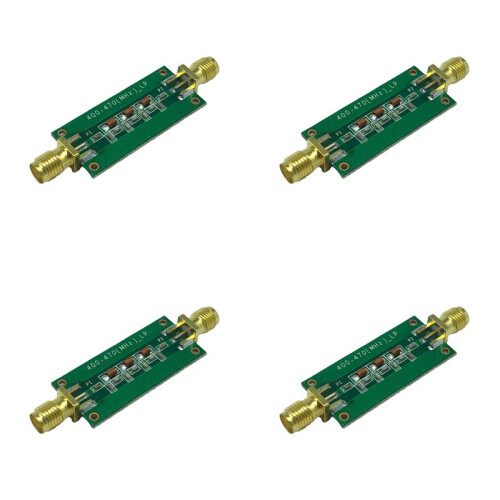

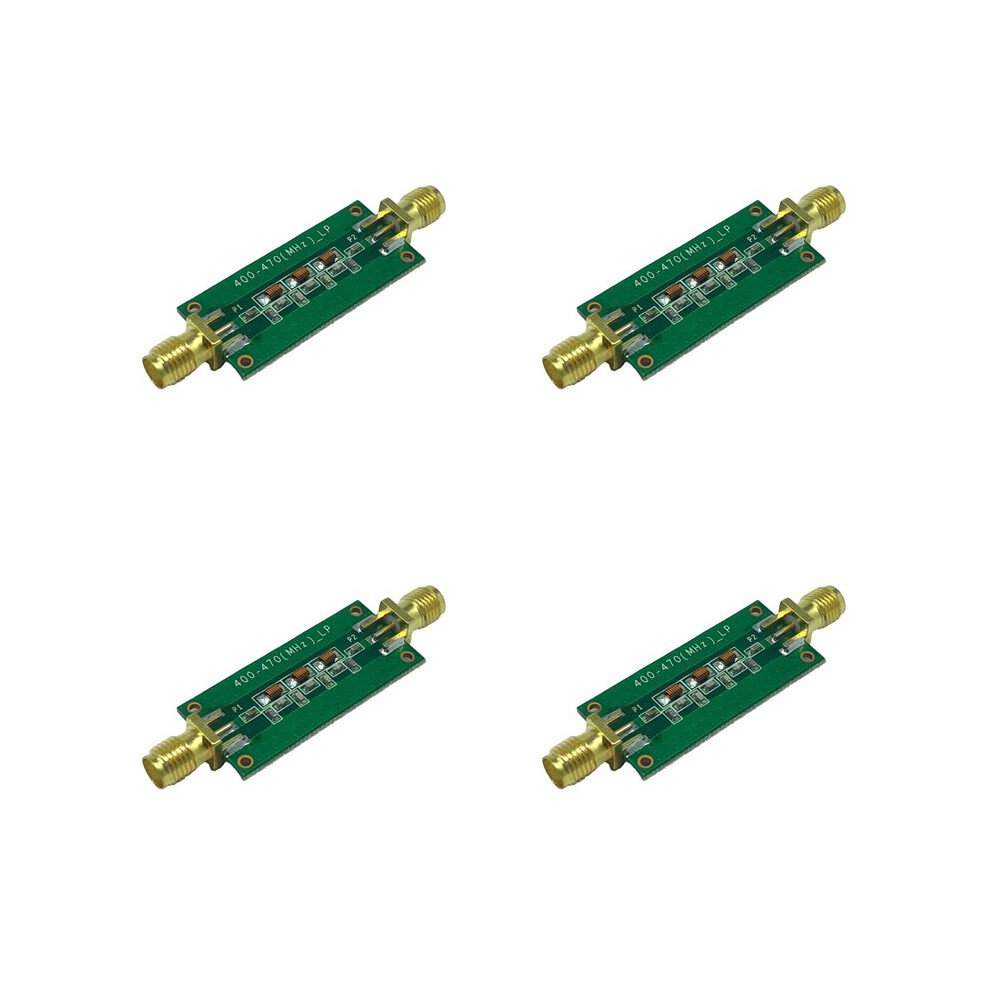

4X 433MHZ Low Pass Filter 400-470M LPF 7th-Order Elliptic Function for Ham Radio Amplifier Analyzer Radio

Descriere 4X 433MHZ Low Pass Filter 400-470M LPF 7th-Order Elliptic Function for Ham Radio Amplifier Analyzer Radio

A low-pass filter passes signals below the cutoff frequency while attenuating signals above it. It's often used to suppress high-order harmonics in electromagnetic signals or to filter out high-frequency noise after a mixer, acting as a frequency selector.
This filter can significantly attenuate signals above 470 MHz, with a harmonic suppression capability of approximately 50 dBc.
This is a 7th-order elliptic function low-pass filter with superior filtering steepness compared to other filters.

Parameters:1. S11 Less than -20 dB, SWR Less than 1.22;
2. S22 Less than -20 dB, SWR Less than 1.22;
3. S21 Greater than -0.5 dB, insertion loss Less than 0.5 dB
Color: Green
Material: PCB

Package Contents:
4 x Low Pass Filter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
