4X VL53L1X Ranging Flight Sensor Module 3V-5V Distance 400cm Measurement Extension Board Module for

Descriere 4X VL53L1X Ranging Flight Sensor Module 3V-5V Distance 400cm Measurement Extension Board Module for

Fully integrated miniature module;Emitter: 940 nm invisible (Class1);SPAD (single photon avalanche diode) receiving array with integrated lens;Low-power microcontroller running advanced digital firmware
Pin-to-pin compatible with the VL53L0X FlightSense ranging sensor;Fast and accurate long distance ranging; to 400 cm distance measurement; to 50 Hz ranging frequency
Typical full field-of-view (FoV): 27 degree;Programmable region-of-interest (ROI) size the receiving array, allowing the sensor FoV to be reduced;Programmable ROI position the receiving array, providing multizone operation control from the host
Easy integration;Single reflowable component;Can be hidden behind many cover window materials
Software driver and code examples for turnkey ranging;Single power supply (2v8);I2;C interface ( to 400 kHz);Shutdown and interrupt pin

Description:
The VL53L1X is a state-of-the-art, -of-Flight (ToF), ranging sensor, enhancing the ST FlightSense product family. It is the fastest miniature ToF sensor the market with accurate ranging to 4 m and fast ranging frequency to 50 Hz
Unlike conventional IR sensors, the VL53L1X uses ST's latest generation ToF technology which allows absolute distance measurement whatever the target color and reflectance.
It is also possible to program the size of the ROI the receiving array, allowing the sensor FoV to be reduced.
colour: black
Material: metal
size: 25x10.7x3.2mm

Package Contents:

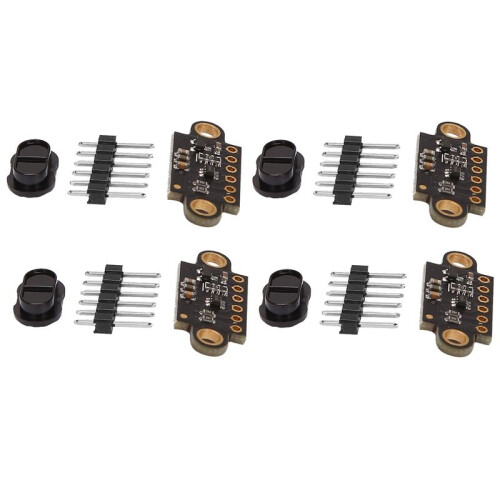

4 * VL53L1X Sensor Module
4 * Optical cover
