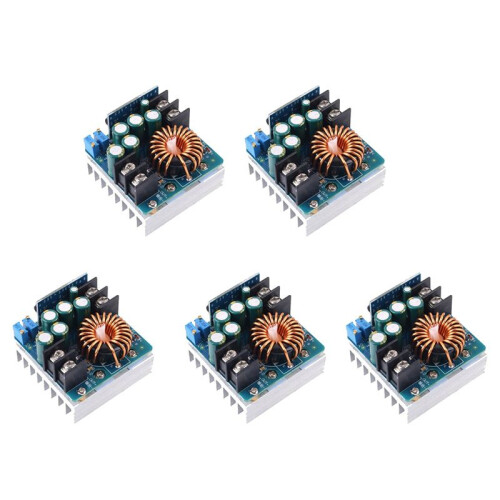

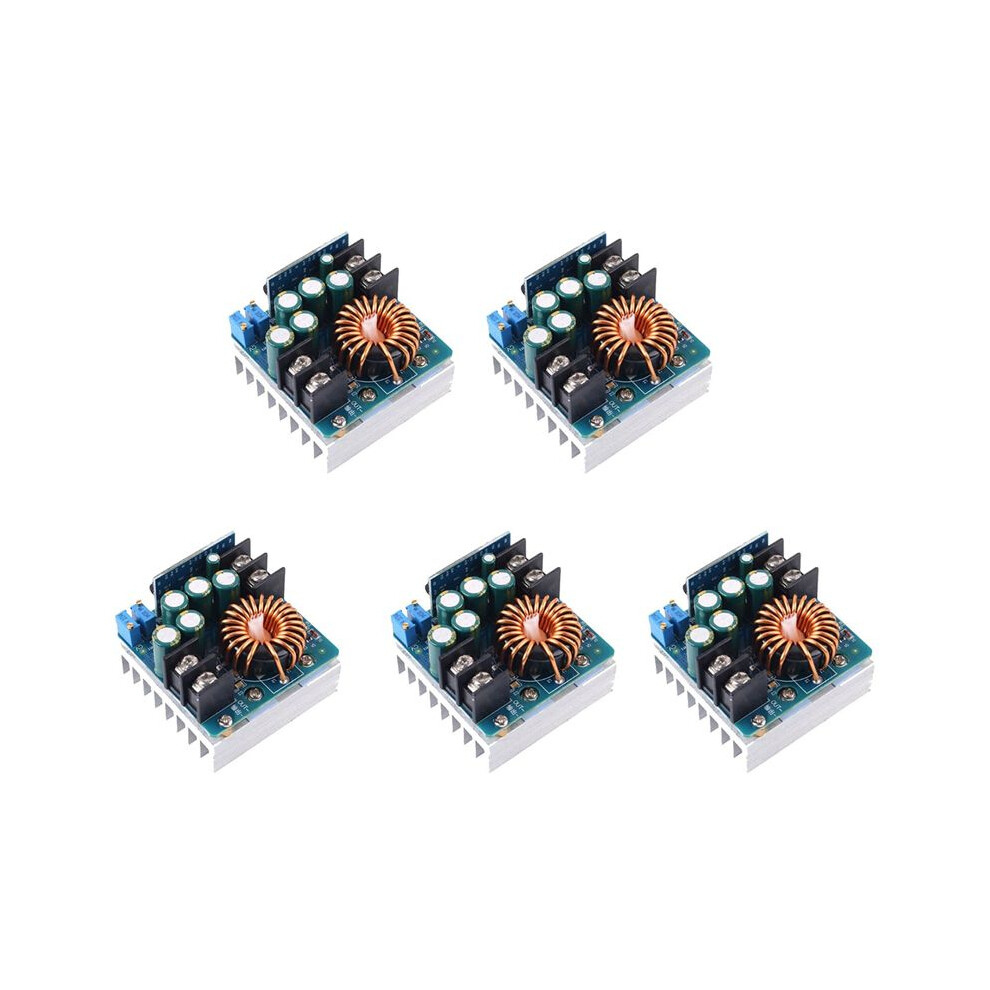

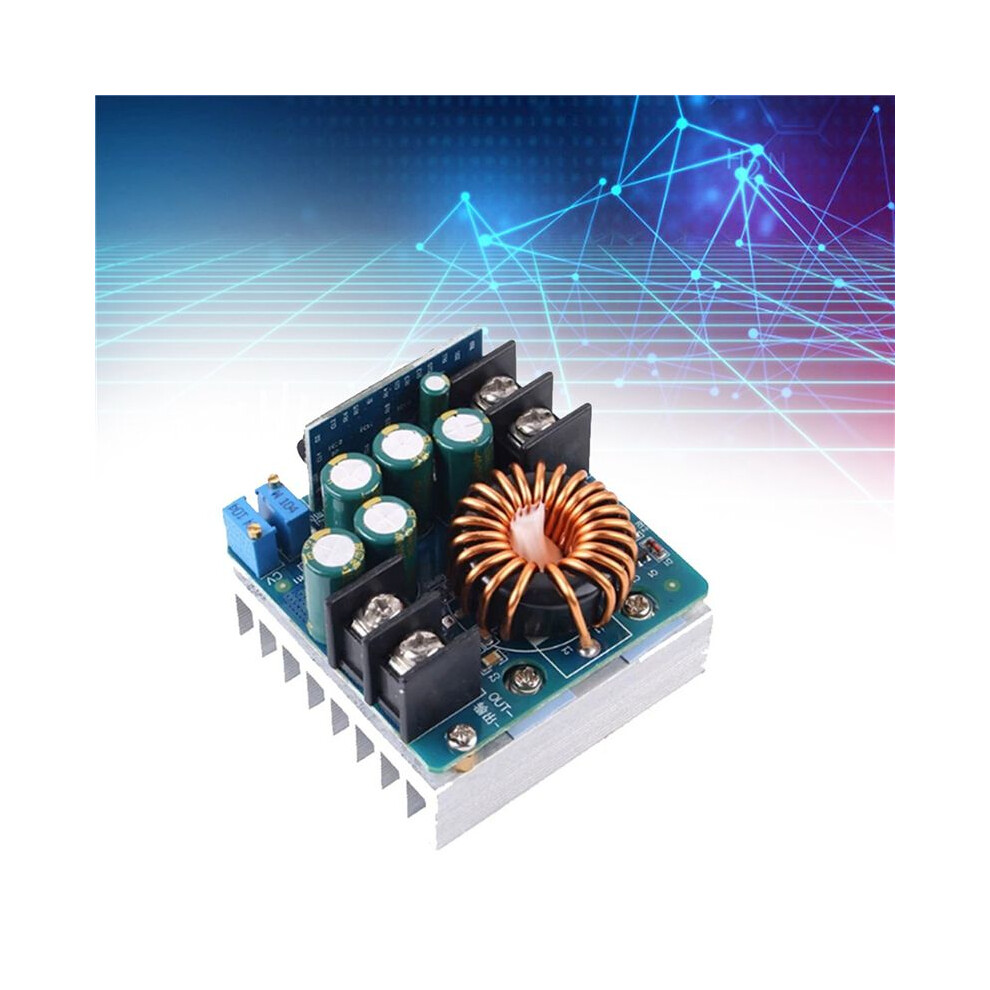

5X - 400W Module High Power Step-Down Constant Voltage Constant Current Adjustable Power Module

Descriere 5X - 400W Module High Power Step-Down Constant Voltage Constant Current Adjustable Power Module

Main features of power module
10-60v wide input voltage, suitable for most power supplies the market as input source.
The output is constant voltage and current, and the voltage and current are continuously adjustable. Suitable for most uses electrical equipment.
High output power, good ventilation and natural heat dissipation can reach 280W/12A (Note that there are output power and output current limits).
The module adopts a step rectification scheme with high efficiency and an output voltage of more than 10V.

As high as 92%-96% or more,
There is a constant current indicator when charging the battery. The charging status is clear at a glance.
The input has a 15A fuse. Reverse input polarity will not damage the power supply (it will Burned fuse, need to replace the fuse)
Module parameters
Module name: 400w step-down constant voltage and constant current
Module nature: non-isolated step-down module
Input voltage: 10.5-60V
Output voltage range: 0-45V (must meet voltage reduction conditions, IN input multiplied by 0.8)
Minimum output voltage: 0V (+1V)
Maximum output voltage: approximately input x 0.8 (for example, 40V, 40V x 0.8=32V Highest)
The appearance and color of different batches of products may be different, which will not affect the use.
color:
Material: PCB

Package Contents:
5 x Module
