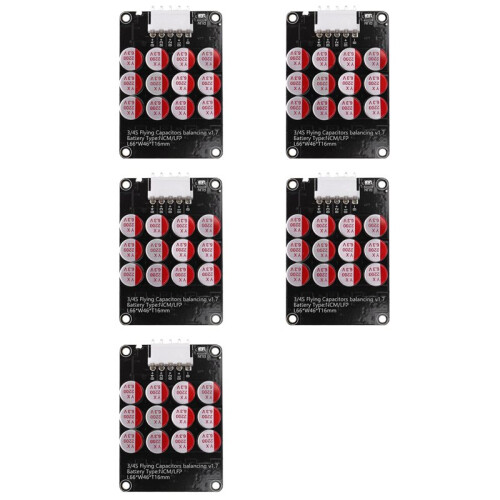

5X 5A 3S 4S Active Equalizer Balancer Lifepo4/Lipo/Lto Battery Capacitor

Descriere 5X 5A 3S 4S Active Equalizer Balancer Lifepo4/Lipo/Lto Battery Capacitor

1. The capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started.
2. The new ultra-low internal resistance MOS, 2OZ copper thickness PCB
3. Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep , sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
4. The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
5. With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

Accessory Type:Charger Accessories
Model Number:JW-DR
APPLICATION:Solar System EV E-bike
Working voltage: 1.8V-4.5V
Suitable for ternary lithium, lithium iron phosphate, lithium titanate.
Balanced Cascading: Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so
color:Black
Material:plastic

Package Contents:
5 x 4S Active Equalizer Balancer
