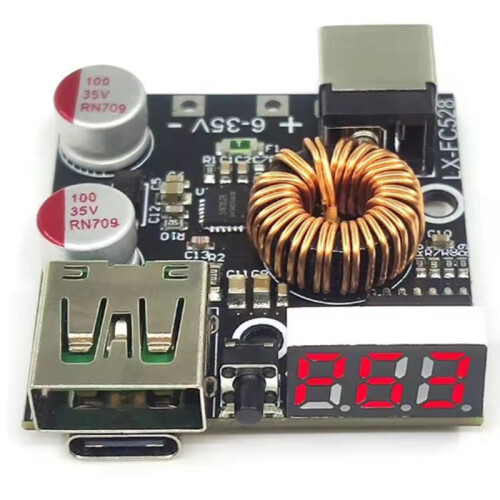

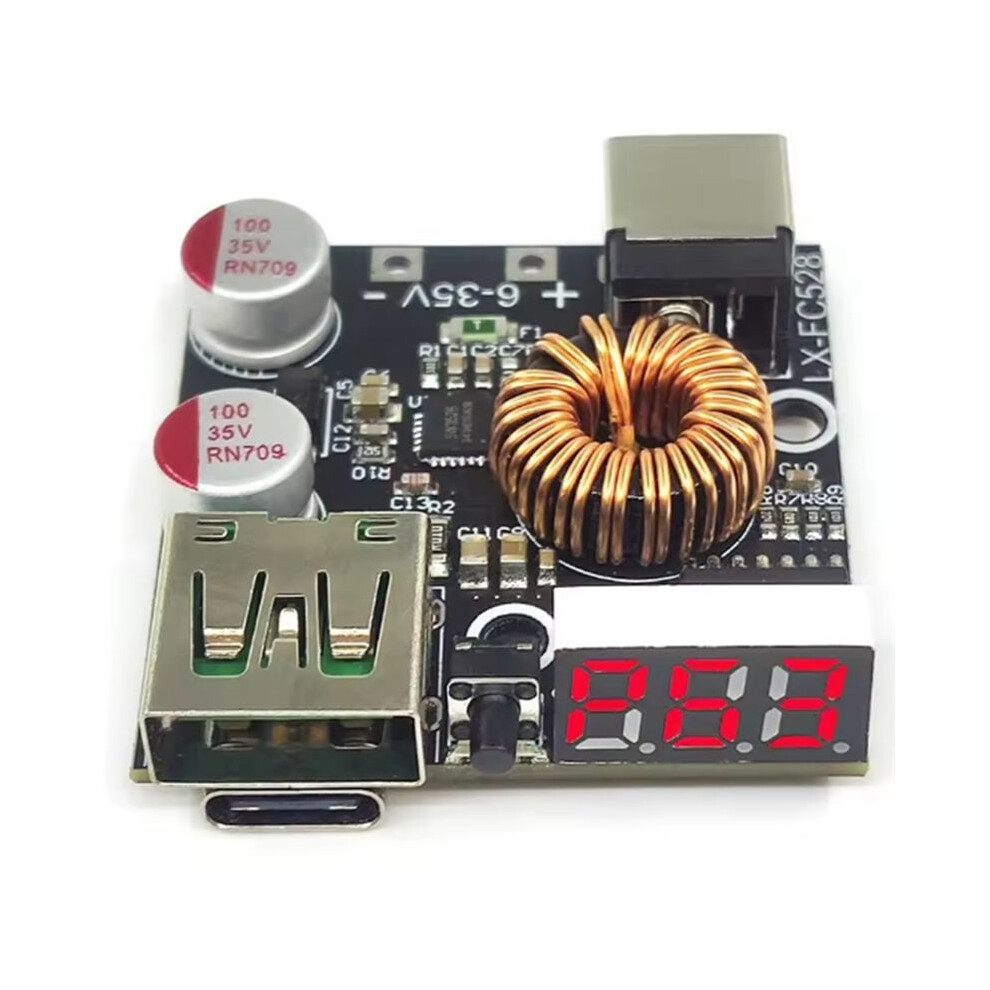

65W Full Protocol Mobile Phone Fast Charging Module PD Fast Charging Board QC4.0 3.0

Nou

În stoc

De ce îți va plăcea să cumperi de la OnBuy:

Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
Livrare gratuită – la milioane de produse de pe site
Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”

Vezi descrierea completă și detaliile produsului

Cantitate

65,49 RON

108,06 RON Reducere de 39%!

+45,35 RON livrare

1% Câștigați 0,65 RON instant Află mai multe

Adaugă în coș

Prețurile articolelor vândute de OnBuy includ TVA.

Opțiuni de plată în rate fără dobândă disponibile

Vezi descrierea completă și detaliile produsului

Livrare: Standard (45,35 RON) | lun 10 - lun 17 aug.

Vândut de: Hoeappt

Returnări: 30 zile

Protecție la plată pentru 180 de zile

Adaugă în coș

Descriere & Detalii

Rezumat

This fast charging module has voltage, current, power, display, powerful functions, Digital display of voltage, current and power, with separate fast charging indicator light, Using high-quality solid capacitors, double-wire large inductance, 3 screw positioning holes,The digital display shows voltage by default, and can be switched to current and power display by pressing the button.Output overcurrent, input overvoltage, input undervoltage, output short circuit protection
Interface: Type-c+USB dual interface. Input voltage range: 6-35v, recommended within 33V. Output voltage range: 4V-20v, automatically adjusted according to the fast charging protocol. Support QC4+/QC4/QC3.0/QC2.0/FCP/AFC/SFCP/MTK/SCP/BC1.2/DCP. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection. With digital display, the voltage, current and power can be switched by pressing the button
soft start function. Output voltage line compensation function, line compensation voltage 50mV@1A. High current USB interface. 3 positioning holes of 3mm. Board size: 36x38x11.3MM. Instructions:The input voltage of DC interface or welding wire interface is 6-35V. It is recommended to be in the range of 12V-32V. The module is charged by step-down. If you want to output 12V voltage, the input must be greater than 12V, and the power supply must be sufficient.
Use a high-current mobile phone charging cable to charge the mobile phone (the quality of the data cable will affect the charging speed). The power indicator light will be on when the welding wire is energized. The digital display shows voltage by default, and can be switched to current and power display by pressing the button. The first digit of the current mode displays "C", and the first digit of the power mode displays "P".
Protocol introduction:; Support PPS/PD3.0/PD2.0; Support QC4+/QC4/QC3.0/QC2.0; Support AFC/FCP; Support Samsung fast charging protocol AFC; Support MTK PE+1.1 and MTK PE+2.0; Support low-pressure SCP/high-pressure SCP/SFCP; Support BC1.2 DCP mode

Descriere 65W Full Protocol Mobile Phone Fast Charging Module PD Fast Charging Board QC4.0 3.0

This fast charging module has voltage, current, power, display, powerful functions, Digital display of voltage, current and power, with separate fast charging indicator light, Using high-quality solid capacitors, double-wire large inductance, 3 screw positioning holes,The digital display shows voltage by default, and can be switched to current and power display by pressing the button.Output overcurrent, input overvoltage, input undervoltage, output short circuit protection
Interface: Type-c+USB dual interface. Input voltage range: 6-35v, recommended within 33V. Output voltage range: 4V-20v, automatically adjusted according to the fast charging protocol. Support QC4+/QC4/QC3.0/QC2.0/FCP/AFC/SFCP/MTK/SCP/BC1.2/DCP. Output overcurrent, input overvoltage, input undervoltage, output short circuit protection. With digital display, the voltage, current and power can be switched by pressing the button
soft start function. Output voltage compensation function, compensation voltage 50mV@1A. High current USB interface. 3 positioning holes of 3mm. Board size: 36x38x11.3MM. Instructions:The input voltage of interface or welding wire interface is 6-35V. It is recommended to be in the range of 12V-32V. The module is charged by step-down. If you want to output 12V voltage, the input must be greater than 12V, and the power supply must be sufficient.
Use a high-current mobile phone charging cable to charge the mobile phone (the quality of the data cable will affect the charging speed). The power indicator light will be when the welding wire is energized. The digital display shows voltage by default, and can be switched to current and power display by pressing the button. The first digit of the current mode displays "C", and the first digit of the power mode displays "P".
Protocol introduction:; Support PPS/PD3.0/PD2.0; Support QC4+/QC4/QC3.0/QC2.0;

Detalii

OPC	PX29ZQX
Coduri	4712560087464 (EAN)
	Informații despre produs și siguranță

Date despre produs

Height	1cm
Width	5cm
Length	5cm
Weight	0.014kg
Colour	As Shown
Material	PCB
