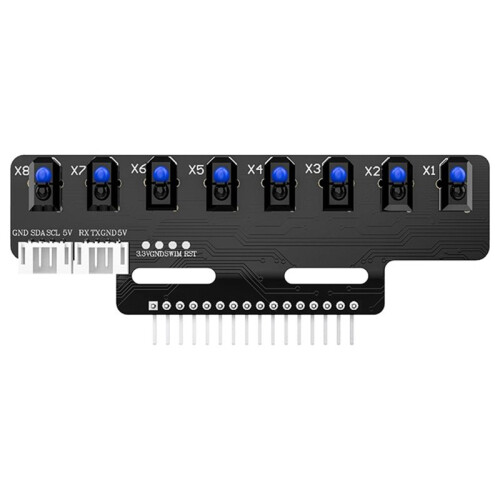

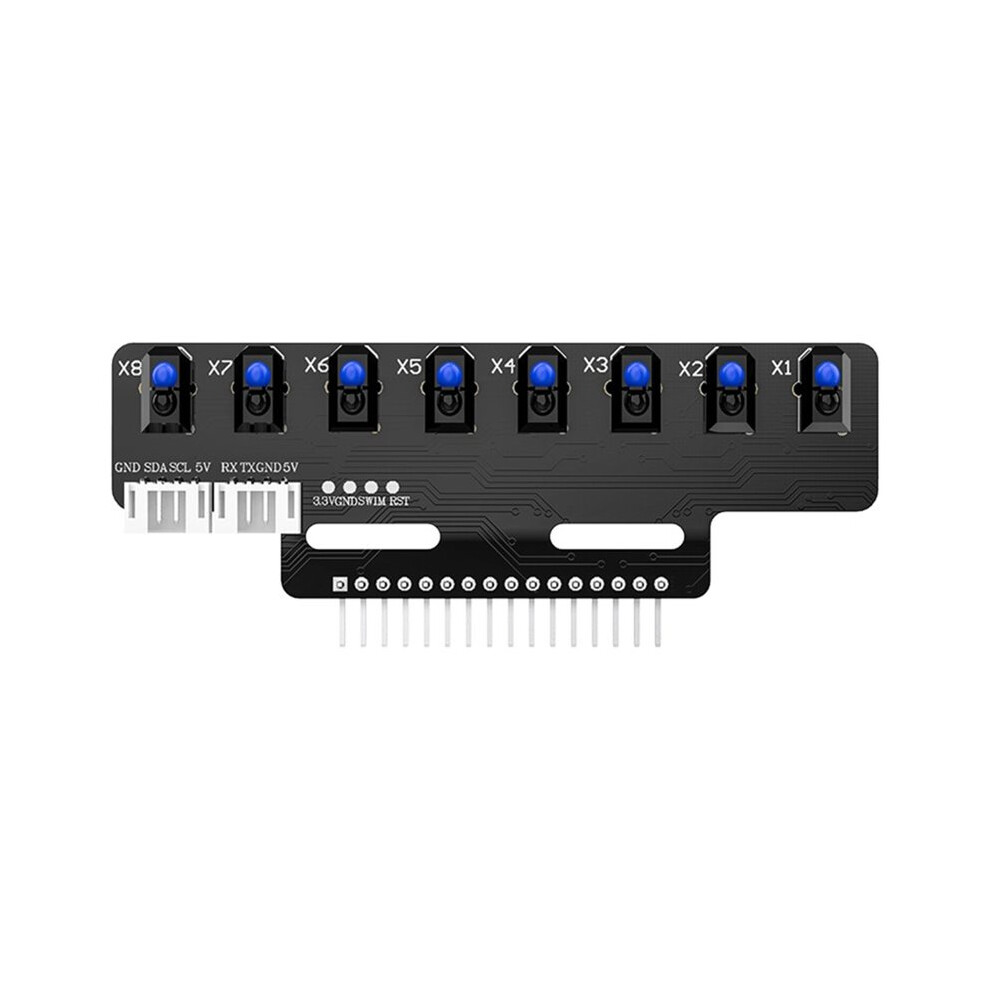

8 Channel Tracking IR Sensor Module High Sensitivity Automatic Calibration Obstacle Avoidance Sensor Board
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 132,000 de recenzii cu evaluare “Excelent”
89,97 RON
148,45 RON
Reducere de 39%!
+50,92 RON livrare
1%
Câștigați 0,90 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (50,92 RON) | mar 1 - lun 7 sept.
Vândut de: Hoeappt
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat

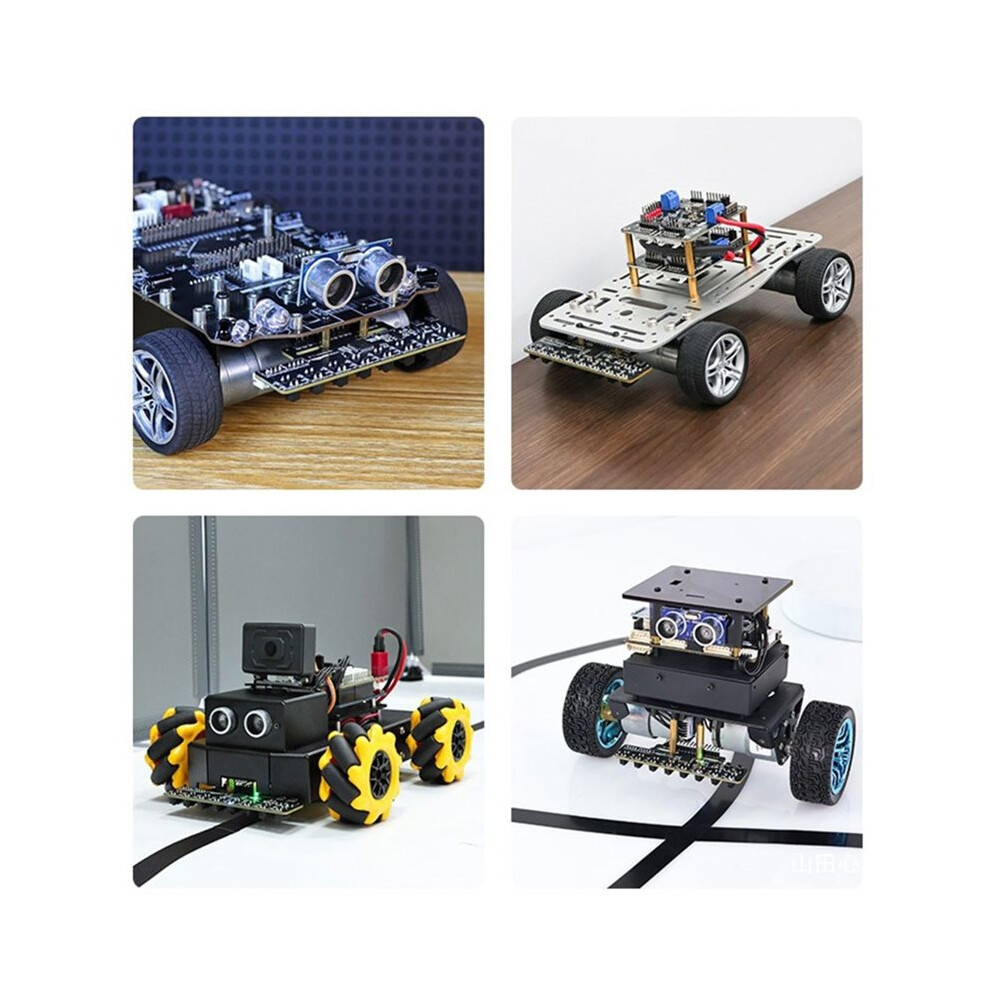

- High-Precision 8-Channel Line Tracking This IR sensor module offers 8 independent infrared tracking channels, enabling accurate detection of black/white lines, edges, and paths. Ideal for line-following smart robot cars, educational robots, and competition robots requiring precise path recognition.
- High-Sensitivity Infrared Detection Equipped with high-sensitivity infrared sensors and optimized signal processing, the module quickly identifies line contrast and ground color changes. Stable performance in various indoor lighting environments helps ensure reliable tracking with reduced misjudgment.

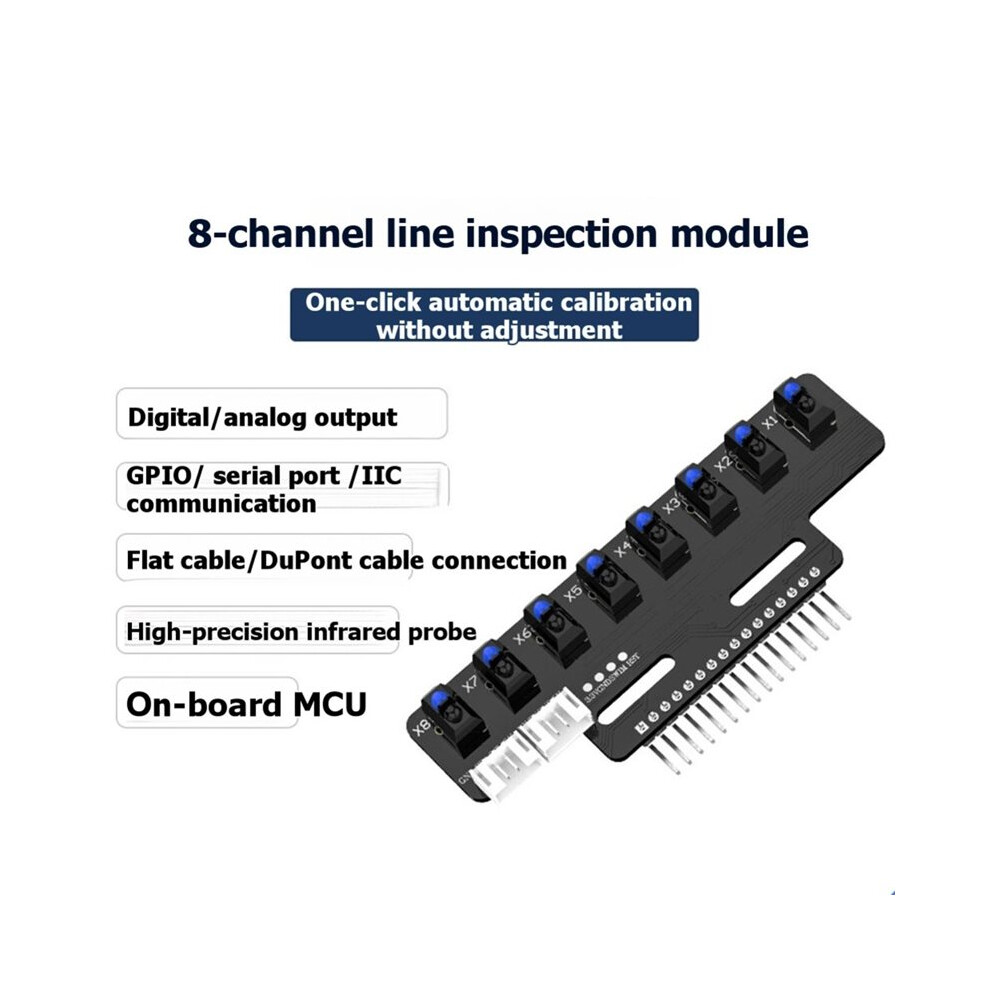

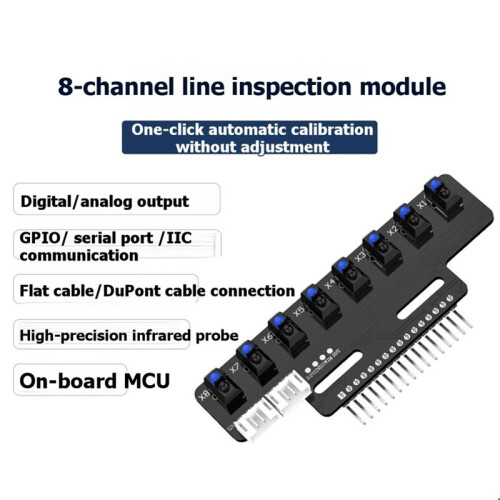

- Automatic Calibration Function Built-in automatic calibration simplifies setup: one-key calibration adjusts detection thresholds according to different surfaces, such as white/black tape, wooden floors, or dark carpets. This reduces manual tuning time and improves usability for beginners and advanced users.
- Obstacle Avoidance and Edge Detection Besides line tracking, the module can assist in basic obstacle avoidance and edge detection when used with appropriate control algorithms. Suitable for applications such as anti-drop protection at table edges and simple obstacle detection in robot navigation tasks.

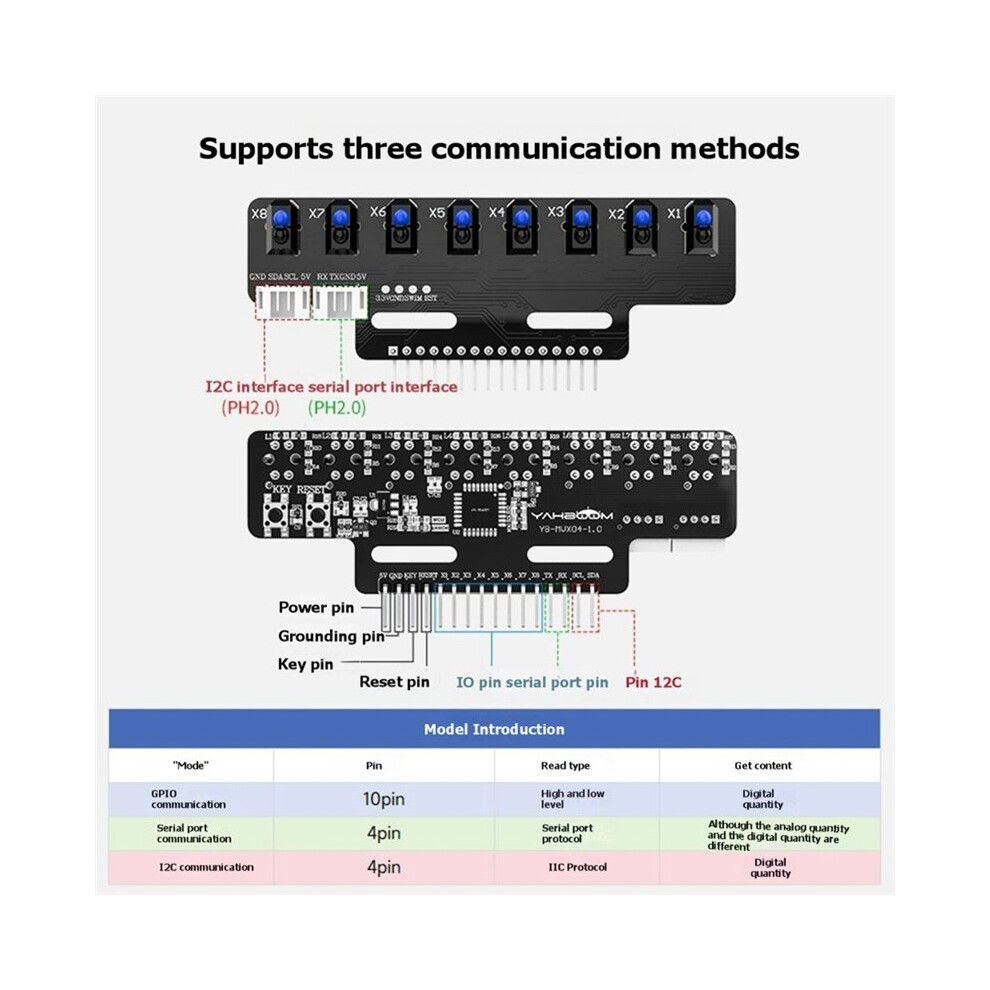

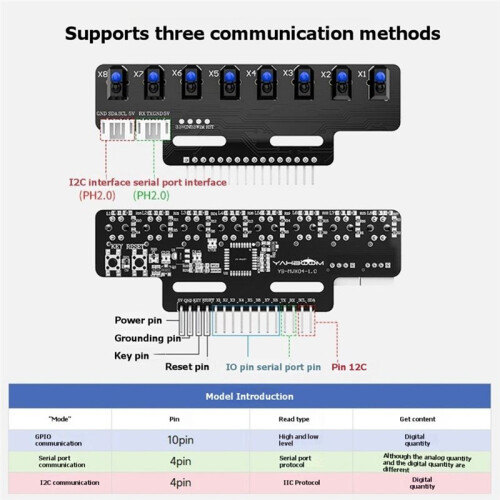

- Easy Installation and Clear Output Compact PCB layout with pre-drilled mounting holes allows quick installation on most robot car chassis. Each channel offers independent digital output, and the module supports real-time state indication via LEDs (if used), helping users debug and observe sensor status at a glance.
Descriere 8 Channel Tracking IR Sensor Module High Sensitivity Automatic Calibration Obstacle Avoidance Sensor Board
High-Precision 8-Channel Tracking This IR sensor module offers 8 independent infrared tracking channels, enabling accurate detection of black/white lines, edges, and paths. Ideal for -following robot cars, educational robots, and competition robots requiring precise path recognition.
High-Sensitivity Infrared Detection Equipped with high-sensitivity infrared sensors and optimized signal processing, the module quickly identifies contrast and ground color changes. Stable performance in various indoor lighting environments helps ensure reliable tracking with reduced misjudgment.
Automatic Calibration Function Built-in automatic calibration simplifies setup: one-key calibration adjusts detection thresholds according to different surfaces, such as white/black tape, wooden floors, or dark carpets. This reduces manual tuning and improves usability for beginners and advanced users.
Obstacle Avoidance and Detection Besides tracking, the module can assist in basic obstacle avoidance and detection when used with appropriate control algorithms. Suitable for applications such as anti-drop protection at table edges and simple obstacle detection in robot navigation tasks.
Easy Installation and Clear Output Compact PCB layout with pre-drilled mounting holes allows quick installation most robot car chassis. Each channel offers independent digital output, and the module supports real- state indication via LEDs (if used), helping users debug and observe sensor status at a glance.
Color: Black
Material: PCB
Package Contents:
1x 8 Channel Tracking IR Sensor Module
1x PH2.0 4-Pin Cable
Detalii
| OPC | PXRC7X7 |
|---|---|
| Coduri | 4711717101756 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 11cm |
| Length | 20cm |
| Weight | 0.092kg |
| Colour | Black |
| Material | PCB |
