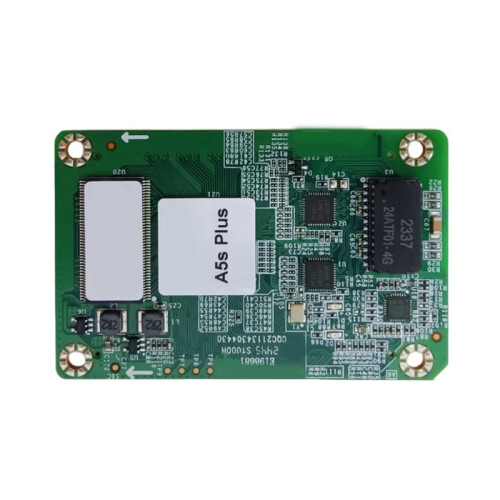

A5s LED Receiving Card 18bit+ 512x384@60Hz Pixel Calibration Dual Backup Low Latency LED Display Controller Card

Descriere A5s LED Receiving Card 18bit+ 512x384@60Hz Pixel Calibration Dual Backup Low Latency LED Display Controller Card

Reliability meets performance with the dual backup feature, providing redundancy and minimizing downtime.
Enjoy seamless gameplay and real- interactions with our low latency technology, reducing delay and enhancing user experience.
This display controller card is compatible with various audio and video equipment styles, offering versatility and flexibility.
Experience crystal-clear visuals with a 18bit+ 512x384@60Hz resolution, ensuring and detailed images.

Max Loading Capacity
PWM driver IC:
512x384@60Hz (8bit)
256x384@60Hz (10/12bit)
Common driver IC:
384x384@60Hz (8bit)
192x384@60Hz (10/12bit)
Data output: 32-parallel / 64-serial (expandable to 128-serial)

Core Display Features
Color Management: Rec.709/DCI-P3/Rec.2020 & custom gamut
18bit+: 4x higher grayscale, smoother image
Pixel-level brightness & chroma calibration
Quick dark/bright correction
Multi-batch adjustment (reduce module differences)
Low latency: down to 1 frame
3D support
RGB independent gamma adjustment
90 image rotation (0/90/180/270)

Maintenance & Management
module: ID, temp/voltage monitoring, error detection
Auto calibration coefficient upload (flash module)
Module flash management & one-click coefficient apply
Mapping 1.1: display controller/port/ card info
Customizable boot/offline image
Temp/voltage & dual power status monitoring
Bit error detection & firmware/parameter readback

Reliability & Backup
Dual-card backup (auto )
Loop backup (network fault tolerance)
Dual backup for configuration & firmware

Environment
Operating: -20C~+70C, 10-90%RH
Storage: -40C~+85C, 0-95%RH
Color: As Shown
Material: PCB

Package Contents:
1*LED Rec
