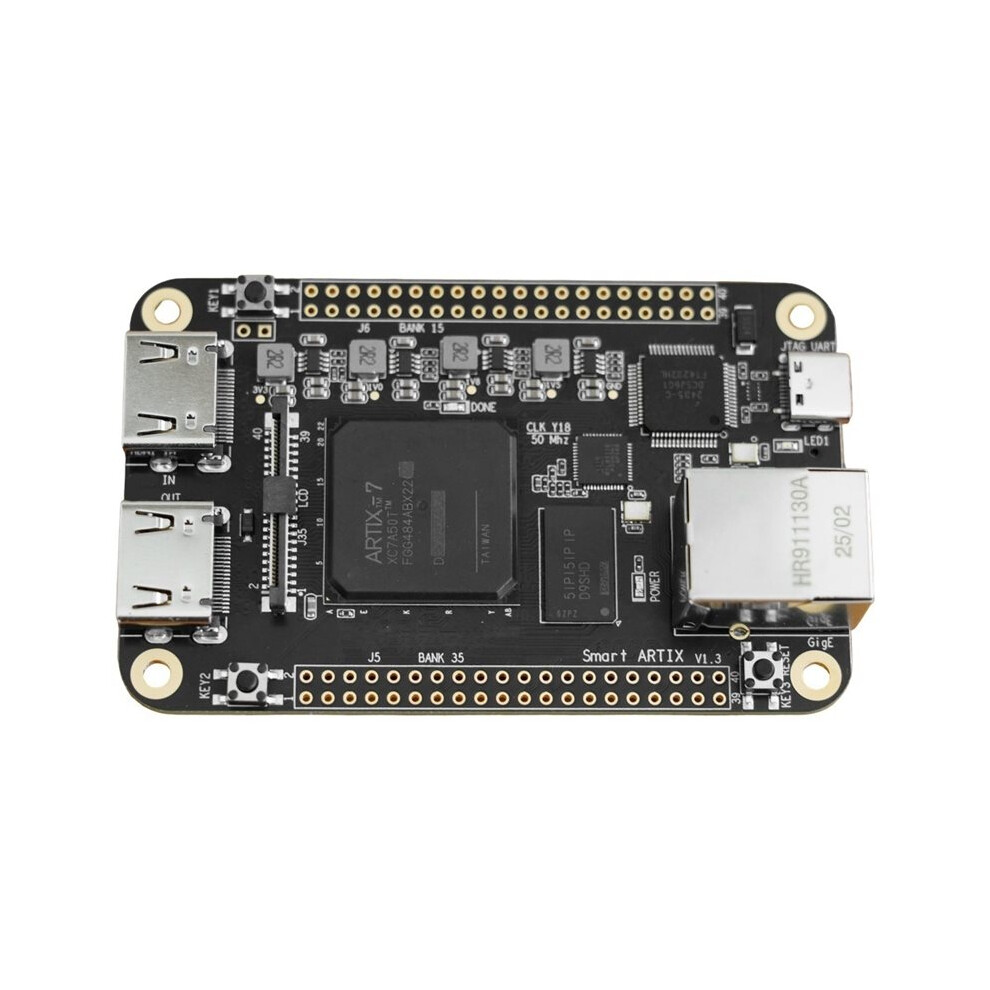

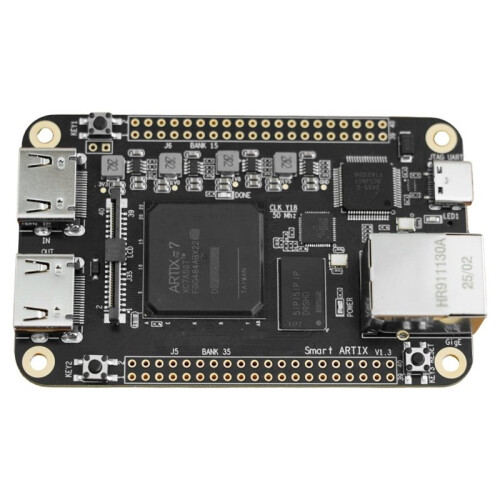

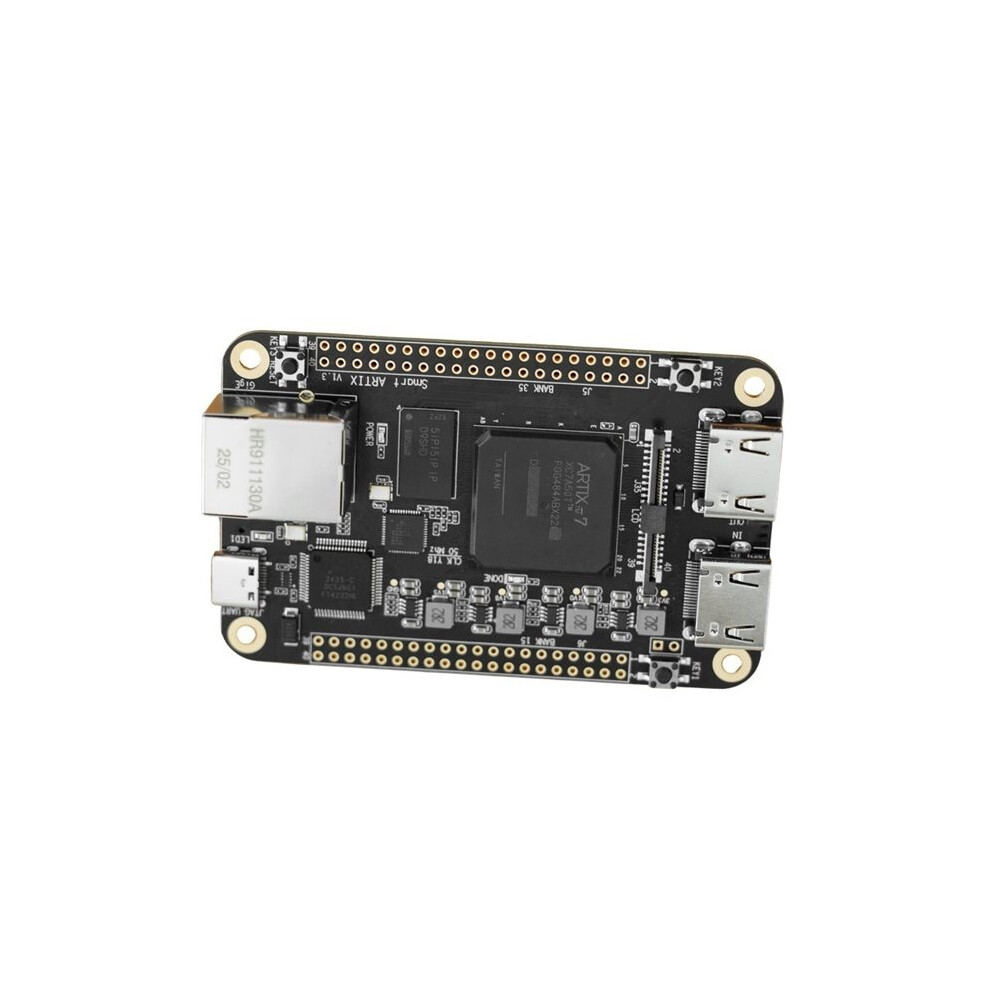

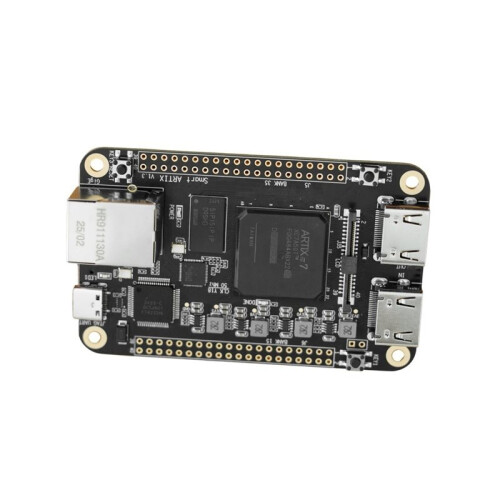

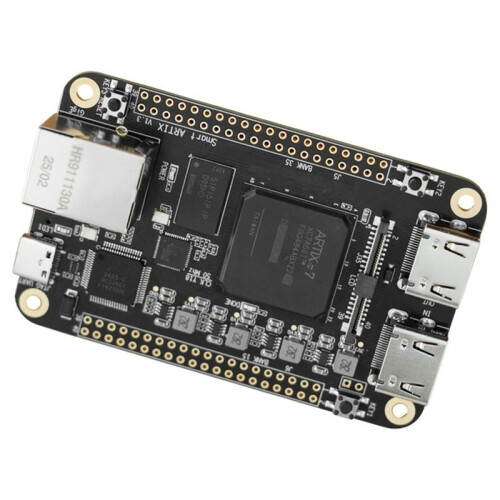

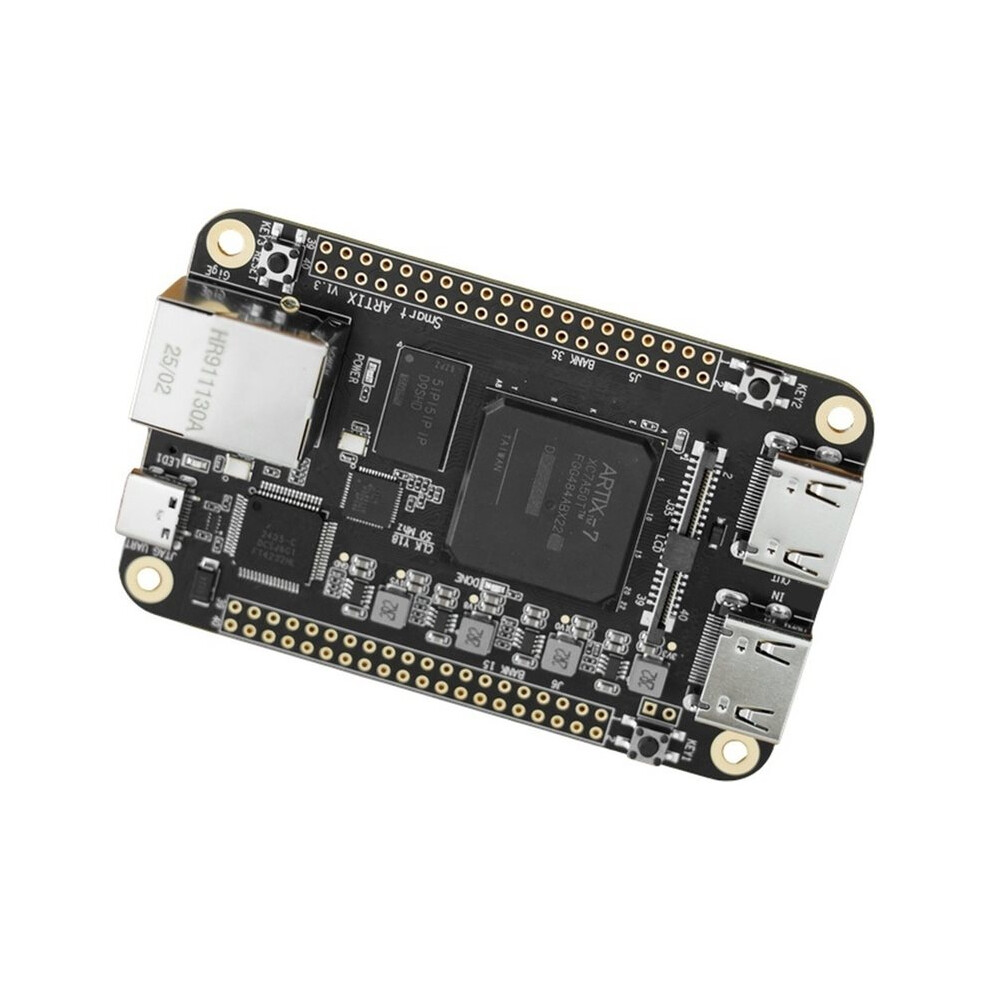

ARTIX Development Board FPGA Minimum System Board XC7A50T (Associated with 35T 100T)

Descriere ARTIX Development Board FPGA Minimum System Board XC7A50T (Associated with 35T 100T)

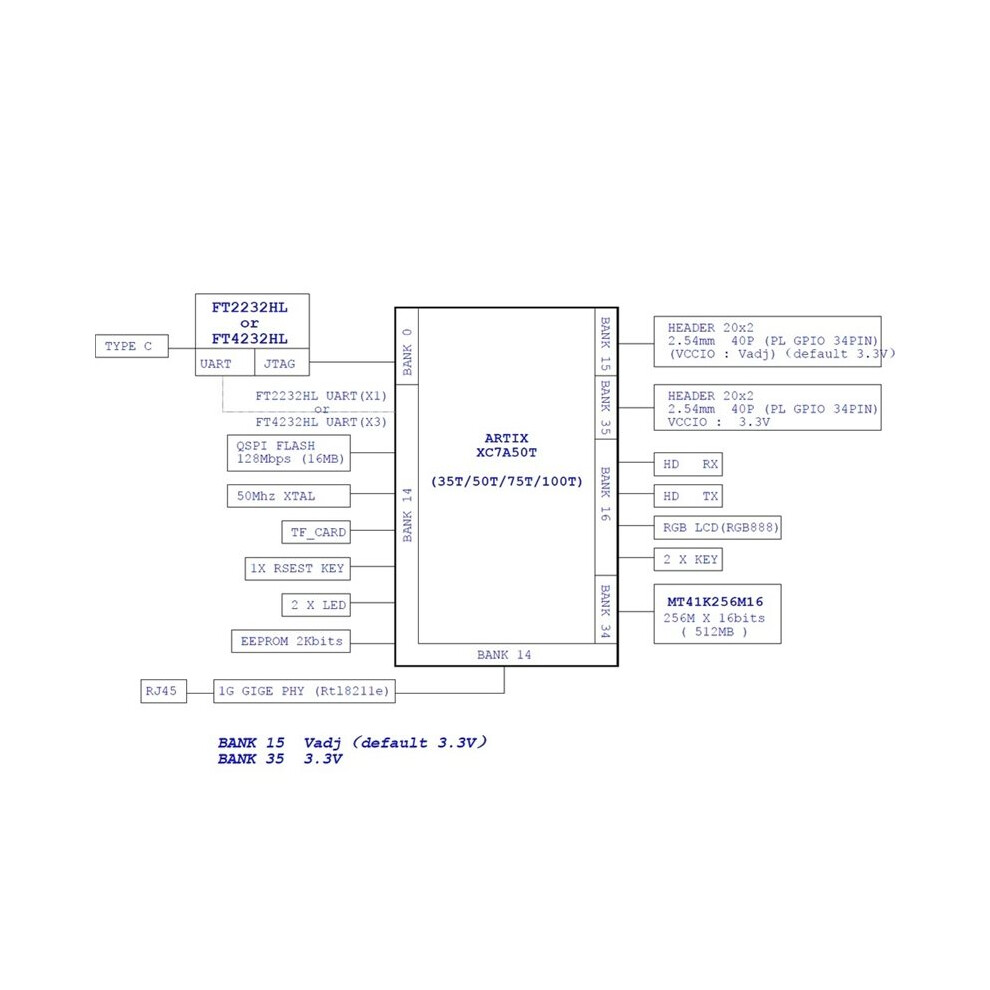

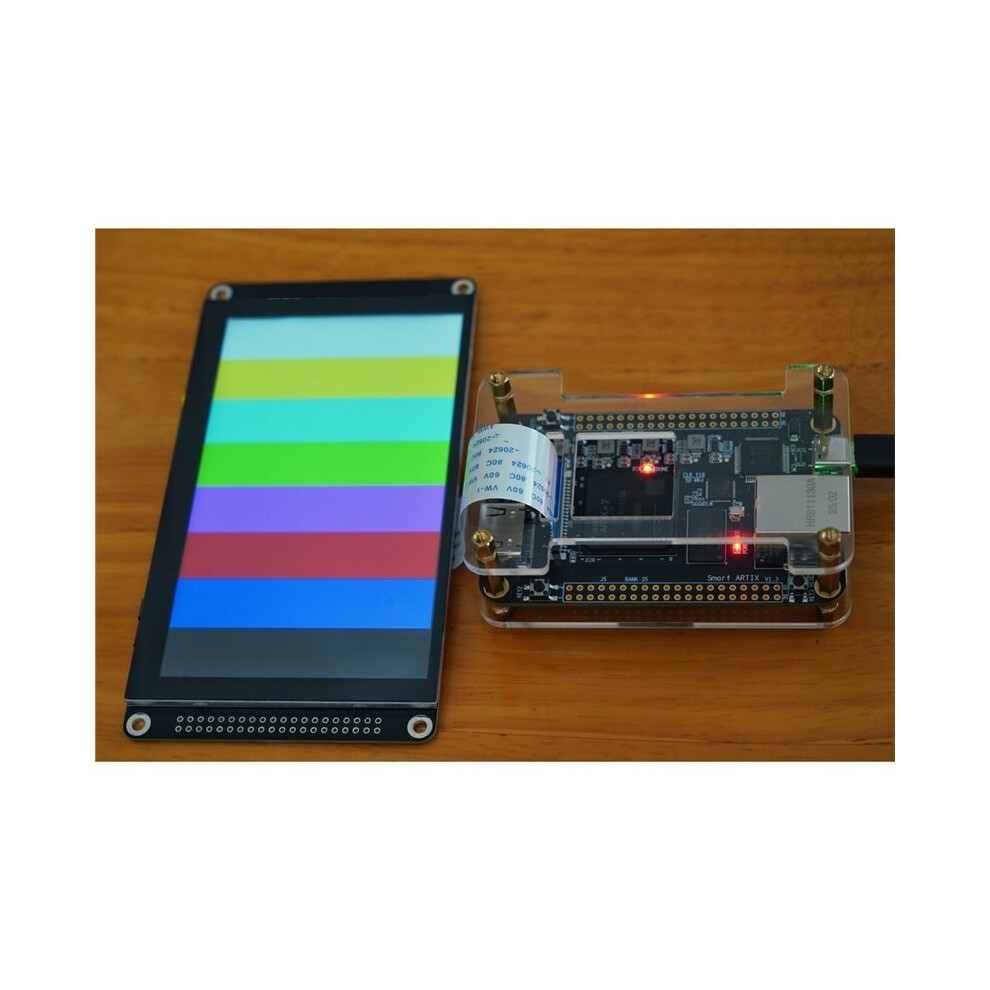

LCD Interface: 1x 40-pin RGB LCD interface (40-pin FPC); pinout is compatible with RGB screens from this site and ALIENTEK.
Logic GPIO: 68 FPGA I/O pins exposed; all are routed as differential pairs (matched length within pairs and across the entire bank the same pin header side).
GPIO Voltage: Bank voltage one side is independently adjustable (via an SOT23-5 LDO); the other side is fixed at 3.3V.
Power Supply: Powered via Type-C port (JTAG or USB Slave) or by supplying 5V to the VCC pin via an adapter board connected to the pin headers.
-board Downloader: Includes an integrated downloader; no external downloader required.

Chip: XC7A50T-2FGG4841
PCB Layers: 8 layers (ENIG finish)
DDR Memory: 256M x 16-bit (512MB)
Flash: 128Mbits (16MB) (for program storage and booting)
EEPROM: 24C02 (2Kbits)
Slot: TF card slot
Clock: 50MHz active crystal oscillator
Network: 1x Gigabit Ethernet (RTL8211E)
-compatible: 2x -compatible interfaces (1x TX, 1x RX)
JTAG: Integrated Xilinx JTAG downloader functionality (-board)
Serial Port: 1x USB-UART (share the Type-C interface with JTAG)
Note: The initial batch uses the FT4232HL chip, mapping to 3 serial ; all 3 are connected to FPGA I/O pins.
Buttons: 3 buttons (one includes an RC circuit and can serve as a system RESET)
LEDs: 2 programmable LEDs + 1 "Done" status LED + 1 power indicator LED
Color: Black
Material: PCB+Plastic+Metal

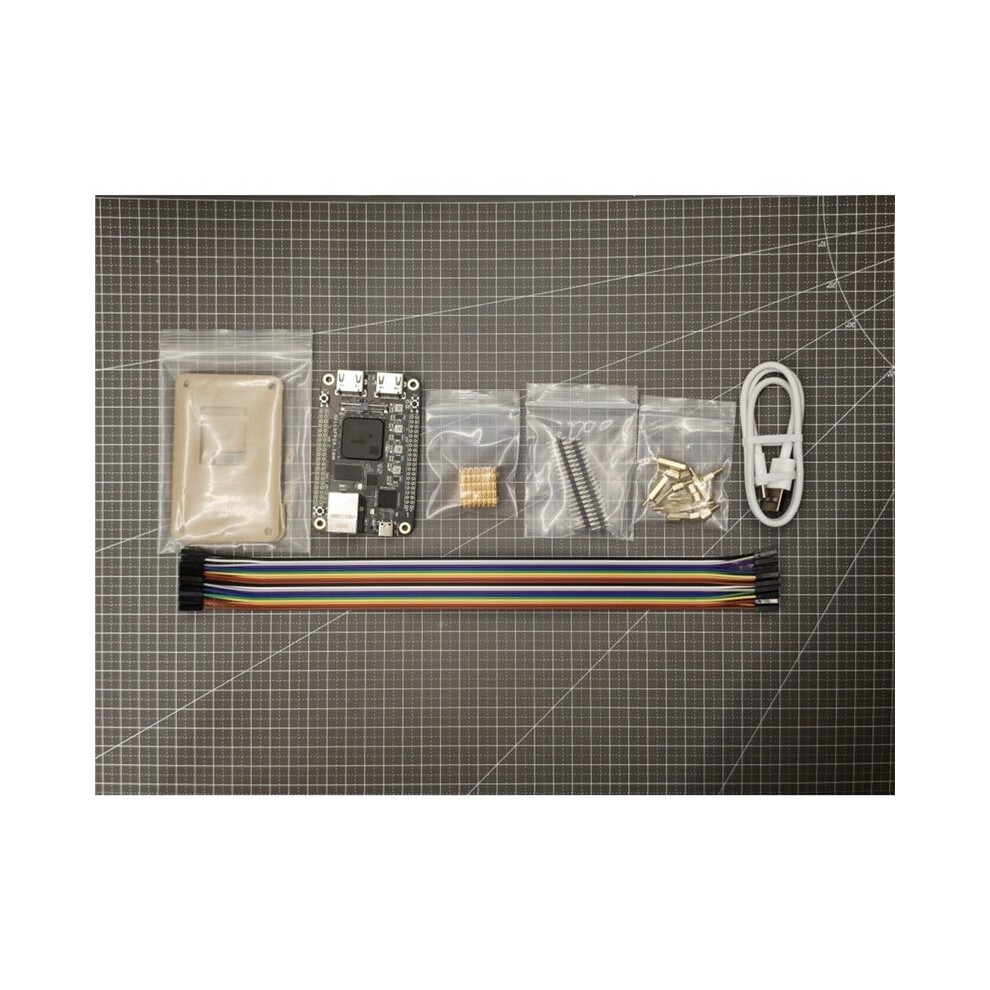

Package Contents:
1 x Development board
1 x Case
1 x USB cable (random color )
1 x Heatsink
2 x Pin headers
1 x Dupont wire set
1 x Screw pack
