Audio Amplifier Board + BA3880BBE Driver Preamplifier Module with Tone Adjustment and Surround Sound Support None BBE
Brand ISTOVO
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 130,000 de recenzii cu evaluare “Excelent”
161,11 RON
209,24 RON
Reducere de 23%!
+21,21 RON livrare
1%
Câștigați 1,61 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | mie 5 - lun 10 aug.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Curele de transmisie audio
Descriere & Detalii
Rezumat

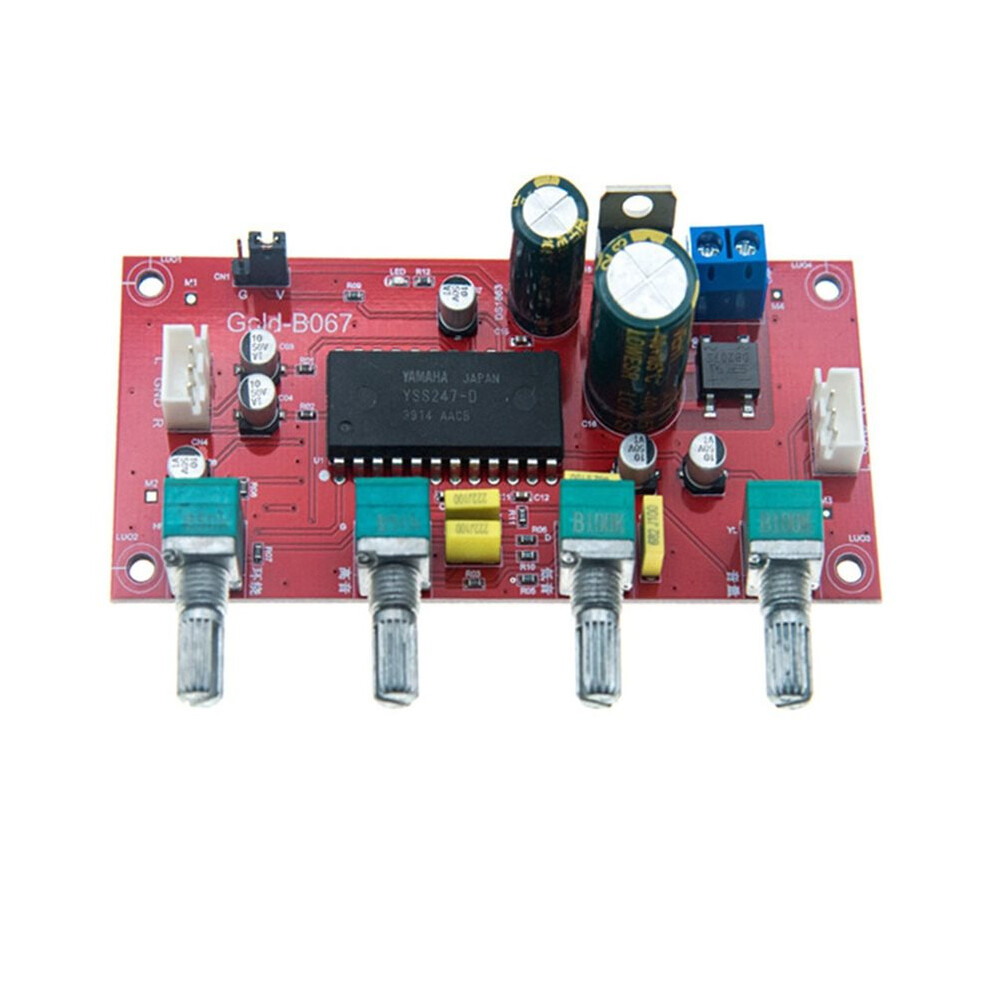

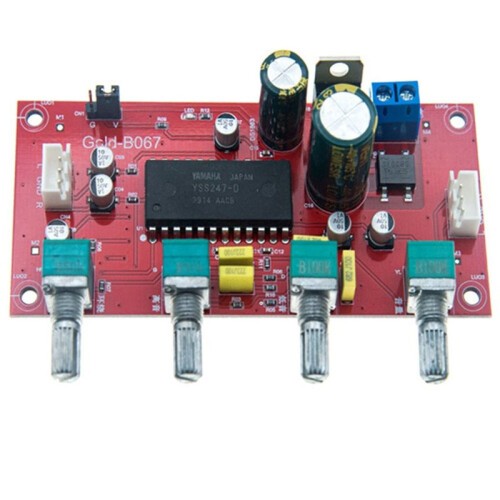

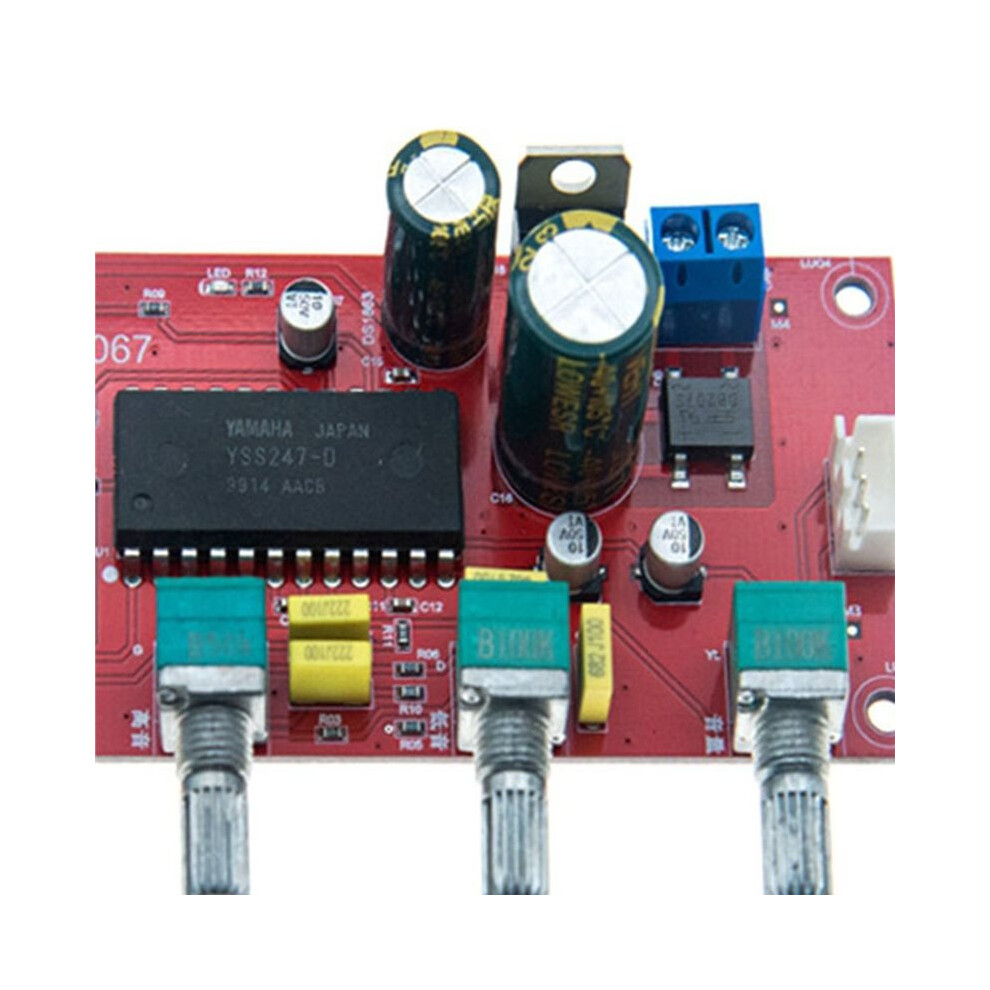

- Core Chip: YYS247 tone chip; the BBE version additionally features a BA3880BBE exciter chip (enhancing sound clarity).
- Adjustment Functions: Treble adjustment, bass adjustment, volume adjustment, surround effect adjustment (4 potentiometers).
- Polypotentiometer Specifications: All pitched 25mm, with dedicated knob caps.
- Operating Voltage: AC 5-16V or DC ±21V (Do not use switching power supplies to avoid interference).
- PCB Size: 100mm x 45mm x 28mm (Universal for all versions).
Descriere Audio Amplifier Board + BA3880BBE Driver Preamplifier Module with Tone Adjustment and Surround Sound Support None BBE
Core Chip: YYS247 tone chip; the BBE version additionally features a BA3880BBE exciter chip (enhancing sound clarity).
Adjustment Functions: Treble adjustment, bass adjustment, volume adjustment, surround effect adjustment (4 potentiometers).
Polypotentiometer Specifications: All pitched 25mm, with dedicated knob caps.
Operating Voltage: AC 5-16V or 21V (Do not use switching power supplies to avoid interference).
PCB Size: 100mm x 45mm x 28mm (Universal for all versions).
I. Product Overview
This product is a high-fidelity tone control board, featuring a YYS247 tone chip and a BA3880BBE exciter chip. It allows for precise adjustment of treble, bass, volume, and surround effects, while also supporting a pass-through mode. It caters to both audiophiles seeking original sound and general users' personalized sound needs, making it suitable for upgrading and modifying various audio systems

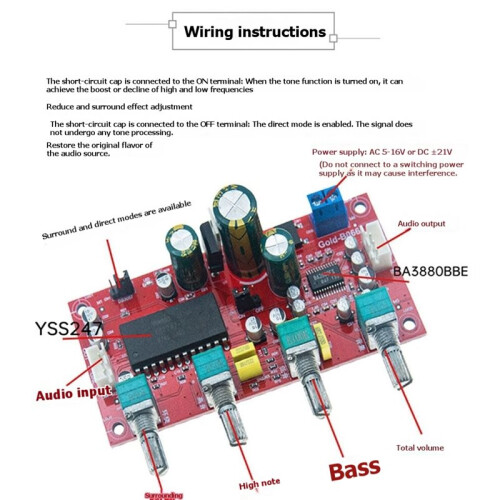

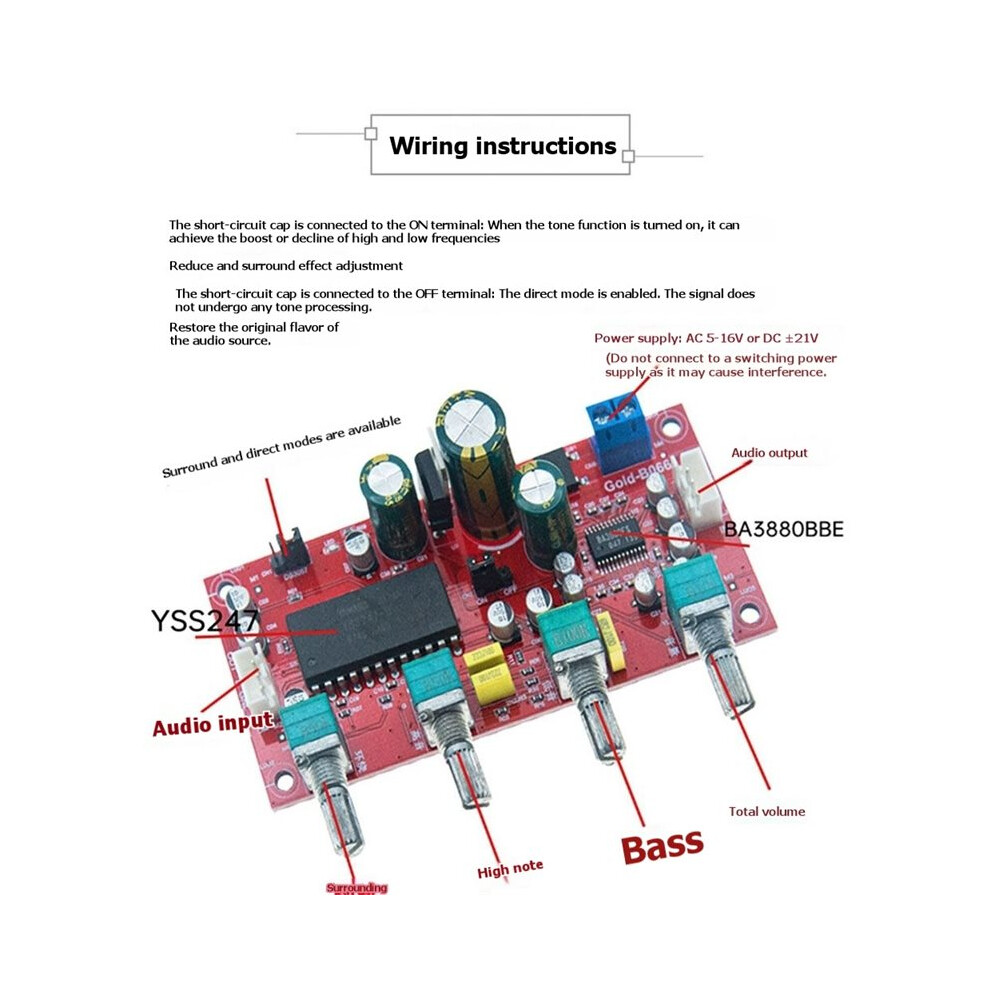

II. Mode Switching
Pass-through Operation
This tone board features a pass-through (toggled via a shorting cap) to control whether the signal passes through the tone processing circuit:
1. Shorting cap connected to V terminal (marked "" for BBE versions): Tone function enabled. The preamp input signal is processed by the circuit, allowing for high/low frequency boosting or attenuation, and surround effect adjustment to meet personalized sound needs (such as those requiring deeper bass or enhanced treble penetration)
2. Shorting cap connected to G terminal (marked "OFF" for BBE versions): Pass-through mode enabled. The signal is transmitted directly to the power amplifier without any tone processing, restoring the original sound of the source,making it for audiophiles to listen to music such as CDs
Color: As Shown
Material: Electronic Component
Specification:
Detalii
| OPC | PX2JPDX |
|---|---|
| Brand | ISTOVO |
| Coduri | 6033226962900 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 8cm |
| Length | 15cm |
| Weight | 0.1015kg |
| Colour | As Shown |
| Size | No BBE |
| Material | Electronic Component |
