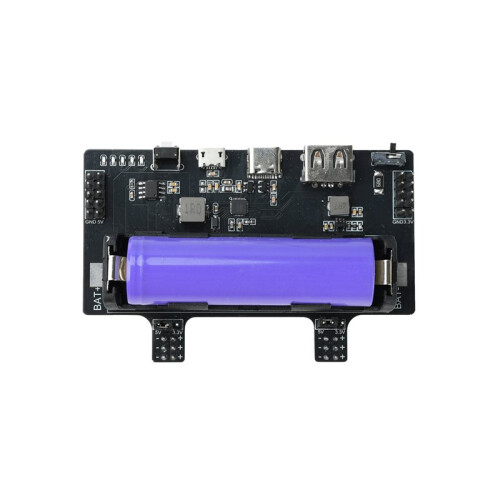

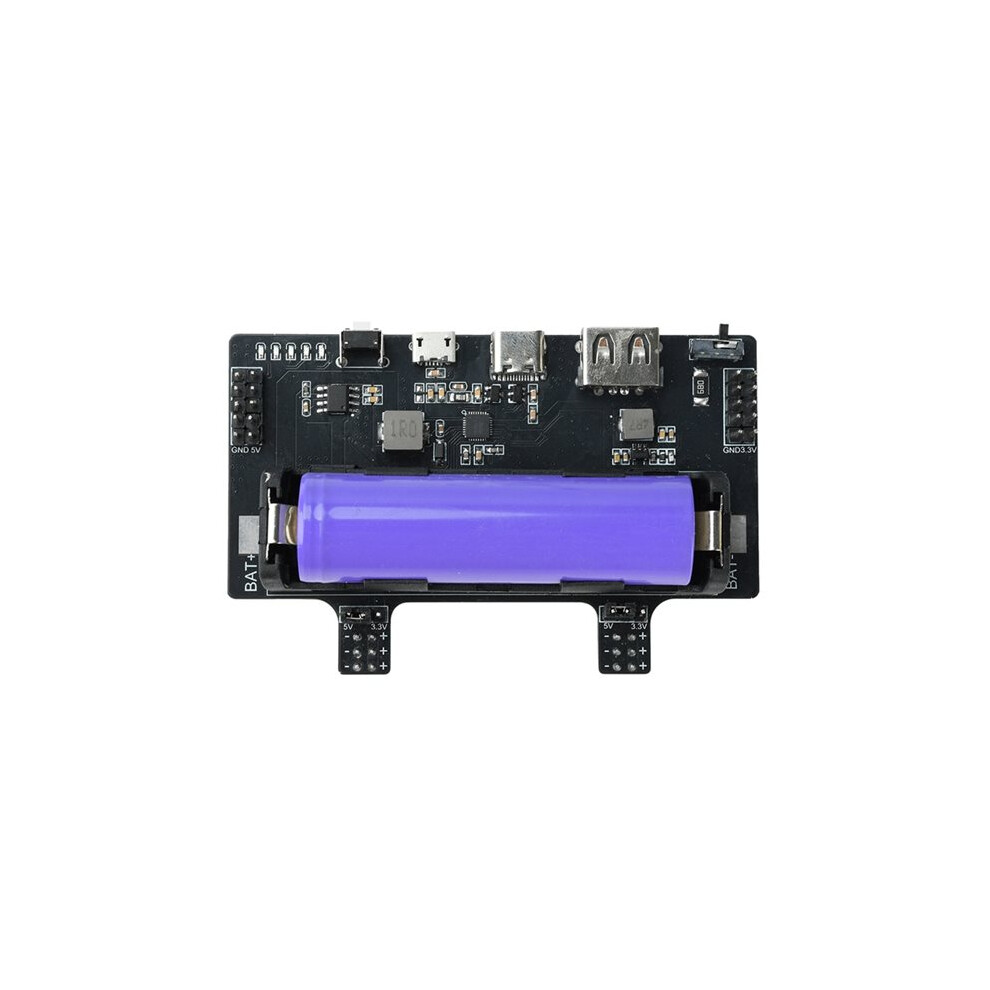

Breadboard Power Supply Module, Dual Output Charging Board with Power Indicator,Anti Sleep Design for DIY Electronic

Descriere Breadboard Power Supply Module, Dual Output Charging Board with Power Indicator,Anti Sleep Design for DIY Electronic

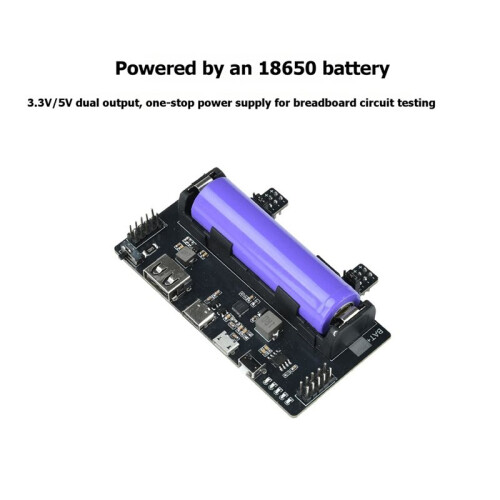

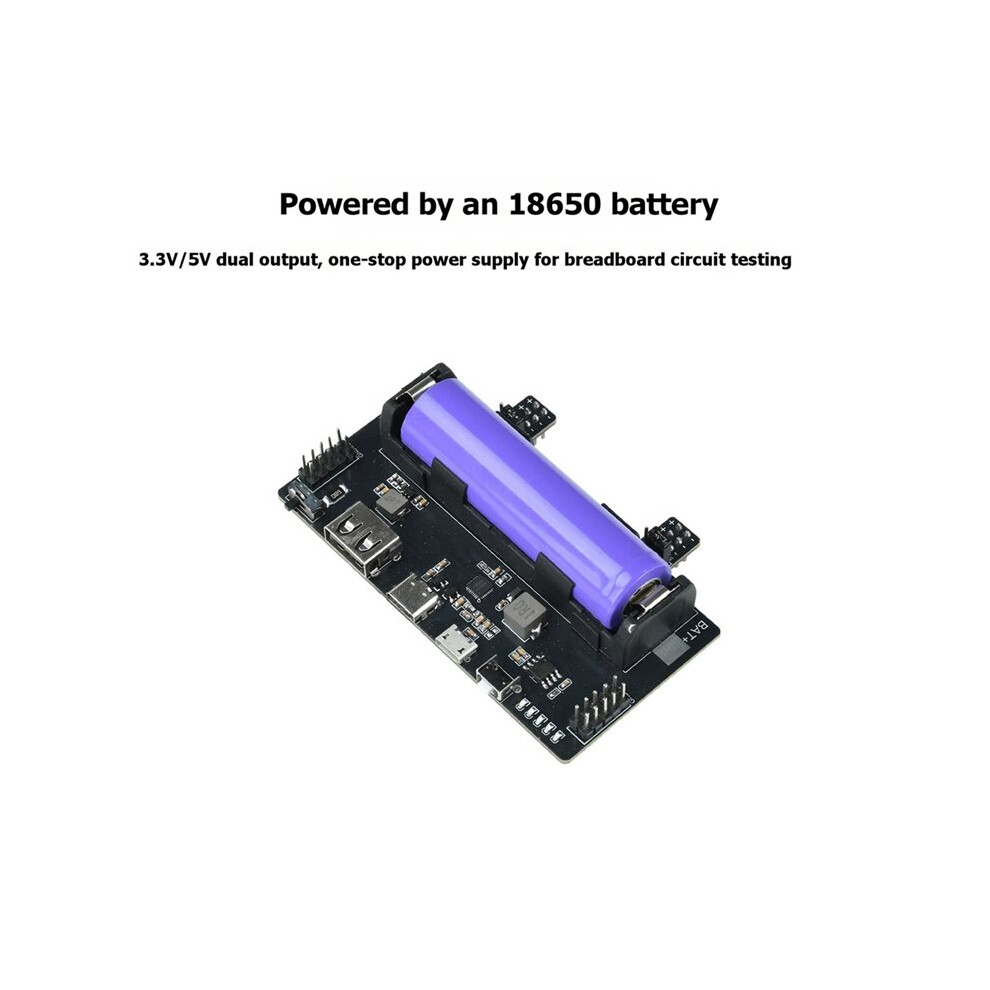

1. Powered by a single 18650 battery with dual 3.3V/5V outputs; an all-in-one power solution for breadboard circuit testing.

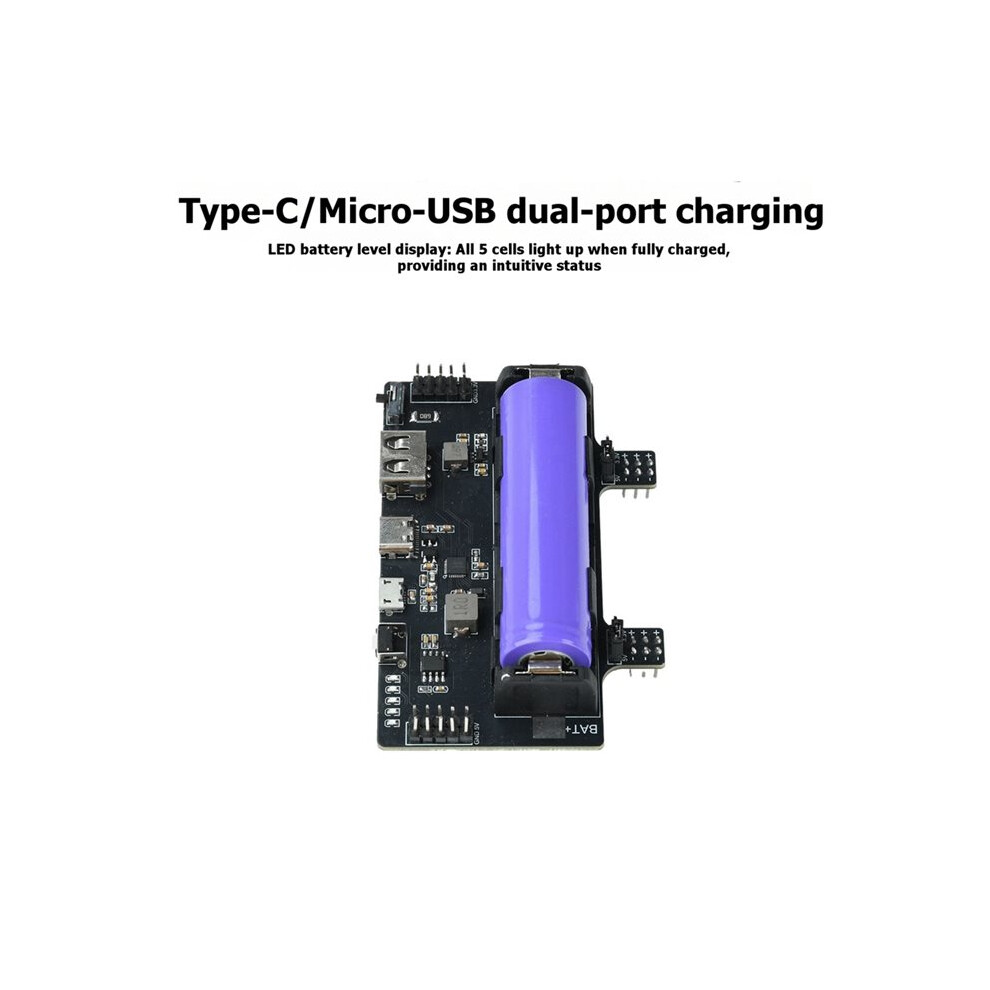

2. Dual charging (Type-C/Micro-USB) with an LED battery level indicator; all 5 LEDs light when fully charged for clear status monitoring.

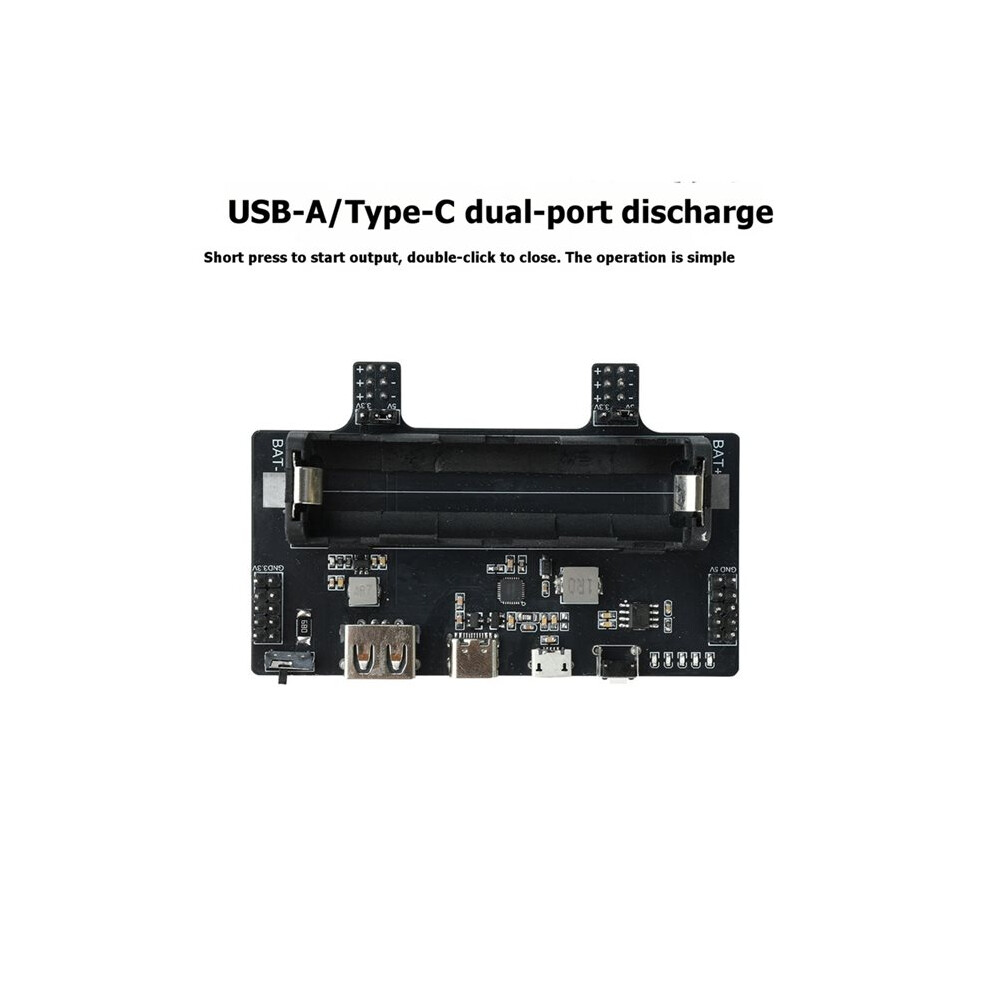

3. Dual output (USB-A/Type-C); simple operation-short press to enable output, double-click to disable.

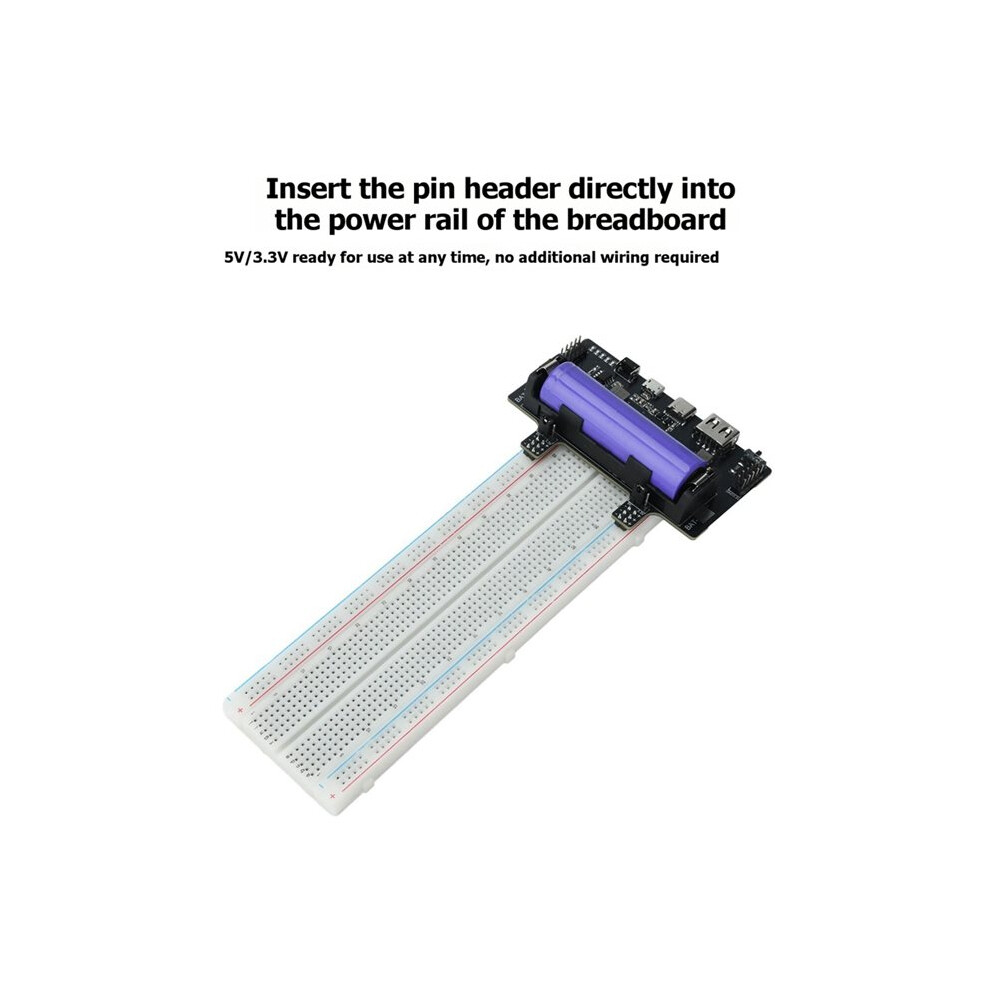

4. Pin headers plug directly into breadboard power rails; 5V/3.3V power is instantly available without extra wiring.

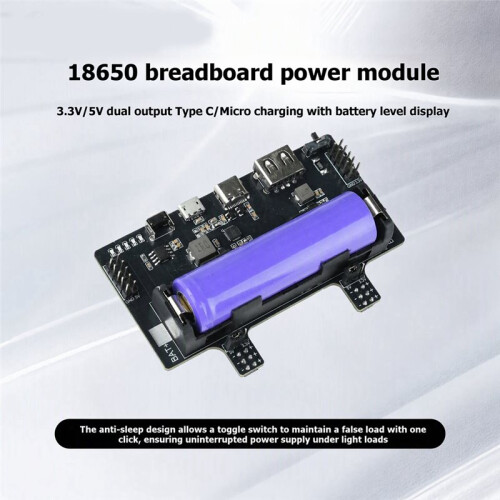

5. Anti-sleep design; a toggle maintains a dummy load to prevent the module from shutting down during light-load operation.

Product Specifications
Output Interfaces: USB-A / Type-C
Output Voltage/Current: 5V/3A, 3.3V/2A (shared total current across during discharge)
Charging Input: Type-C, Micro-USB (5V, to 3A)
Power Source: 1 x 18650 Lithium Battery (3.7V)
Power Level Indicators: D1-D5 (5 red LEDs)
3.3V Output: Derived from the 5V rail via the onboard PW2053 regulator; active only when output is enabled.
Usage Instructions
1. Battery Installation: Insert one 18650 lithium battery into the holder. Observe polarity: Pad 1 is positive (BAT+), Pad 2 is negative (BAT-); incorrect installation may damage the board.
2. Charging: Connect a 5V adapter to the Type-C or Micro-USB port using a USB cable; charging starts automatically. LEDs indicate progress; all 5 LEDs light when fully charged.
3. Discharging: Connect your device to the USB-A or Type-C port; if the output is not active, briefly press the button to enable it.

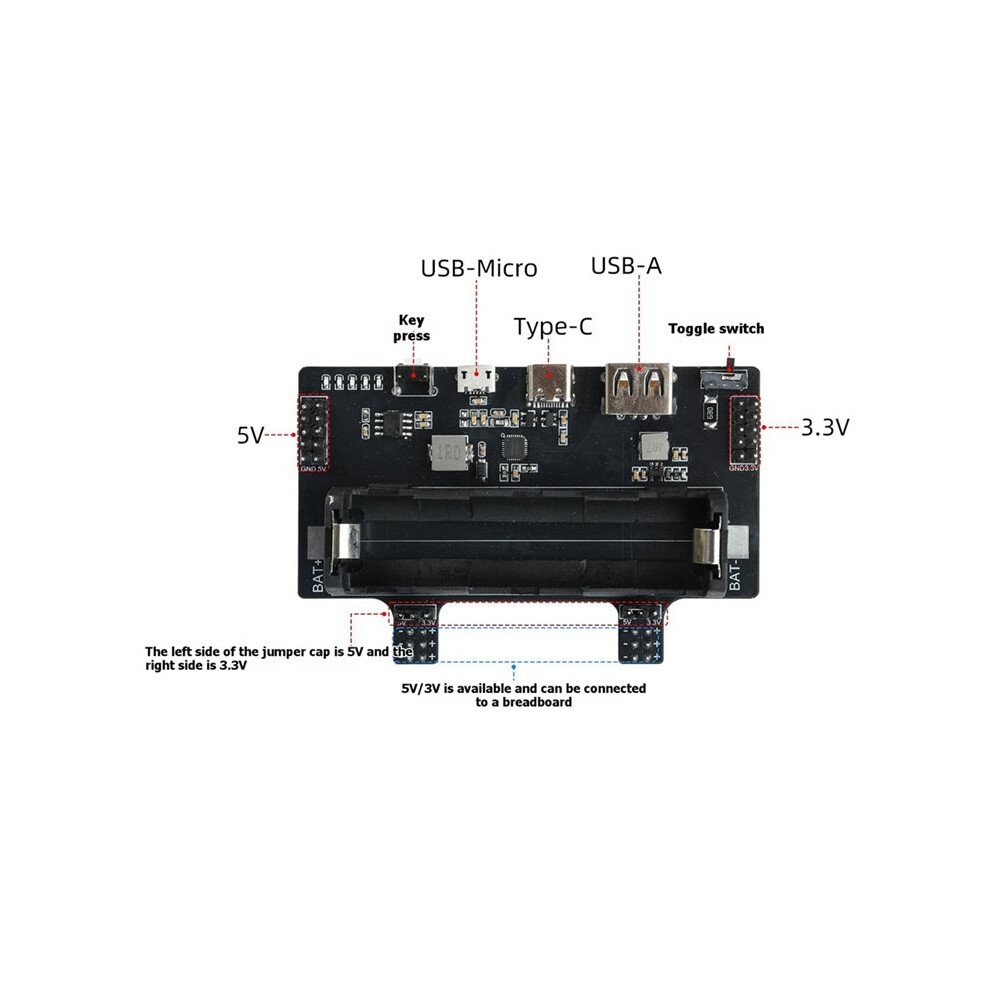

4. Breadboard Power Supply: After enabling the output via the button, the top-left header pins output 5V and the top-right pins output 3.3V; the bottom header pins can be inserted directly into breadboard power rails.
Color: As Shown
Material: PCB
