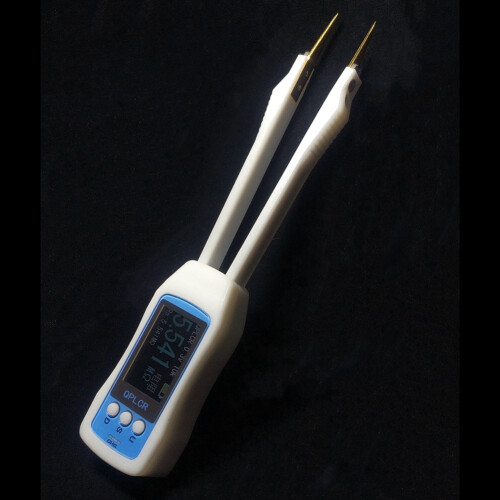

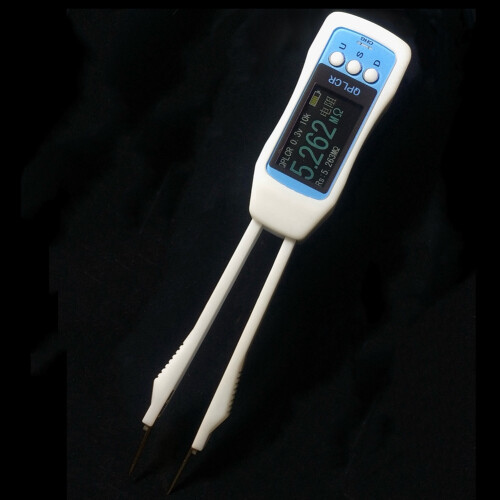

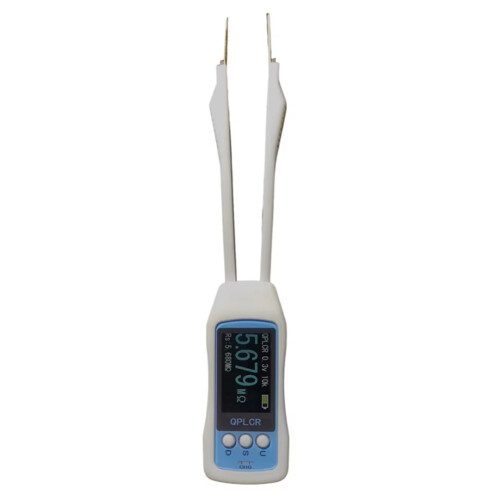

Bridge Meter Digital Display Handheld Meter Tweezer SMD Tweezers Capacitance Inductance Resistance Tester

Descriere Bridge Meter Digital Display Handheld Meter Tweezer SMD Tweezers Capacitance Inductance Resistance Tester

1. High-Definition Display for Clear Readings: The bridge meter features a 1.14-inch IPS TFT display with full viewing angles, providing clear and detailed readings for all your measurements.
2. Long-Lasting Battery Life: Equipped with a built-in 300mAh lithium battery, the meter tweezer offers approximately 6 hours of standby , ensuring you have enough power for extended use.
3. Convenient Charging with Type-C Interface: The smd tweezers come with a Type-C interface for external 5V power supply. The built-in charging circuit indicates red while charging and turns green when fully charged, making it easy to know the charging status.
4. Precision Measurement with High-Quality Tweezers: The tweezer tester uses expensive brass tweezer tips to ensure accurate measurements. The four-wire Kelvin test method further enhances measurement accuracy, making it a reliable tool for your needs.
5. User-Friendly Interface with Dual Language Support: The handheld capacitance inductance resistance tester displays both Chinese and English the interface, with large-font measurement values for easy reading, making it accessible for users worldwide.

Display Type: Digital Only
Measurement parameters:
1. The measured working frequencies are 100Hz, 1KHz, and 10kHz
2. The measured working voltages are 0.3V, 1.0V, and 1.0V is commonly used
3. The components supported for measurement are: resistance, capacitance, inductance, and diode.
There is a slight color difference in delivery, which does not affect the use
Range:
Capacitance: 1pF-10mF
Inductance: 1uH-1H
Resistance: 1mΩ-10MΩ
Colour:White
Material:ABS+Metal

Package Contents:
1 x Tweezers
