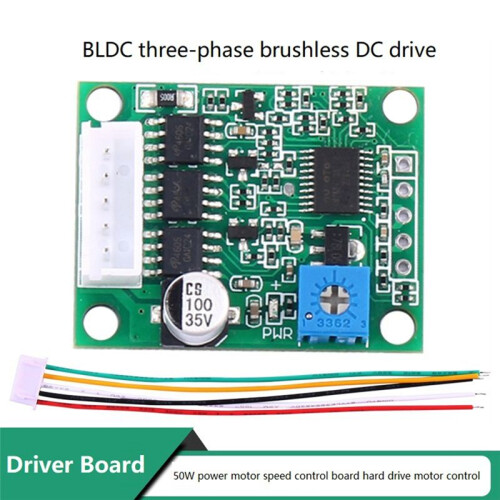

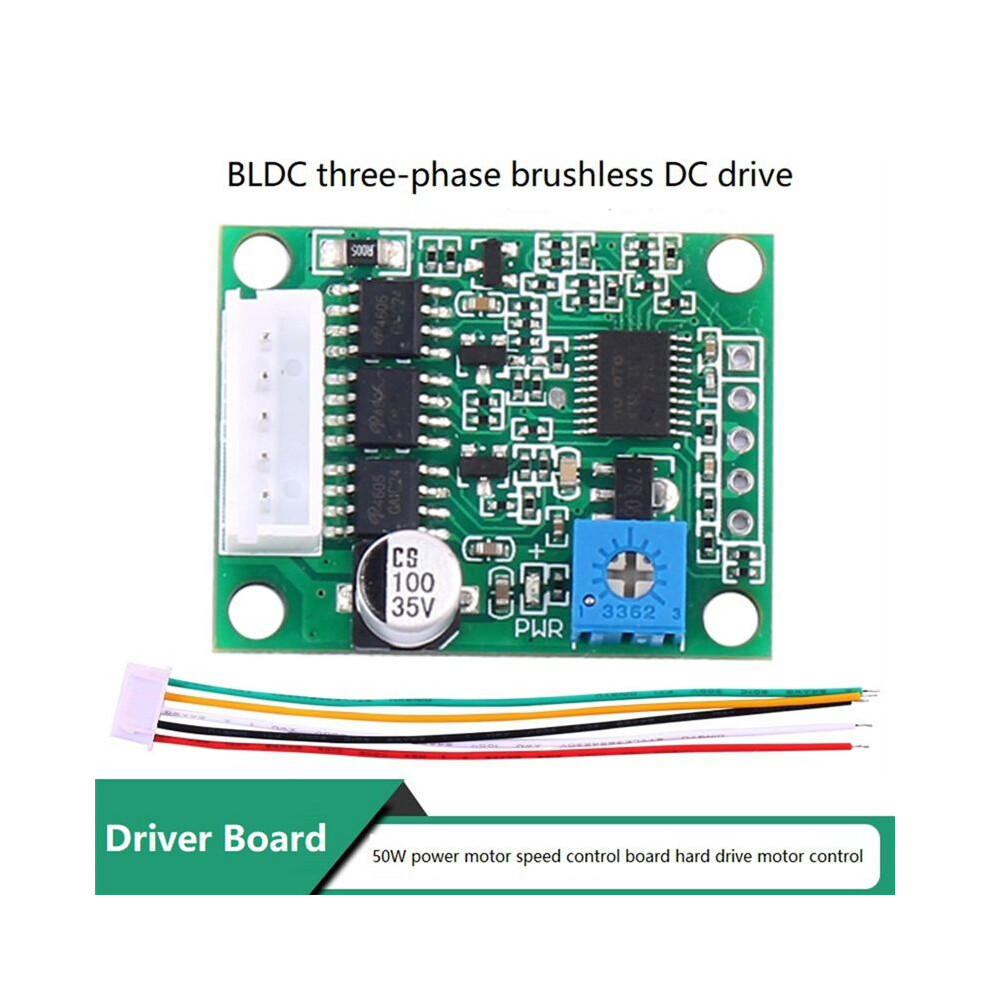

Brushless Motor Driver Board BLDC Speed Controller 3 Phase Governor Hallless Module Sensorless Control Board
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | lun 22 - sâm 27 iun.
Vândut de: GSbuy
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Cele mai populare în Invertoare de putere
Rezumat
- Precautions: 1. There is no fuse in the power supply circuit on the motherboard. Jianyi has added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips on the board (even if it does not work for 1 second)
- 2. There is motor blocking protection during normal operation. Please do not artificially short-circuit when the module is not working normally. Once short-circuiting may cause the line to burst, please use small current and low voltage test for the first wiring test. Matching use of three-phase DC brushless motors with equivalent current and power
- 3. Do not connect the motor that is obviously inconsistent with the drive module voltage, current, or power, to avoid inexplicable "nonsensical" damage
- BLDC speed controller
- Hallless switch module
Descriere Brushless Motor Driver Board BLDC Speed Controller 3 Phase Governor Hallless Module Sensorless Control Board
Precautions: 1. There is no fuse in the power supply circuit the motherboard. Jianyi has added it himself. Reverse connection of the positive and negative poles of the power supply will cause permanent damage to some of the chips the board (even if it does not work for 1 second)
2. There is motor blocking protection during normal operation. Please do not artificially short-circuit when the module is not working normally. Once short-circuiting may cause the to burst, please use small current and low voltage test for the first wiring test. Matching use of three-phase brushless motors with equivalent current and power
3. Do not connect the motor that is obviously inconsistent with the drive module voltage, current, or power, to avoid inexplicable "nonsensical" damage
Interface Description:
1. U V W phase output is connected to the motor
2. VCC GND main power supply (external power supply)
Product parameters:
Product name: Three-phase brushless and Hallless drive
Model: X10 (no sense)
Working voltage: 6-20V (limit 5-24V)
Drive current: 3A max
Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor).
Features: This driver is a low-power fan brushless driver, and it can also be embedded in other systems. It is specially used for air pumps, water pumps, oil pumps, fans, etc. and industrial control electric gadgets for small space and low-power three-phase brushless motors. Default The middle timing is not suitable for high-power motors, such as long-term full load current operation, It is recommended to add a fan for cooling.
Size: 34 x 27 x 11MM
Material: PCB
colour: Green
Package Contents:
1 x Motor Speed Controller
1 x cable
Detalii
| OPC | PSH85JX |
|---|---|
| Coduri | 6033064667210 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.009kg |
| Colour | Green |
| Material | PCB |
