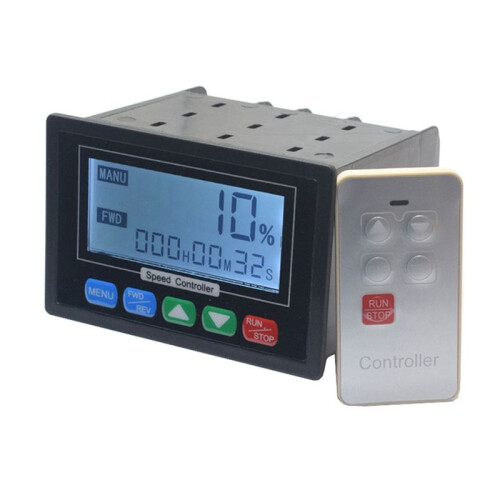

DC10-55V 30A Adjustable PWM Motor Speed Controller LCD Digital Display 0- Speed Governor with Remote Control
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 133,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (22,00 RON) | joi 17 - sâm 19 sept.
Vândut de: CNNOTEPAD
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- Intelligent LCD screen with backlight can display working time, speed percentage, current mode, forward/reverse status, etc. Equipped with wireless remote control. Multiple limit modes available. Can set slow start and slow stop time. Adjustable upper and lower speed limits. The total working time can be set to stop at the designated time.
- Support dual speed control for separate speed regulation of forward and reverse speeds.
- There are two modes available: manual and automatic. The automatic mode is fully automatic for forward and reverse rotation within the set time.
- Gently touching the switch to switch between forward and reverse rotation, and jogging acceleration and deceleration solves the problem of traditional potentiometers being prone to damage.
- 30A motor speed controller
Descriere DC10-55V 30A Adjustable PWM Motor Speed Controller LCD Digital Display 0- Speed Governor with Remote Control
Intelligent LCD screen with backlight can display working , speed percentage, current mode, forward/reverse status, etc. Equipped with wireless remote control. Multiple limit modes available. Can set slow start and slow stop . Adjustable upper and lower speed limits. The total working can be set to stop at the designated .
Support dual speed control for separate speed regulation of forward and reverse speeds.
There are two modes available: manual and automatic. The automatic mode is fully automatic for forward and reverse rotation within the set .
Gently touching the to between forward and reverse rotation, and jogging acceleration and deceleration solves the problem of traditional potentiometers being prone to damage.
Input voltage: DC10-55V (specific voltage is equal to the rated voltage of the motor)
Output voltage: linear under load
Instantaneous current: 50A
Continuous current: within 30A
Forward to reverse: supported
Wireless remote control: Yes
Timing: Yes
Limit function: Yes
Slow start and slow stop: configurable
Speed digital display: 0-100 percentage meter
Speed regulation type: current regulation
Speed regulation method: jog+-
Speed regulation range: 0-
Control frequency: 15KHZ
Wiring type: fence type terminal blocks
Supporting motor: Brushed motor
Module size: length x height x depth 105mm x 70mm x 95mm
Net weight of product: 275 grams
Panel opening: length x width 98mm x 63mm
Installation method: embedded
Long press and hold the MENU key to turn off and turn the backlight
To reverse start, press FWD/REV to reverse start
Attention:The input must be divided into positive and negative. The input voltage must be equal to the rated voltage of the motor (within 10-55V)
For example,
Detalii
| OPC | PXQQK99 |
|---|---|
| Brand | Tlily |
| Coduri | 4711046438981 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 8cm |
|---|---|
| Width | 11cm |
| Length | 13cm |
| Weight | 0.27kg |
| Colour | As Shown |
| Material | Metal+Plastic |
