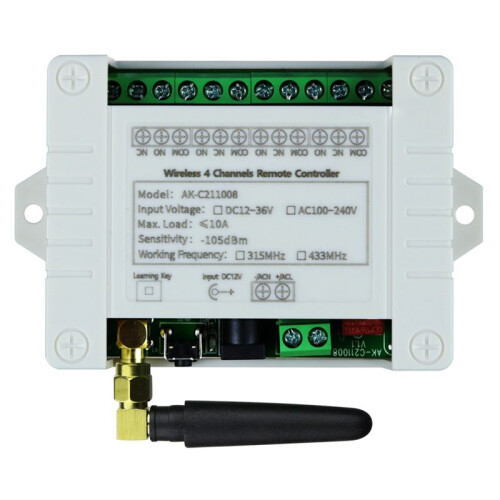

DC12-36V Wireless 4CH Remote Controller LED Light Relay Output Radio RF Remote Control 433MHz Receiver

Descriere DC12-36V Wireless 4CH Remote Controller LED Light Relay Output Radio RF Remote Control 433MHz Receiver

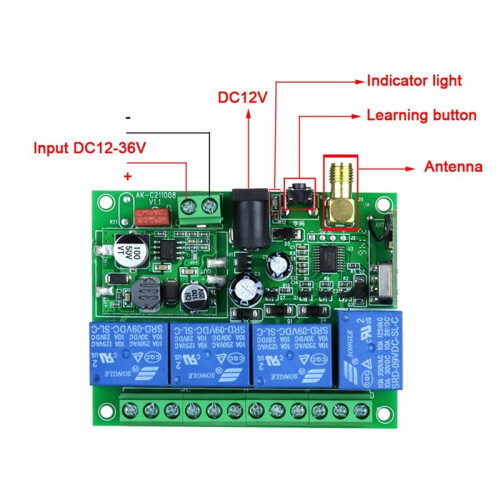

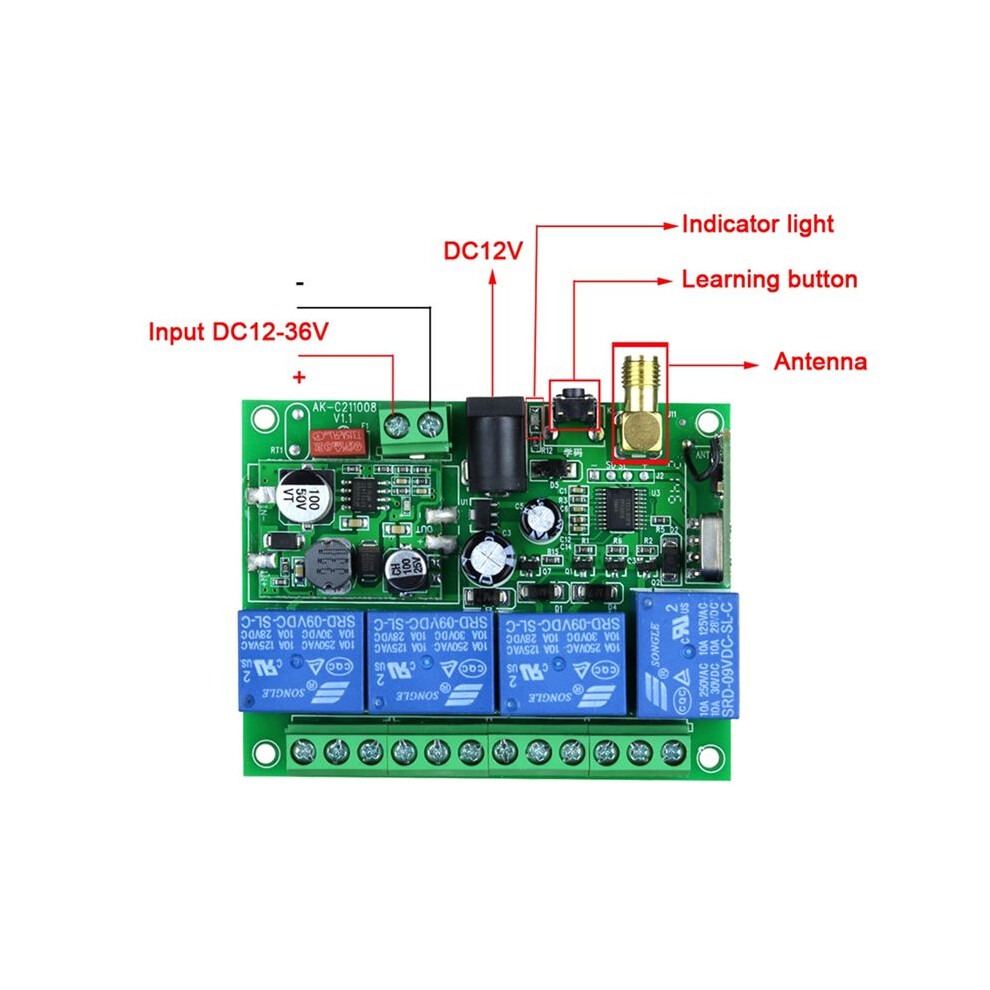

Learning: Press learning button, the indicator flashes and OFF, loosen finger, press any button of the remote transmitter, indicator flashes three times, meaning learning succeeds.(how many times press the learning button according to the working way you need)
Clearning: Hold press learning button about 8 seconds,indicator light flashes several times and off, then press remote ,Relay did not Respond ,it means clearning code successful.

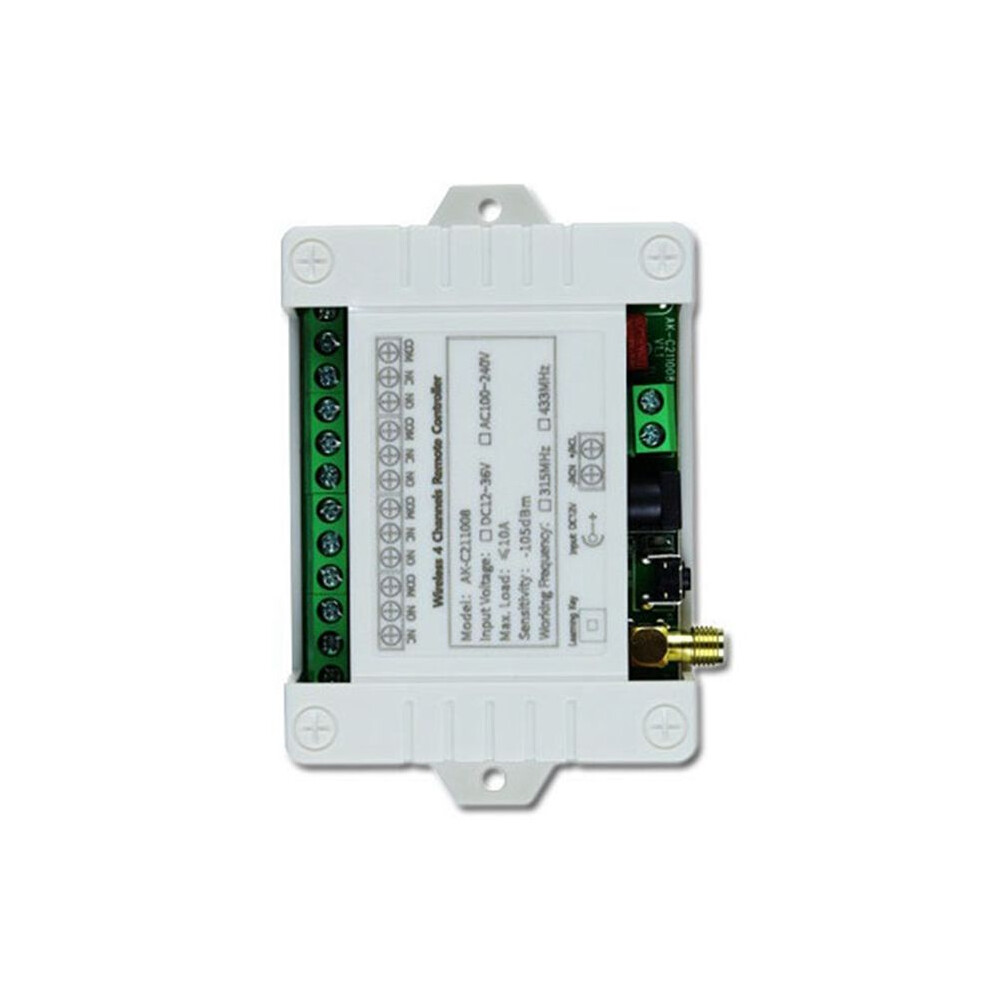

About Receiver:
Model No: AK-C211008
Quiescent condition: Less than 6mA
Working temperature: -40 - + 80
Receiver sensitivity: more than -105dBm
Working frequency: 433mhz

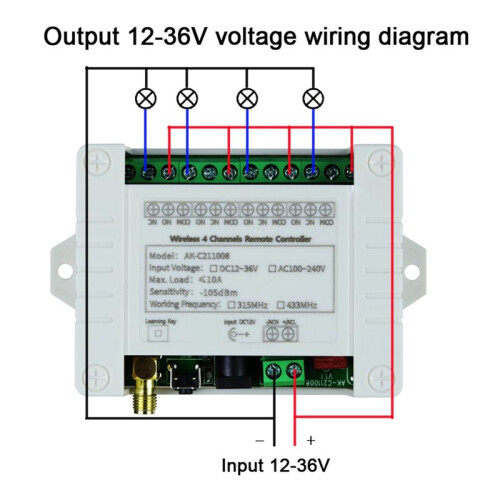

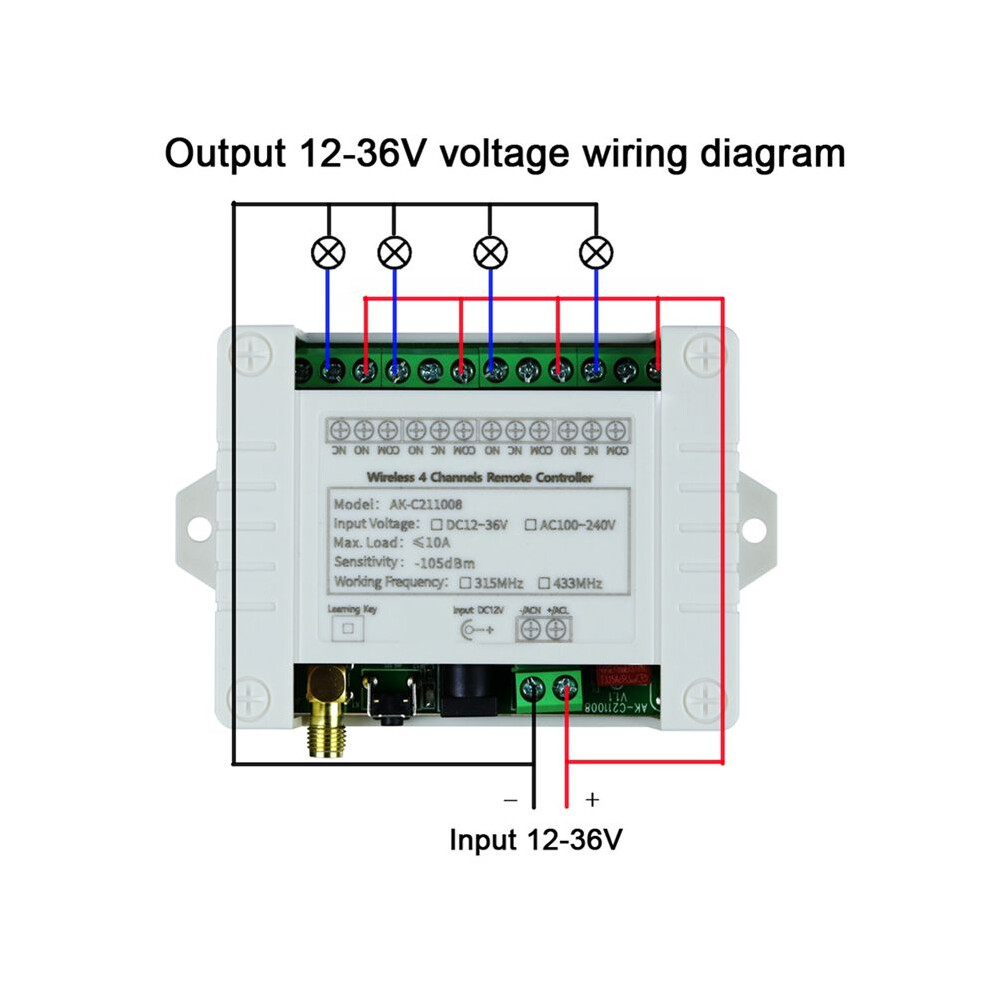

Output voltage: Contact output and Voltage output
Max load current: 10A
About Working way:
Working way changed by Learning button
Momentary: Press the Learning Button 1 times.
Relay: Press and hold ; Release Off
Toggle: Press the Learning Button 2 times.
Relay: Press ; Press same button again Off
Latched: Press the Learning Button 3 times.
Relay: Press ; Press other button Off.
2 channel Momentary + 2channel Latched: Press the Learning Button 4 times.
2 channel Momentary + 2channel Toggle: Press the Learning Button 5 times.
2 channel Toggle + 2channel Latched: Press the Learning Button 6 times.
Working voltage:DC12V-36V
Colour:White
Material:Plastic

Package Contents:
1 * Remote Controller

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
