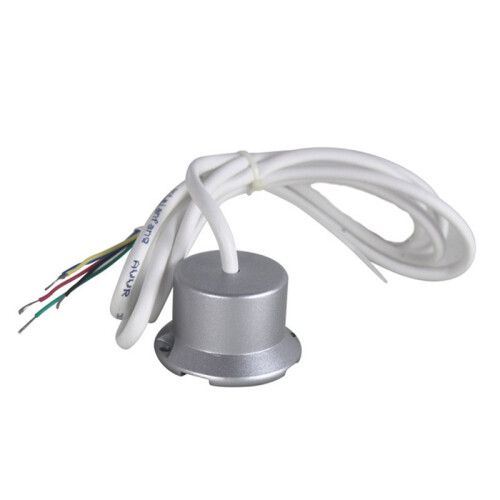

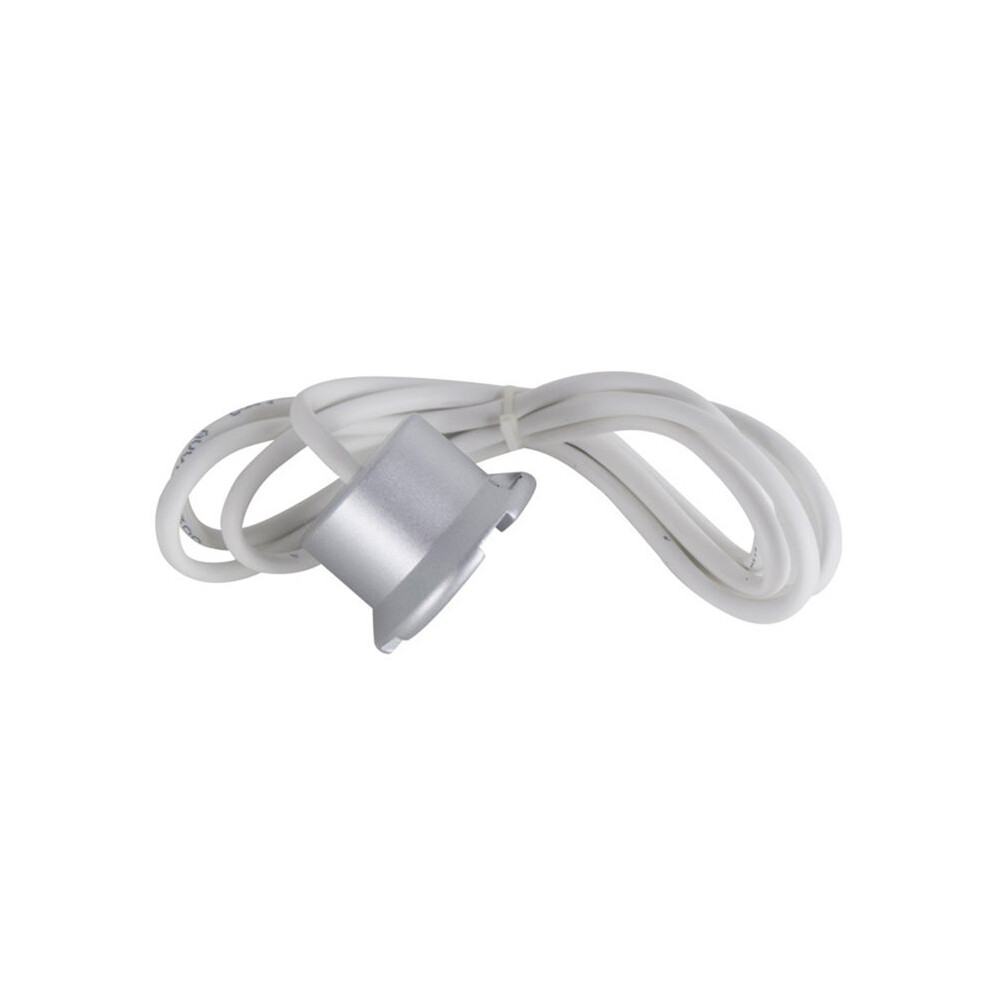

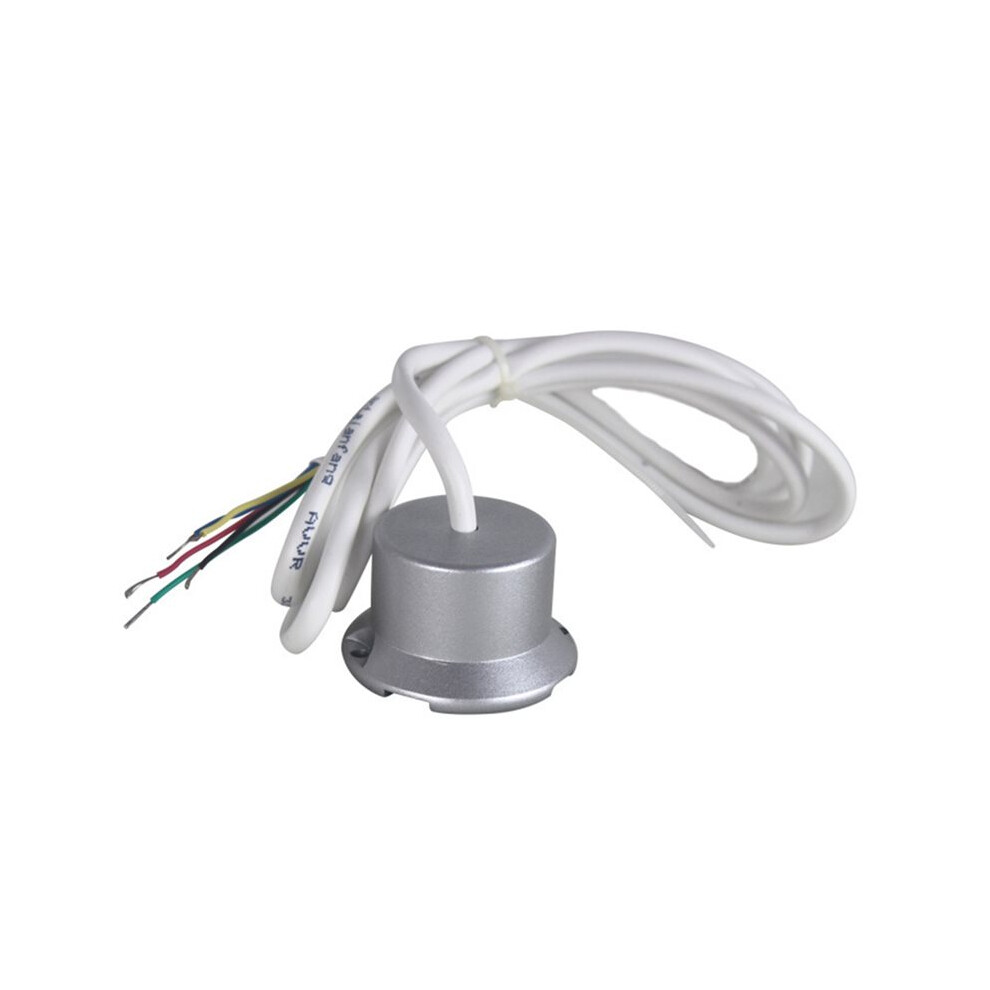

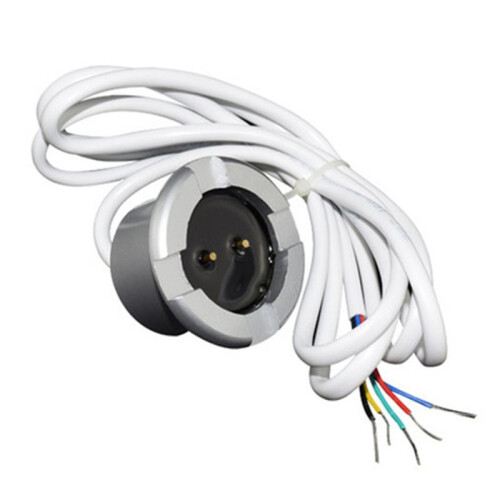

DC12V/24V Immersion Wired Warter Detector Water Sensor Probe Detection Leak Alarm for Home Security Alarm System

Descriere DC12V/24V Immersion Wired Warter Detector Water Sensor Probe Detection Leak Alarm for Home Security Alarm System

Model Number: This advanced water detector is designed to provide reliable leak detection in your home security system, ensuring prompt alerts and minimizing water damage risks.
Certification CE, RoHS: Our water sensor probe meets rigorous safety and environmental standards, providing you with peace of mind and a guarantee of quality.
Efficient Home Security Enhancement: Easily integrate this DC12V/24V immersion wired water sensor into your existing home security system for enhanced protection against water leaks and potential flooding.

Description:
The DC12V/24V immersion wired water detector is an essential device for home security systems, designed to detect water leaks promptly. It features an isolated flooding detection mechanism that activates upon changes in electrode impedance caused by water contact. The device uses a integrated chip to amplify and process the signal, providing a dry contact or high-low signal output to indicate the presence of water.
Features:
High sensitivity and fast response ensure accurate leak detection.
Opto-isolated and transformer-isolated inputs for enhanced safety and reliability.
Fully sealed design for protection against environmental factors.
Easy installation with minimal maintenance required.

Specifications:
Operating Temperature: 0C to 50C
Output Type: Relay (load current 30mA), NC/NO selectable
Static Power Consumption: Low
Humidity Tolerance: 20% RH to RH, minimal false positives
High and Low Output Levels: VL = 0V (+0.5V), VH = 5V or 12V (+0.5V)
Solid State Relay Capacity: 500mA (customizable to 1A)

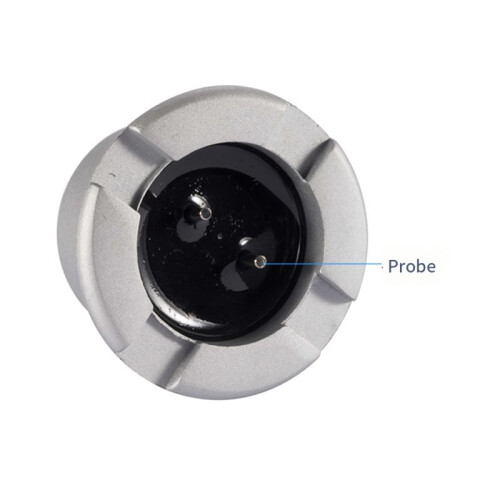

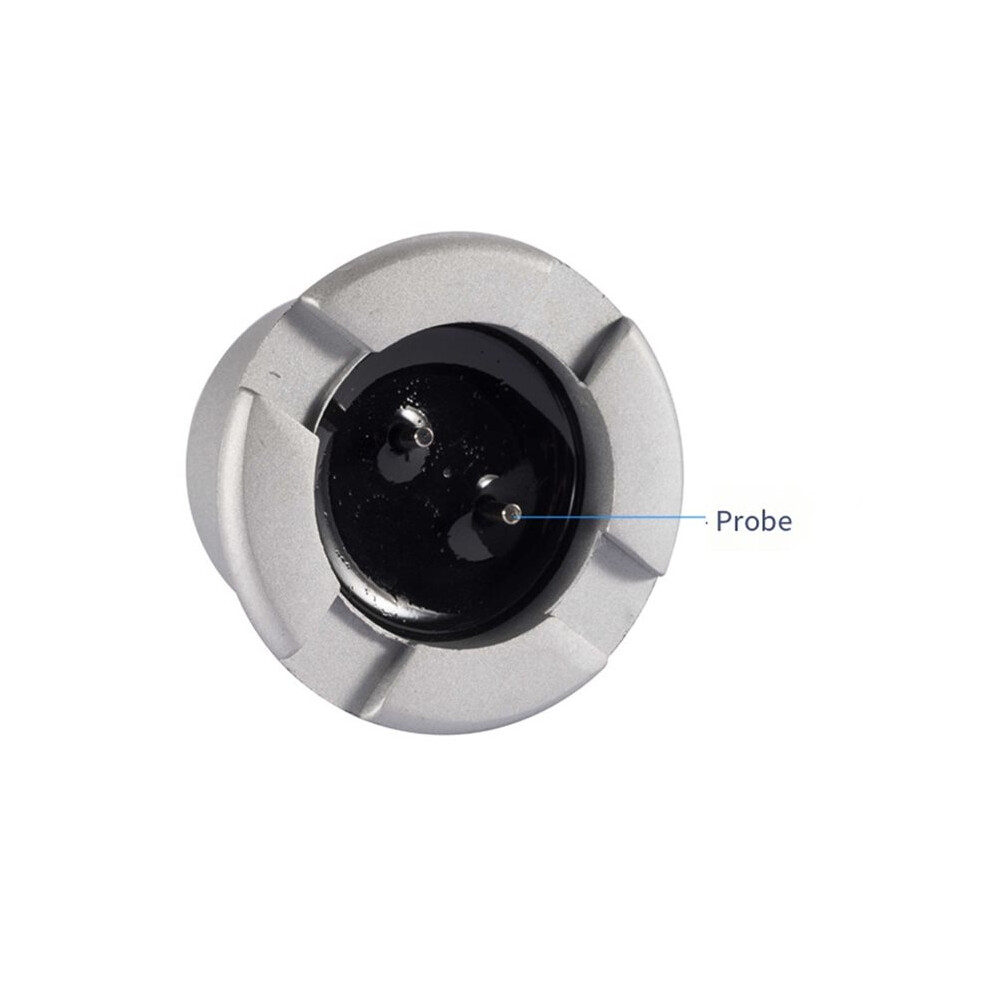

Detection Cable: Point-sensing probe, approximately 10cm coverage

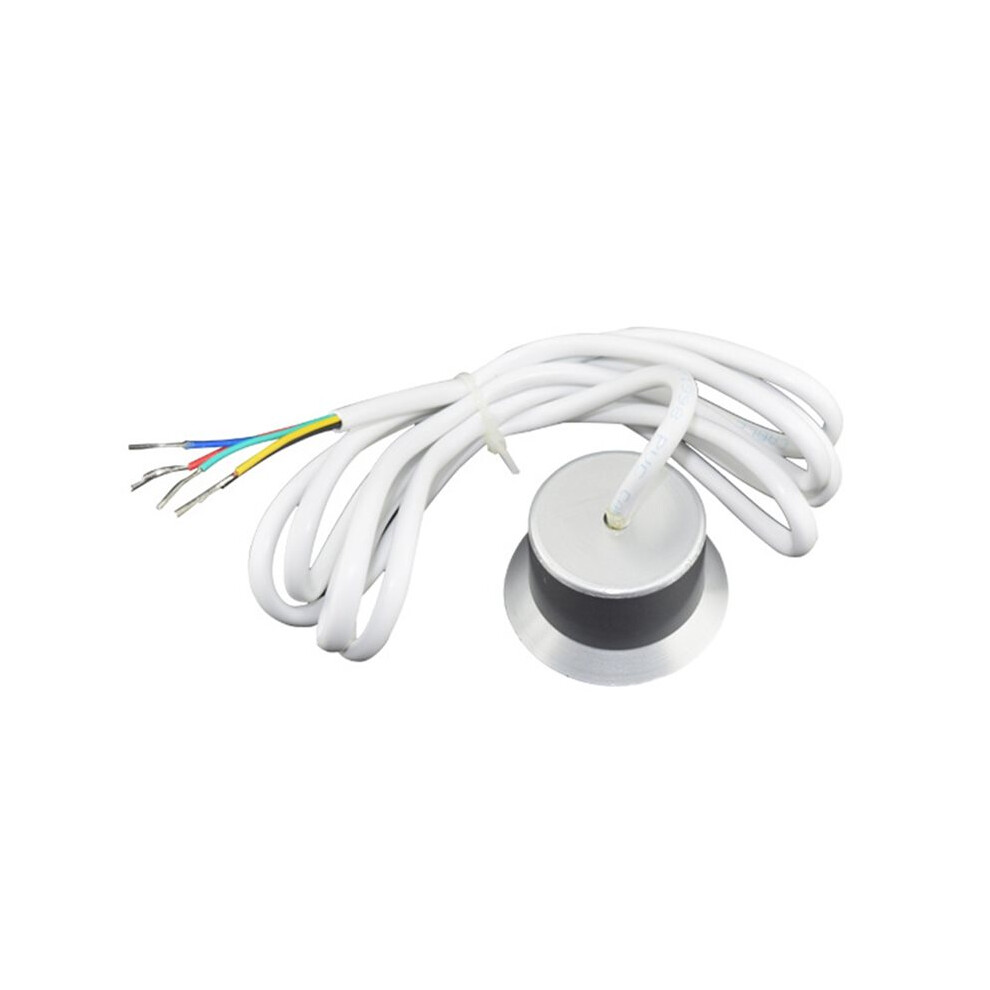

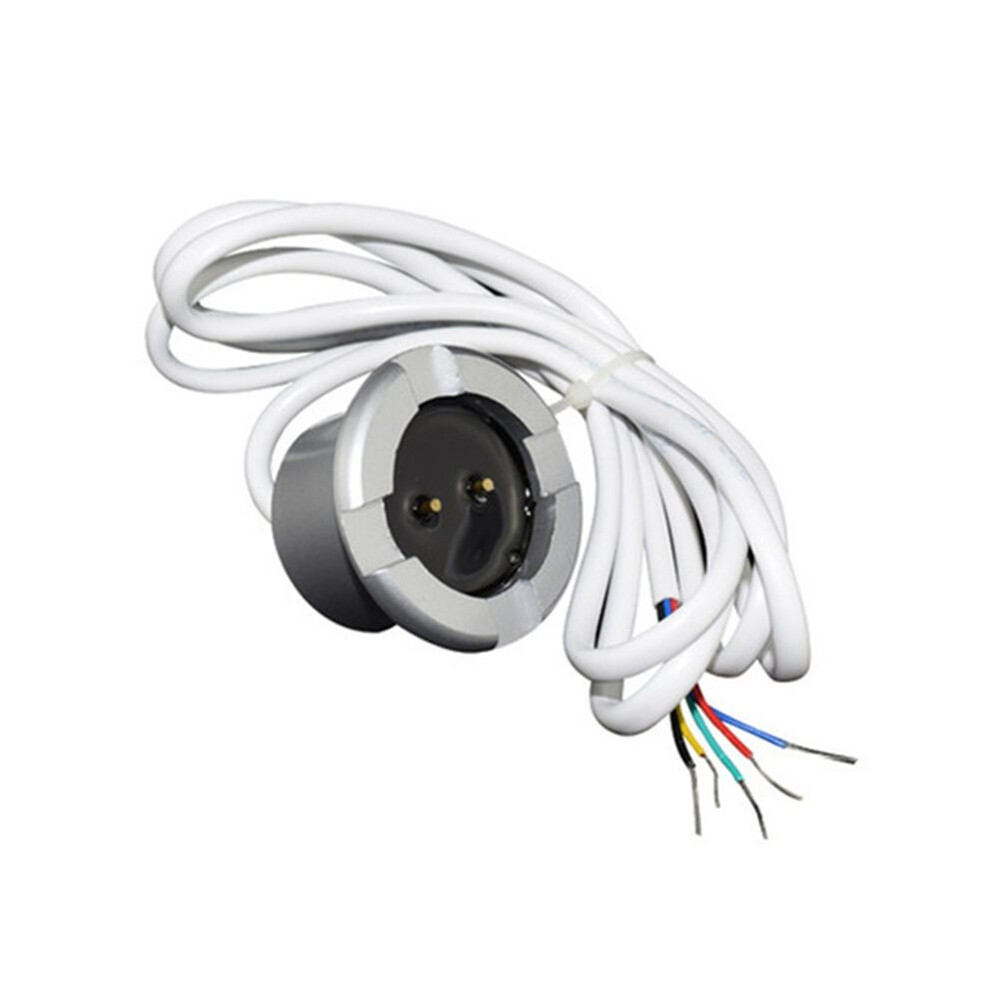

Terminals: Red (+12VDC), Black (-12VDC), Yellow (NO/NC output), Green (detection input)
Color: White
Material: plastic
