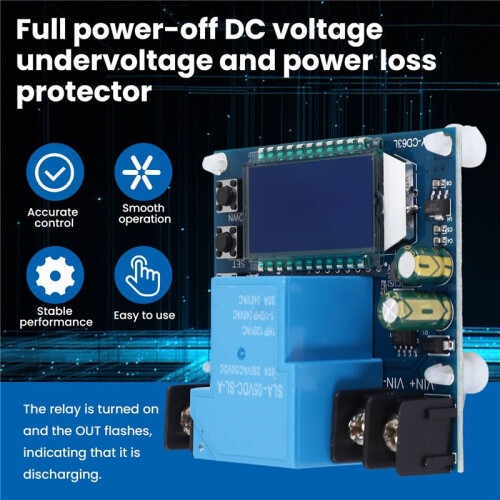

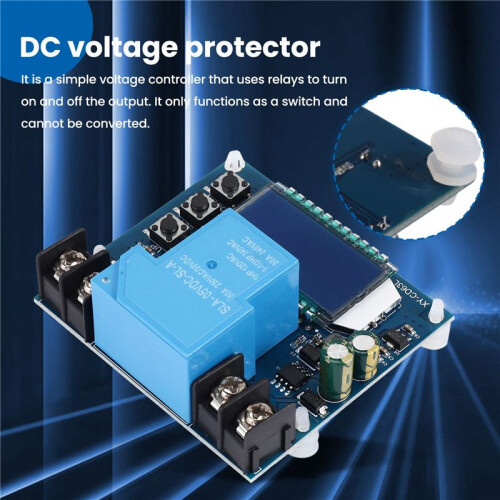

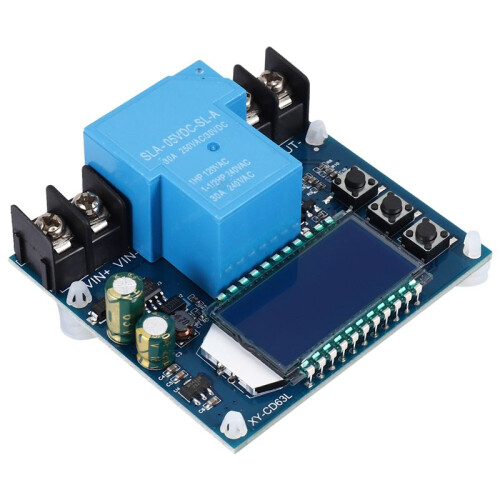

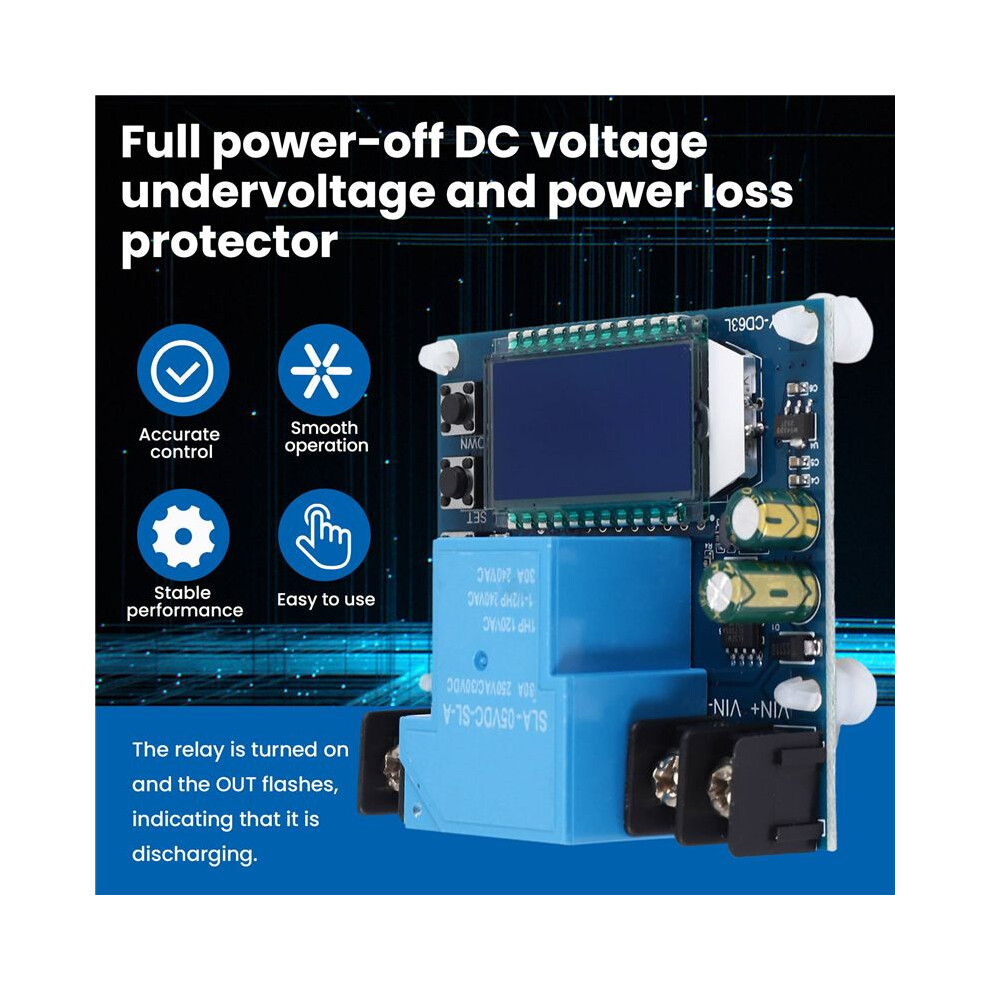

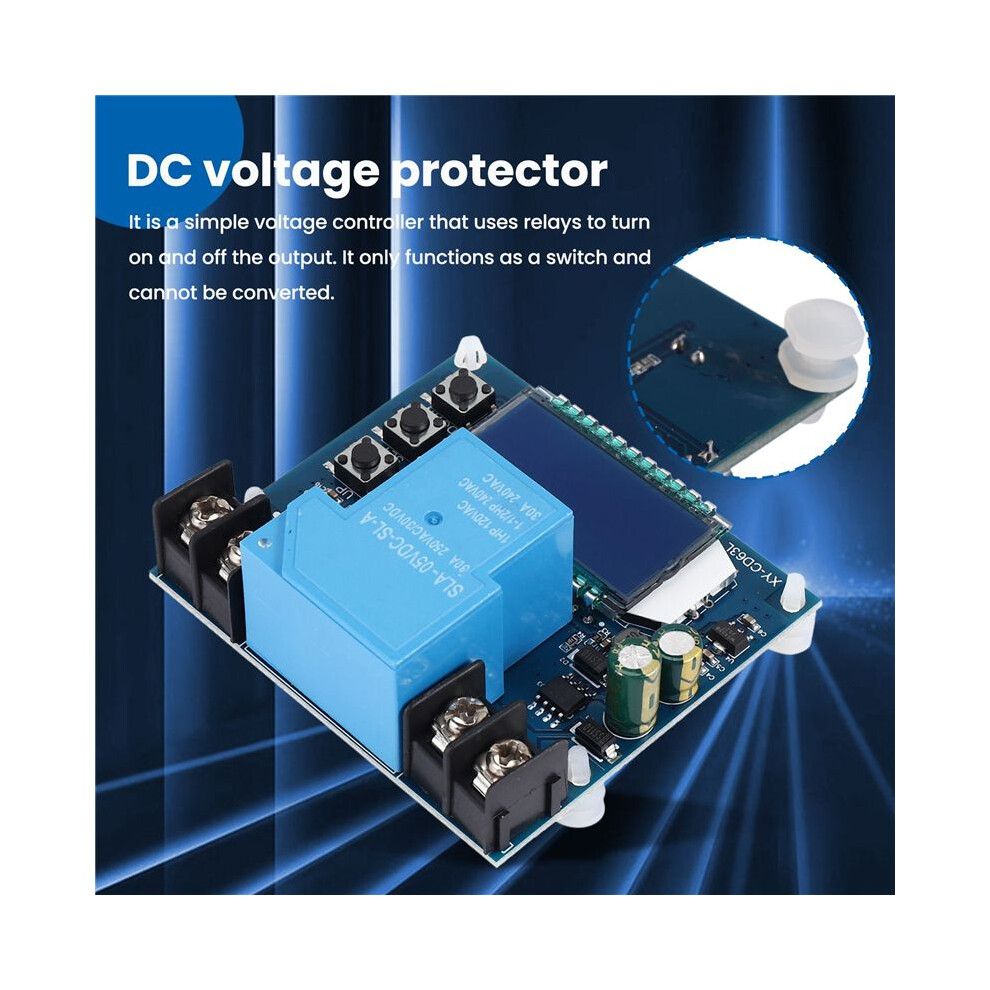

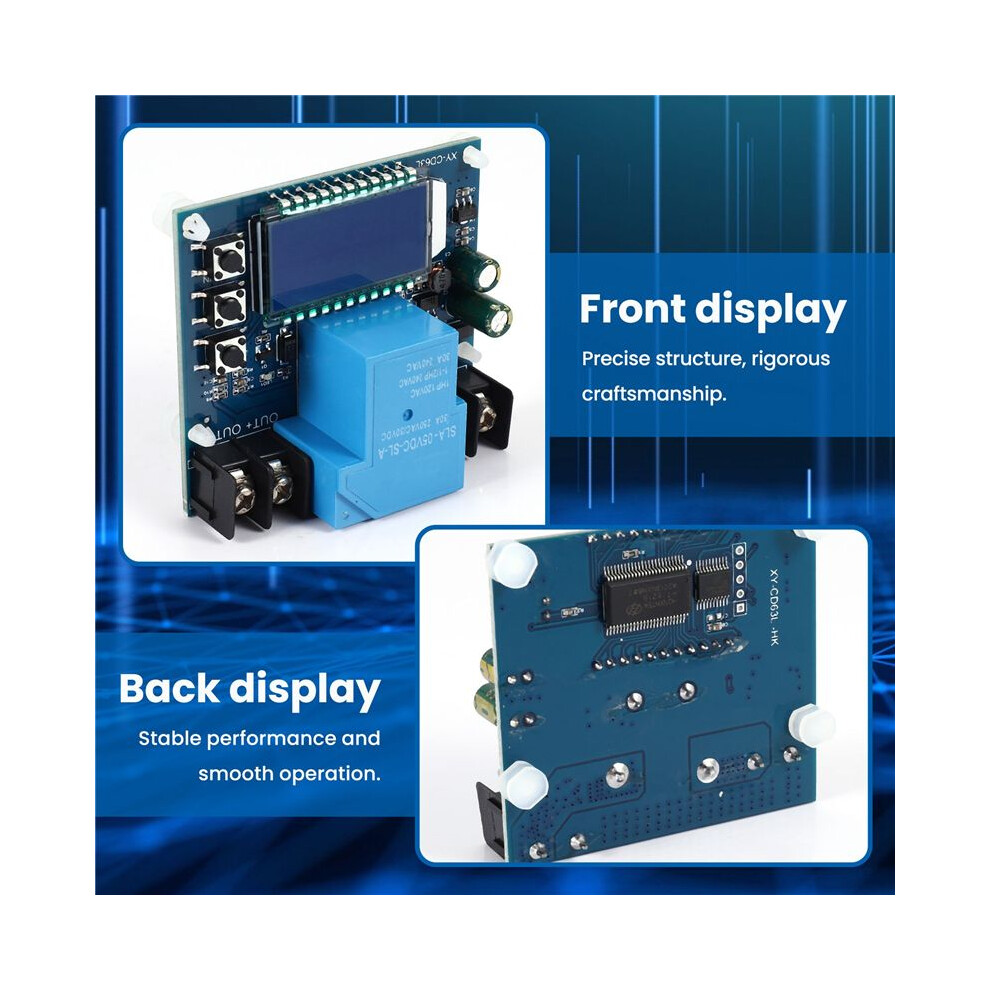

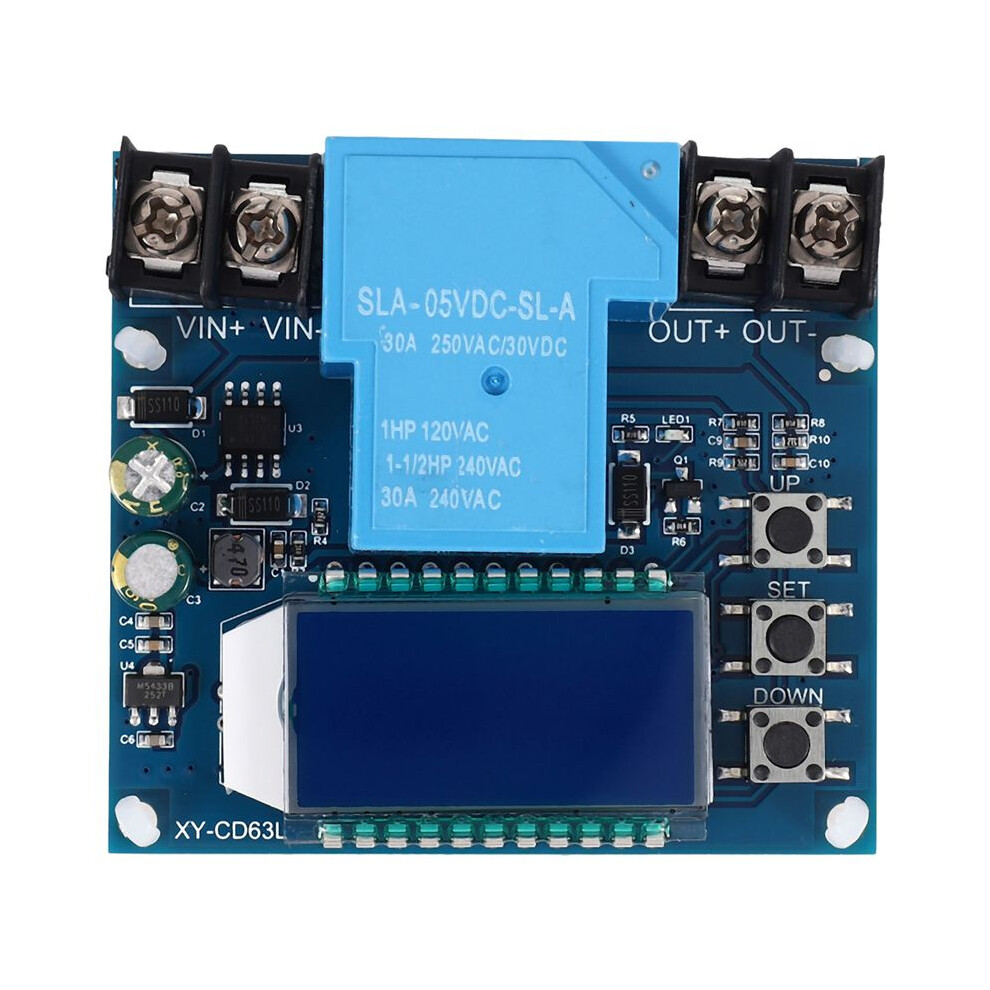

DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 133,000 de recenzii cu evaluare “Excelent”
56,93 RON
319,86 RON
Reducere de 82%!
+50,26 RON livrare
1%
Câștigați 0,57 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (50,26 RON) | lun 21 - sâm 26 sept.
Vândut de: CollBea
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat
- Charging mode IN: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned on, and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage UP, the relay is disconnected to complete an automatic charging; the relay is turned on, IN flashes, indicating that it is charging.

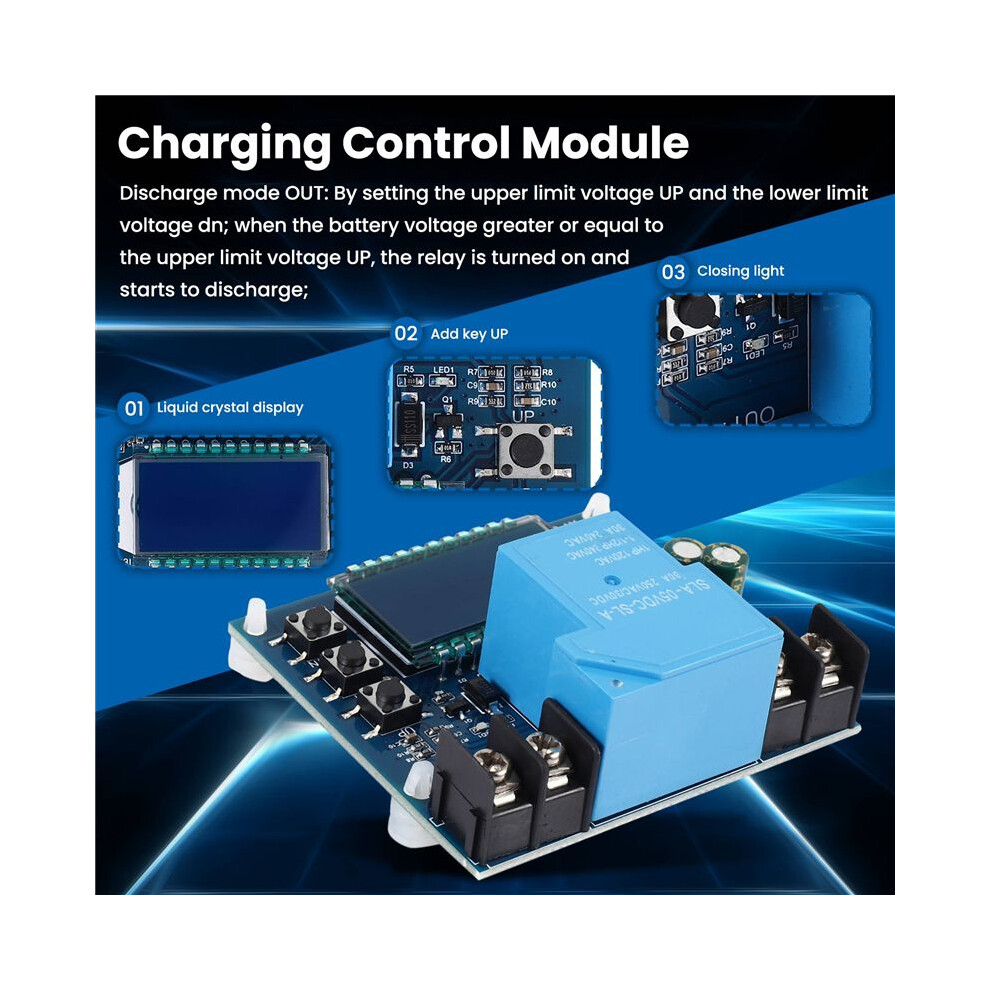

- Discharge mode OUT: By setting the upper limit voltage UP and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage UP, the relay is turned on and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned on and OUT flashes, Indicates that it is discharging.
- Note: This product is a simple voltage controller, which uses a relay to turn on and off the output. It only functions as a switch and cannot be transformed.
- Charging Control Module
- 30A battery Charging Control Module
Descriere DC6-60V 30A Storage Battery Charging Control Module Protection Board Charger LCD Display XY-CD63L
Charging mode IN: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage less than or equal to the lower limit voltage dn, the relay is turned , and the charger starts to charge the battery; when the battery voltage greater or equal to the upper limit voltage , the relay is disconnected to complete an automatic charging; the relay is turned , IN flashes, indicating that it is charging.
Discharge mode OUT: By setting the upper limit voltage and the lower limit voltage dn; when the battery voltage greater or equal to the upper limit voltage , the relay is turned and starts to discharge; when the battery voltage less than or equal to the lower limit voltage dn, the relay is disconnected to complete an automatic discharge function; the relay is turned and OUT flashes, Indicates that it is discharging.
Note: This product is a simple voltage controller, which uses a relay to turn and off the output. It only functions as a and cannot be transformed.
Function Description:
1. Calculation of voltage percentage: battery voltage/(upper limit voltage-lower limit voltage)
2. Button function:
button: Short press to display% and , long press for 5 seconds to mode, charging mode: IN, discharging mode: OUT
SET button: short press to view the currently set parameters; long press the SET button to enter the parameter setting interface, set : voltage upper limit, dn: voltage lower limit, OP: conduction , dOP: delayed conduction (0-999 seconds) , There is FOP in discharge mode: forced conduction (0-10 seconds)
DOWN button: Short press to turn off/ the relay enable (emergency stop function) after it is turned off, the LCD display is OFF, and the relay is disconnected
Colour:
Material: plastic
Size: 62 x 57 x 22mm
Detalii
| OPC | PRXSHVW |
|---|---|
| Coduri | 4713198868418 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 6cm |
| Length | 7cm |
| Weight | 0.0525kg |
| Colour | blue |
| Material | plastic |
