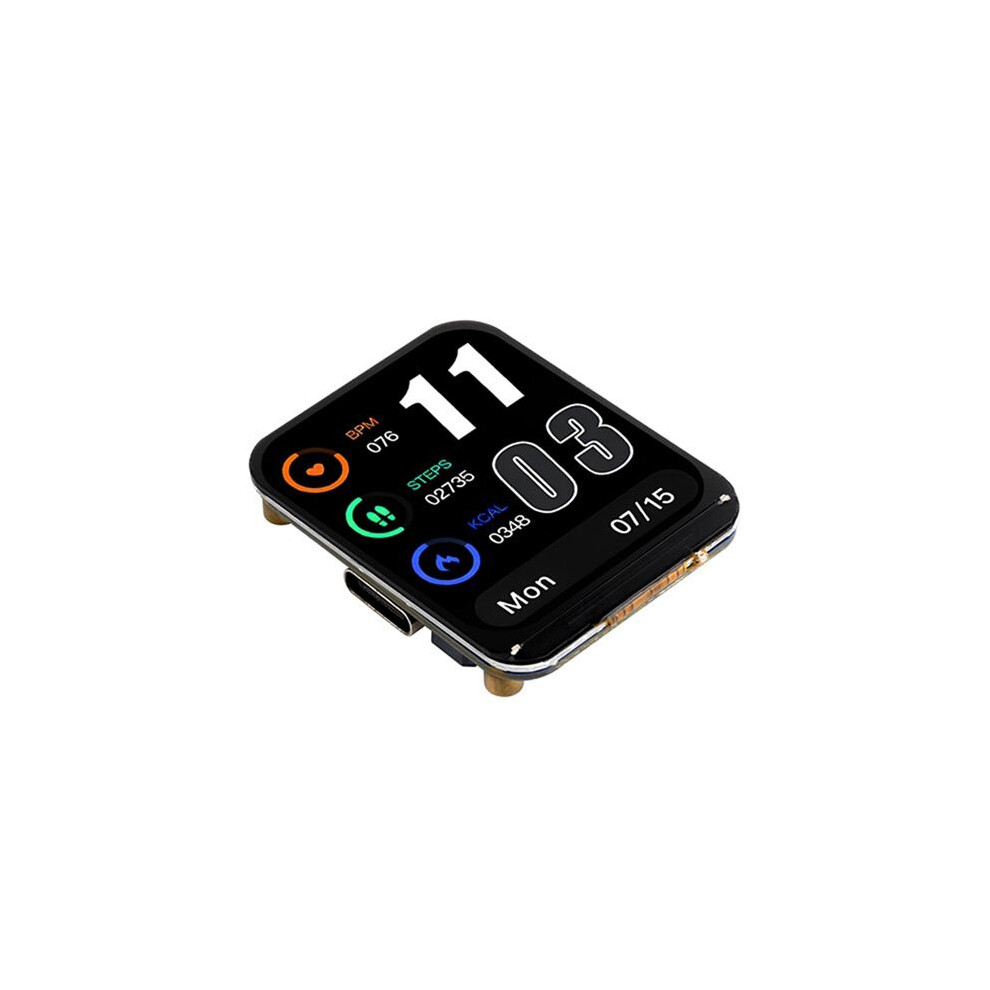

ESP32-S3 1.69inch LCD Display Development Board 240x280 with QST Attitude Gyro Sensor QMI8658C for Python

Descriere ESP32-S3 1.69inch LCD Display Development Board 240x280 with QST Attitude Gyro Sensor QMI8658C for Python

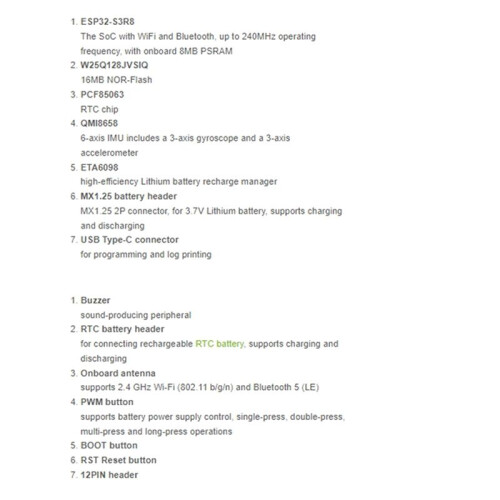

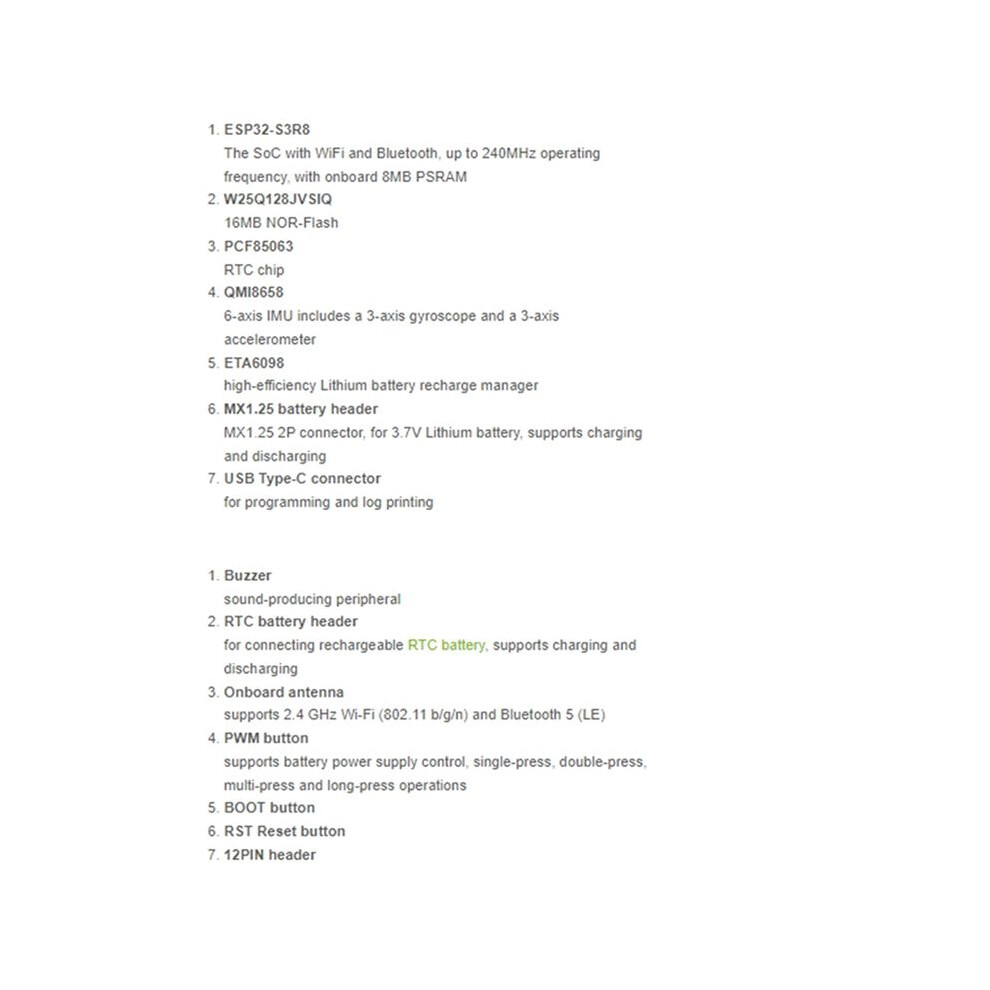

Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, the main frequency is to 240 MHz
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), onboard antenna.
Built-in 512KB and 384KB ROM, stacked 8MB PSRAM and external 16MB Flash
Using Type-C interface, keep with the trend of the times, no need to worry about whether to insert it forward or backward Onboard 1.69-inch LCD screen, 240x280 resolution, 262K color, can clearly display color pictures

Built-in ST7789V2 driver chip, using SPI does not occupy too many interface pin resources
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), can detect motion posture, step counting, etc.
Onboard PCF85063 RTC chip, reserved SH1.0 battery slot (supports charging) can easily realize RTC function requirements

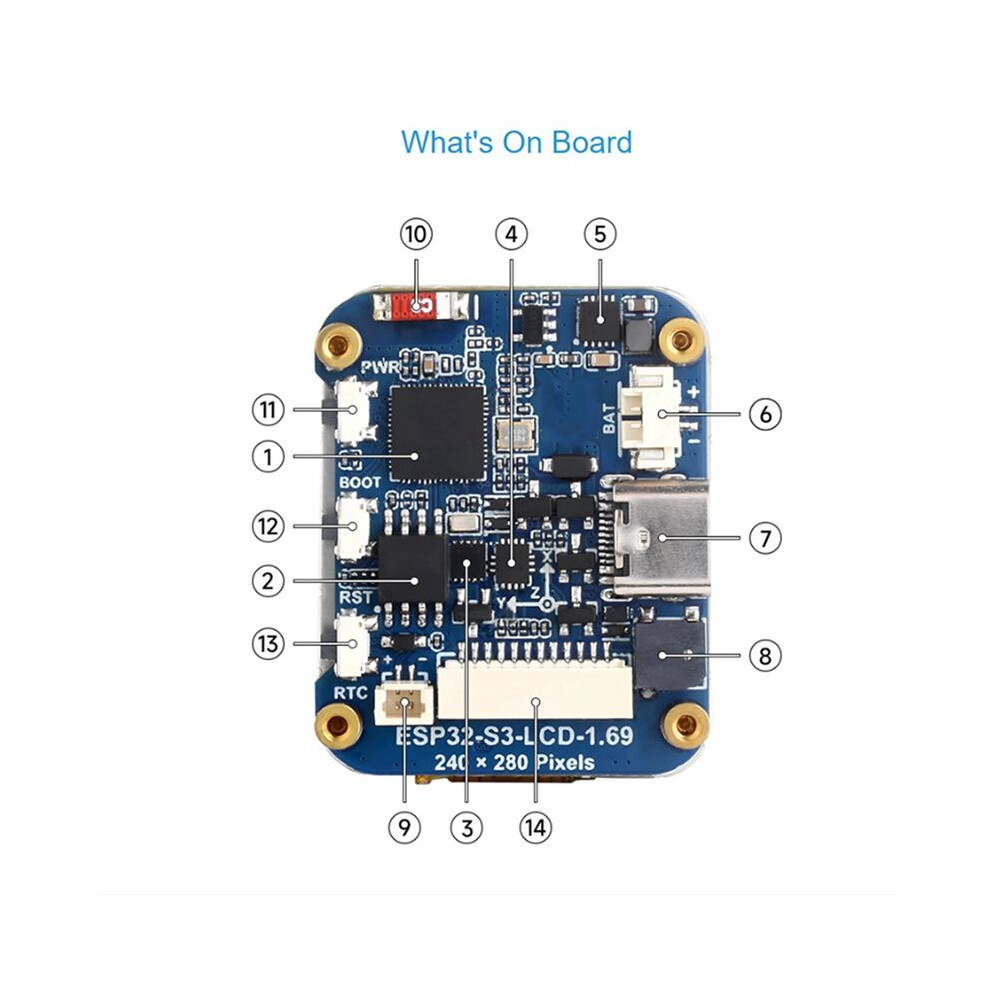

Onboard RST, BOOT and a side button with customizable functions, convenient for custom function development using buttons
Onboard 3.7V MX1.25 lithium battery charging and discharging interface

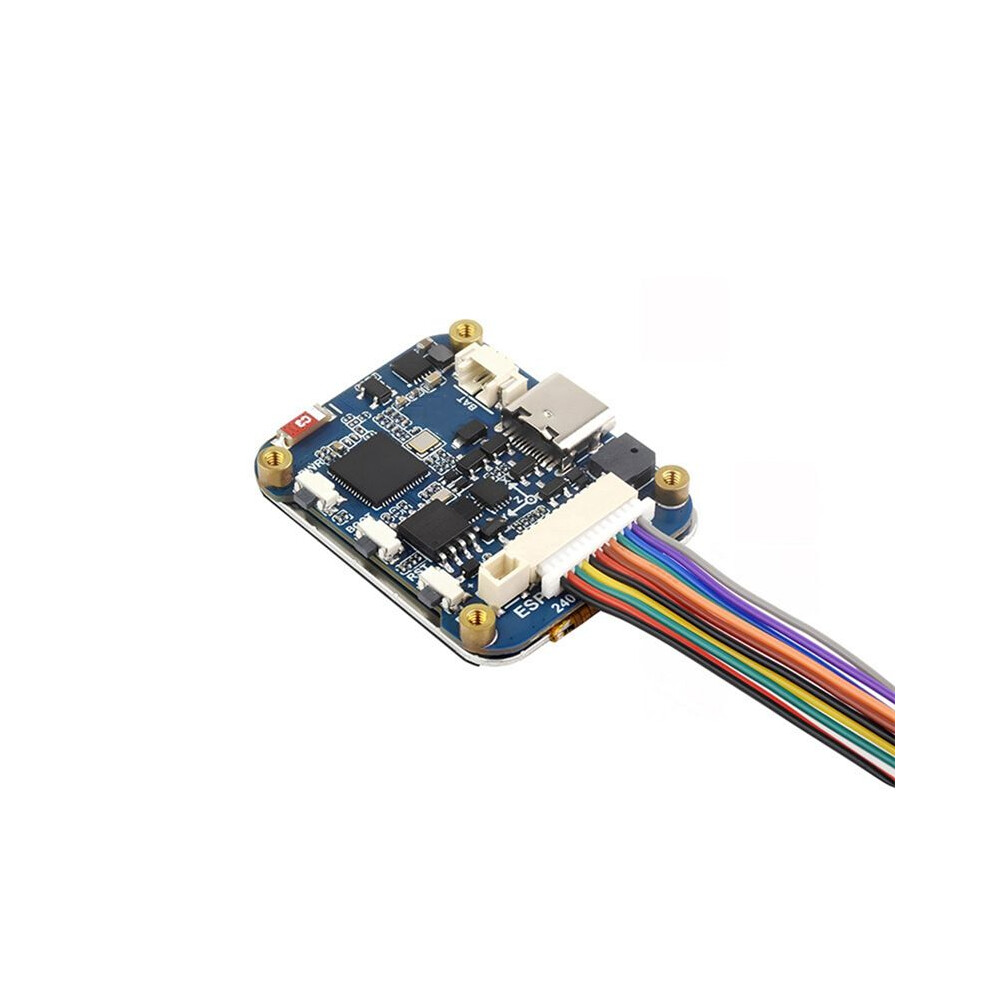

Lead out 5 GPIO, I2C and UART pads for external devices and debugging, flexible configuration of peripheral functions
Support flexible clock, module power separate setting and other precise control, realize multi-scenario low power mode

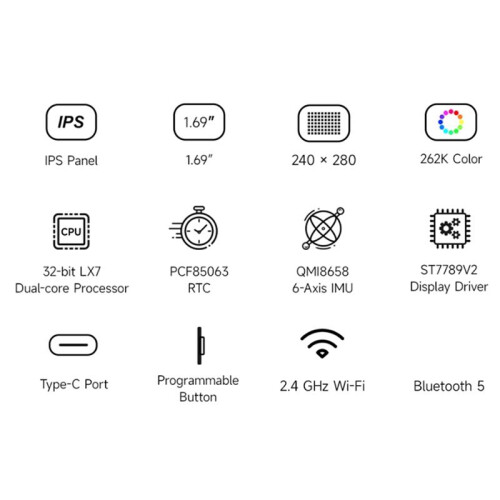

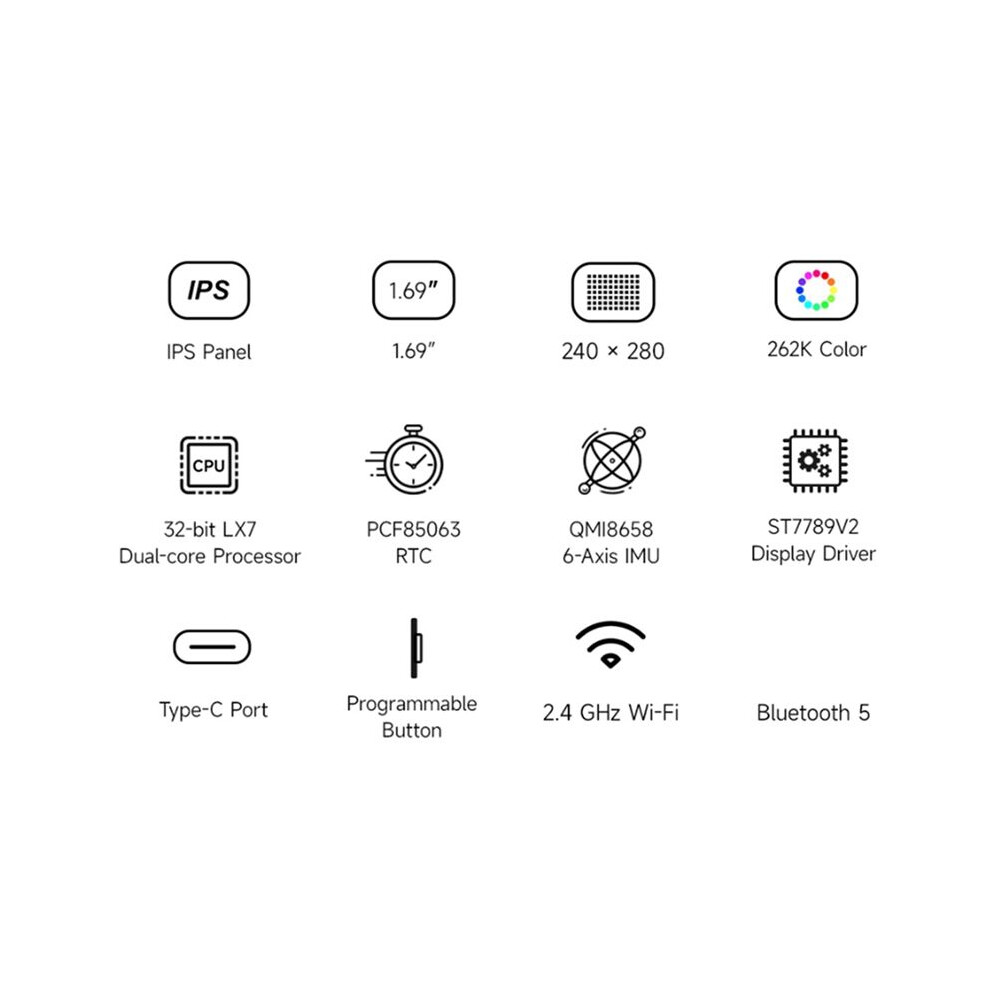

1.69-inch compact screen: With 262K IPS color panel, 240x280 resolution, Easily cope with various scenes.
Different batches may have different appearances, which will not affect the use; different light or display may cause color difference in the actual product
Colour:Black
Material:PCB+Plastic

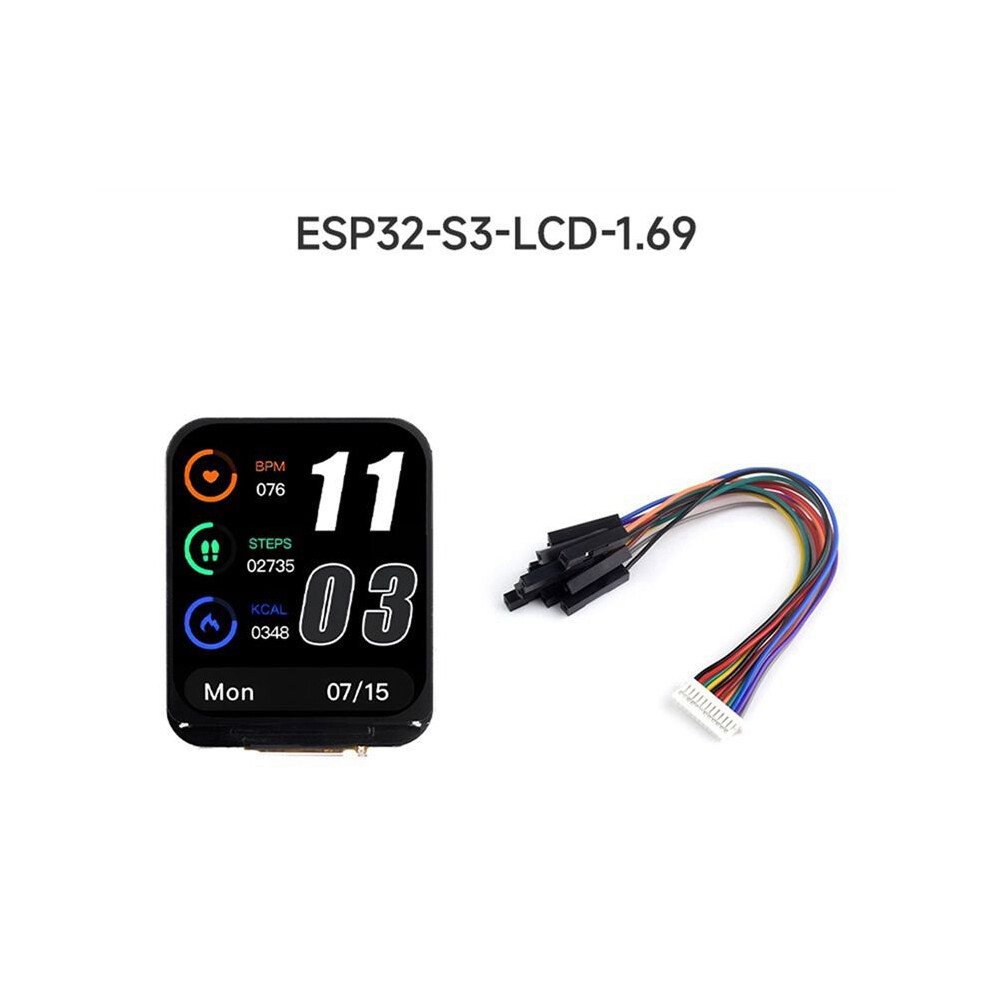

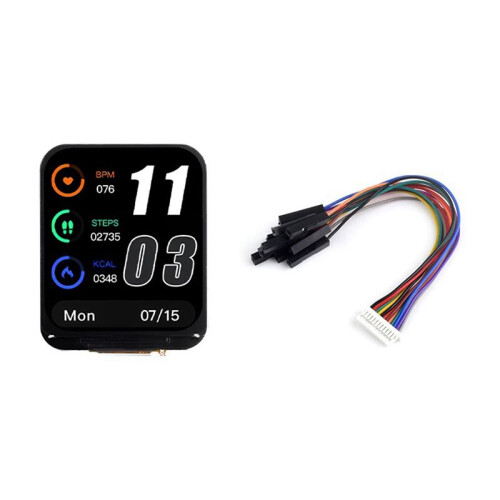

Package Contents:
1x display screen
1x cable
