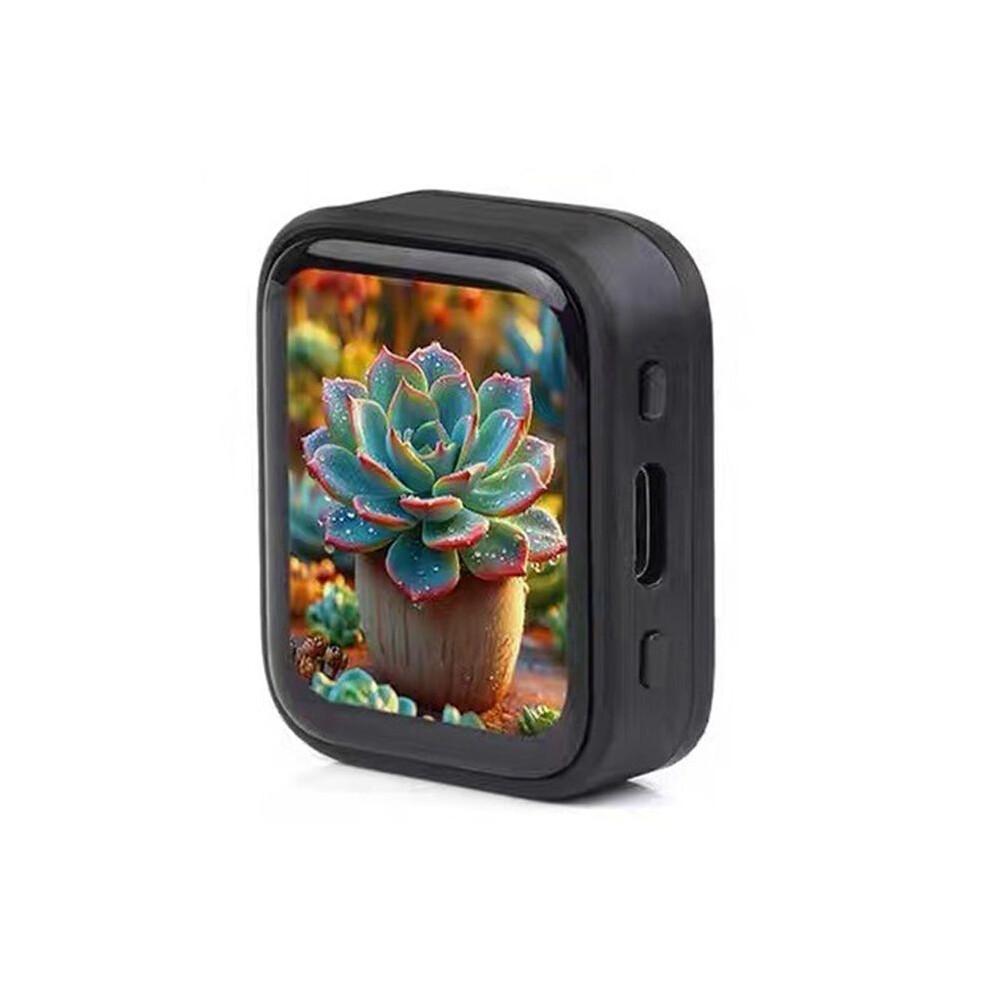

ESP32 S3 Development Board 1.8 Inch AMOLED Display Touch Screen QMI8658/MIC/Audio LVGL AI Voice Programmable Watch
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 135,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (22,00 RON) | mie 7 - lun 12 oct.
Vândut de: WuLinshop
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz.
- Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built-in 512 KB SRAM and 384 KB ROM, stacked 8 MB PSRAM and external 16 MB Flash.
- Uses Type-C interface to improve user convenience and device compatibility.
- Onboard 1.8-inch capacitive touch HD AMOLED screen, 368 x 448 resolution, 16.7 M colors, can clearly display color pictures. Built-in SH8601 driver chip and FT3168 capacitive touch chip, using QSPI and I2C interface communication respectively, without occupying too many interface pin resources.
Descriere ESP32 S3 Development Board 1.8 Inch AMOLED Display Touch Screen QMI8658/MIC/Audio LVGL AI Voice Programmable Watch
Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of to 240MHz.
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), with onboard antenna.
Built-in 512 KB and 384 KB ROM, stacked 8 MB PSRAM and external 16 MB Flash.
Uses Type-C interface to improve user convenience and device compatibility.
Onboard 1.8-inch capacitive touch HD AMOLED screen, 368 x 448 resolution, 16.7 M colors, can clearly display color pictures. Built-in SH8601 driver chip and FT3168 capacitive touch chip, using QSPI and I2C interface communication respectively, without occupying too many interface pin resources.
Onboard QMI8658 six-axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), which can detect motion posture, step counting and other functions.
Onboard PCF85063 RTC chip, connected to the battery through AXP2101, to achieve uninterrupted power supply, and reserve a backup battery pad to ensure that the RTC function continues to work when the main battery is replaced.
Onboard PWR and BOOT two customizable side buttons are convenient for custom function development using buttons.
Onboard 3.7V MX1.25 lithium battery charging and discharging interface.
7 GPIO, 1 I2C, 1 UART and 1 USB pads are led out for external devices and debugging, and peripheral functions can be flexibly configured.
Onboard Micro- card slot provides extended storage, fast data transmission and flexibility, suitable for data recording and media playback, and simplifies circuit design.
The benefits of using AXP2101 include efficient power management, support for multiple output voltages, charging and battery management functions, and optimization of battery life.
Note:Due to different production batches, there are differences in printing/appearance, which does not affect use.
Detalii
| OPC | PVN8G9R |
|---|---|
| Brand | Melitt |
| Coduri | 4712812015733 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 10cm |
| Length | 14cm |
| Weight | 0.062kg |
| Colour | Black |
| Material | ABS |
