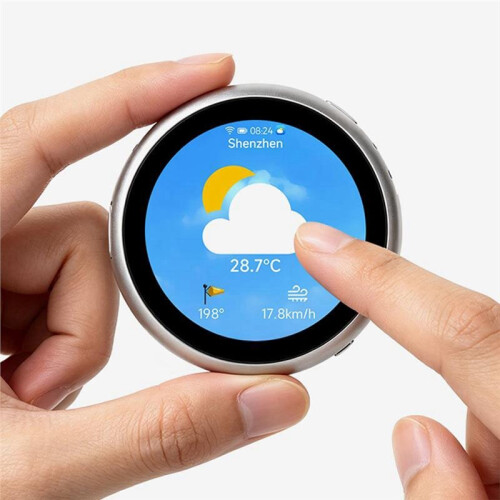

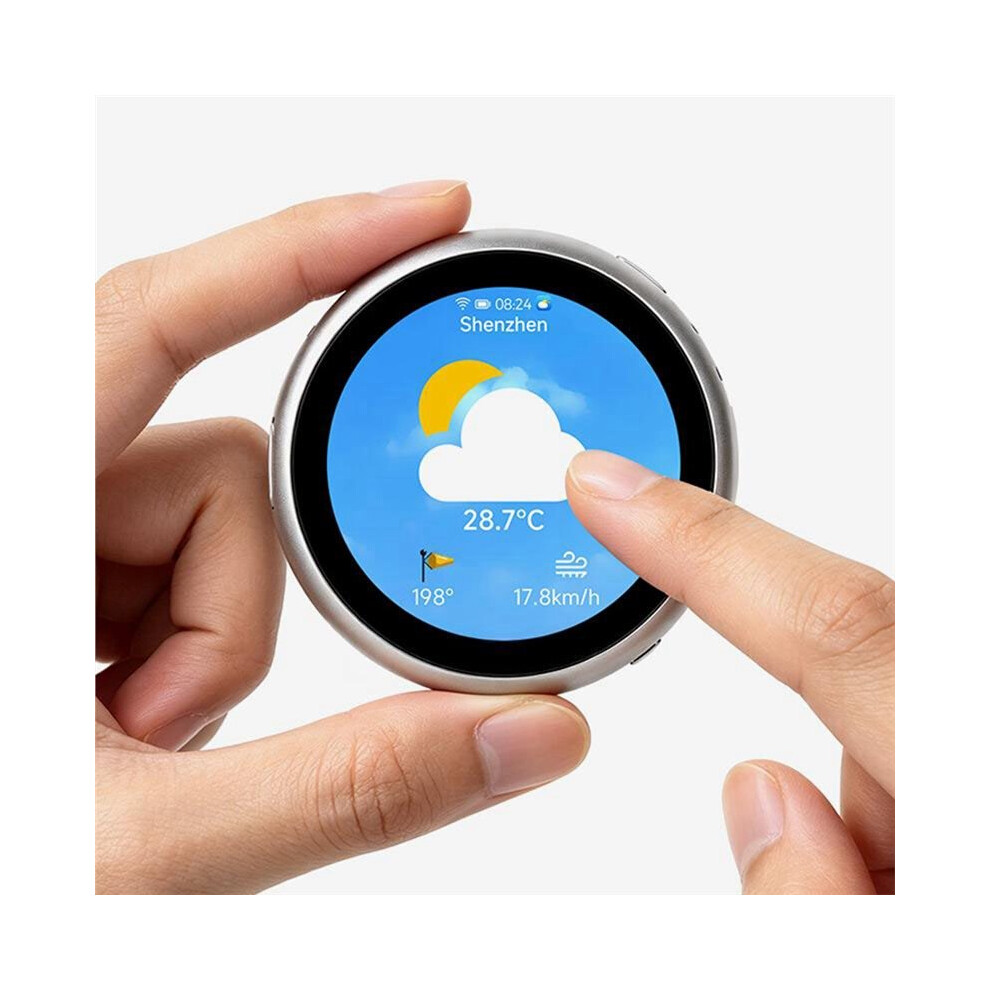

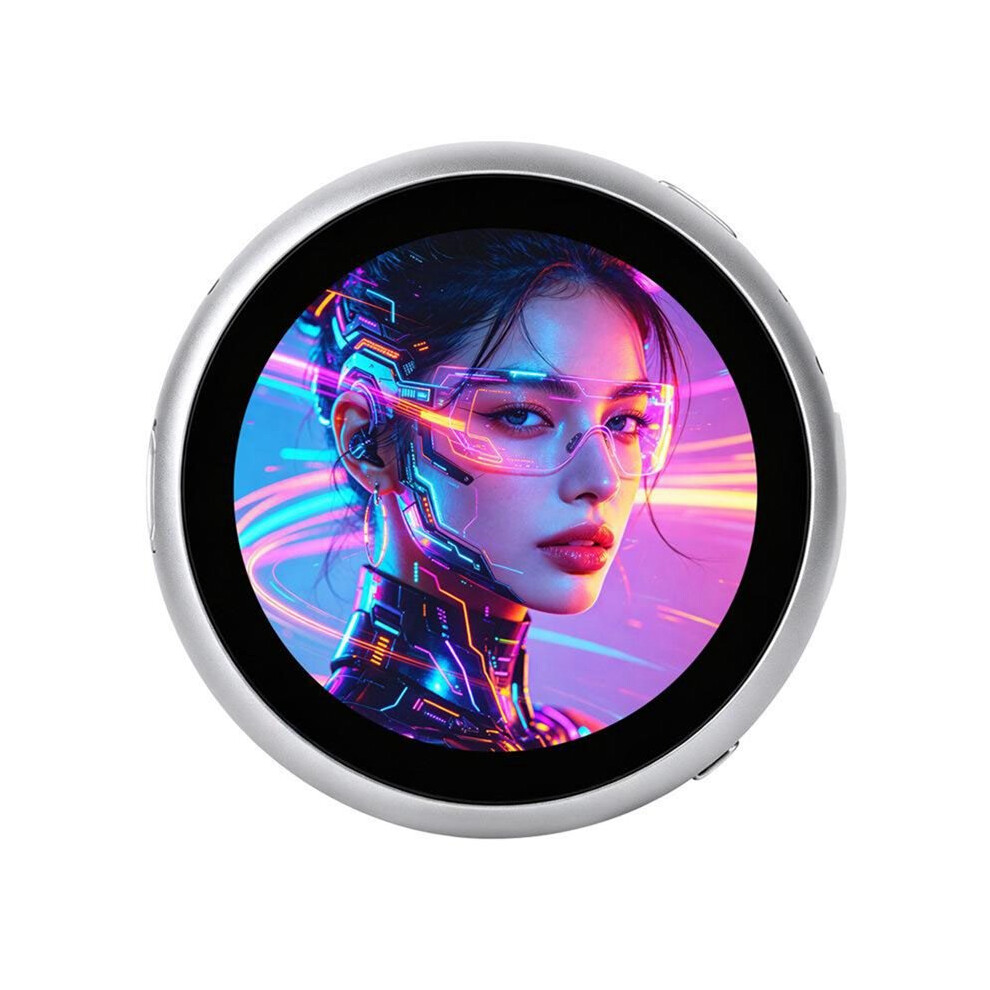

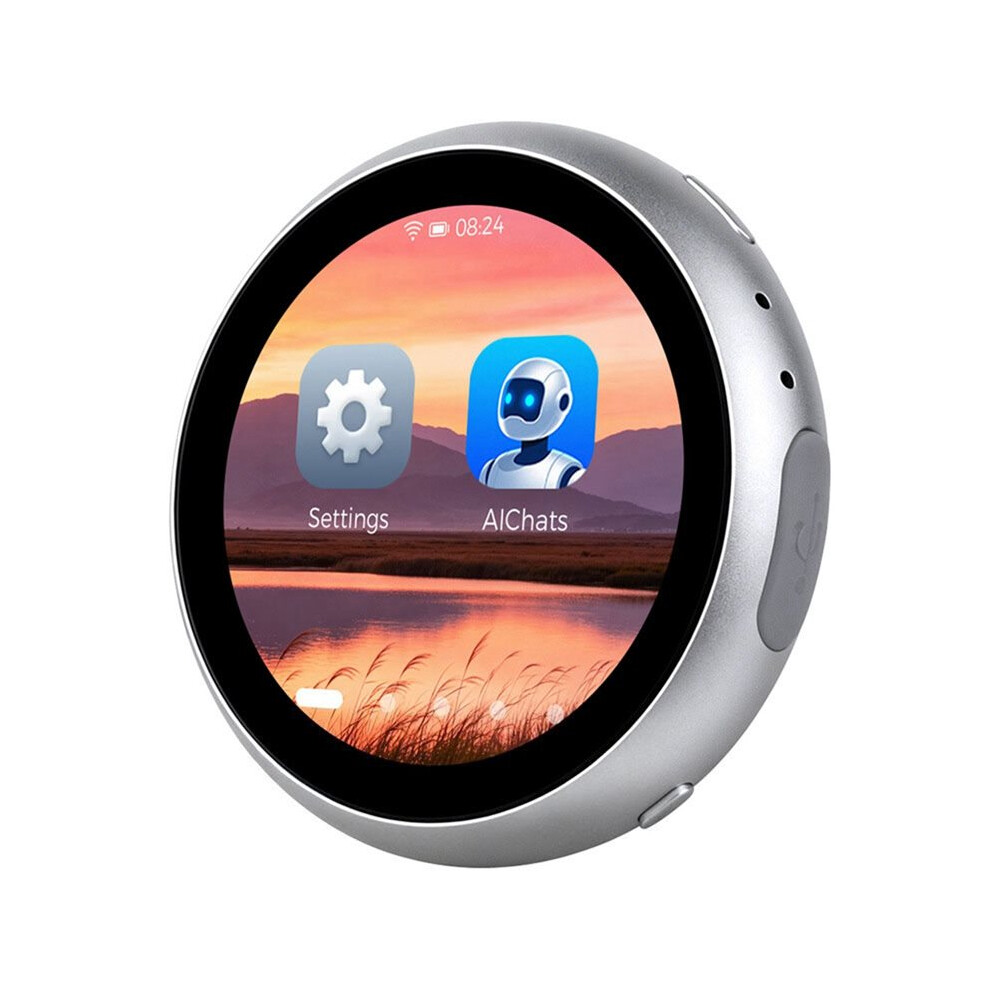

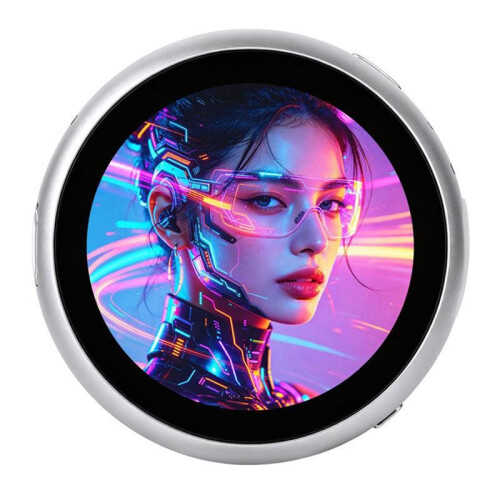

ESP32S3 AI Development Board - 1.85-Inch Round Touch Display (Electronic Badge) 360x360 Resolution

Descriere ESP32S3 AI Development Board - 1.85-Inch Round Touch Display (Electronic Badge) 360x360 Resolution

Powered by the high-performance ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, clocked at to 240 MHz.

Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and 5 (LE), featuring an onboard antenna.
Integrates 512 KB of and 384 KB of ROM, with an additional 8 MB of stacked PSRAM and 16 MB of external Flash memory.
Features a Type-C interface, enhancing user convenience and device compatibility.
Equipped with an onboard 1.85-inch capacitive touch HD LCD screen, offering a resolution of 360 x 360 pixels and 262K colors.
Incorporates the ST77916 display driver chip and the CST816S capacitive touch controller; these communicate via QSPI and I2C interfaces, respectively, thereby minimizing the consumption of interface pin resources.
Features a dual-microphone array capable of executing audio algorithms such as noise reduction and echo cancellation, making it ideal for precise voice recognition and near-field/far-field voice wake- applications.
Includes an onboard QMI8658 6-axis Inertial Measurement Unit (IMU), comprising a 3-axis accelerometer and a 3-axis gyroscope.
Includes onboard PWR (Power) and BOOT buttons to facilitate functional development and testing.
Color: As Shown
Material: Metal

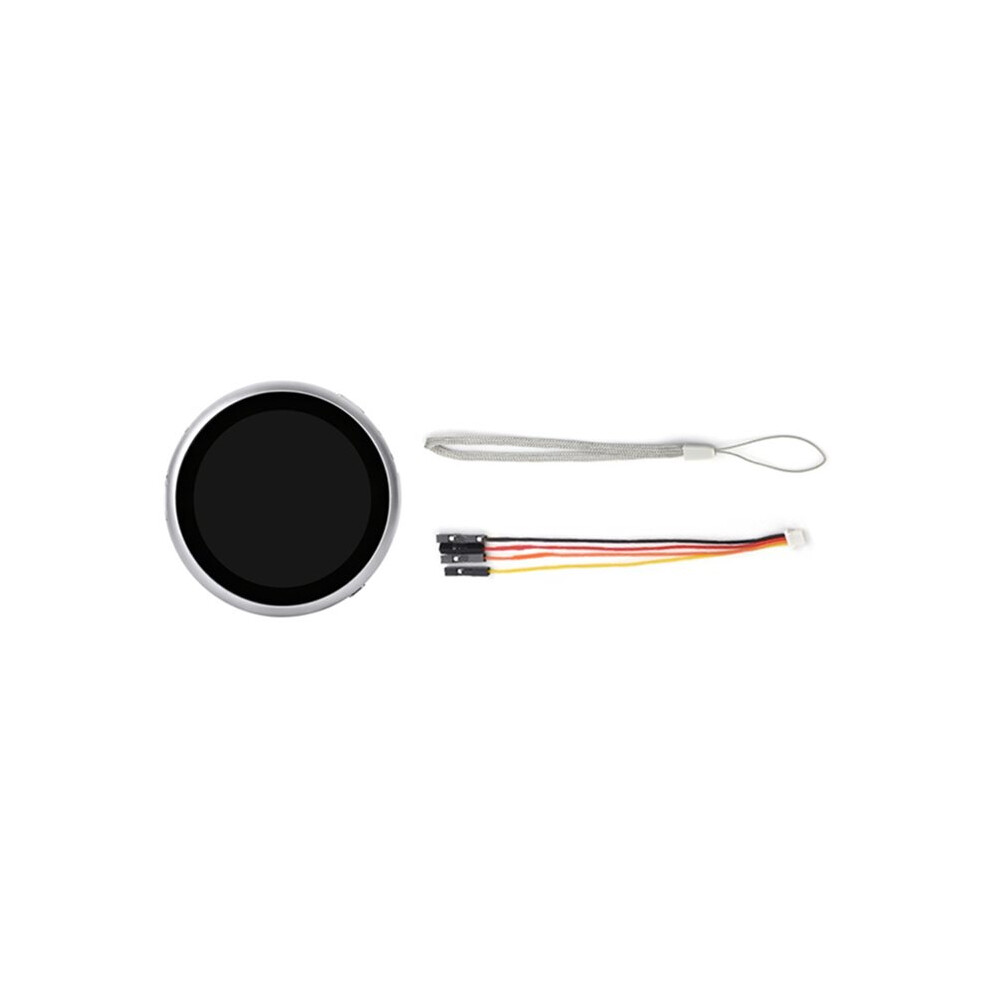

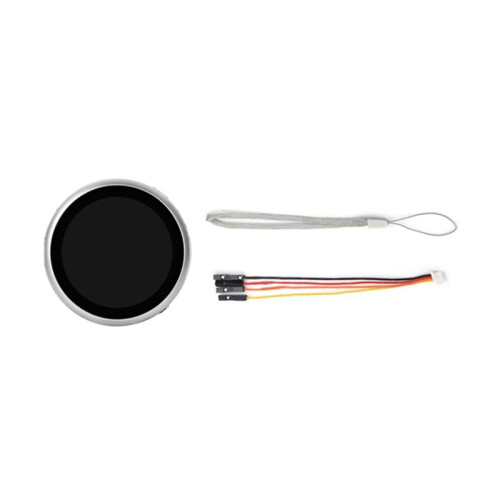

Package Contents:
1*Round Touchscreen
