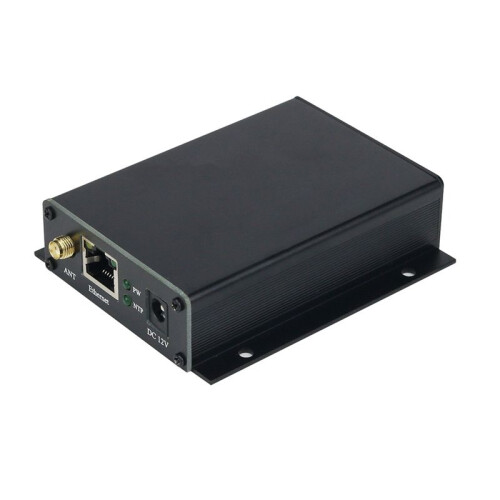

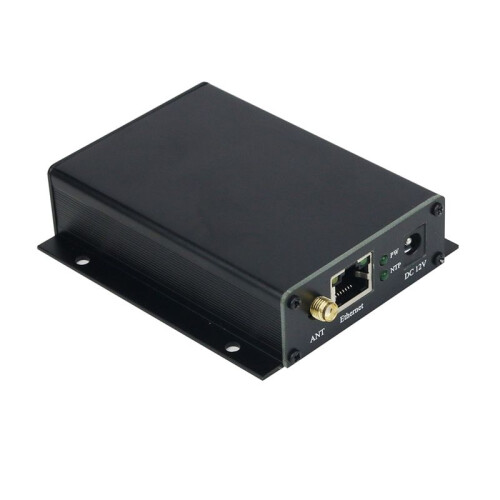

FC-NTP- Network Server 1 NTP Server Integrated GNSS Receiver with Ethernet Port for GPS Beidou GLONASS US PLUG

Descriere FC-NTP- Network Server 1 NTP Server Integrated GNSS Receiver with Ethernet Port for GPS Beidou GLONASS US PLUG

to 6000 visits per second
Local area network synchronization timing accuracy: 0.5-2ms
Internally integrated high-precision timing GNSS satellite receiver
Support GPS, Beidou, GLONASS, QZSS NTP v2 (RFC 1119), NTP v3 (RFC 1305), NTP v4 (RFC5905)
SNTP v3 (RFC 1769), SNTP v4 (RFC 2030)

Compact structure, easy to install
Receiver Parameters:
Support Satellites:GPS L1 /Beidou B1/GLONASSL1/QZSS L1
Vertical Positioning Accuracy:
Less than 5 meters/16.4ft CEP50 (autonomous)
Less than 3 meters/9.8ft CEP50 (SBAS)
First Positioning :
Reacquisition: Less than 1s 50%
Hot Start: Less than 1s 50%
Warm Start: Less than 33s 50%
Cold Start: Less than 35s 50%
Electrical Parameters:
Working Voltage: 6-24V
Operating Current: 80mA at 12V
GNSS Antenna Voltage: 3.3V
Ethernet Port: RJ45, 10/100Mbps, -connection adaptive
Reliability Level: 2KV Electromagnetic Isolation
Working Temperature: -40 to 85
Storage Temperature: -45 to 105
Working Humidity: 5% to 95% RH (No condensation)
Storage Humidity: 5% to 95% RH (No condensation)
Note: Please contact customer service about download or installation information before placing order.
Voltage: AC110V
Plug Type:US Plug,it applies to Canada, India,Mexico, Thailand, the United States, the Philippines and so .
Colour:Black
Material:Iron + Plastic

Package Contents:
1Set x NTP Server(Due to different product batches, the appearance may vary, which does not affect the use)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
