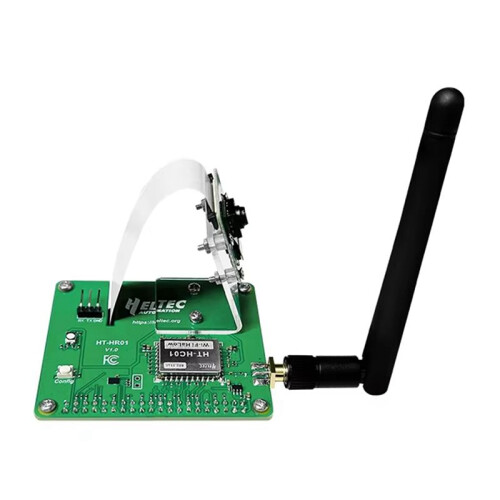

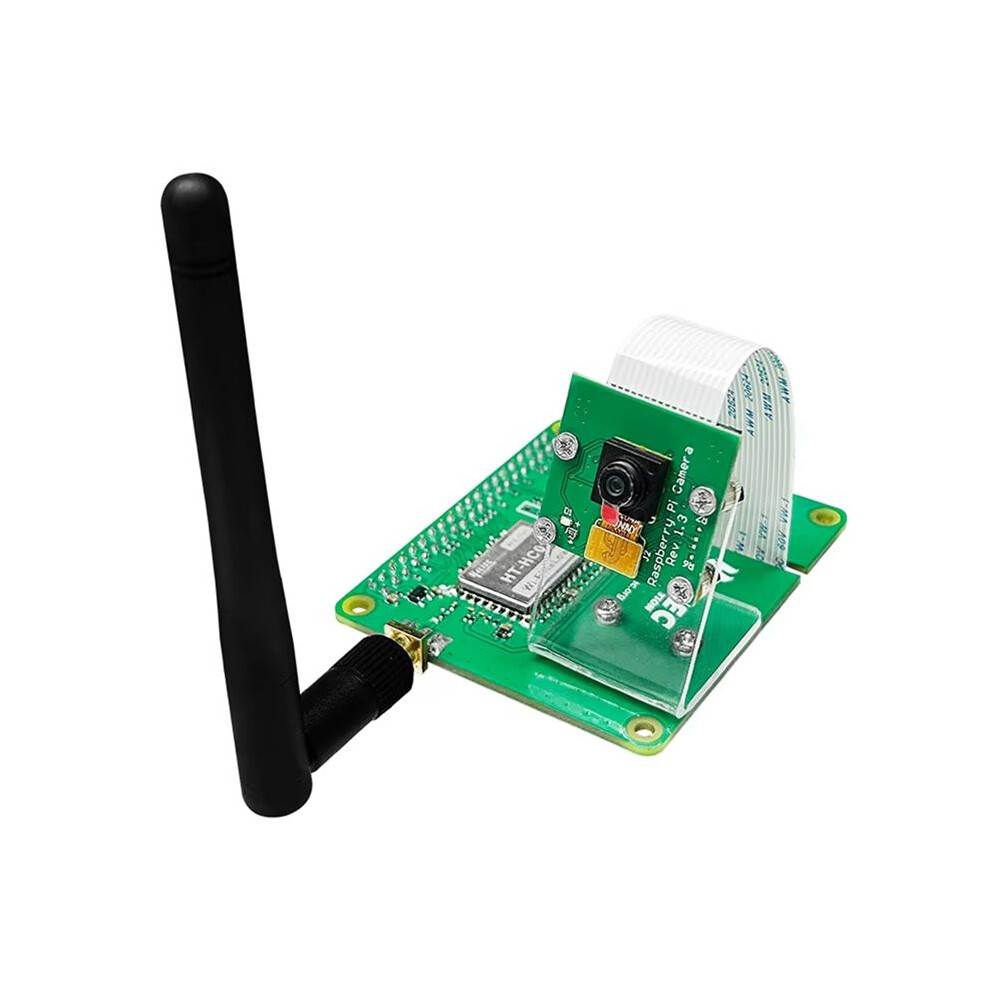

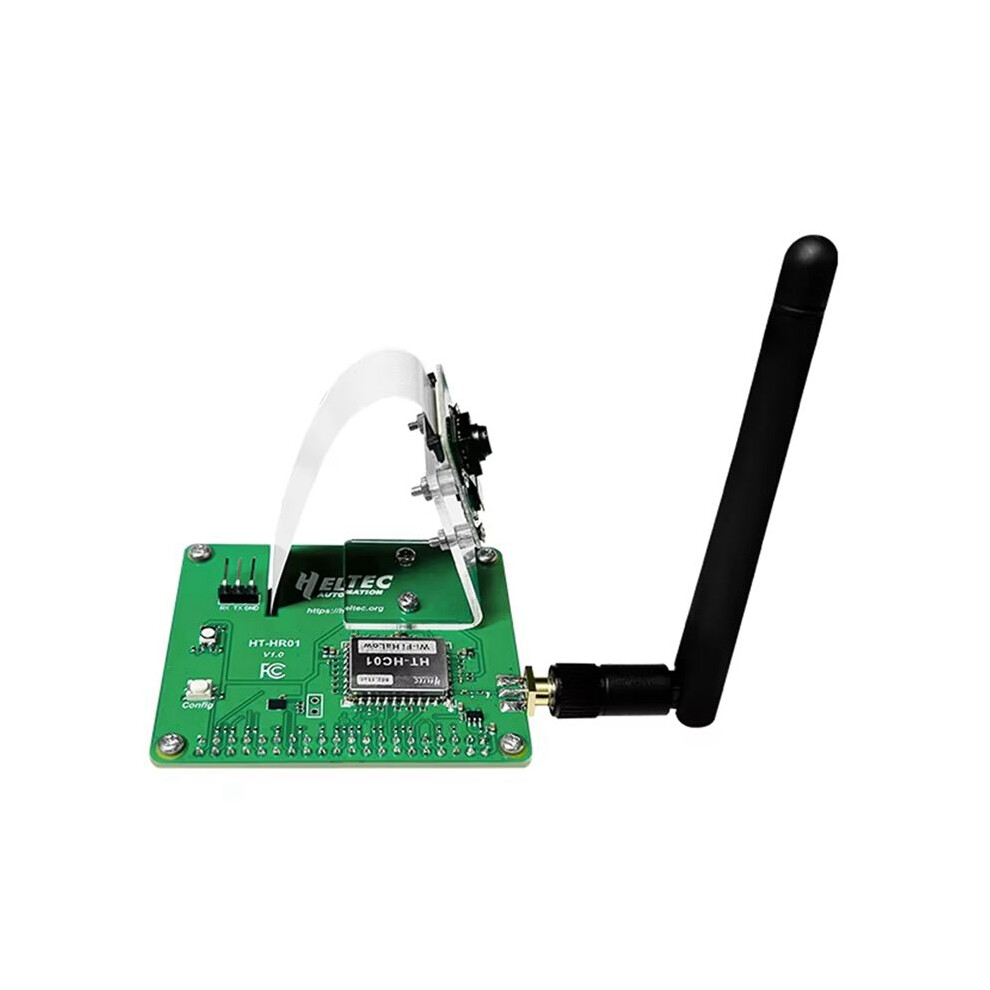

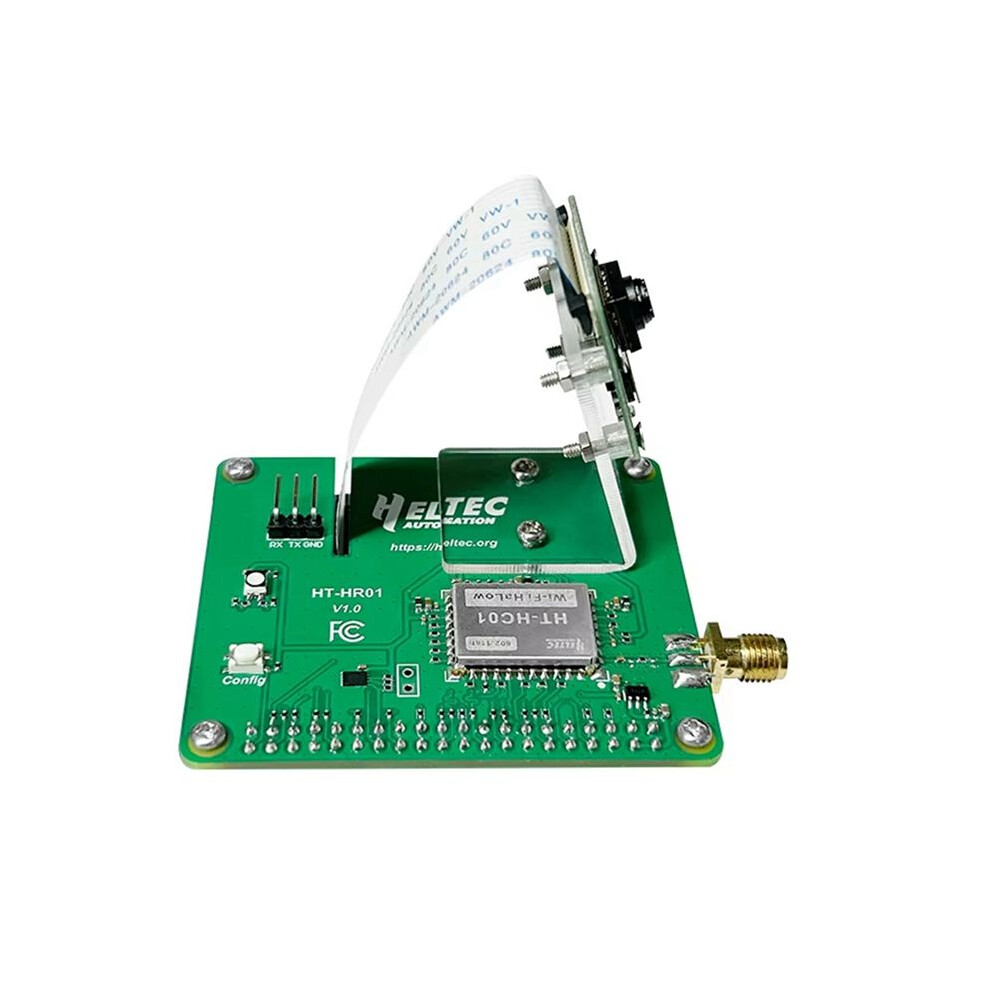

H ELTEC AUTOMATION WiFi HaLow Module Pi-CamLow for Raspberry Pi HAT 5MP Camera 32.5Mbps High-Speed Data Transfer Mesh Networking

Descriere H ELTEC AUTOMATION WiFi HaLow Module Pi-CamLow for Raspberry Pi HAT 5MP Camera 32.5Mbps High-Speed Data Transfer Mesh Networking

The board allows you to transfer camera data remotely at high speed
through Wi-Fi HaLow technology, while running Wi-Fi HaLow bridge, gateway, Mesh networking, and other functions.

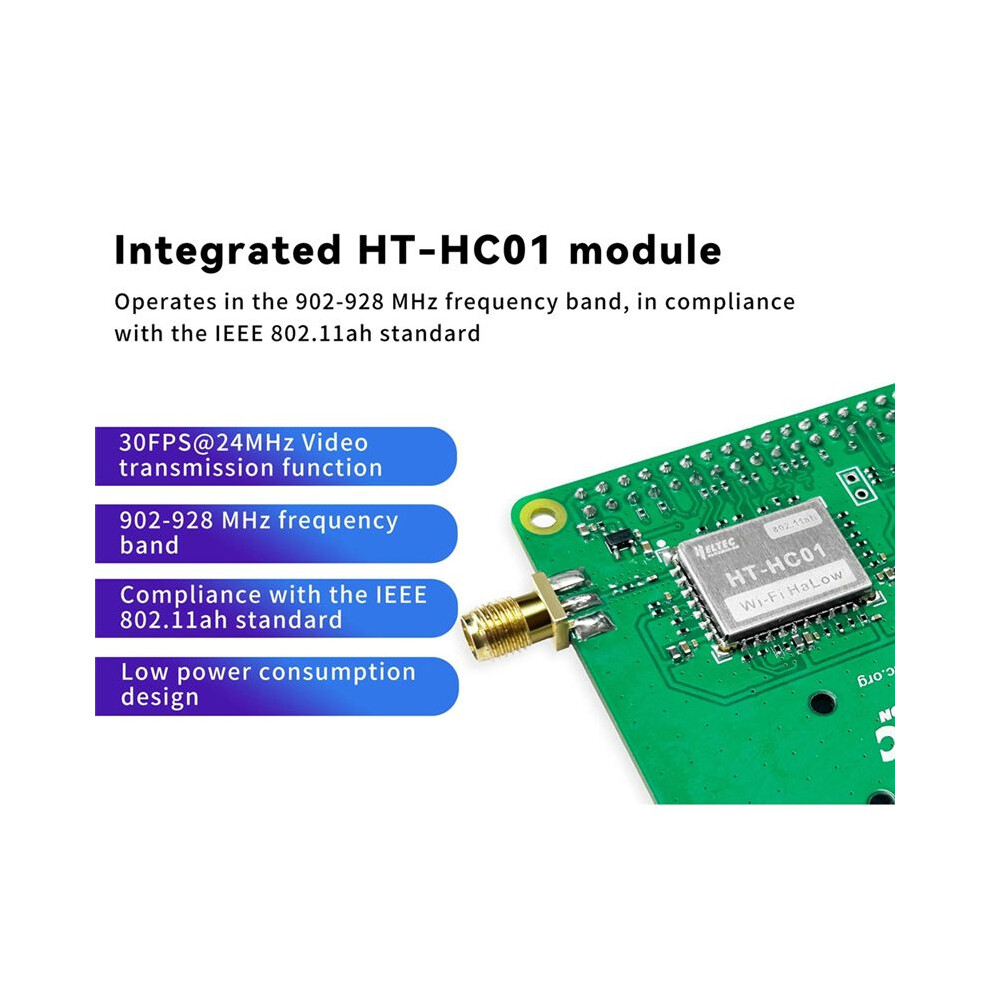

The HT-HC01 module provides Wi-Fi HaLow communication for Pi-CamLow. This module operates in the 902-928 MHz frequency band, in compliance with the IEEE 802.11ah standard.
It offers a maximum transmission speed of 32.5Mbps 8M, a maximum transmission power of 21 dBm, and a transmission range of 1-2km.
We believe that the excellent data transfer of Wi-Fi HaLow combined with the powerful camera will provide more possibilities for your for Raspberry PI development and application.

Enable all key Wi-Fi HaLow functionalities.
Along with a camera display UI.
Excellent Wi-Fi HaLow RF performance
Compliant with the IEEE 802.11ah standard, operating in the 902-928MHz frequency band.
Supports long-distance transmission, with a range of to 1-2km.
High-speed transmission, with a maximum of 32 Mbps 8M and to 150 kbps at extreme distances.
Low power consumption design with strong penetration capabilities, suitable for complex environments.

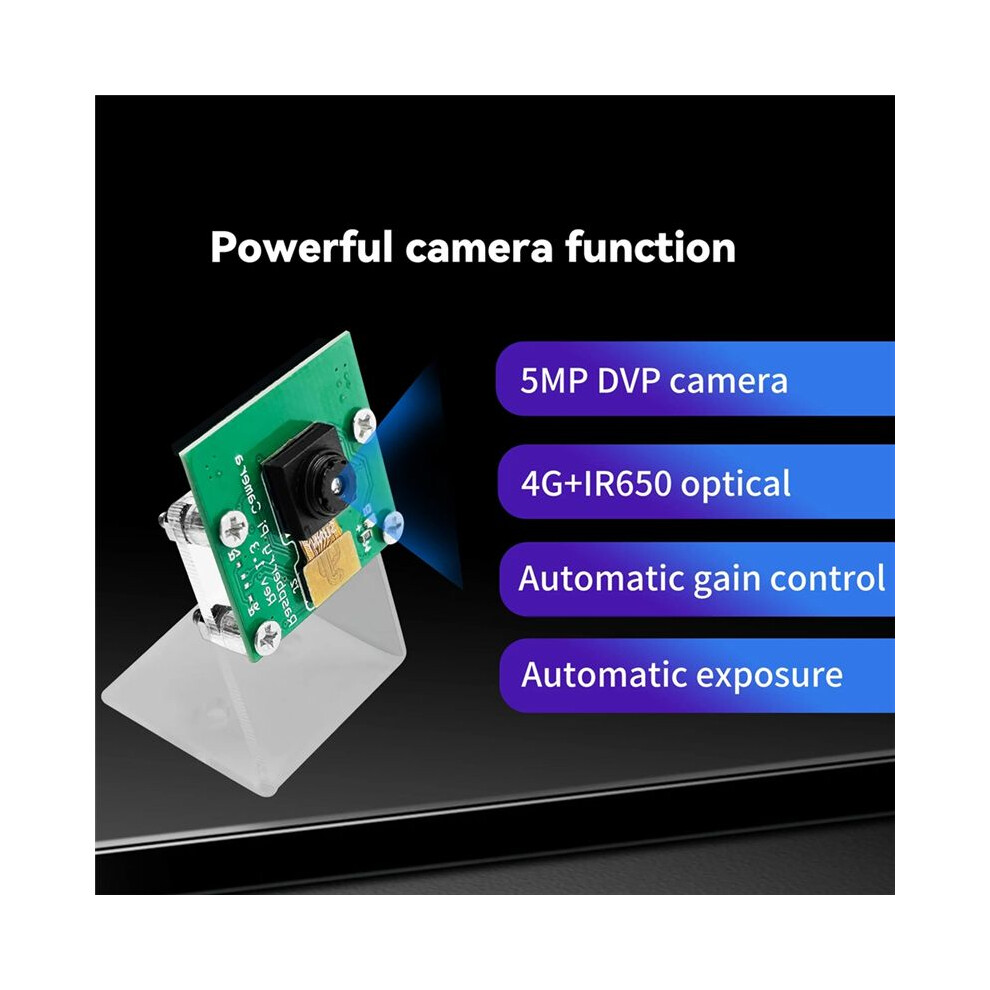

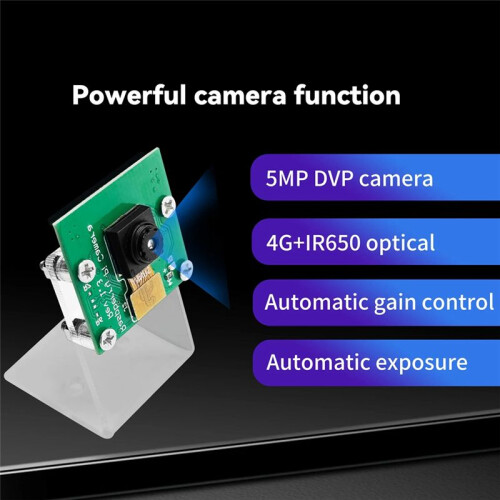

Powerful camera capabilities

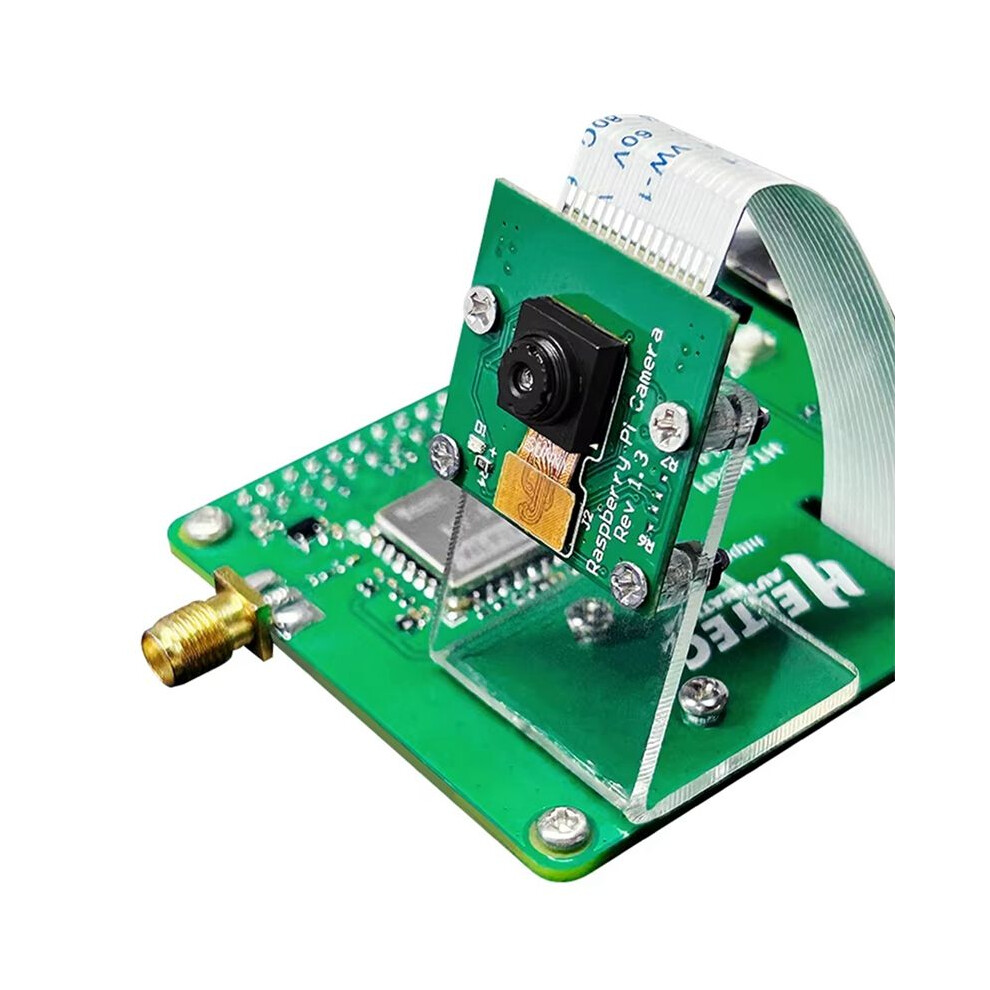

5MP DVP camera.
Supports dynamic and static images at 2592x1944 resolution.
Features a 62 field of view, F2.4 aperture, and 30FPS 24MHz video transmission.
Output formats include YCBCR4:2:2, RGB565, and RAWRGB.
Adopts 4G+IR650 optical structure with features such as auto exposure and auto gain control to meet diverse imaging needs.

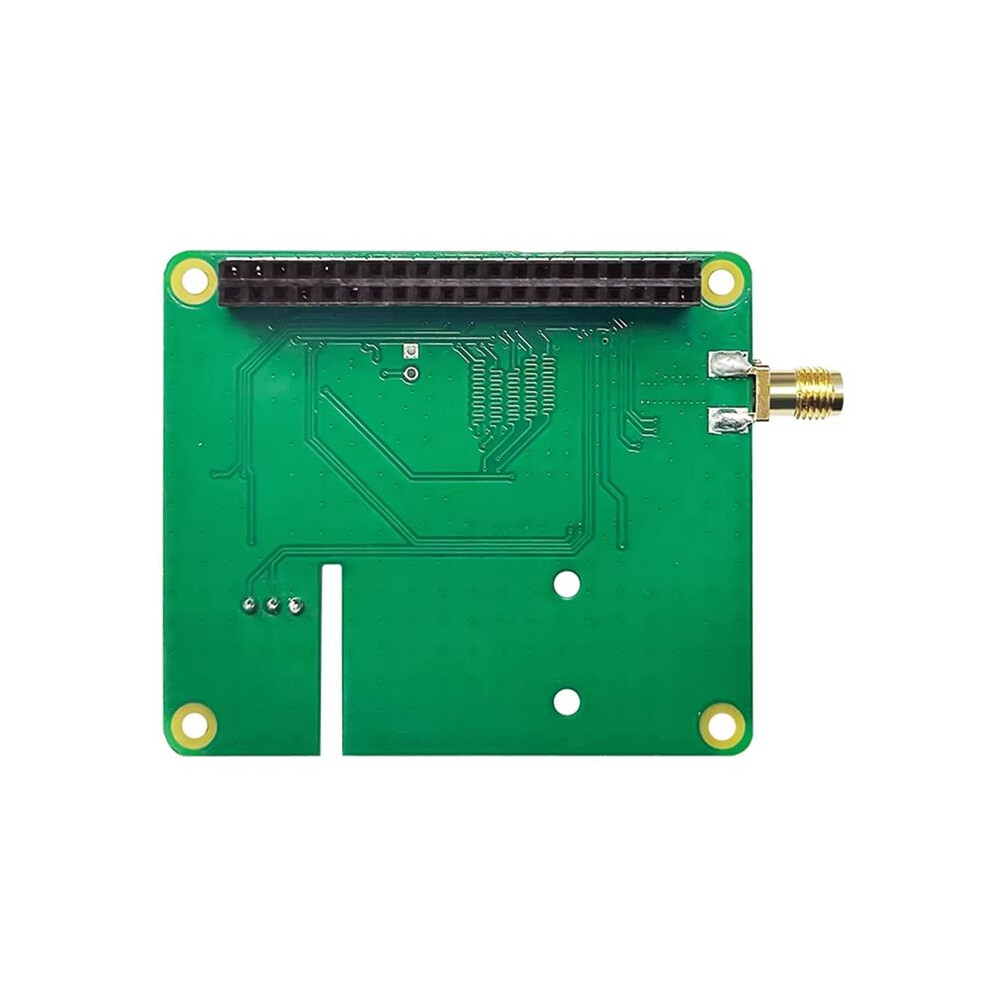

Pin description:The pins this HAT are fully compatible with the for Raspberry Pi, so you only need to know the pin mapping between the module's functional pins and the for Raspberry Pi pins.
Colour:Green
Material:PCB

Package Contents:
1 x Wi-Fi HaLow Module
