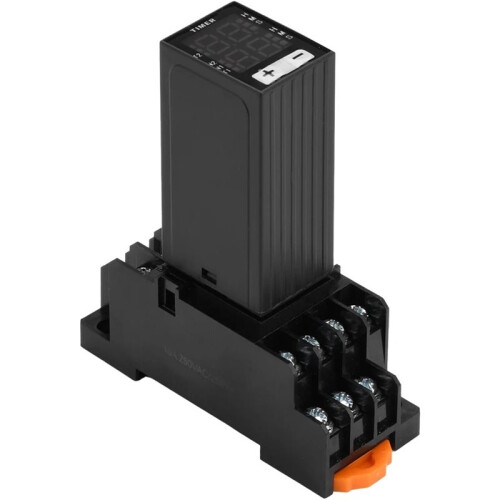

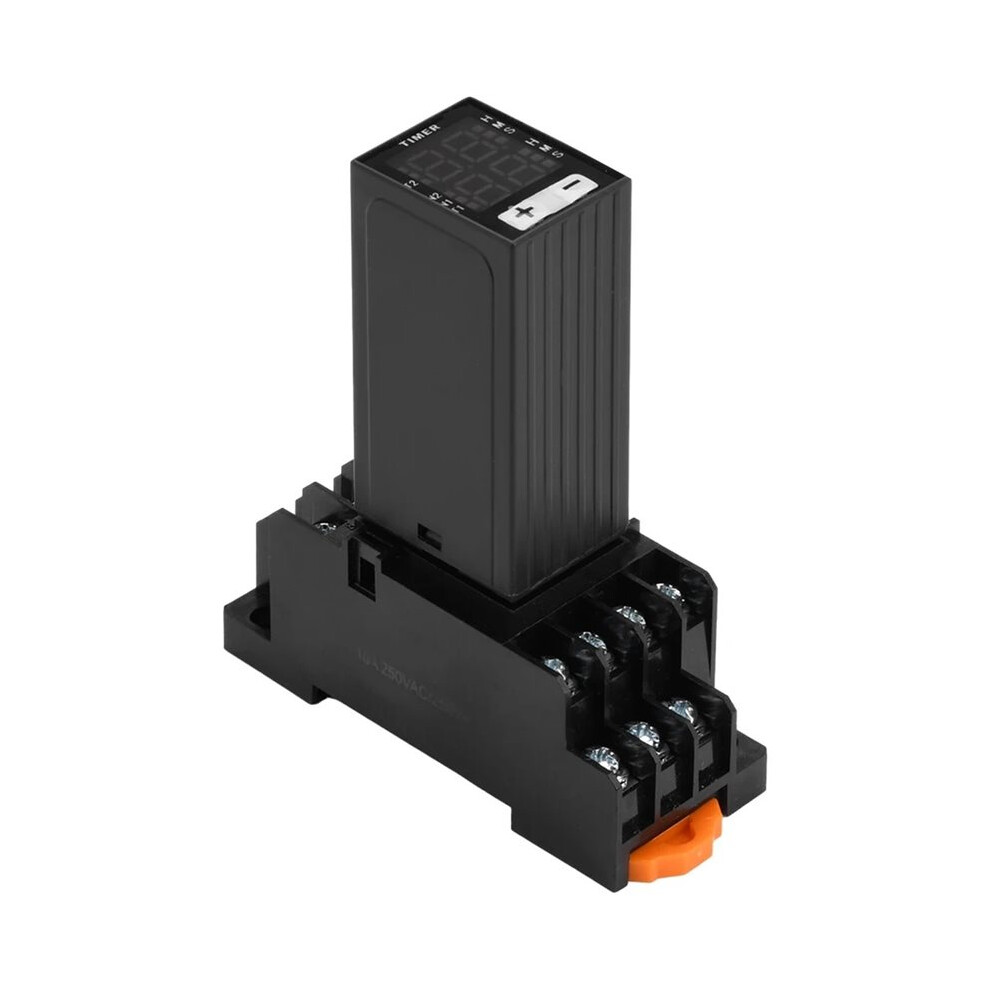

H3Y-4 LED Delay Relay Dual Digital Display Cycle Controller Delayer Power Delay Device with Base 24V

Descriere H3Y-4 LED Delay Relay Dual Digital Display Cycle Controller Delayer Power Delay Device with Base 24V

The PC casing is fire - and high - temperature - resistant, providing reliable protection.Equipped with an LED high - definition screen, offering a more intuitive digital display panel for easy reading.
Silver contacts ensure stable performance, oxidation resistance, and high work efficiency, guaranteeing long - term reliable operation.
Large - capacity pins at the bottom are made of copper galvanized material, featuring a high melting point, strong oxidation and corrosion resistance, as well as excellent electrical conductivity.
Three delay modes are available: N1 power - delay mode, N2 delay release mode, and N3 cycle delay mode, meeting diverse application requirements.
Widely applicable in fields such as automation equipment, electromechanical cabinets, electrical control, and power protection, demonstrating strong versatility.

Parameters:
Product model: h3y-4 (14 pin/four open and four closed with base)
Product name: relay
Voltage: dc12v 24v (optional)
range: 0.1s-99h
N1 mode power delay: four sets of delayed suction
N2 mode delayed release: four groups of suction and four groups of disconnection are delayed when powered
T1 t2 cycle mode: t1 t2 /off can be set for different times
Environmental temperature: -25~75
Installation method: matched with pyf-14a base device type
Set operation instructions
Mode description: n1 mode represents power delay, n2 represents delayed release, t1 and t2 cyclic delay
Working mode: long press+and one click for more than 3 seconds, then click to change the working mode
base setting: press and hold the+key for more than 3 seconds to enter, click the+key to change the specification. click one click to change t2 specification in loop mode
Numerical setting: click the+key to increase the
