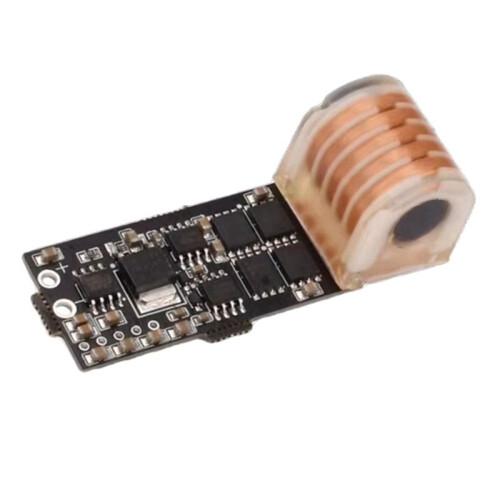

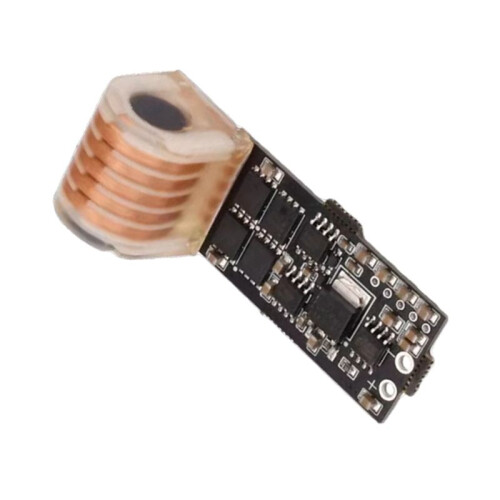

High Voltage Module High-Frequency Low Heat Drive Efficiency High Power DC12V Power Supply 20kV

Descriere High Voltage Module High-Frequency Low Heat Drive Efficiency High Power DC12V Power Supply 20kV

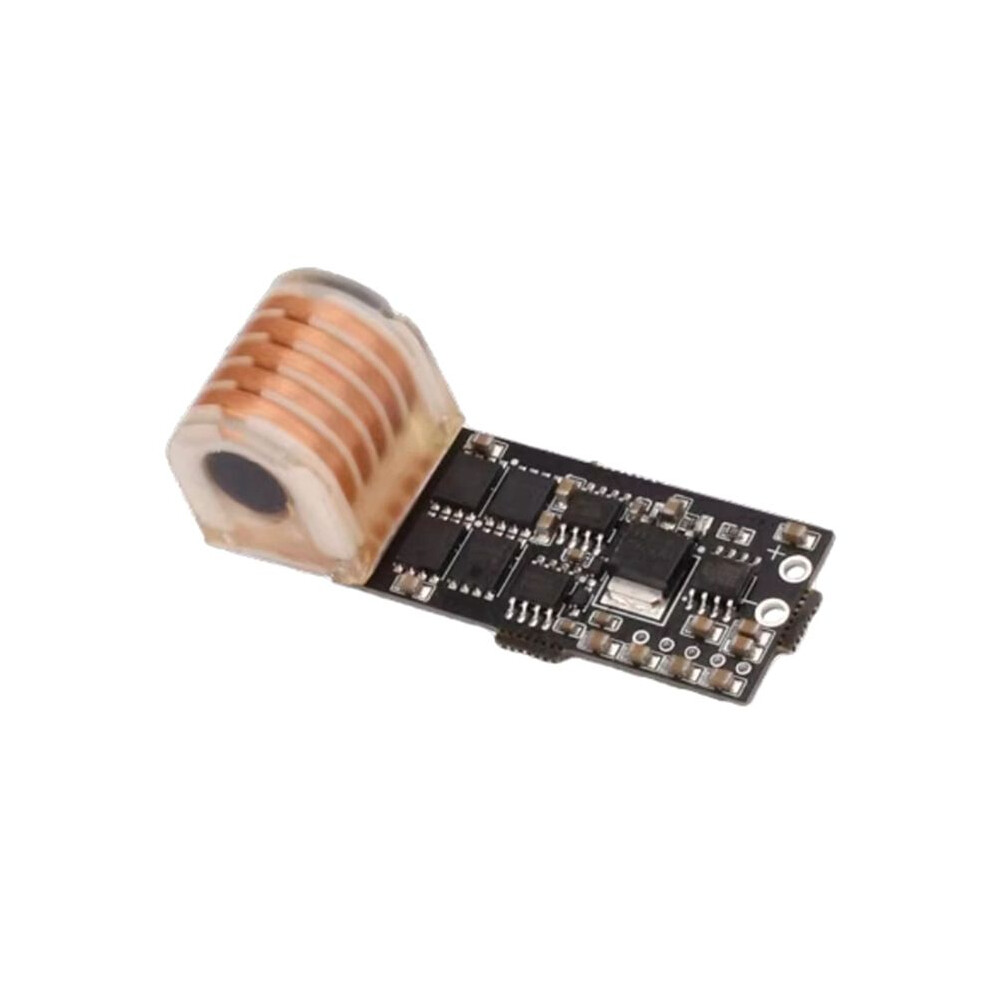

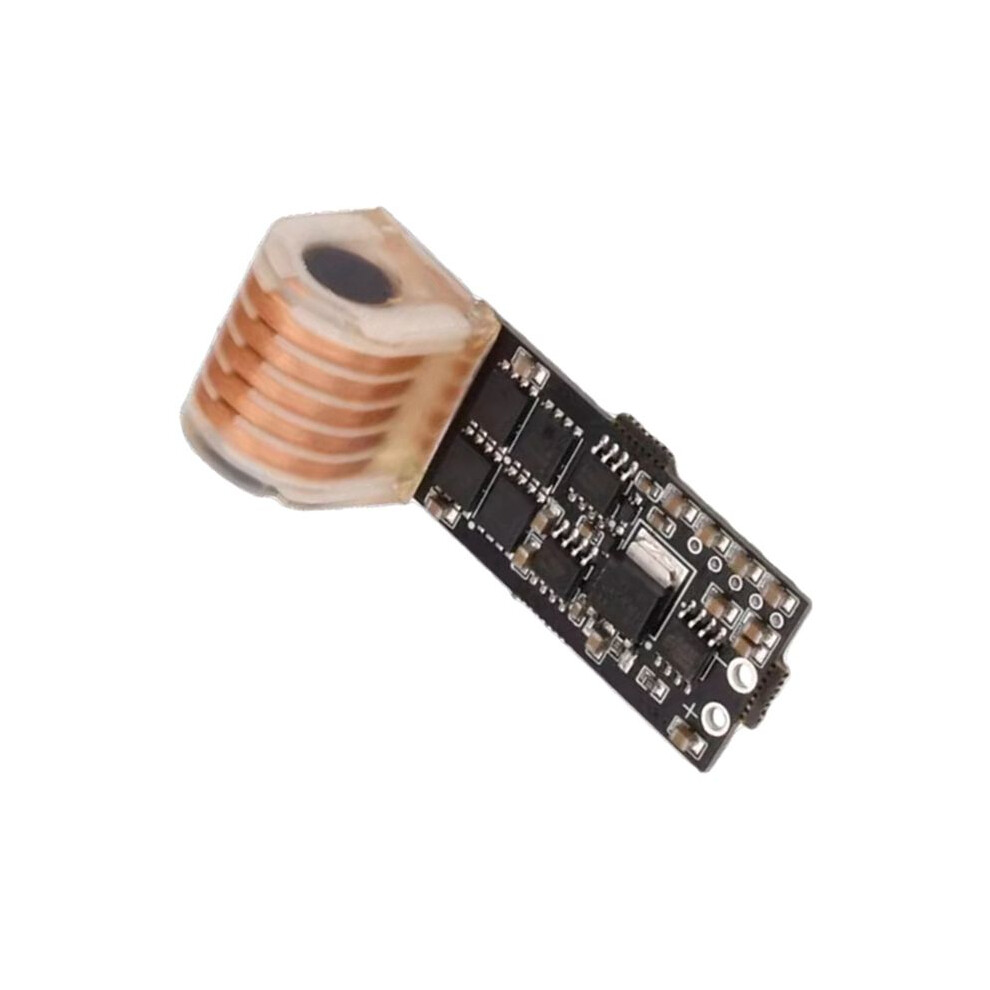

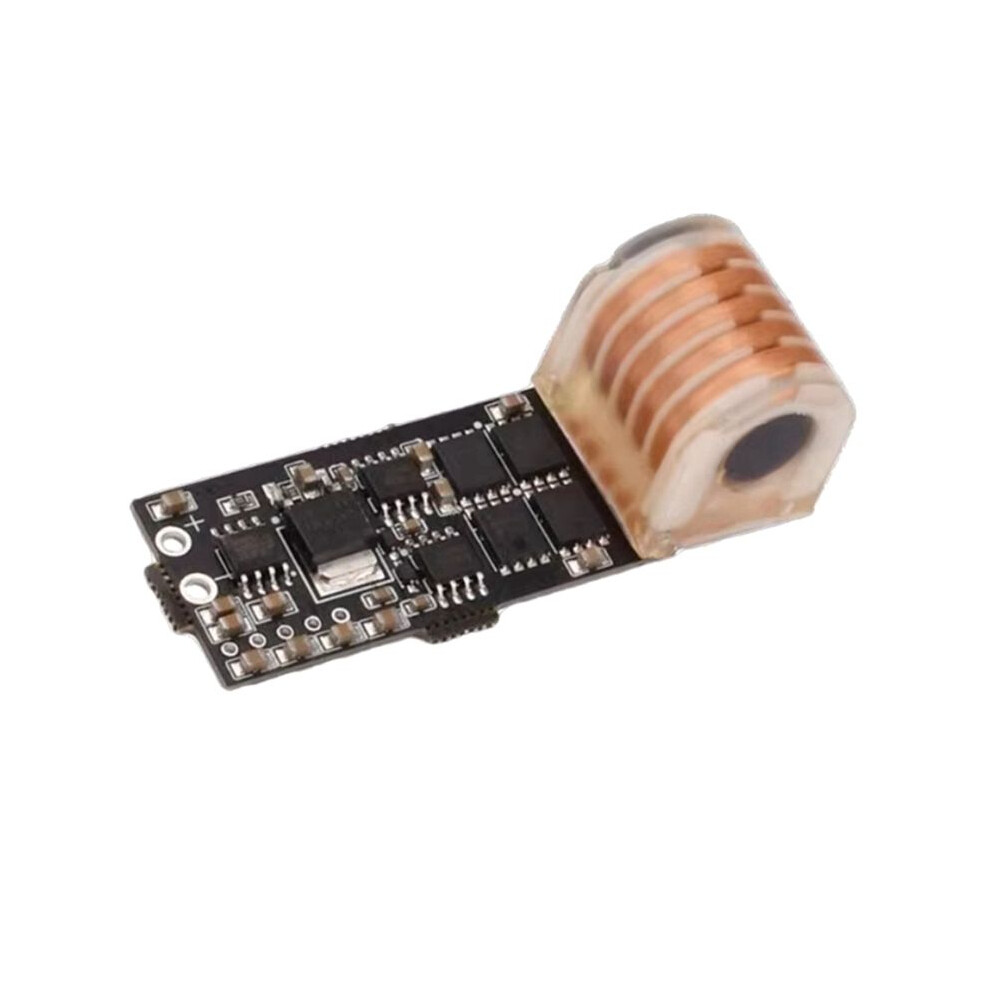

1. This driver board adopts H-bridge 4-tube MOS frequency conversion resonant topology technology, which has high driving efficiency and high power.
2. Low heat generation, no radiator required.
3. Arc starting distance is 1cm-2cm, which can start arc directly without pulling arc.

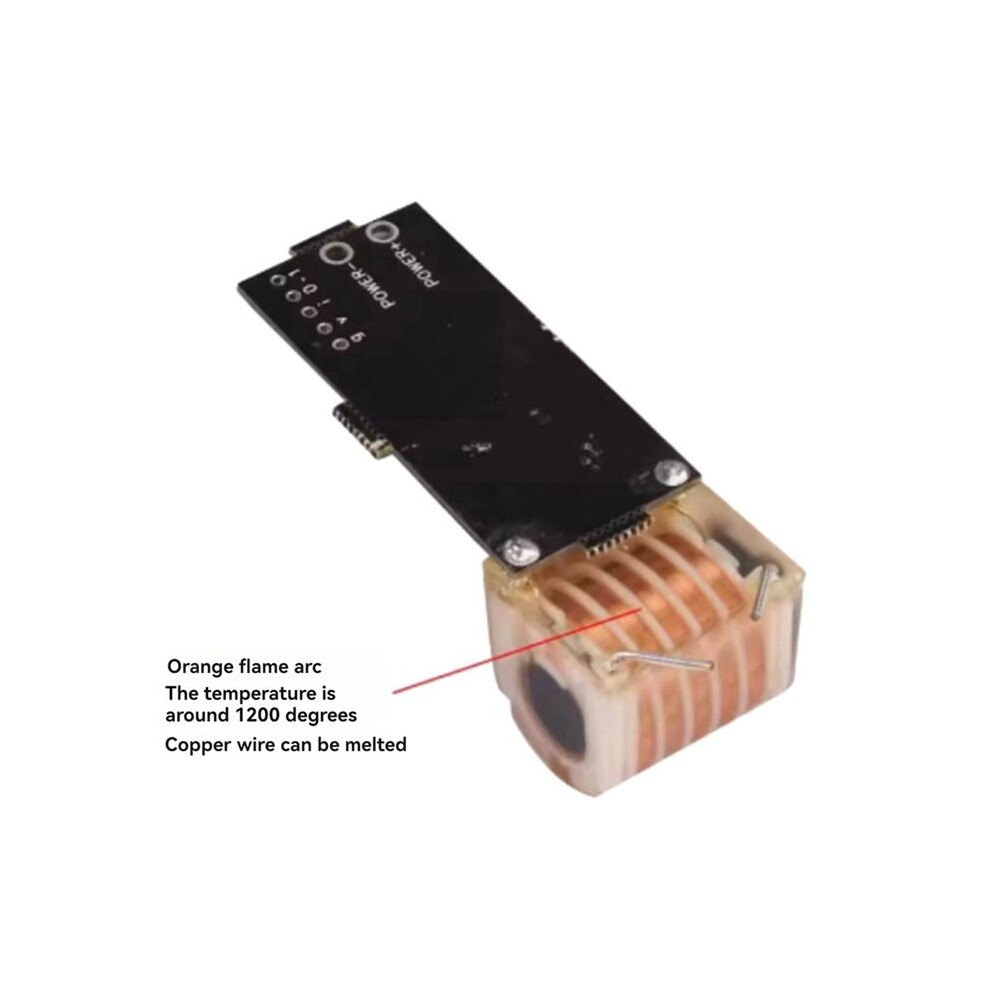

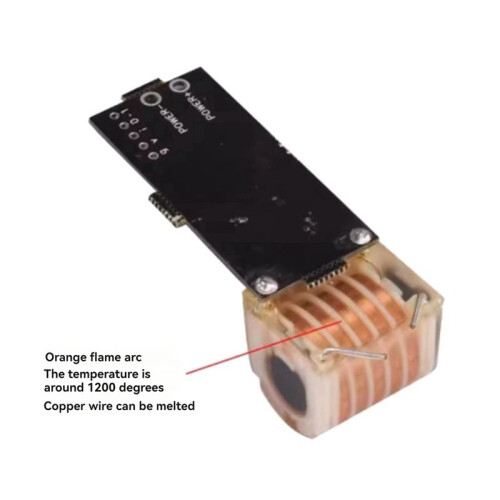

4. The arc temperature of the orange-yellow flame is about 1200 degrees, which can melt copper wire and has a wide range of applications.
5. The arc temperature is high, it can directly melt thin copper wire, iron wire, and sparks are scattered, and it can also directly ignite various gases, alcohol, gasoline, , plastic, paper, etc.

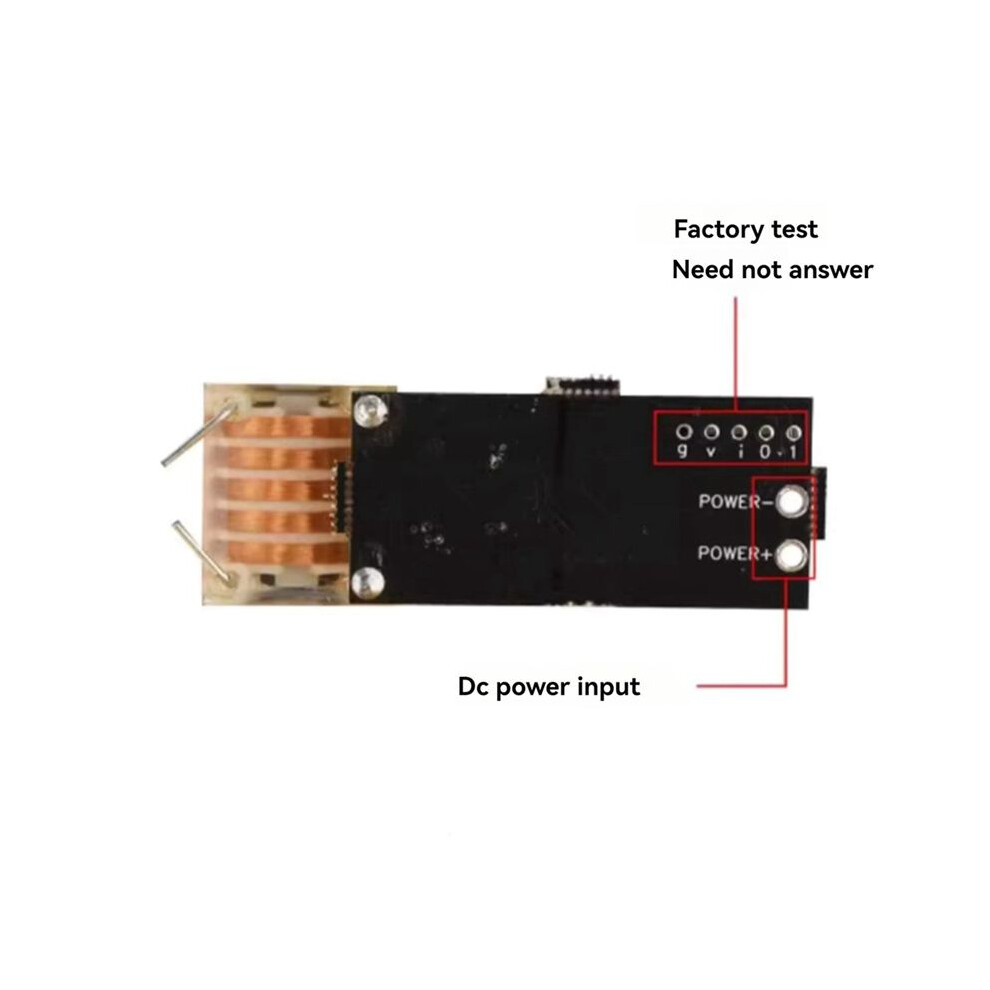

Power supply voltage range: 7-15V
Recommended supply voltage: 12V
Full load power: 50W
Input current: Less than 2A
Output voltage: 15KV-20KV
Output current: 5mA-15mA
Instructions for use:Arc striking distance 1cm-2cm (starting the arc directly, no need to pull the arc, if the arc has already started but the arc is not obvious and cannot be ignited, the distance between the electrodes can be brought closer)When the continuous working above 9V exceeds 5 minutes, it is necessary to add a fan next to the transformer.This product has no casing (the transformer part has been potted), so pay attention to safety during operation.
Notice:
1. This model outputs high-frequency AC, so the lead wire should not be too long. You can remove the transformer and extend the wiring at the primary end, or directly at the power supply end.
2. The power supply must be provided within the rated voltage range to work properly! If the voltage is too low, the module will undervoltage and stop working. Do not reverse or overvoltage, otherwise it will damage the module and even cause the capacitor to explode!
3. This product poses a certain risk to non-professionals, and must be operated in strict acc
