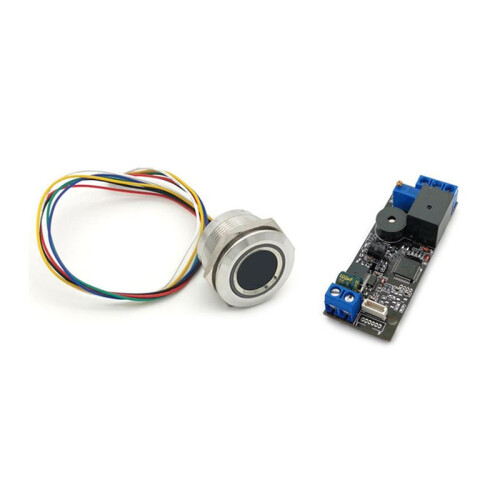

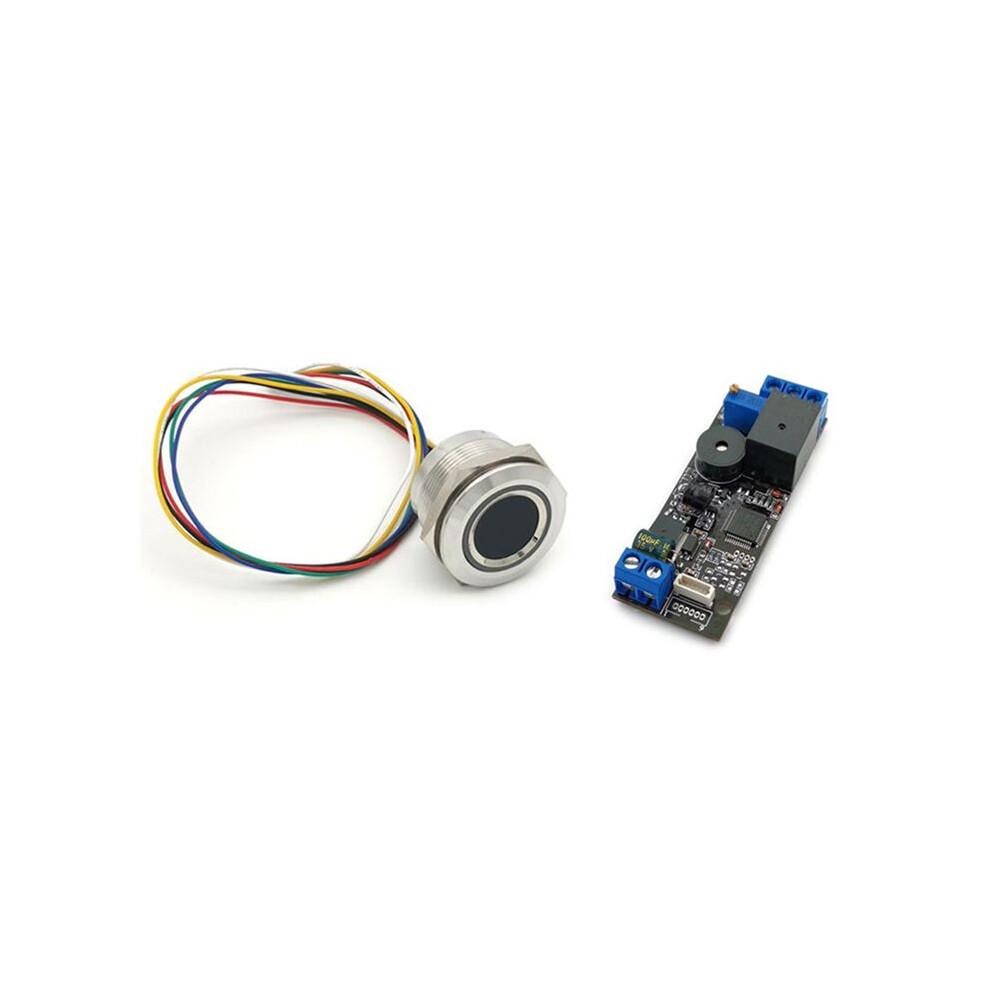

KL202+R503 Fingerprint Controller Kit DC12V Low Power Consumption Fingerprint Control Board Fingerprint Module

Descriere KL202+R503 Fingerprint Controller Kit DC12V Low Power Consumption Fingerprint Control Board Fingerprint Module

Fingerprint module is activated by finger induction;The relay can be adjusted by rotating the button;Registering fingerprints is very simple, just press the SET button to register fingerprints;The product is compact and easy to install;Can store to 120 fingerprints
KL202 is designed for low power consumption, the power supply is DC7.5-12V, the relay can be adjusted by rotating the button, the relay : 0.5-13 seconds.
Control board description: 1. SET button:Short press the SET button, the indicator light flashes quickly, the system enters the registration state, put your finger in the fingerprint collection area, fingerprint registration is successful when listening to music. When the system is in the registration state, you can register fingerprints continuously; if you do not need to add fingerprints, please wait a few seconds.
2. Return to factory default:Press the SET button until you hear a long "Di" beep and music, indicating that the initialization operation was successful.
3. Set the relay :Turn to set the closing of the relay to 0.5 to 13 seconds. The relay is a contact output, a switching signal, and no voltage output;4. Use:Press the finger, the relay closes after the fingerprint passes, and the closing is determined by .

Power supply: DC12V (Constant Voltage)
Output: Relay (Rated current: 10A)
Standby current: 15uA
Fingerprint capacity: 120
P2: MX 1.0mm pitch 6-pin fingerprint module (can be connected to R502, R502-A, R503)
P3: MX 1.25mm pitch 6-pin fingerprint module (can be connected to R300, R301T, R303, R303T, R305, R306, R307, R501)
Color: Black
Material: PCB+Metal

Package Contents:
1 x Fingerprint control board
1 x R503 Fingerprint module
