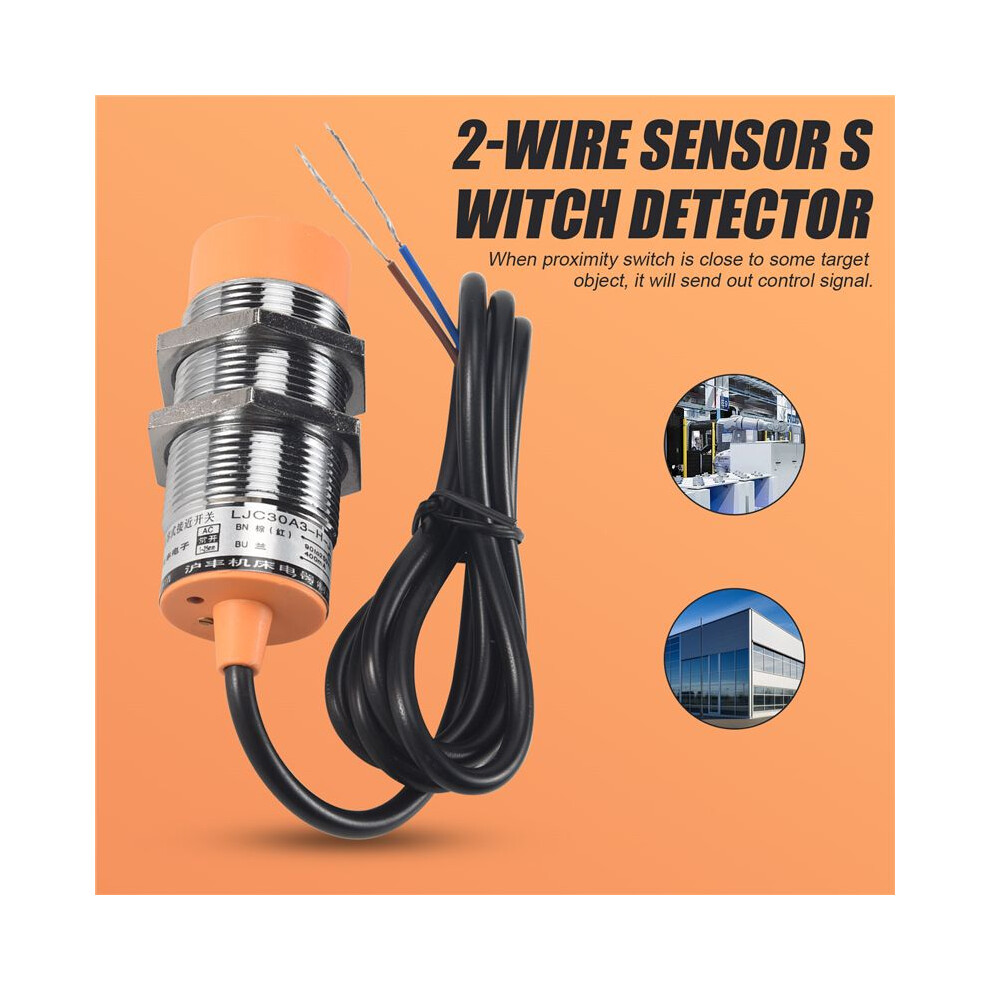

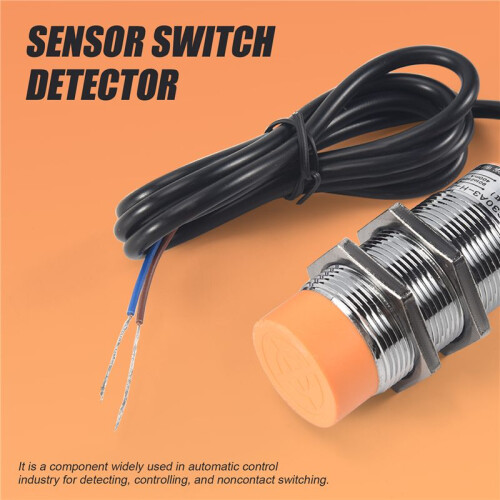

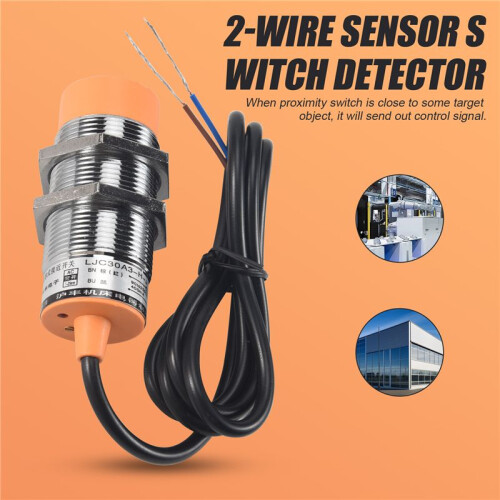

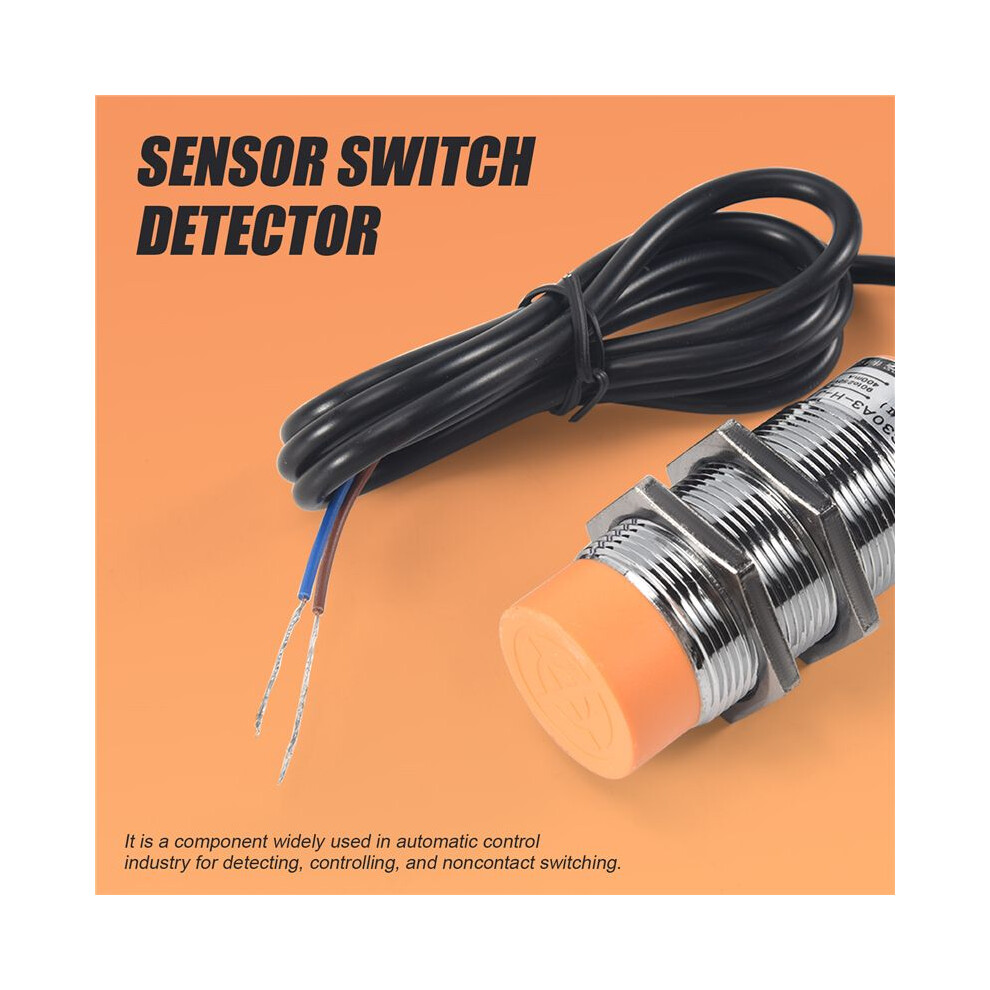

LJC30A3-H-J/EZ AC 90-250V NO 2-wire Capacitance Proximity Sensor Detector 0-20mm

Descriere LJC30A3-H-J/EZ AC 90-250V NO 2-wire Capacitance Proximity Sensor Detector 0-20mm

It is a component widely used in automatic control industry for detecting, controlling, and noncontact switching.
When proximity is close to some target object, it will send out control signal.
It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.
Product Name : Capacitive Proximity ;
Model : LJC30A3-H-J/EZ;
Wire Type : 2 Wire (Brown, );
Appearance Type : Cylinder Type
: Capacitance Sensor;
Output Type : NO(Normal Open);
Diameter of : 30mm;
Detecting Distance : 0-20mm
Detecting Object : Metal or Nonmetal Material;
Supply Voltage : AC 90-250V;
Current Output : 400mA;
Response Frequency : 7Hz
Operating Temperature : -25ÂC to +65ÂC (Non-freezing Condition);
Cable Length : 120cm/47";
External Material : Plastic, Alloy
Net Weight : 126g;
Color : Silver Tone, Yellow, Gray;

Package Content : 1 x Capacitive Proximity
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.The measurement allowed error is +/-1-3 cm.
