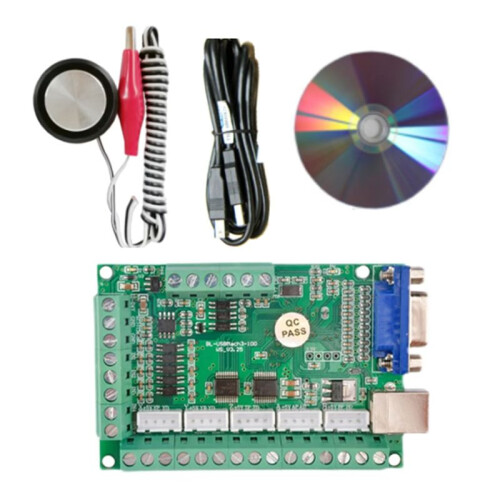

Mach3 V3.25 USB Driver Motion Controller 5 Axis CNC Board Z Tool Setter for Cnc Router Cutting Engraving Milling Machine
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 134,000 de recenzii cu evaluare “Excelent”
98,35 RON
162,28 RON
Reducere de 39%!
+52,43 RON livrare
1%
Câștigați 0,98 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (52,43 RON) | sâm 26 sept. - vin 2 oct.
Vândut de: Hoeappt
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Descriere & Detalii
Rezumat
- Description: 1. Comaptible with for MACH3 software.Support for windows XP, WIN7, WIN8, WIN10, support tablet computers, as well as 64-bit systems.
- 2. Provide PWM output (5V level) isolated by optocoupler to control other PWM controlled spindle speed controllers. Provide 4 output ports (5V level), which can be connected to a relay module with optocoupler to control water cooling, spray, etc.
- 3. External wide voltage input, 12-24V, and anti-reverse connection function.
- 4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to ensure computer safety.
- 5. It provides 0-10V analog voltage output isolated by optocoupler, and can control the frequency converter input by 0-10V analog voltage to control the spindle speed.
Descriere Mach3 V3.25 USB Driver Motion Controller 5 Axis CNC Board Z Tool Setter for Cnc Router Cutting Engraving Milling Machine
Description: 1. Comaptible with for MACH3 software.Support for windows XP, WIN7, WIN8, WIN10, support tablet computers, as well as 64-bit systems.
2. Provide PWM output (5V level) isolated by optocoupler to control other PWM controlled spindle speed controllers. Provide 4 output (5V level), which can be connected to a relay module with optocoupler to control water cooling, spray, etc.
3. External wide voltage input, 12-24V, and anti-reverse connection function.
4. All input signals are isolated by optical coupling, which can be connected to emergency stop, tool setting, limit, return to zero, etc., to ensure computer safety.
5. It provides 0-10V analog voltage output isolated by optocoupler, and can control the frequency converter input by 0-10V analog voltage to control the spindle speed.
It can be connected to a stepping motor driver with a common anode or common cathode input, a level of 5V, and an optocoupler input.

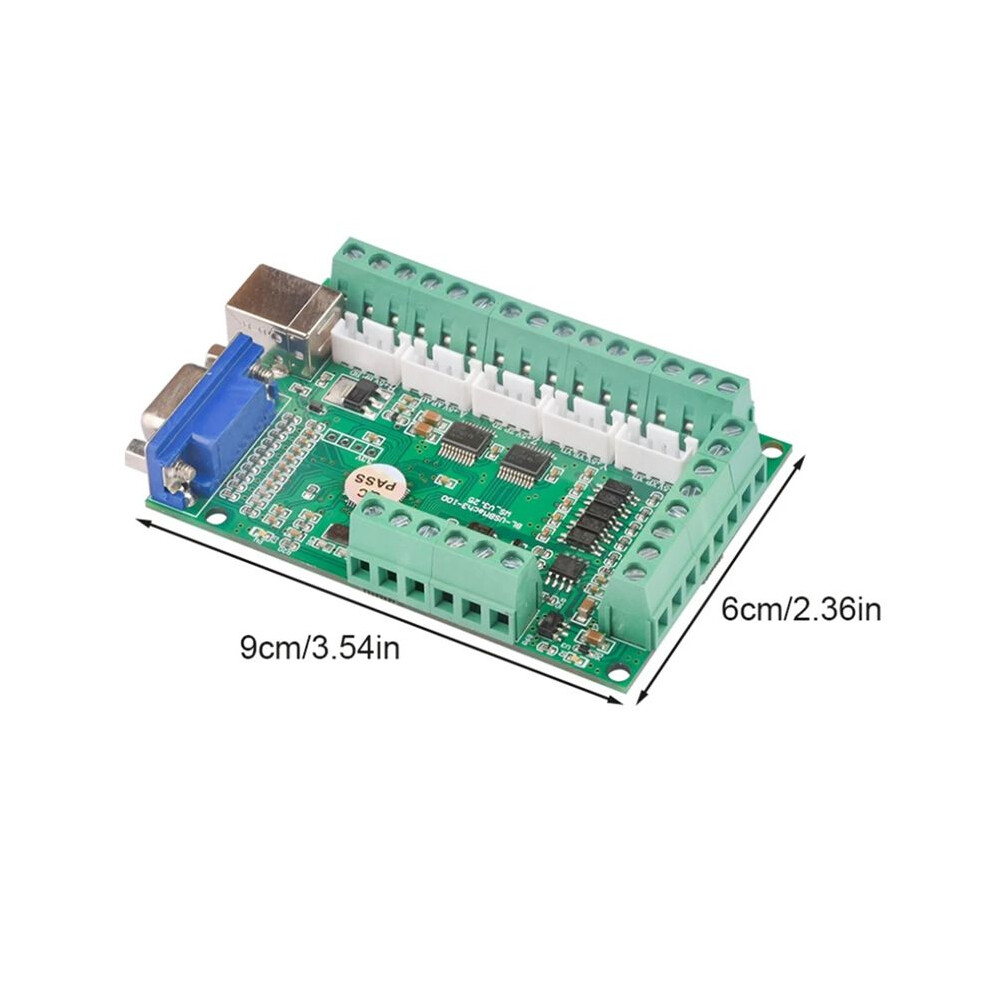

At the same , a 5-axis interface cable socket (HX2.54) is provided, which is convenient for connecting the stepper motor driver.
Set inverter:
1. Set the inverter to external terminal start.
2. Set the frequency control mode of the inverter to analog (0-10V) input control.
Quickly set the inverter:
1. The inverter does not need to be connected to the interface board first.
2. Short-circuit the FWD and COM of the inverter, and short-circuit the 10V and VI of the inverter. Connect the spindle. (Of course, it is better to connect the potentiometer to the 10V, VI and GND of the inverter according to the figure).
3. Power , if the inverter can run at the maximum speed and the spindle rotates normally, it basically means that the setting is correct. (If a potentiometer is used, the speed is adjustable).
Caution!
Please mind the power polarity and drivers direction.
Please don't put the drivers or motors /off
Detalii
| OPC | PRG22MZ |
|---|---|
| Coduri | 4713575388232 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 11cm |
| Length | 21cm |
| Weight | 0.243kg |
| Colour | As Shown |
| Material | plastic |
