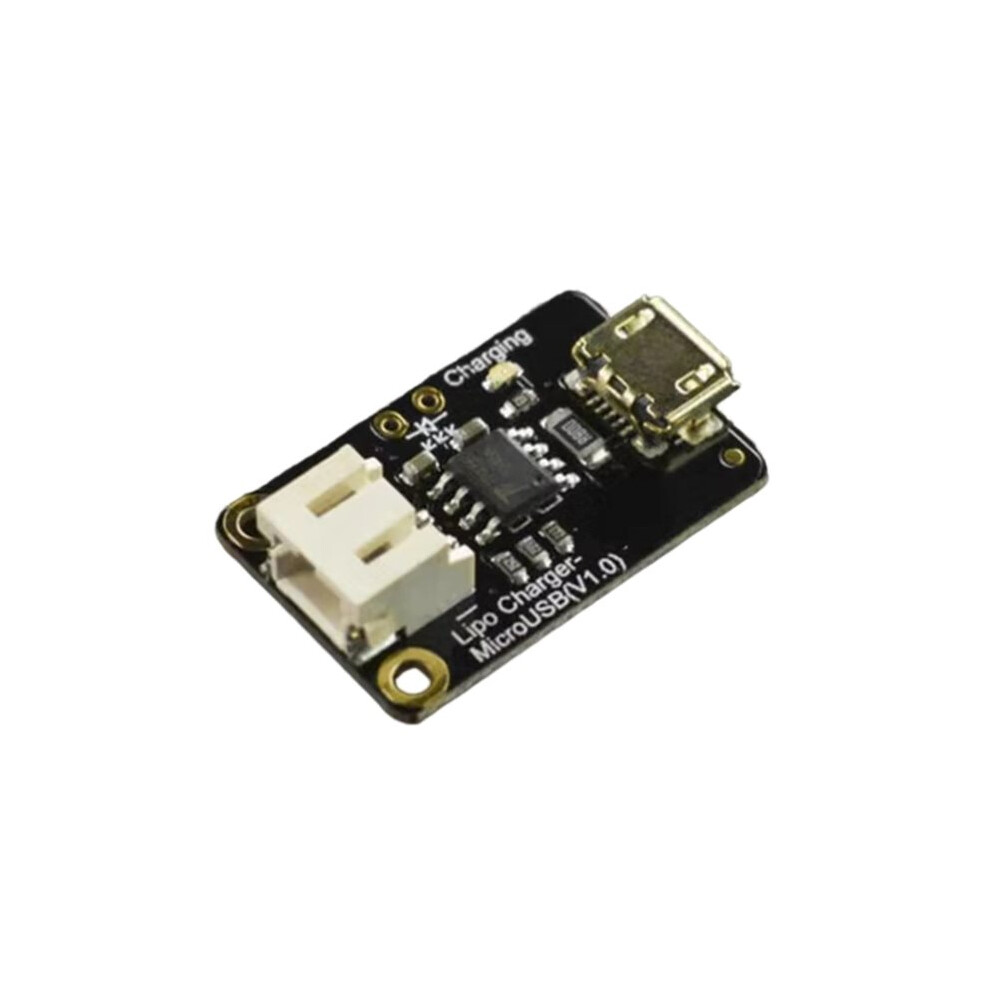

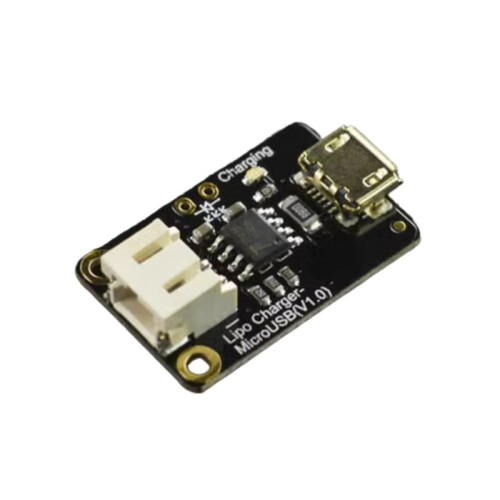

Micro USB Li-Ion Battery Charger Module 5V 1A 3.7V Lithium with Current Selection 50/200/500mA
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 131,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | joi 20 - mar 25 aug.
Vândut de: JJBRDZ
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Te-ar putea interesa și
Rezumat
- Safe & Intelligent 3-Stage Charging: Implements Trickle, Constant Current (CC), and Constant Voltage (CV) charging phases to protect your battery, maximize lifespan, and optimize charge time.
- Selectable Charging Current: Easily choose between 50mA, 200mA, or 500mA charge rates via solder jumpers on the back. Match the current to your battery's capacity for optimal safety and speed. (Default is 50mA).
- Clear Visual Status Indicator: The onboard LED provides intuitive charging status: Blinking: USB connected, no battery detected. Solid ON: Actively charging. OFF: Charging complete. The LED never drains your battery.
- External Indicator Option: Breakout pads allow you to connect your own status LED when the module is embedded inside your project.
- Built-in Protections: Features thermal regulation to automatically reduce charge current if overheating occurs, ensuring safe operation. Technical Specifications: Input Voltage: 5V Battery Type: Single-cell 3.7V Li-ion / Li-Po Charge Cut-off Voltage: 4.2V ±1% Selectable Charge Current: 50mA, 200mA, 500mA Operating Temperature: -40°C ~ +85°C
Descriere Micro USB Li-Ion Battery Charger Module 5V 1A 3.7V Lithium with Current Selection 50/200/500mA
Safe & Intelligent 3-Stage Charging: Implements Trickle, Constant Current (CC), and Constant Voltage (CV) charging phases to protect your battery, maximize lifespan, and optimize charge .
Selectable Charging Current: Easily choose between 50mA, 200mA, or 500mA charge rates via solder jumpers the back. Match the current to your battery's capacity for optimal safety and speed. (Default is 50mA).
Clear Visual Status Indicator: The onboard LED provides intuitive charging status: Blinking: USB connected, no battery detected. Solid : Actively charging. OFF: Charging complete. The LED never drains your battery.
External Indicator Option: Breakout pads allow you to connect your own status LED when the module is embedded inside your project.
Built-in Protections: Features thermal regulation to automatically reduce charge current if overheating occurs, ensuring safe operation. Technical Specifications: Input Voltage: 5V Battery Type: Single-cell 3.7V Li-ion / Li-Po Charge Cut-off Voltage: 4.2V 1% Selectable Charge Current: 50mA, 200mA, 500mA Operating Temperature: -40C ~ +85C
Safe & Intelligent 3-Stage Charging: Implements Trickle, Constant Current (CC), and Constant Voltage (CV) charging phases to protect your battery, maximize lifespan, and optimize charge . Selectable Charging Current: Easily choose between 50mA, 200mA, or 500mA charge rates via solder jumpers the back. Match the current to your battery's capacity for optimal safety and speed. (Default is 50mA). Clear Visual Status Indicator: The onboard LED provides intuitive charging status: Blinking: USB connected, no battery detected. Solid : Actively charging. OFF: Charging complete. The LED never drains your battery. External Indicator Option: Breakout pads allow you to connect your own status LED when the module is embedded inside your project. Built-in Protections:
Detalii
| OPC | PX2PWDG |
|---|---|
| Brand | Torribaly |
| Coduri | 6033226906195 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.02kg |
| Colour | As Shown |
| Material | PCB |
