Module Test Kit Serial to WiFi+BLE5.2 Module B35S Dual Mode Wireless Transmission Low Power Module Test Kit

Descriere Module Test Kit Serial to WiFi+BLE5.2 Module B35S Dual Mode Wireless Transmission Low Power Module Test Kit

1. 2.4G WiFi and BLE5.2
2. Memory 288KB/Flash 2MB
3.Support BLE fast distribution network
4. AP, STA&BLE mode
5. Low power consumption mode ~200uA

Wireless parameters
Wireless standard: IEEE 802.11b/g/n standard-BLE 5.2
Frequency range: 2.412-2.484GHz
Transmit power: WiFi:18-19dBm/:10dBm(MAX)
Receive sensitivity: -98dBm
antenna
Antenna type: external antenna (can be changed to onboard antenna)
Hardware parameters
Hardware interface: UART/PWM/GPIO/SPI/ADC
Working voltage: 3.3V (2.7V~3.6V)
GPIO driver: Max:12.8mA
Operating current: -30mA/ 400mA
Software parameters
Wireless network: AP/STA/BLE
Security mechanism: WEP/WPA-PSK/WPA2-PSK
Encryption type: WEP64/WEP128/TKIP/AES
Firmware upgrade: serial port upgrade
Network protocols: IPv4, TCP/UDP, Lwip
User configuration:AT+command set
Other parameters
Working temperature:-40-+85
Working humidity: 10%-90%RH (non-condensing)
Storage temperature: -40-+85C
Storage humidity: 10%-90%RH (non-condensing)
Note:
Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB

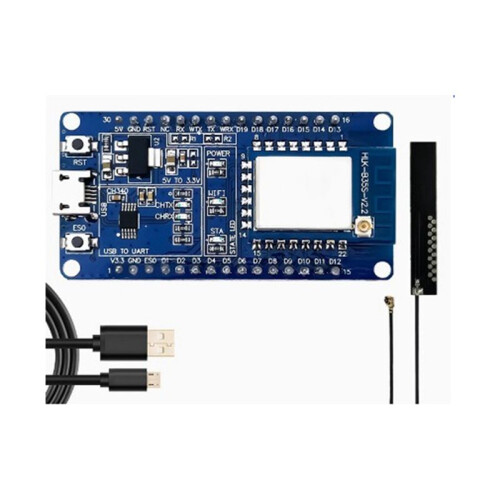

Package Contents:
1 x Module
1 x Test Base Plate
1 x USB Cable
1 x 2.4G PCB Antenna
