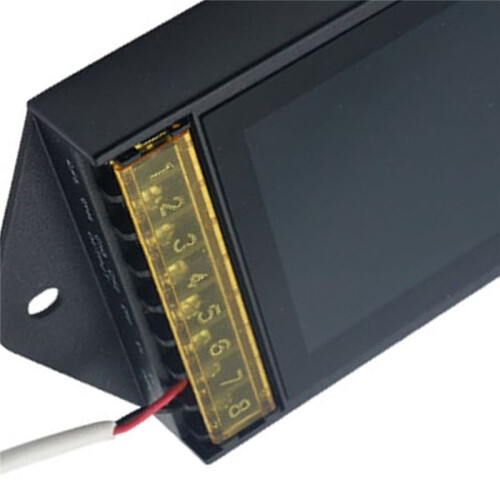

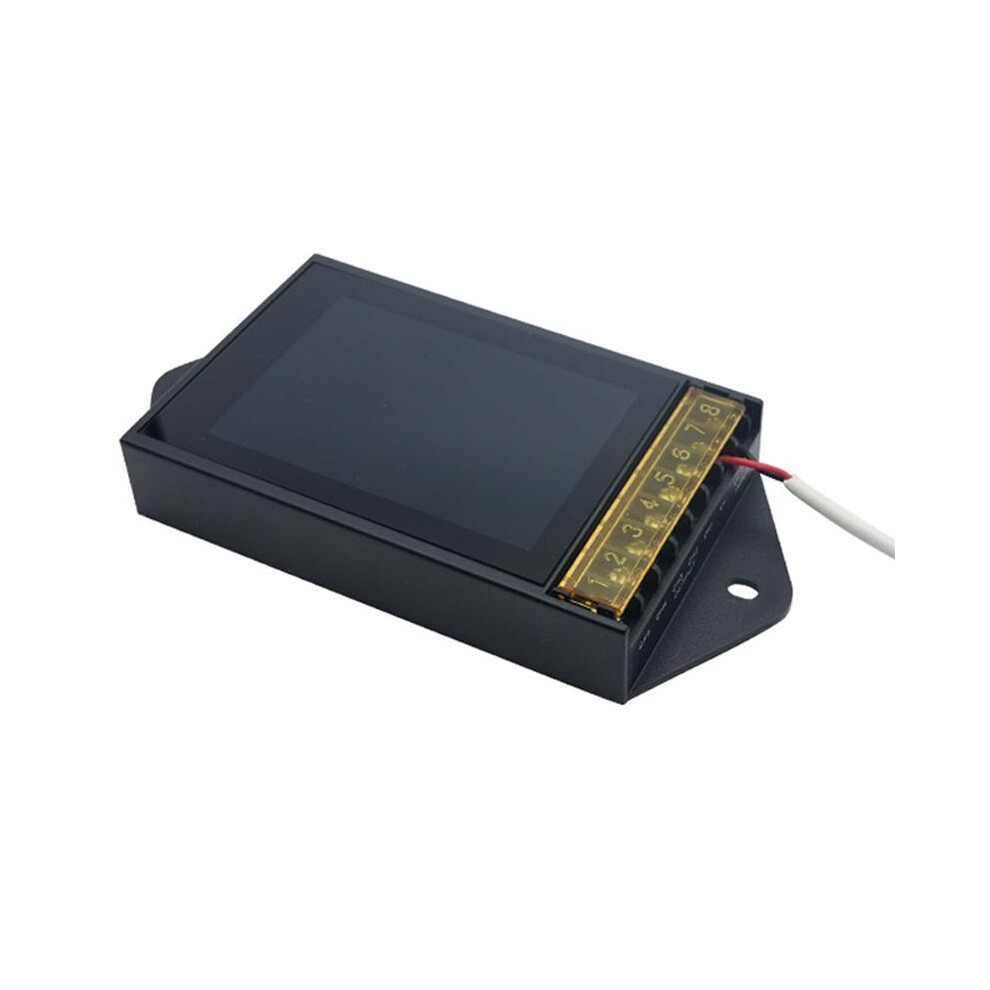

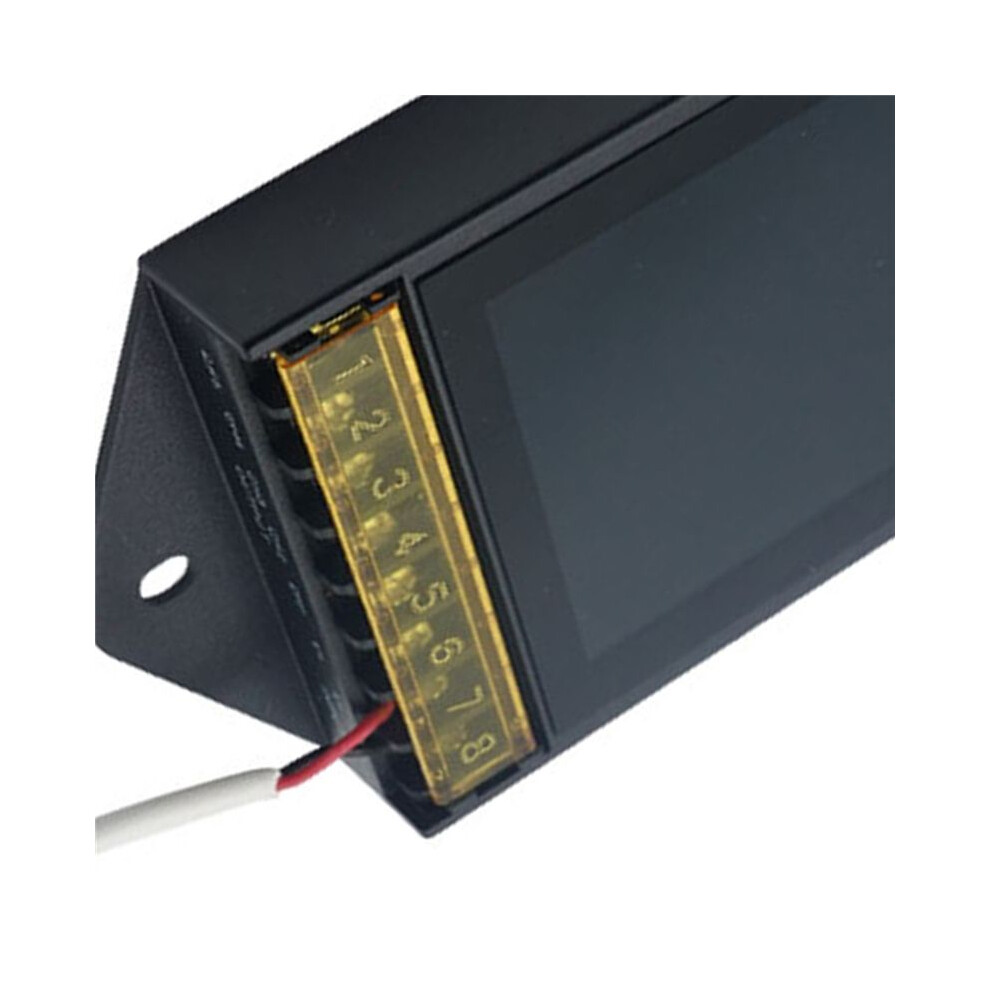

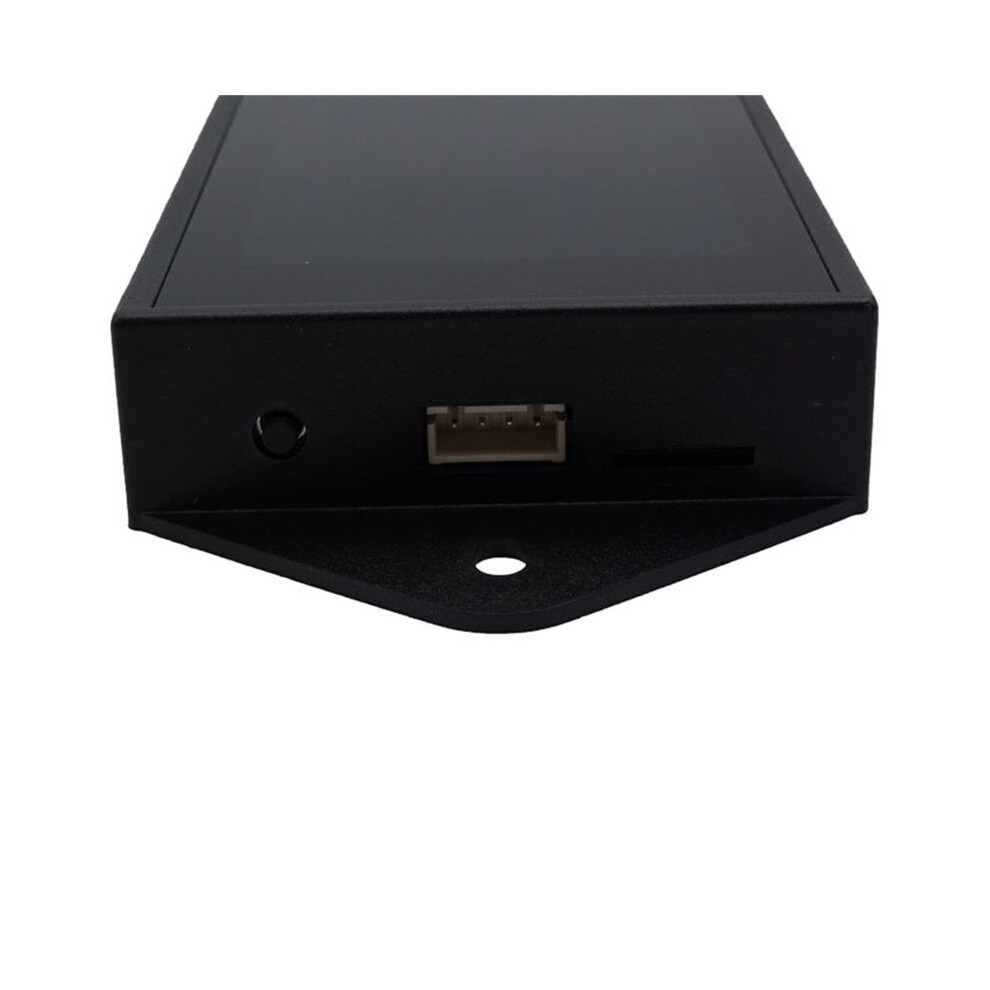

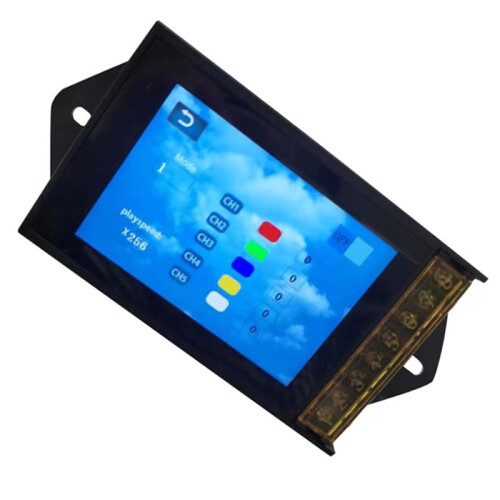

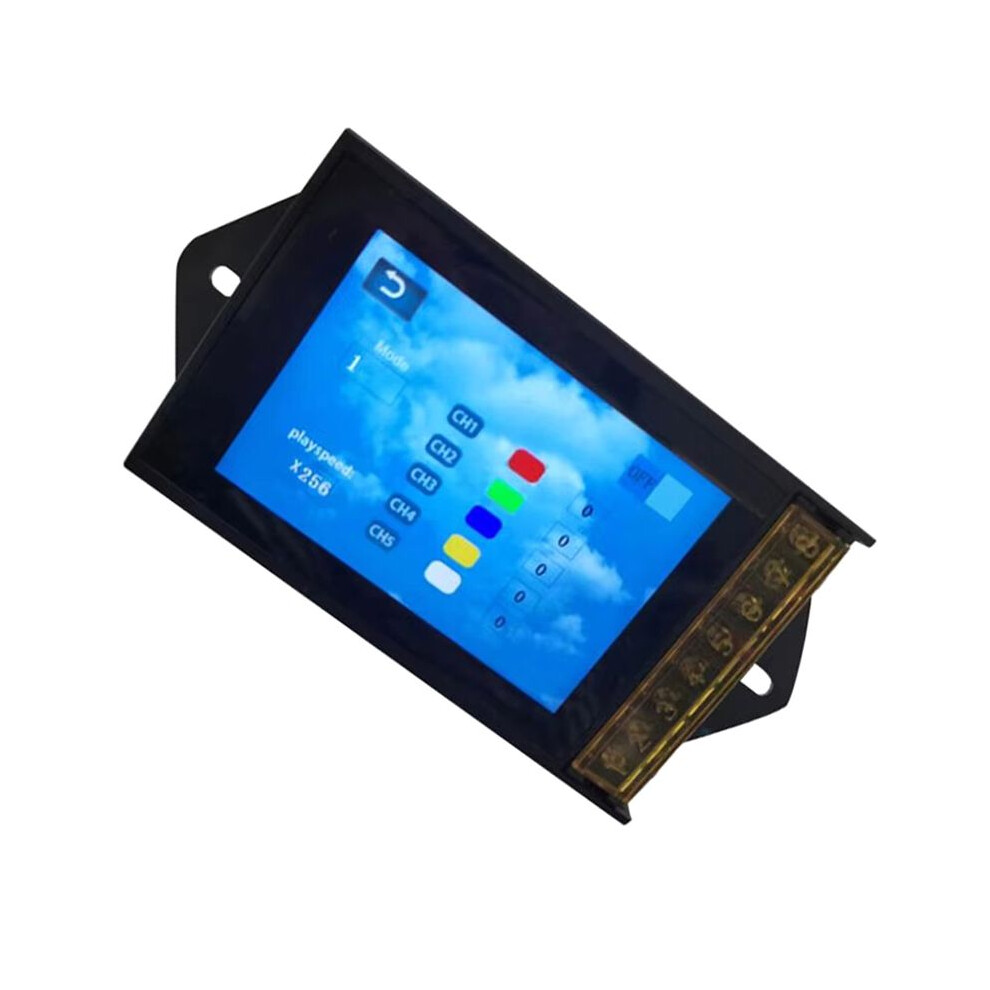

NL502 Touch Screen Full Color Editable Controller DC12-24V 5-Way Output Dimming Controller

Descriere NL502 Touch Screen Full Color Editable Controller DC12-24V 5-Way Output Dimming Controller

Here is an upper computer in the programmable controller to make the load output change over , the customer may customize schedule mode they want through the upper PC. Then through the USB port to download required schedule to the controller.
The upper PC in addition to the function of editing schedule mode,it also can be setup for the controller because of synchronous clock function of upper host.If user want to see the schedule mode effect after editing, they can use fast sowing function of upper. Because there is no delete function of the upper host,so the mode name display space will come into blank as long as you execute delete.
This controller can control load of led changing effect no more than five channels. And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

Specification:
Working temperature:-20-60
Supply voltage:DC12-24V

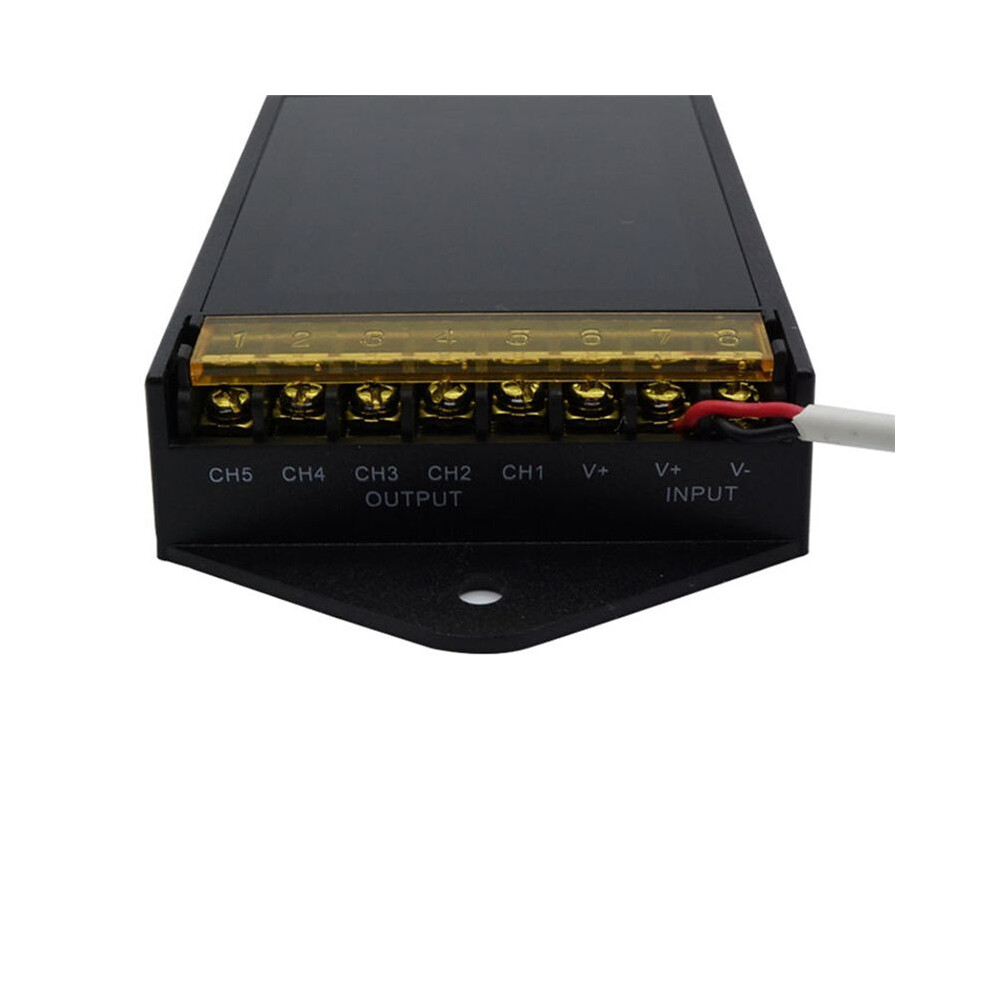

Output:5 channels(five COMS drain-open output)
Max load current:4A each color
Connection mode: common anode
Color:Black
Material:Plastic

Package Contents:
1 x controller
