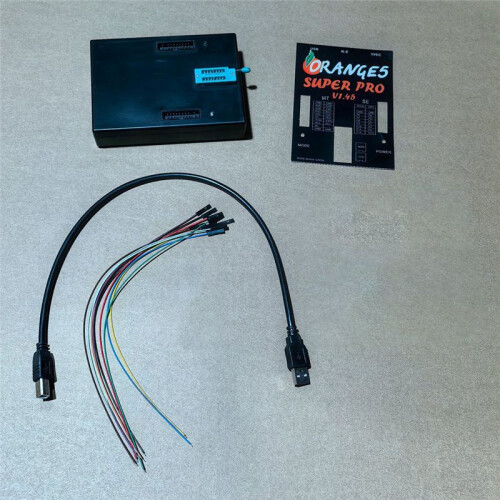

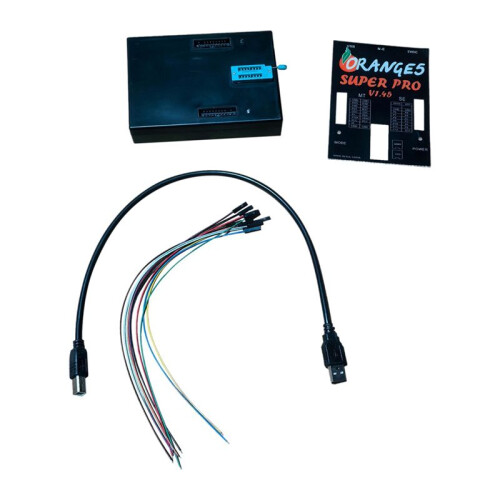

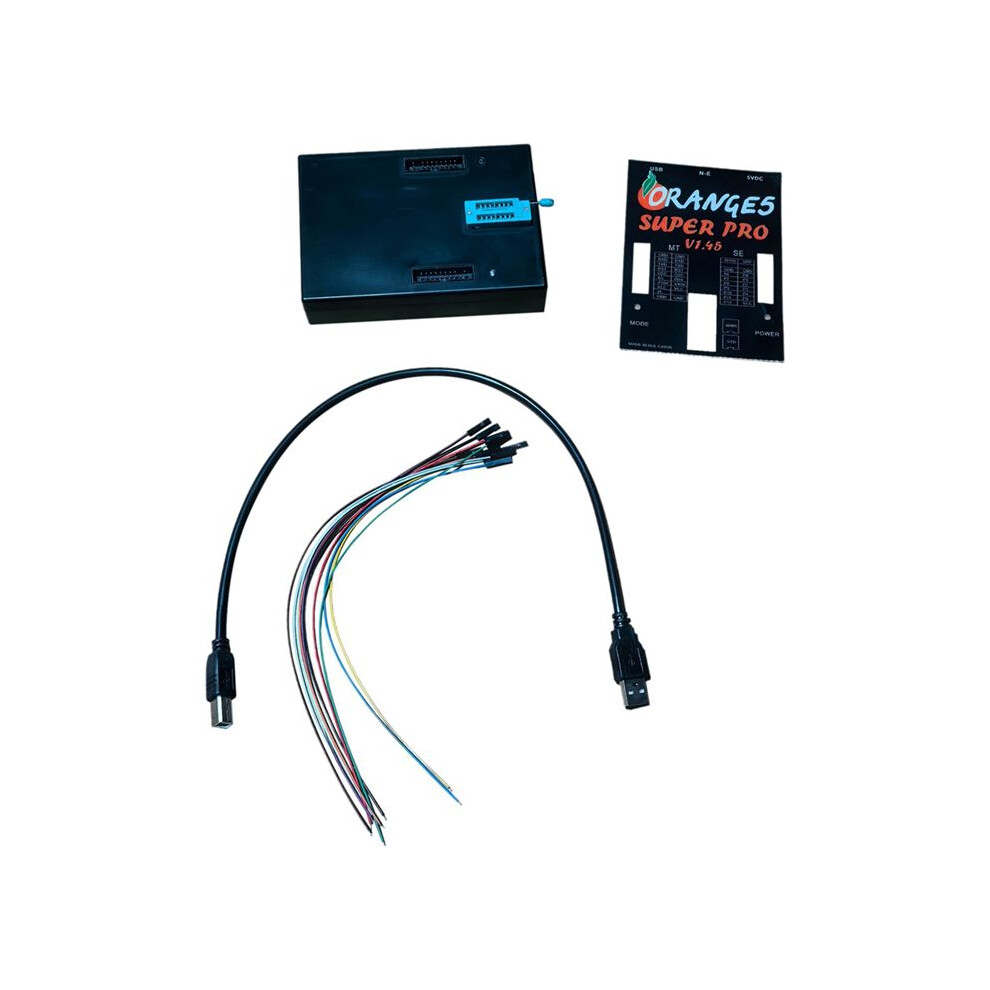

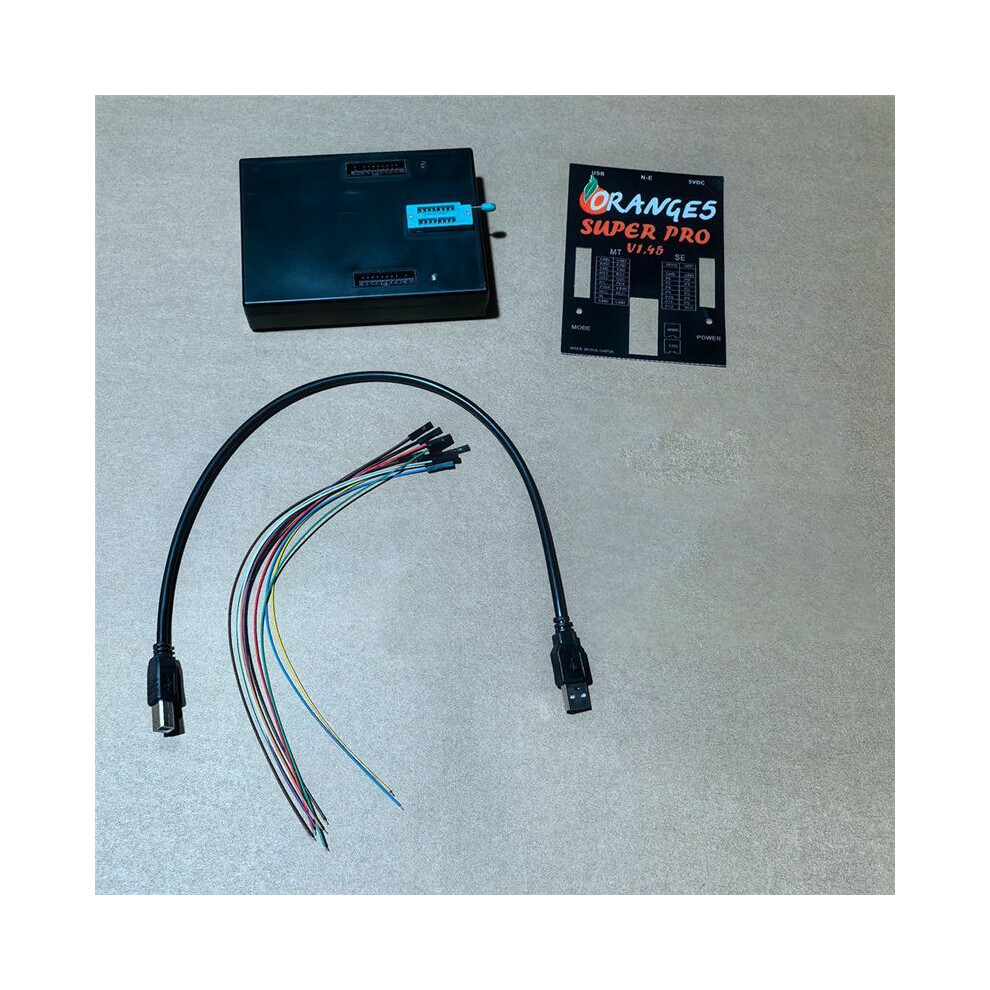

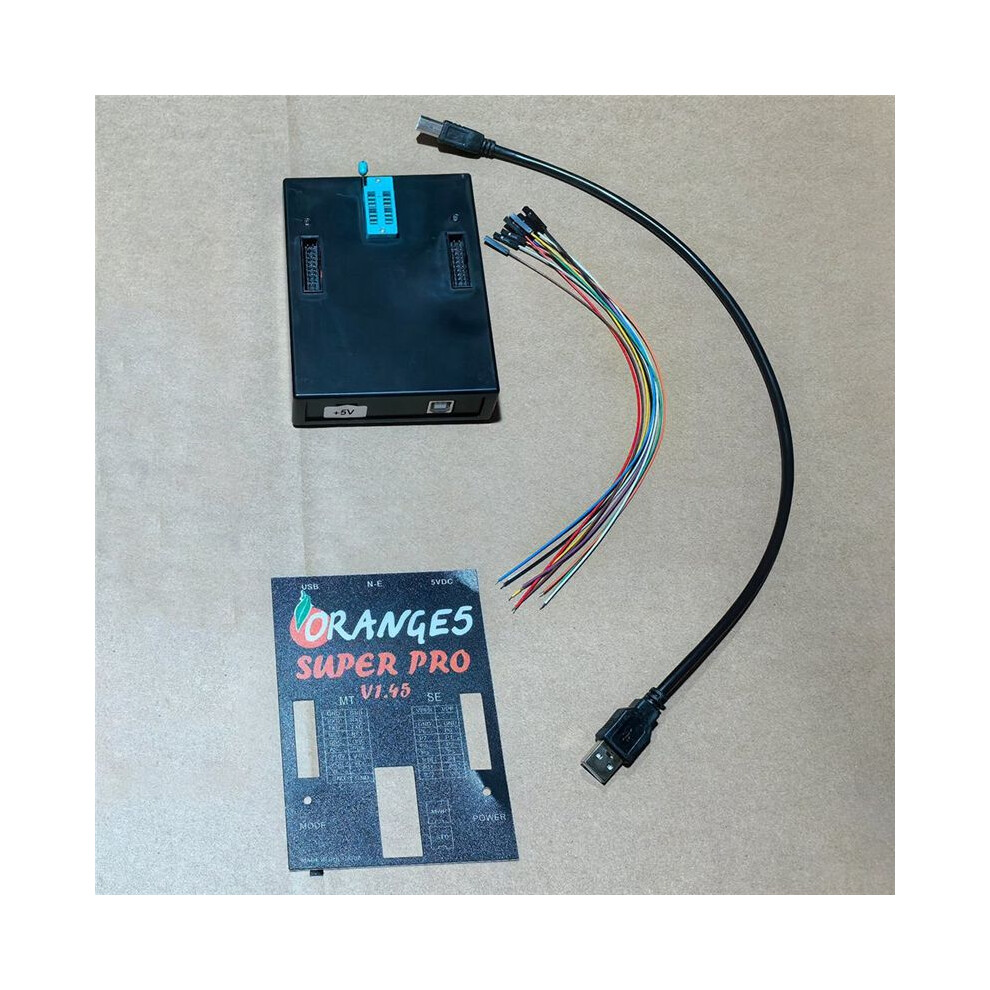

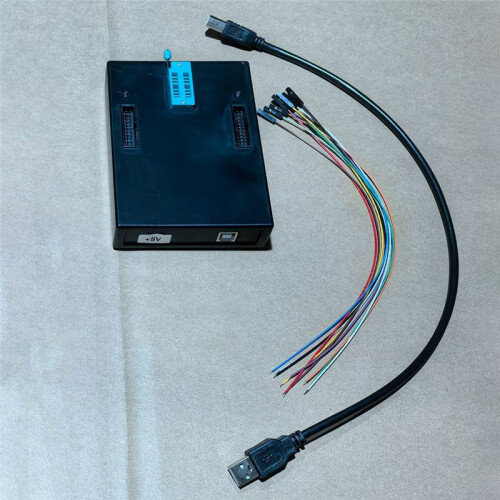

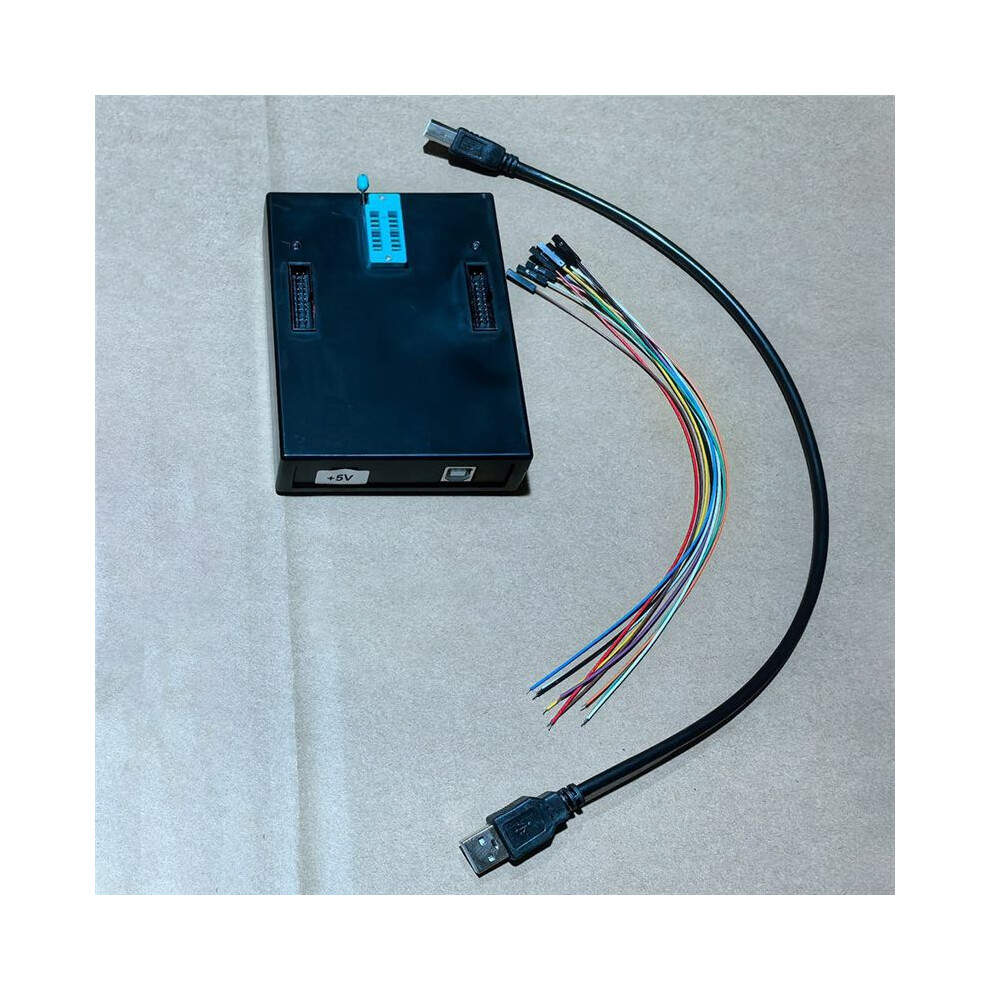

Orange5 V1.45 Programmer Tool Full Activation ECU Program Device Activate Authorization

Descriere Orange5 V1.45 Programmer Tool Full Activation ECU Program Device Activate Authorization

NEWEST Version: V1.45. (1). Updated the basis of v1.38, adding more supported chips, compatible with 1.38 hardware, it is more professional and the programmer you want; (2). V1.45 dongle and V1.45 software need to be used together. (not included). (3). add V850E2-S BYPASS Adapter.
Supports any COM , including virtual ones from 1 to 20. Works with text (ASCII) and HEX mode. Creating a list of commands that allows editing and fast sending.
Fine-tuning the exchange rate. Saving files including command and port settings. Saving incoming data in binary files.
File transfer via serial port. Delay settings for bytes and blocks. "Echo" mode.
Delay settings between incoming data. Supports Orange5 programmer in emulation mode.

Orange5 Technical Info:
USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K- (via adapter), CAN (via adapter)
Note:due to different production batches, the printed labels are different, and the slight difference between the physical objects and the pictures does not affect the use.
