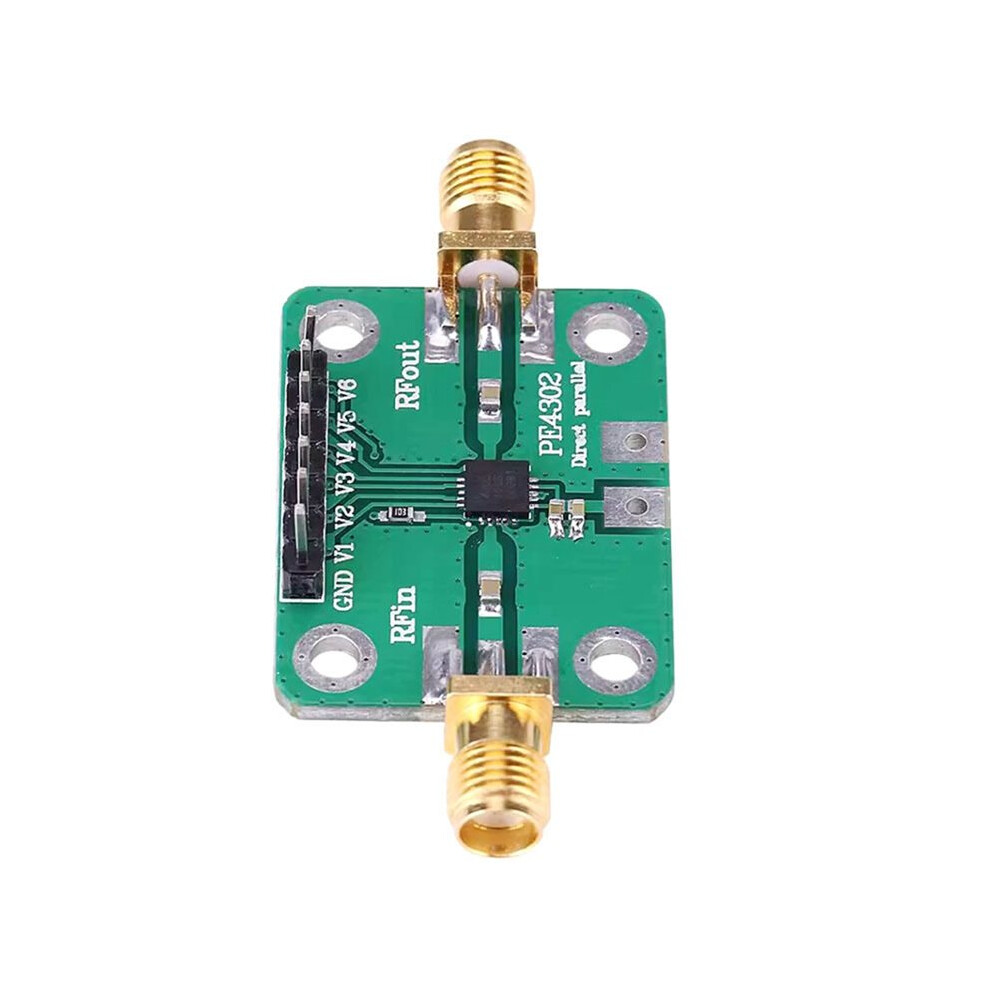

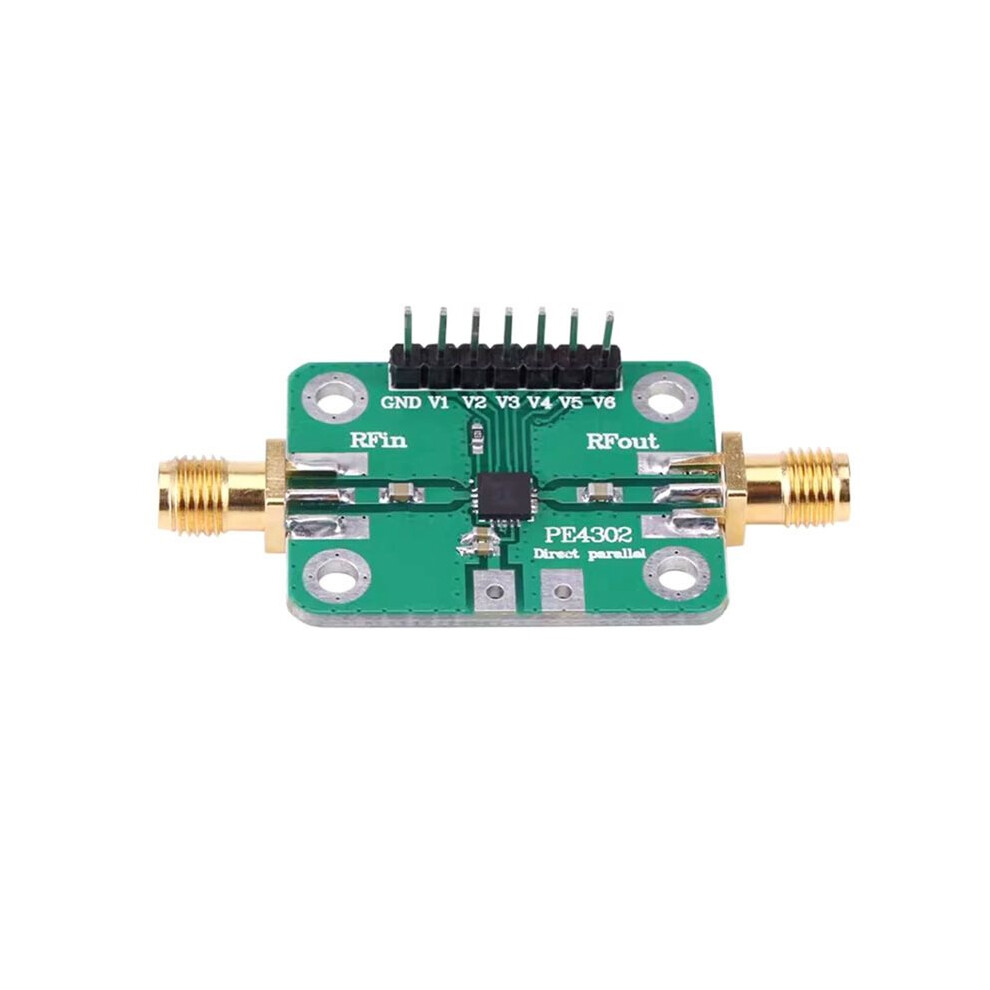

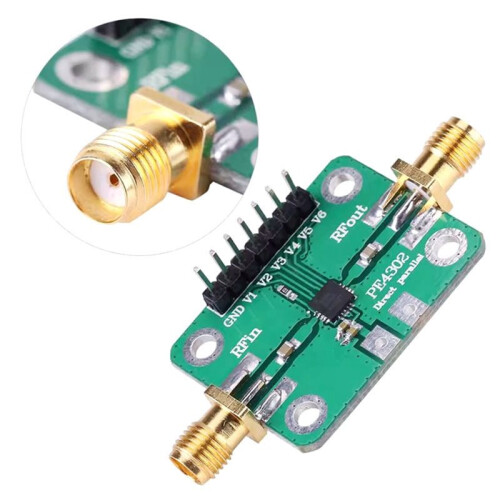

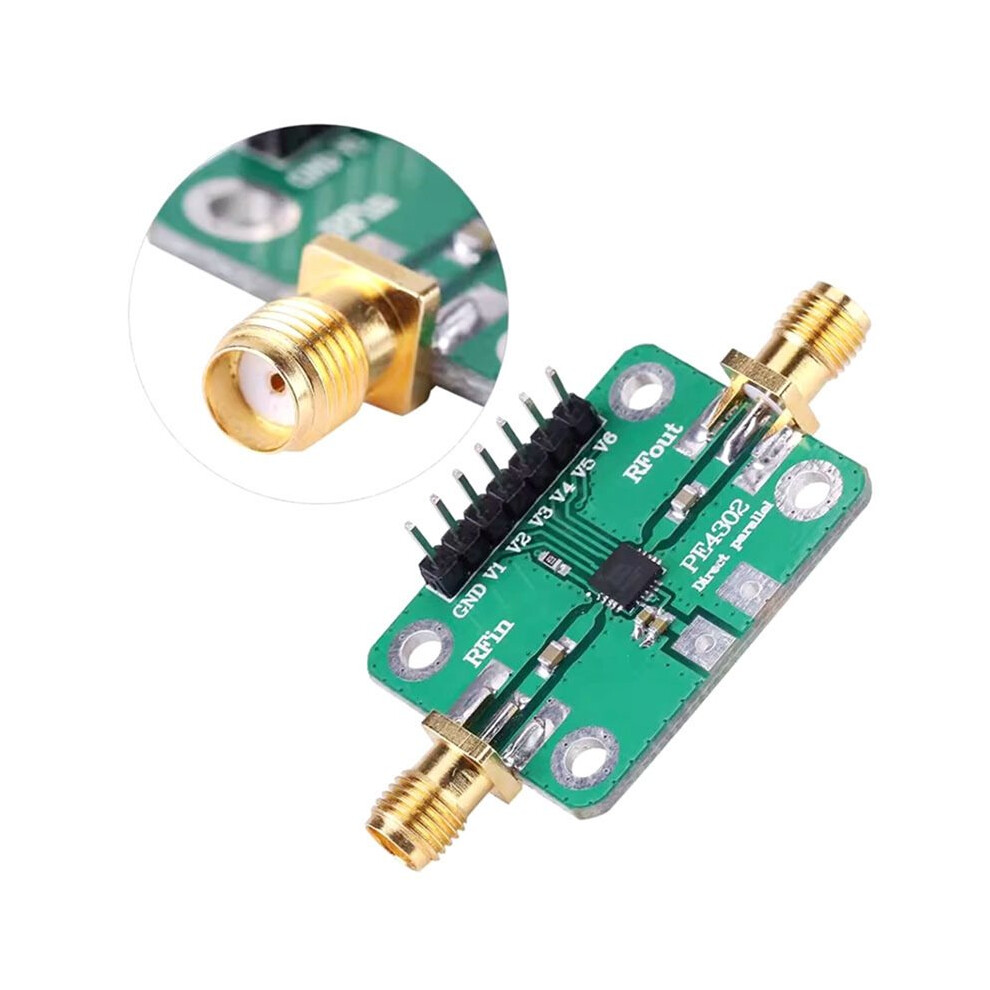

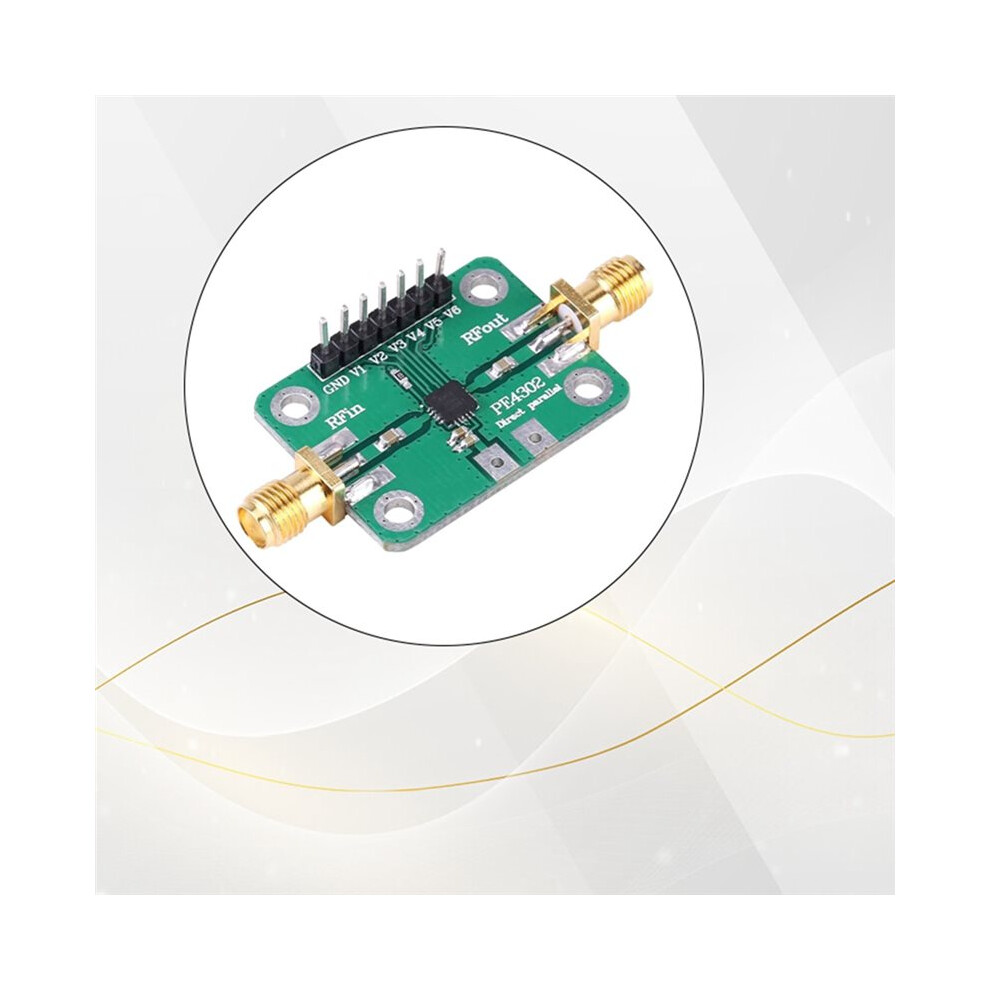

PE4302 RF Attenuator Numerical Control Parallel Immediate Mode 1MHz-4GHz Attenuation Range 0 to 31.5dB
New
60,12 RON
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat
- The RF digitally controlled attenuator has a 0.5dB step and a total of 6 positions with a controllable range of 0-31.5dB. It is used to control signal strength and can also be used for signal modulation.
- Supply voltage: 3.3V
- Number of control bits: 6 bits
- Control step: 0.5dB
- Control range: 0-31.5dB
Descriere PE4302 RF Attenuator Numerical Control Parallel Immediate Mode 1MHz-4GHz Attenuation Range 0 to 31.5dB
The RF digitally controlled attenuator has a 0.5dB step and a total of 6 positions with a controllable range of 0-31.5dB. It is used to control signal strength and can also be used for signal modulation.
Supply voltage: 3.3V
Number of control bits: 6 bits
Control step: 0.5dB
Control range: 0-31.5dB
Insertion loss: 2dB (typical)
Rise speed: 0.2us
Fall speed: 0.2us
Maximum input: 20dBm (100mW)
Color: Green
Material: PCB
Package Contents:
1 x RF Attenuator
Detalii
| OPC | PSX2XQW |
|---|---|
| Coduri | 6031061495768 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 7cm |
| Weight | 0.0095kg |
| Colour | Green |
| Material | PCB |
