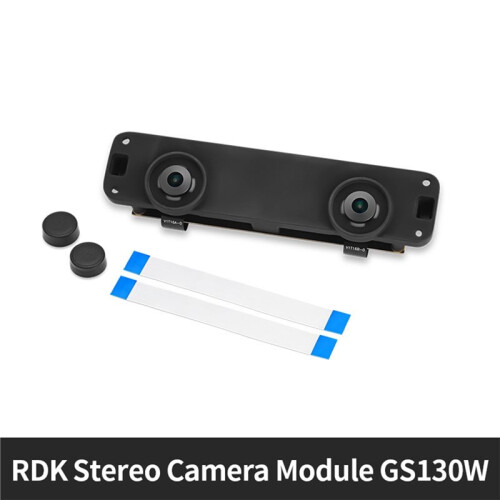

RDK Stereo Camera GS130W Binocular Global Shutter Camera Module for Applications Such As Robot Vision Inspection

Descriere RDK Stereo Camera GS130W Binocular Global Shutter Camera Module for Applications Such As Robot Vision Inspection

This binocular depth camera, based the MIPI interface, features dual SC132GS global shutter sensors, supporting simultaneous binocular exposure and external triggering.
It has an 80mm baseline, a single-channel resolution of 1280x1080, a maximum output frame rate of 120fps, and boasts high dynamic range (HDR), high signal-to-noise ratio (40dB), and 850/940nm near-infrared enhancement capabilities. It is suitable for applications such as robot vision, machine vision inspection, and real- motion monitoring.

Image Sensor Model: 2 x SC132GS, 1/4-inch CMOS, Global Shutter
Resolution: 1280 x 1080
Pixel Size: 2.7 μm x 2.7 μm
Baseline Distance: 80 mm
Lens Length: 1.75 mm
Aperture: F2.0
Field of View (FOV): Diagonal 157.2/Horizontal 96.8/Vertical 115.63
Signal-to-Noise Ratio (SNR): 40 dB
Maximum Frame Rate: 1280x1080@120 frames/second
Output Format: MIPI CSI-2, 8/10/12-bit
Sync Method: Supports external triggering and multi-sensor synchronization
Operating Temperature Range: -20-60
Due to different batches, there may be differences in product appearance and printed text, which will not affect use
The ribbon cable will be shipped in black or white color randomly; you cannot specify a color, but this will not affect its use.
Color:As Shown
Material:PCB

Package Contents:
1 * RDK Stereo Camera

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
