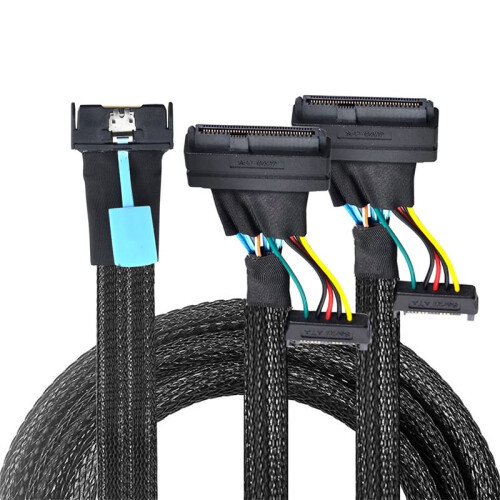

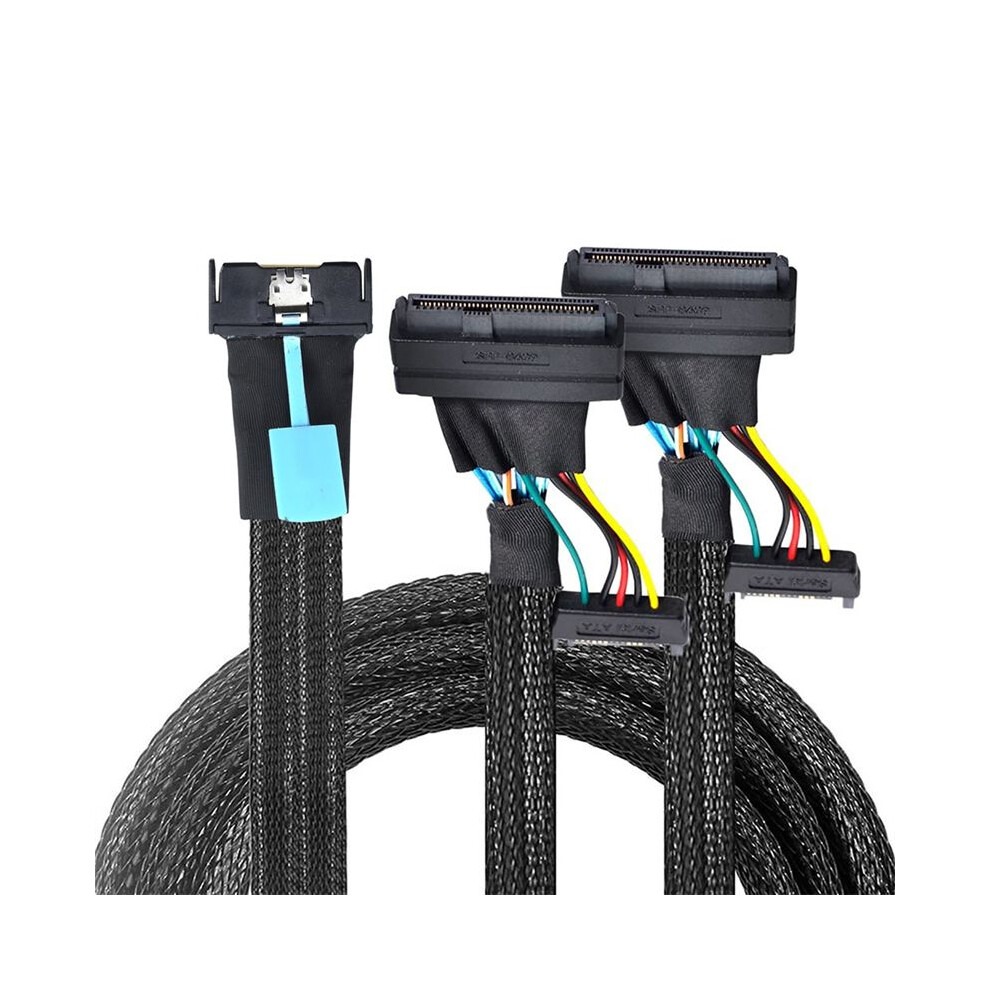

SAS MCIO 8i 74P to 2XSFF 8639+15P Adapter Cable for Server Connection Cable Server Data Transmission Cable 0.8m

Descriere SAS MCIO 8i 74P to 2XSFF 8639+15P Adapter Cable for Server Connection Cable Server Data Transmission Cable 0.8m

1. Smaller connectors and cables save equipment space
2. Provide four-way signal transmission according to industry standards
3. Data speed: SAS 32GbPs per channel
4. Meet SAS5.0, Slim SAS SFF-8654 PCIE MCIO specifications

Application:1. Server
2. Data storage
3. Workstation
mechanical property:
1. Insertion force: maximum 55.5N
2. Pull out force: maximum value 49N
3. Rated durability cycle: minimum value of 250 cycles
Electrical performance:
1. Voltage: 30VDC per contact,Simulas4i plug: 80MOHM maximum, initial, 20MOHM maximum stress test.
2. Dielectric voltage resistance: 300 volts with a minimum value of 100 milliseconds
3. Insulation impedance: minimum 10M Ω between adjacent pins
4. Characteristic impedance: 100 Ω
Signal integrity:
1. Matching connector impedance: 100 10% ohms
2. Common mode impedance: meets SAS5.0 specifications
3. Insertion loss: Complies with SAS5.0 specifications,
4. Maximum crosstalk: meets SAS5.0 specifications
Color: Black
Material: Plastic + Braided Wire
Size:0.8m

Package Contents:
1 x SAS MCIO 8i 74P To 2XSFF 8639+15P Adapter Cable
