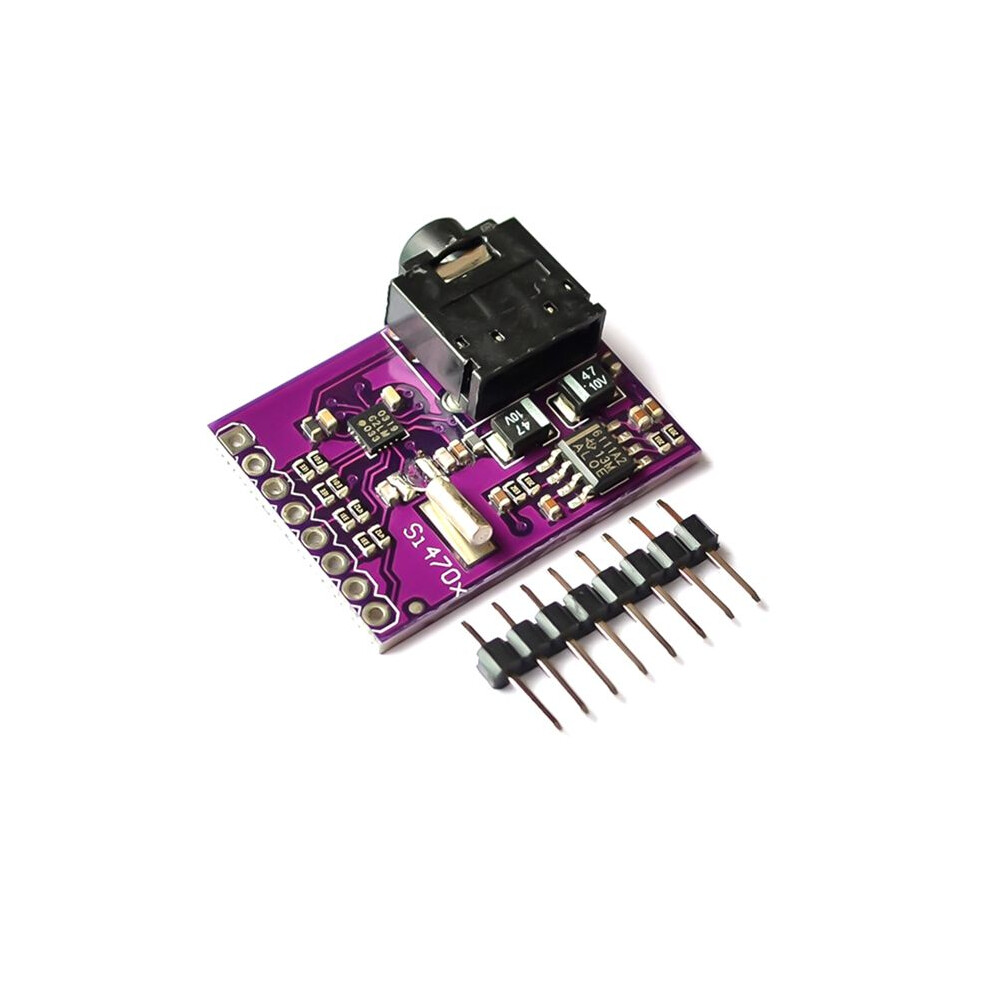

Si4703 FM Tuner Evaluation Board Digital Radio Broadcast Data Processing Module for AVR ARM with Pins
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 128,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (21,21 RON) | vin 10 - mie 15 iul.
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- The Si4703-C is a complete FM tuner receiver system from FM radio input to stereo output. A digital processor is integrated on the chip to handle the symbol decoding block synchronization, error detection and error correction functions required by the Radio Data Broadcasting System (RBDS).
- The FM receiver uses a mixer to reduce the RF signal to a low intermediate frequency, thereby reducing additional peripheral circuit devices. The automatic frequency control (AFC) adjusts the voltage-controlled oscillator to generate an orthogonal local signal to the mixer. The output of the orthogonal mixer is amplified, filtered and digitized by a high-resolution analog-to-digital converter (ADC).
- The digital signal processing (DSP) can perform channel selection, FM demodulation and stereo audio processing. The internal automatic gain control (AGC) circuit controls the gain of the low-noise amplifier (LNA) to make it more sensitive and more powerful in noise suppression.
- The integrated LDO regulator on the chip can be directly connected to the battery, and the headphone jack can be used as an RF receiving antenna by inserting headphones. This advanced architecture has superior performance compared to traditional analog architectures.
- The module also has a 150mW stereo power amplifier with thermal protection and short circuit protection and a 3.5mm headphone jack. When connected to a microcontroller, it can control the volume, automatically search channels manually, mute by software or hardware, and measure signal strength.

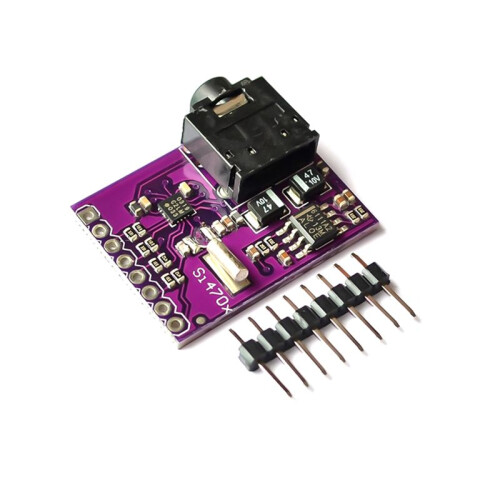

Descriere Si4703 FM Tuner Evaluation Board Digital Radio Broadcast Data Processing Module for AVR ARM with Pins
The Si4703-C is a complete FM tuner receiver system from FM radio input to stereo output. A digital processor is integrated the chip to handle the symbol decoding block synchronization, error detection and error correction functions required by the Radio Data Broadcasting System (RBDS).
The FM receiver uses a mixer to reduce the RF signal to a low intermediate frequency, thereby reducing additional peripheral circuit devices. The automatic frequency control (AFC) adjusts the voltage-controlled oscillator to generate an orthogonal local signal to the mixer. The output of the orthogonal mixer is amplified, filtered and digitized by a high-resolution analog-to-digital converter (ADC).
The digital signal processing (DSP) can perform channel selection, FM demodulation and stereo audio processing. The internal automatic gain control (AGC) circuit controls the gain of the low-noise amplifier (LNA) to make it more sensitive and more powerful in noise suppression.
The integrated LDO regulator the chip can be directly connected to the battery, and the headphone jack can be used as an RF receiving antenna by inserting headphones. This advanced architecture has superior performance compared to traditional analog architectures.
The module also has a 150mW stereo power amplifier with thermal protection and short circuit protection and a 3.5mm headphone jack. When connected to a microcontroller, it can control the volume, automatically search channels manually, mute by software or hardware, and measure signal strength.
Product name: Radio tuner development board
FM frequency range: 76-108MHZ
Programmable de-emphasis: 50us/70us
Operating temperature: -20-85
Module operating voltage: 3.3V
Communication interface: 3-wire (Less than 2.5MHz), module default 2-wire IIC (Less than 400KHz)
Size: 29.3x22.4x8mm
Weight:
Detalii
| OPC | PV92DND |
|---|---|
| Brand | Exogio |
| Coduri | 4713329702727 (EAN) |
Date despre produs
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 5cm |
| Weight | 0.0065kg |
| Colour | As Shown |
| Material | PCB |
