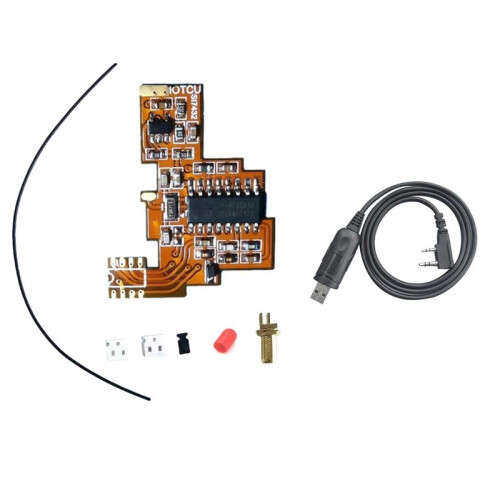

SI4732 Module FPC Modification+USB Programming Cable for Quansheng K5 K6 Shortwave Reception/Dual Antenna Solution
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | joi 18 - mar 23 iun.
Vândut de: Papishop
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Rezumat
- 1. Add an audio amplifier to solve the problem of extremely low volume of SSB single sideband, and the effect is obvious. Redesign FM and HF bandpass filters,
- 2. An ESD tube is added to the input terminal for electrostatic protection and strong signal protection when transmitting in the UV section of dual antennas.
- 3. Use FPC soft board, the board thickness is 0.12mm, safe and reliable without short circuit, and the installation does not support the speaker.
- 4. Use high-quality high-frequency wire-wound chip inductors with high Q value, small internal resistance, and strong filtering selectivity.
- 5. In the dual-antenna solution, an additional level of band-pass filtering is added to the antenna input end, and a feeder and SMA head are used to an HF independent antenna from the LED, which does not affect the UV performance of the machine. The FPC soft board uses a double-sided disk, which is easier to connect to the machine.
Descriere SI4732 Module FPC Modification+USB Programming Cable for Quansheng K5 K6 Shortwave Reception/Dual Antenna Solution
1. Add an audio amplifier to solve the problem of extremely low volume of SSB single sideband, and the effect is obvious. Redesign FM and bandpass filters,
2. An ESD tube is added to the input terminal for electrostatic protection and strong signal protection when transmitting in the UV section of dual antennas.
3. Use FPC soft board, the board thickness is 0.12mm, safe and reliable without short circuit, and the installation does not support the speaker.
4. Use high-quality high-frequency wire-wound chip inductors with high Q value, small internal resistance, and strong filtering selectivity.
5. In the dual-antenna solution, an additional level of band-pass filtering is added to the antenna input end, and a feeder and SMA are used to an independent antenna from the LED, which does not affect the UV performance of the machine. The FPC soft board uses a double-sided disk, which is easier to connect to the machine.
It is suitable for Quansheng K5/Quansheng K6 to install S14732 soft board FPC and modify Shortwave full-band reception/single sideband reception. It is Suitable for single antenna and dual Antenna.
Applicable models:For Quansheng uv k5/k6
Due to different batches, there may be differences in product appearance, color, and printed text, which will not affect the use
Colour:Orange Yellow
Material:PCB

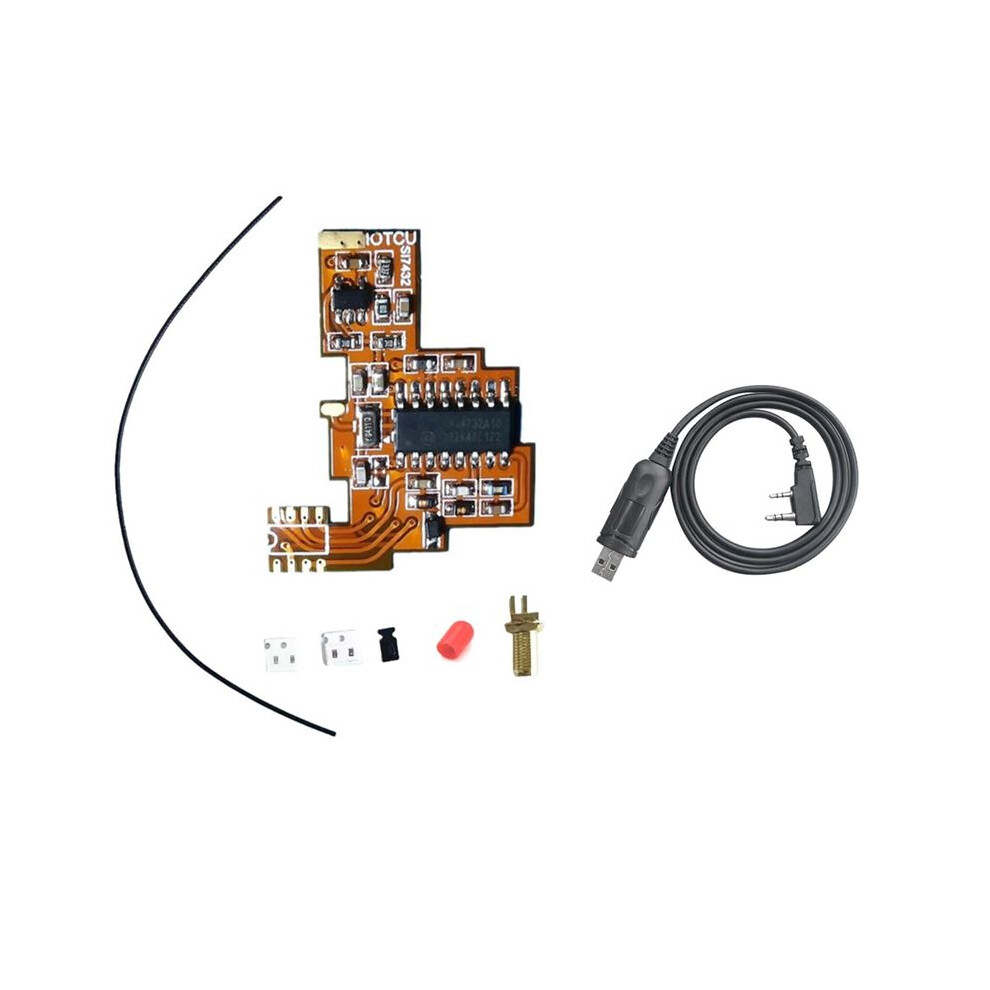

Package Contents:
1 set x Kit
1x USB Programming Cable
Detalii
| OPC | PV8828Q |
|---|---|
| Brand | Typecat |
| Coduri | 4714221264146 (EAN) |
Date despre produs
| Height | 2cm |
|---|---|
| Width | 5cm |
| Length | 8cm |
| Weight | 0.045kg |
| Colour | Orange Yellow |
| Material | PCB |
