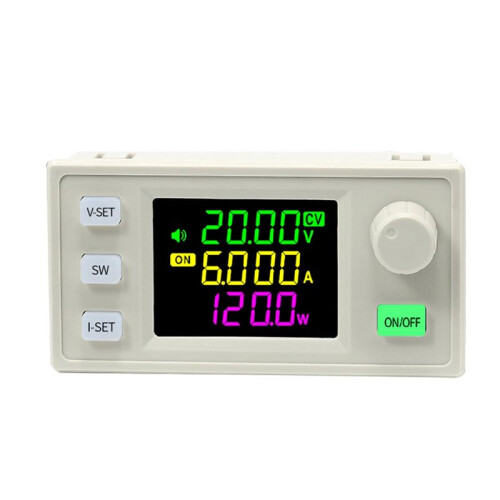

SK120X NC Lift Voltage Adjustable Regulated Voltage Power Supply Constant Voltage Current Solar Charge Module 3 Gen

Descriere SK120X NC Lift Voltage Adjustable Regulated Voltage Power Supply Constant Voltage Current Solar Charge Module 3 Gen

1. CNC voltage and current adjustment, convenient and fast, industrial quality, high precision, can be directly used in engineering projects.
2. Professional power liquid crystal is adopted, with clear interface, simple operation and almost perfect protection.
3. Hardware protection: anti-reverse connection protection of input terminal, reverse connection does not burn; Short circuit protection of output terminal, short circuit does not burn; Anti-backflow at output terminal, no additional anti-backflow diode is needed when charging the battery.
4. Software protection: over-voltage protection (OTP), over-current protection (OCP), over-power protection (OPP), over-temperature protection (OTP), input under-voltage protection (LVP).
5. The default adjustment voltage or constant current value can be set, which can be quickly adjusted in various applications.

CNC -down constant voltage constant current power supply.
Voltage and current can be locked to prevent misoperation!
Full of materials, stable performance and wide range of uses.
Input voltage: 5.0 V-30V (under 4.7V, there is undervoltage protection LVP,it is recommended that the input voltage be higher 7v, when the input voltage is lower than 7V, the output power will decrease, the lower the input voltage, the smaller the output power)
Output voltage:DCO.6V-30V
Output Current:0-4.0A
Output power:35W under natural heat dissipation and 50W under air cooling
Voltage accuracy:0.5%+1 word,Resolution:0.01V,factory calibrated accuracy
Current accuracy:0.8%+3 words,Resolution:0.001A,factory calibrated accuracy
Conversion Efficiency: about 88%
Soft start:Yes
Input reverse connection protection:Yes,reverse connection does not burn
Output anti-backflow:Yes, can be directly connected to the ballery
Output short circuit protection:
