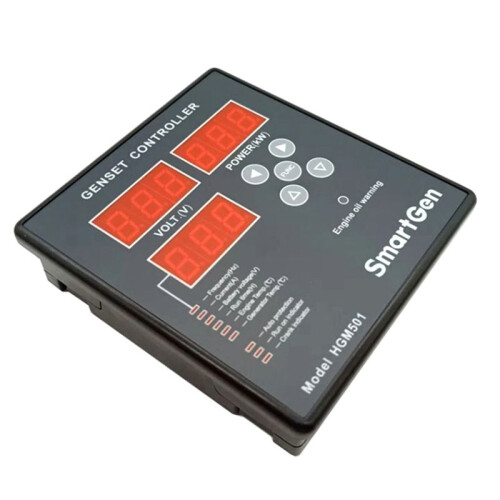

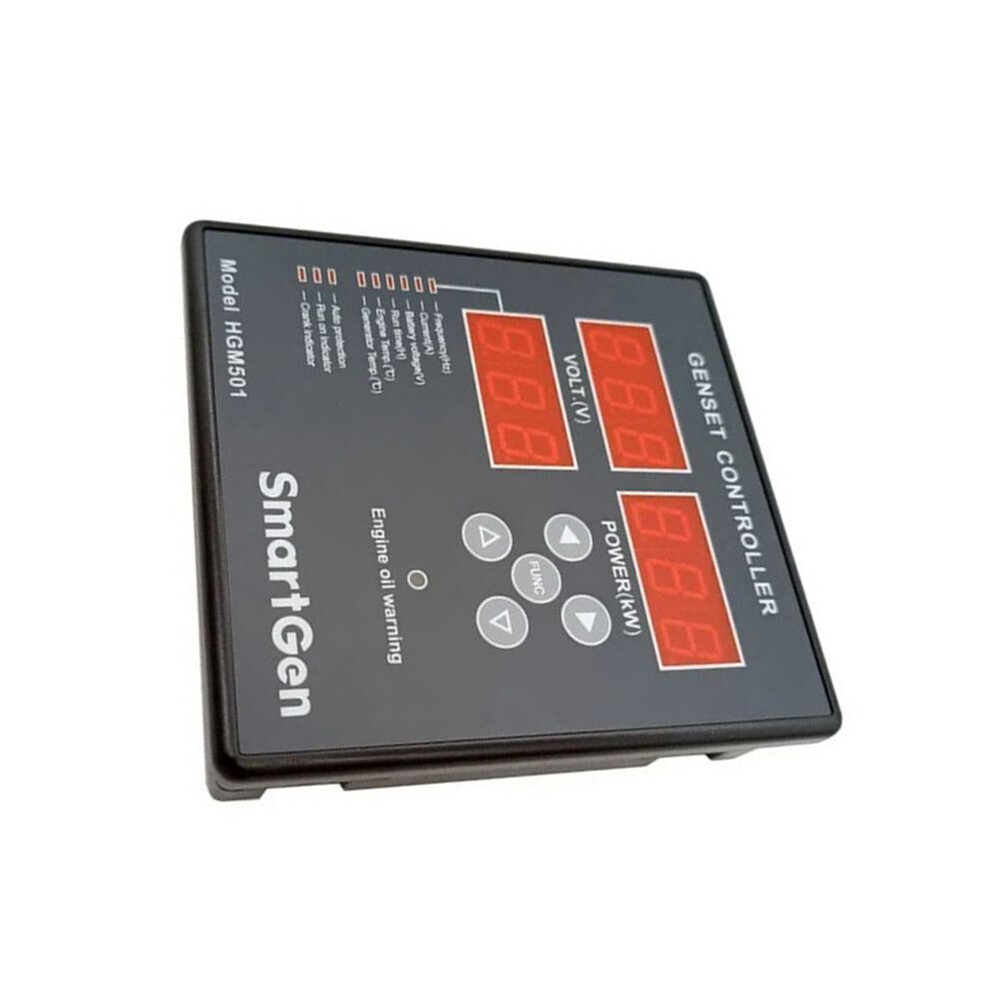

SmartGen HGM501 Controller for Small Gasoline and Generator Sets, Automatic Start and Stop Control Module Panel

Descriere SmartGen HGM501 Controller for Small Gasoline and Generator Sets, Automatic Start and Stop Control Module Panel

All the parameters can be set via front panel for easy and convenient operation;
Modular design, anti-flaming ABS plastic enclosure, compact structure, convenient embedded installation.

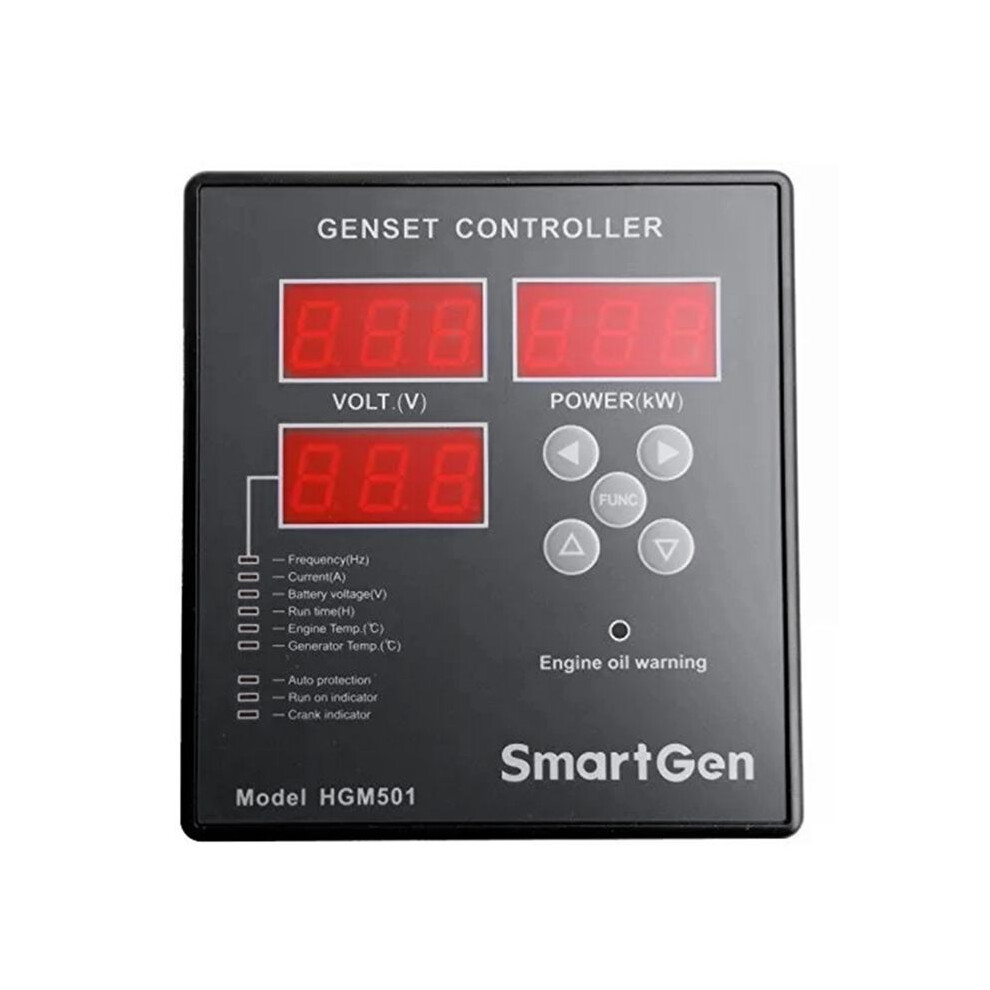

Two LED displays: single phase voltage display and total active power voltage display (calculated using single phase power, taking load as balanced);
Multifunction LED display that can be switched between single phase frequency, single phase current, battery voltage, total running (max 999 hours), engine and generator temperature;
Under voltage, over voltage, under frequency, over frequency, over load, over temperature protection, starting with flashing lights alarm and followed by shutdown protection after alarm delay;

Low oil pressure digital input that immediately shuts down the generator in case of low oil pressure;
Displayed parameters can be selected using touch-buttons;Wide selection of temperature sensor types in settings;
Technical Parameters:
Display LED Nixie Tube
Operation Panel PET
Digital Input 1
Relay Output 2
Analogue Input 2
AC System 1P2W
Alternator Voltage (30-360)V(ph-N)
Alternator Frequency 50/60Hz
Programmable Interface LINK
Supply (9-18)V
Case Dimensions(mm) 118x128x36mm
Panel Cutout(mm) 112x122mm
Operating Temp. (-25-+70)
Product Overview:
HGM501 gen-set controller is digital controller for control and protection of single-engine gen-sets. It can carry out start/stop, data measurement, alarm indication, shutdown protection and other functions. The controller is fitted with LED indicators; it is reliable and easy to use.
HGM501 gen-set controller contains the microprocessor allows precise measurement of multiple parameters, which can be configured using controller front panel. With simple wiring, compact structure a
