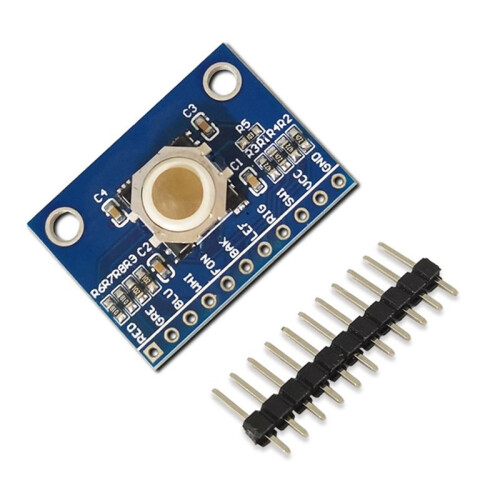

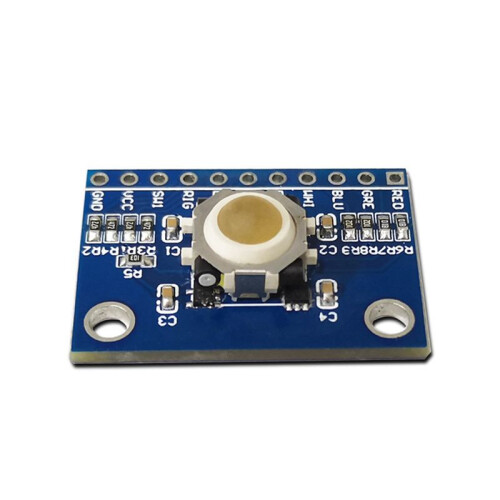

Trackball Sensor Mouse Trackball Hall Effect Sensor 360 Trackball Multi-Function Module

Descriere Trackball Sensor Mouse Trackball Hall Effect Sensor 360 Trackball Multi-Function Module

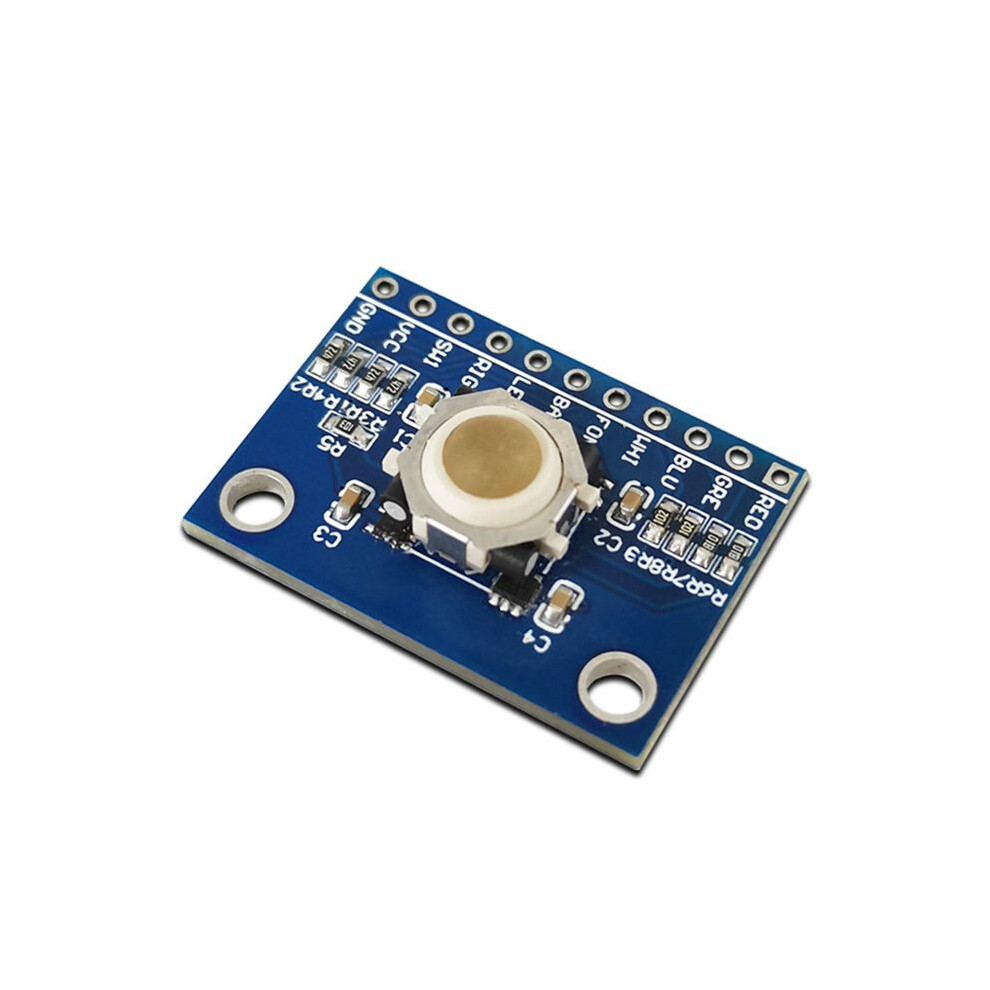

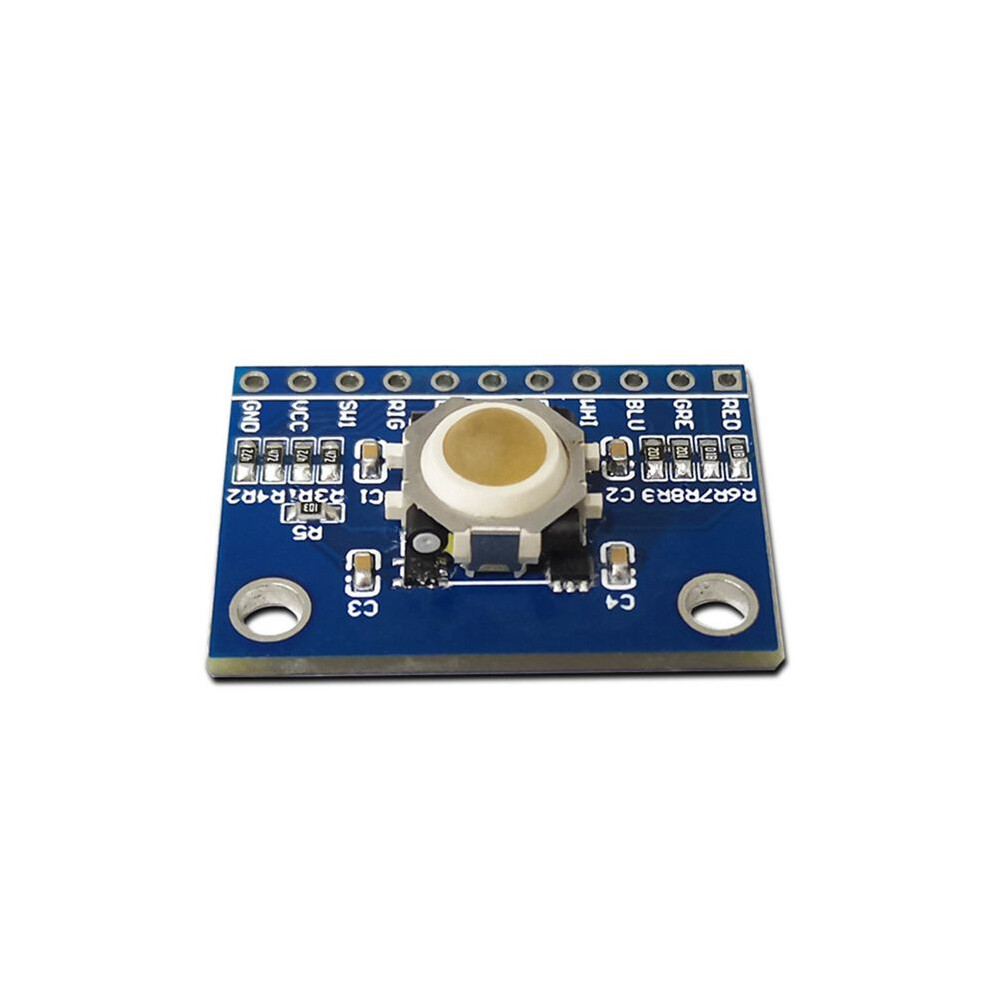

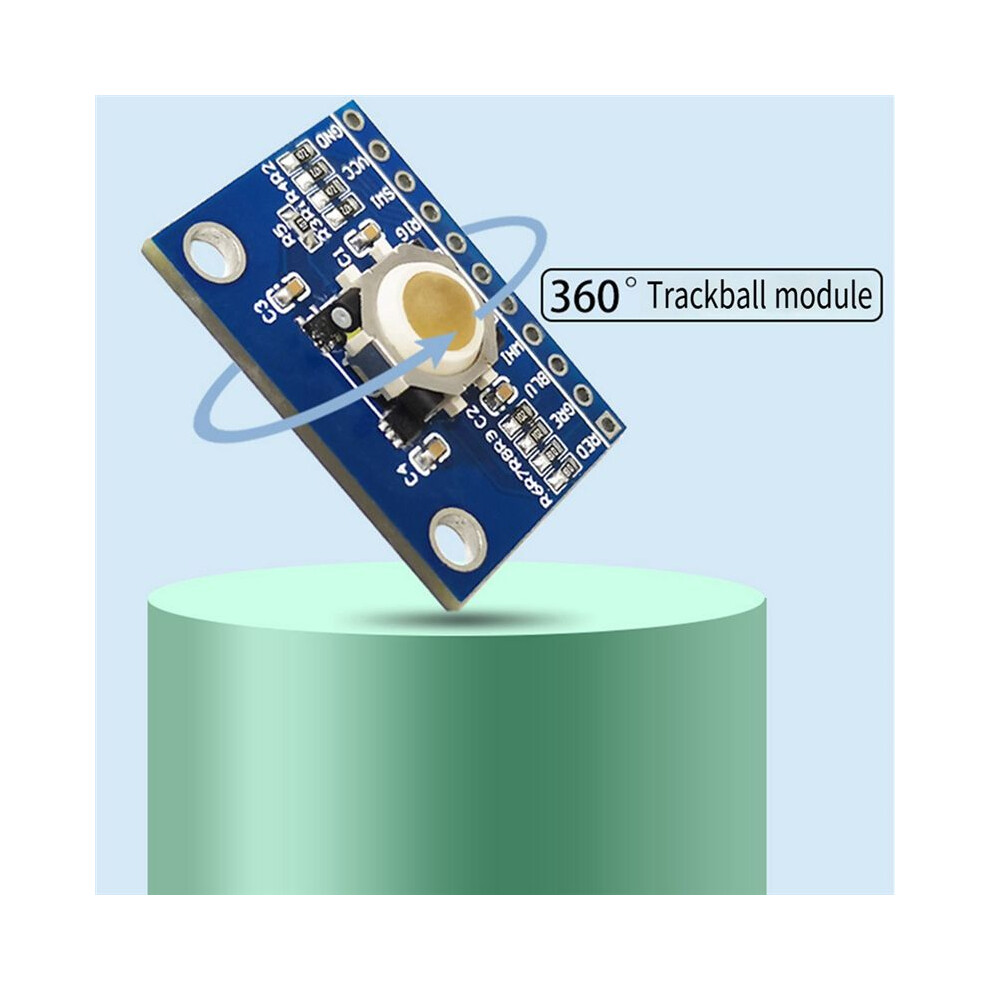

1. Trackball Sensor, 360 Trackball Module
2. VCC Uses 3.3V Or 5V Power Supply
3. The Four Directions Of , Down, Left And Right And The Button In The Middle Can Be Combined For Identification.
4. Four Types Of Led Lights: Red, Green, And White, Which Can Be Controlled Separately
5. 20X28mm Size, Portable Use

Instructions For Use

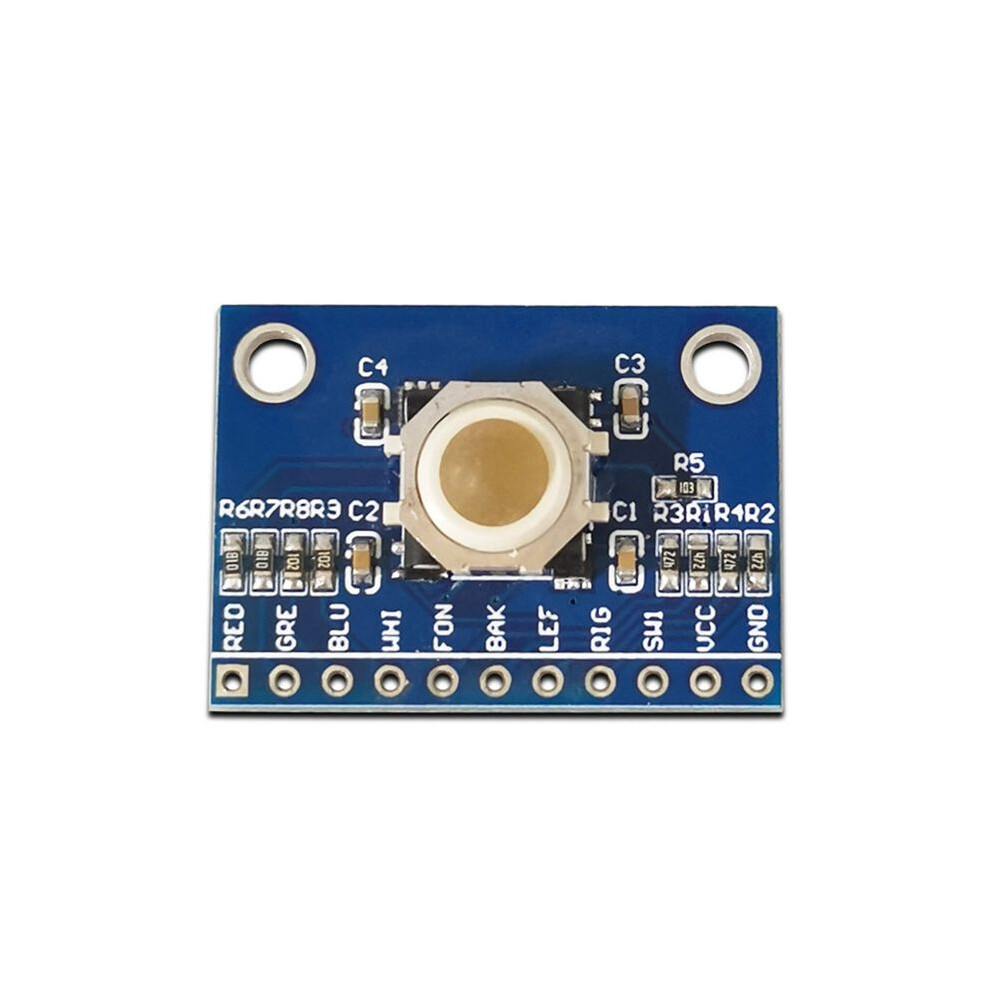

1. Connect To The Development Board Through The 11pin Header. Vcc Can Be 5v Or 3.3v.
2. Fon Bak Down Lef Left Rig Right SW1 Middle Button. These 5 Pins Serve As Key Inputs And Are Connected To The Microcontroller
3.Red Red Gre Green Blu Whi White. These 4 Pins Are Used As The Output Of The Microcontroller. The High-Level Light Is Off And The Low-Level Light Is .
4. After Connecting, Write A Program Your Own Development Board.
Overview

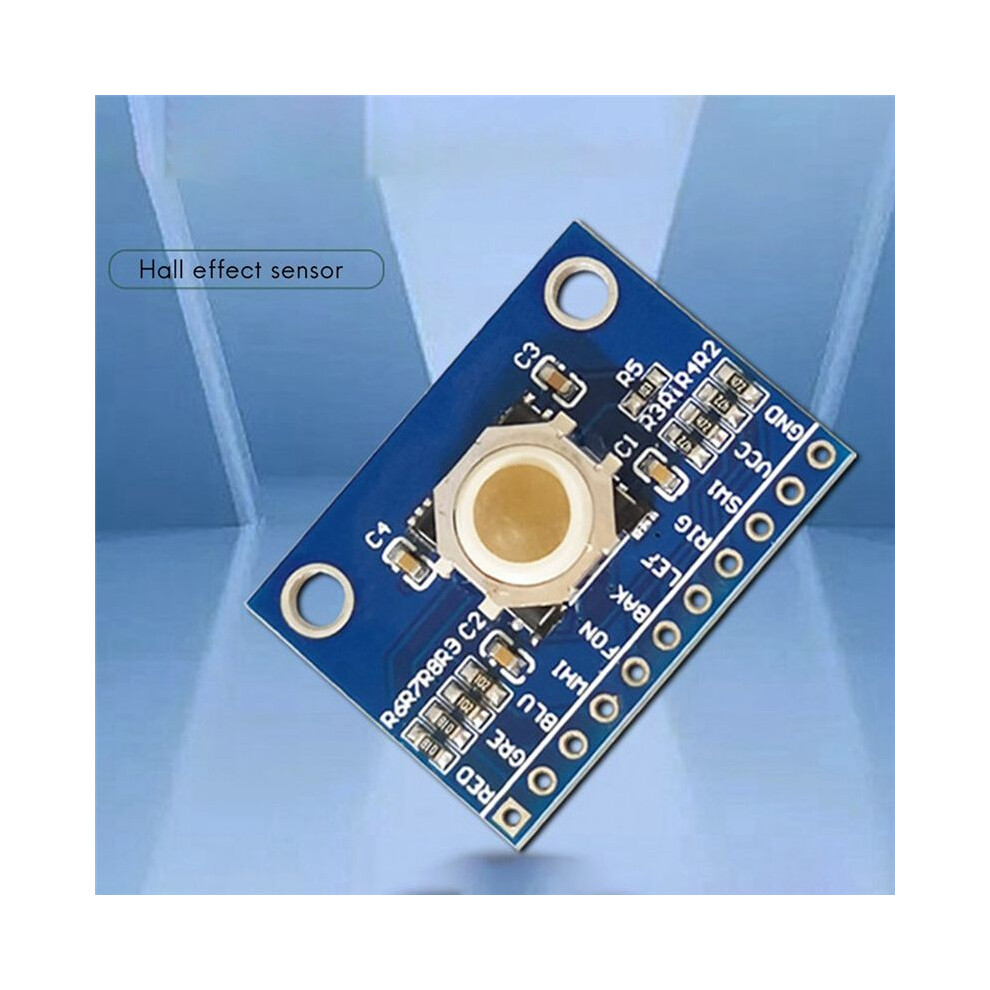

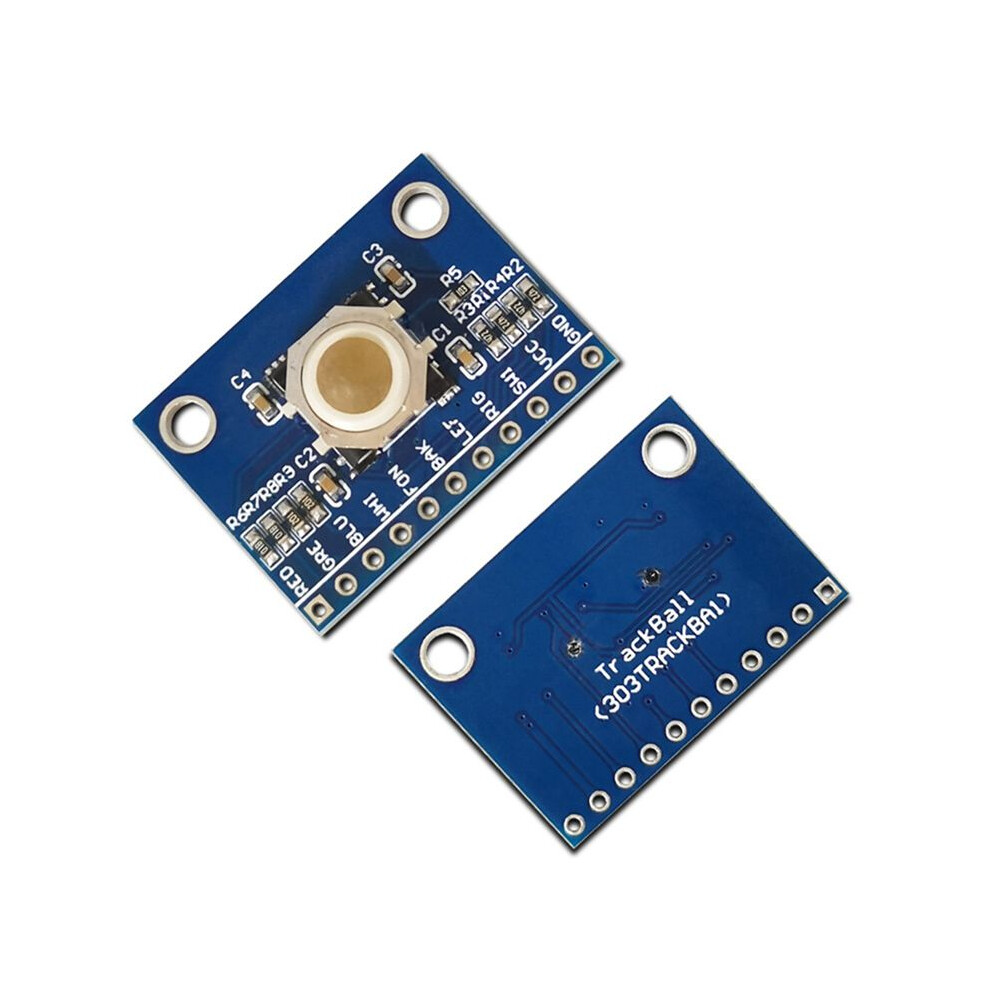

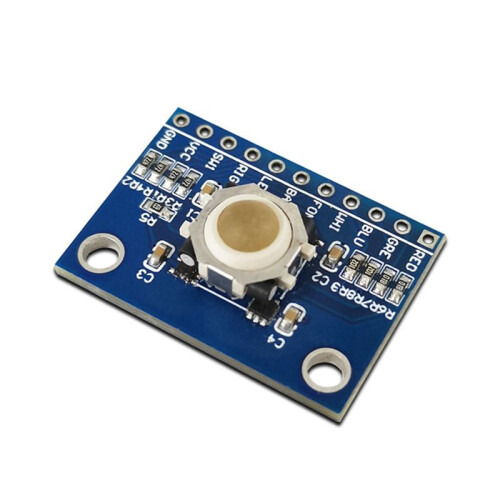

The Trackball Module Is Designed And Manufactured Using The Trackball. The Module Can Drive The Rotating Shafts In The X And Y Directions Through Roller Motion. It Rotates Through The Multi-Pole Magnetized Magnets Fixed The Rotating Shafts And Sends Signals To The Corresponding Smd Hall Elements To Determine The Movement Trajectory. . A Small Smd Is Also Designed Below The Trackball To Facilitate Users To Trigger Events Or ""Click"" Selections.
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Will Not Affect The Use
Colour:As Shown
Material:PCB+Plastic+Metal

Package Contents:
1 x Trackball Sensor Module

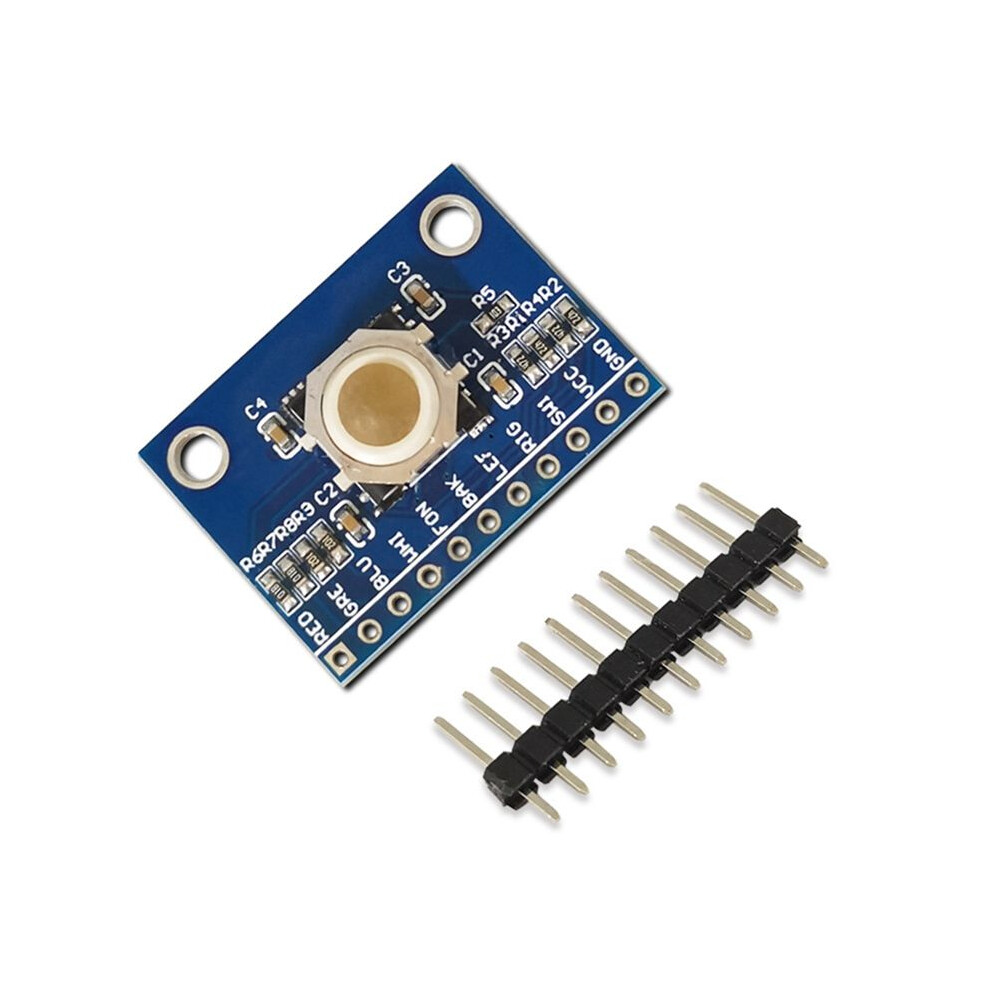

1 x Single Row Of Pins (11Pin)
