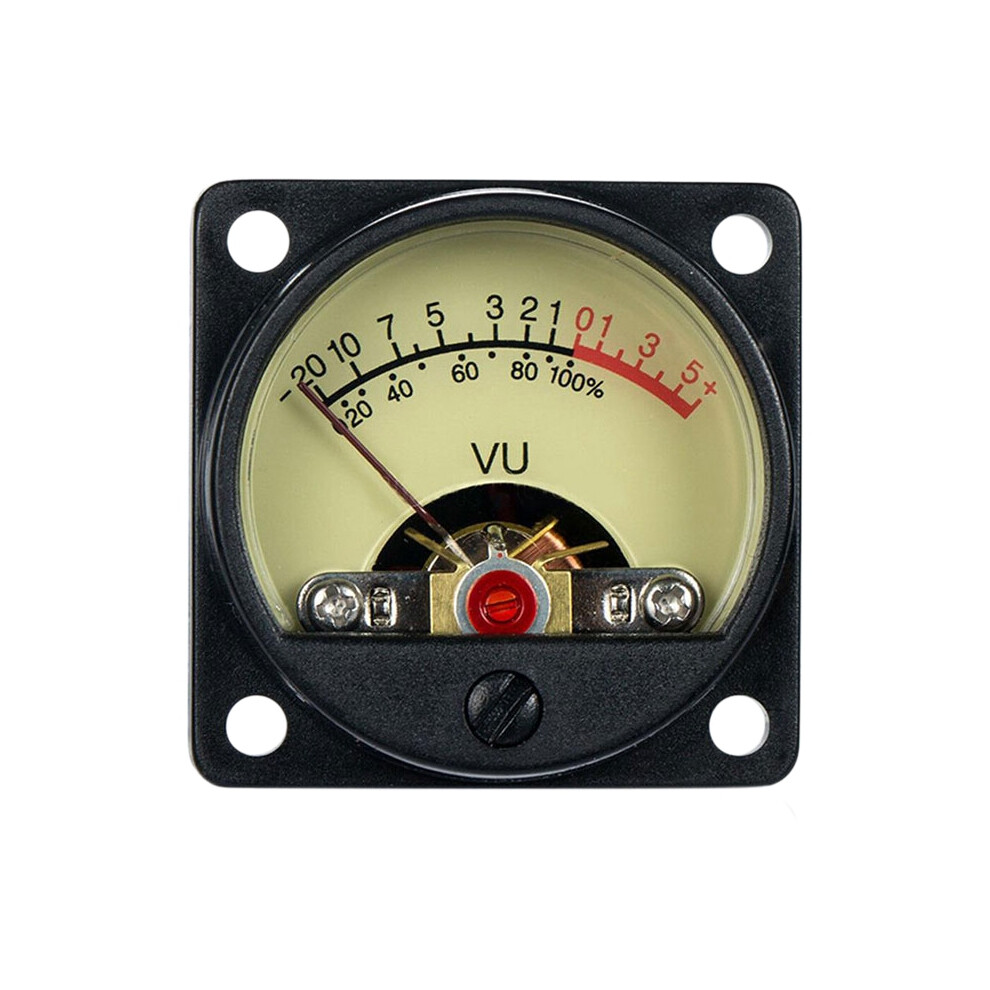

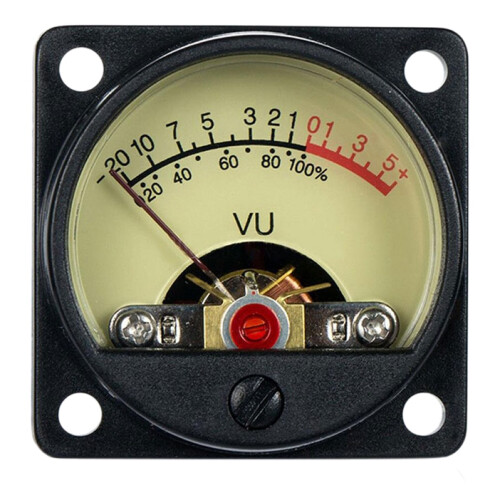

VU Level Meter TR-35 500 VU Meter Panel Mechanical Pointer Type Audio Level Meter White LED 2.8-3.8V 20MA

Nou

În stoc

De ce îți va plăcea să cumperi de la OnBuy:

Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
Livrare gratuită – la milioane de produse de pe site
Clienții ne iubesc – 126,000 de recenzii cu evaluare “Excelent”

Vezi descrierea completă și detaliile produsului

Cantitate

70,24 RON

154,04 RON Reducere de 54%!

+30,00 RON livrare

1% Câștigați 0,70 RON instant Află mai multe

Adaugă în coș

Prețurile articolelor vândute de OnBuy includ TVA.

Opțiuni de plată în rate fără dobândă disponibile

Vezi descrierea completă și detaliile produsului

Livrare: Standard (30,00 RON) | sâm 13 - mar 16 iun.

Vândut de: YPDblue

Returnări: 30 zile

Protecție la plată pentru 180 de zile

Adaugă în coș

Descriere & Detalii

Rezumat

Test environment: temperature 20 Celsius, humidity 70 Celsius
Overload: Input five times the current of the vine scale every 5 seconds, this action is repeated 9 times, 0.5 seconds per second
Vibration: The meter is packaged and fixed on a vibrating machine. Vibration frequency: 16.7Hz (1000 times/min); amplitude 14.5mm, 3 minutes in X, Y, and Z directions
Drop: The meter is packaged and dropped from a height of 30cm on a wooden board of 3cm thick. X, Y, and Z directions once each
Durability: 1,000,000 times correction point current on and off

Descriere VU Level Meter TR-35 500 VU Meter Panel Mechanical Pointer Type Audio Level Meter White LED 2.8-3.8V 20MA

Test environment: temperature 20 Celsius, humidity 70 Celsius
Overload: Input five times the current of the vine scale every 5 seconds, this action is repeated 9 times, 0.5 seconds per second
Vibration: The meter is packaged and fixed a vibrating machine. Vibration frequency: 16.7Hz (1000 times/min); amplitude 14.5mm, 3 minutes in X, Y, and Z directions
Drop: The meter is packaged and dropped from a height of 30cm a wooden board of 3cm thick. X, Y, and Z directions once each
Durability: 1,000,000 times correction point current and off

Operating temperature:
Work for 2 hours in an environment of -10 Celsius and keep the current at the calibration point and off
Work for 2 hours in an environment of 70 Celsius3 Celsius and keep the calibration point current and off
Terminal temperature:
Tensile force: Acting the terminal with a force of 10 Newtons for 10 1 second
Tension: Acting the terminal with a force of 2 Newtons for 101 seconds
Bending strength: Fold 90 in the positive and negative directions at the same position of the terminal with a force of 5 Newtons
Heat resistance: wave soldering: temperature 2603 degrees Celsius, 5 seconds, immersion depth 1.6mm (distance to PCB bottom surface)
Specification:
Sensitivity: 180uA10%
Friction: 1mm
Zero position: 1
White LED: 2.8-3.8V 20mA
Colour:Black + Yellow
Material:Zinc cupronickel
Size:3.5x3.7cm

Package Contents:
1 x VU meter

Detalii

OPC	PTFG2YT
Coduri	4713155431600 (EAN)

Date despre produs

Height	6cm
Width	6cm
Length	6cm
Weight	0.0355kg
Colour	Black & Yellow
Material	Zinc cupronickel
