Waveshare UPS Module B for Raspberry Pi Board, Uninterruptible Power Supply Monitoring Battery Via I2C Bus,Stackable Design
Brand Typecat
New
215,13 RON
Would you like us to let you know when it's back?
Descriere & Detalii
Rezumat
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
- I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable.Onboard recharging indicator, power indicator, easy to check the battery status
- UPS Module For Raspberry Pi Pico
Descriere Waveshare UPS Module B for Raspberry Pi Board, Uninterruptible Power Supply Monitoring Battery Via I2C Bus,Stackable Design
Standard Raspberry Pi header, supports Raspberry Pi series boards
Incorporates Li-po battery switching charger with dynamic power path management, more stable power supply
I2C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, more safe and stable.Onboard recharging indicator, power indicator, easy to check the battery status
Features At A Glance

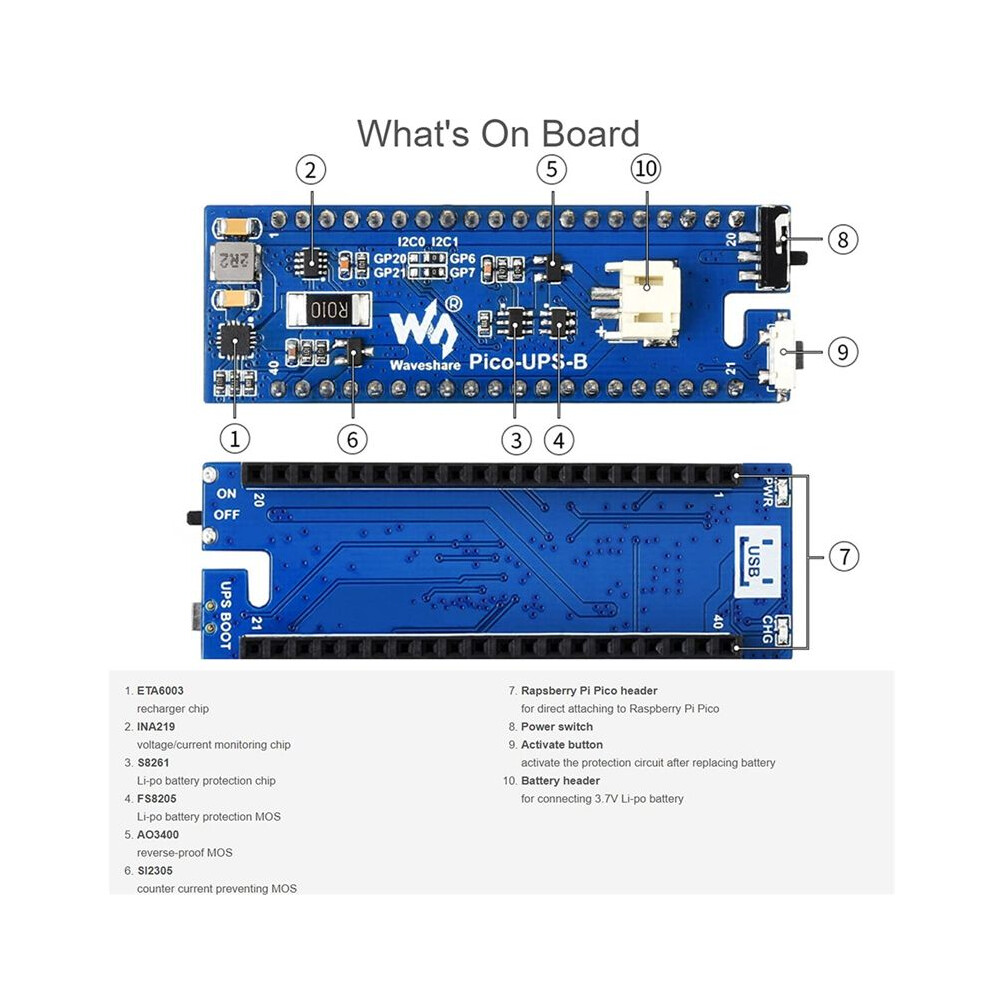

The -UPS-B is a dedicated UPS (Uninterruptible Power Supply) module designed for Raspberry Pi . It incorporates Li-po battery switching charger
with power path management, and voltage/current monitoring chip, allows monitoring the battery operating status via I2C bus. What's more, the
male pin header make it possible to "stack" other modules top.

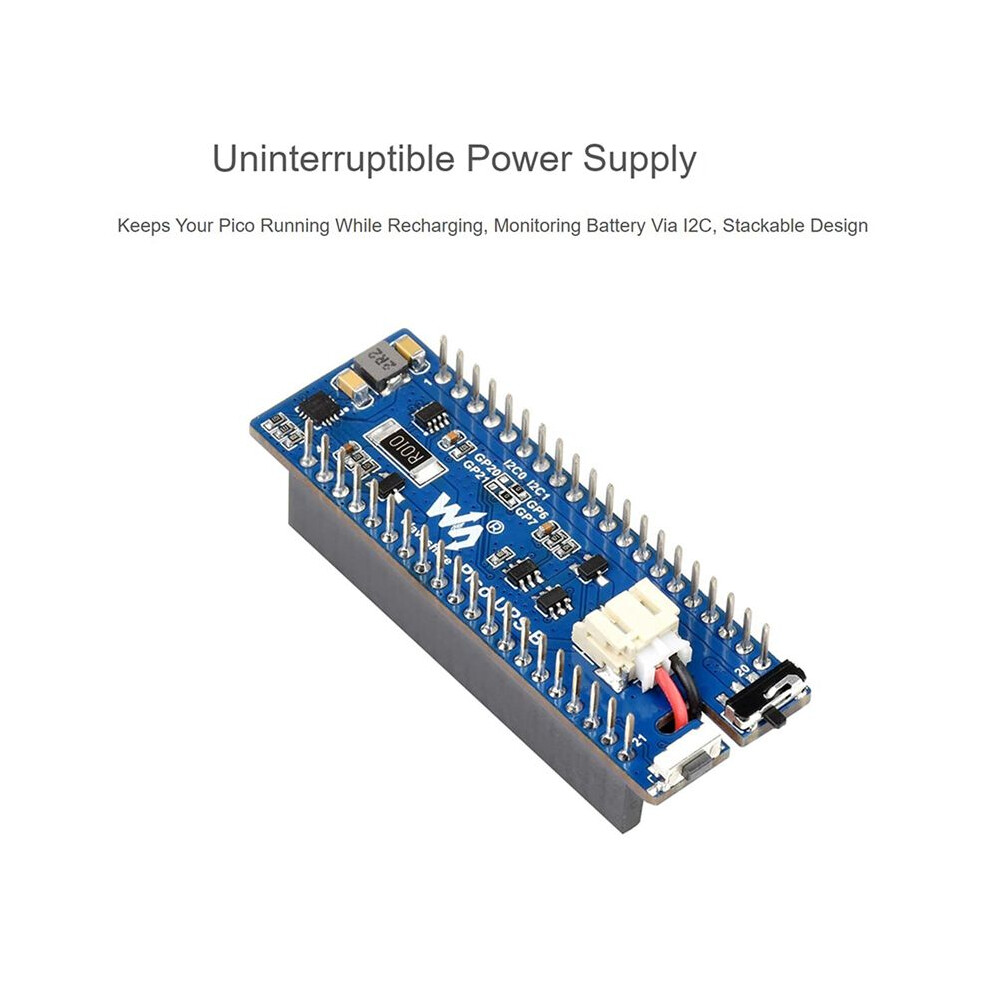

Uninterruptible Power Supply For
Keeps Your Running While Recharging, Monitoring Battery Via I2C, Stackable Design

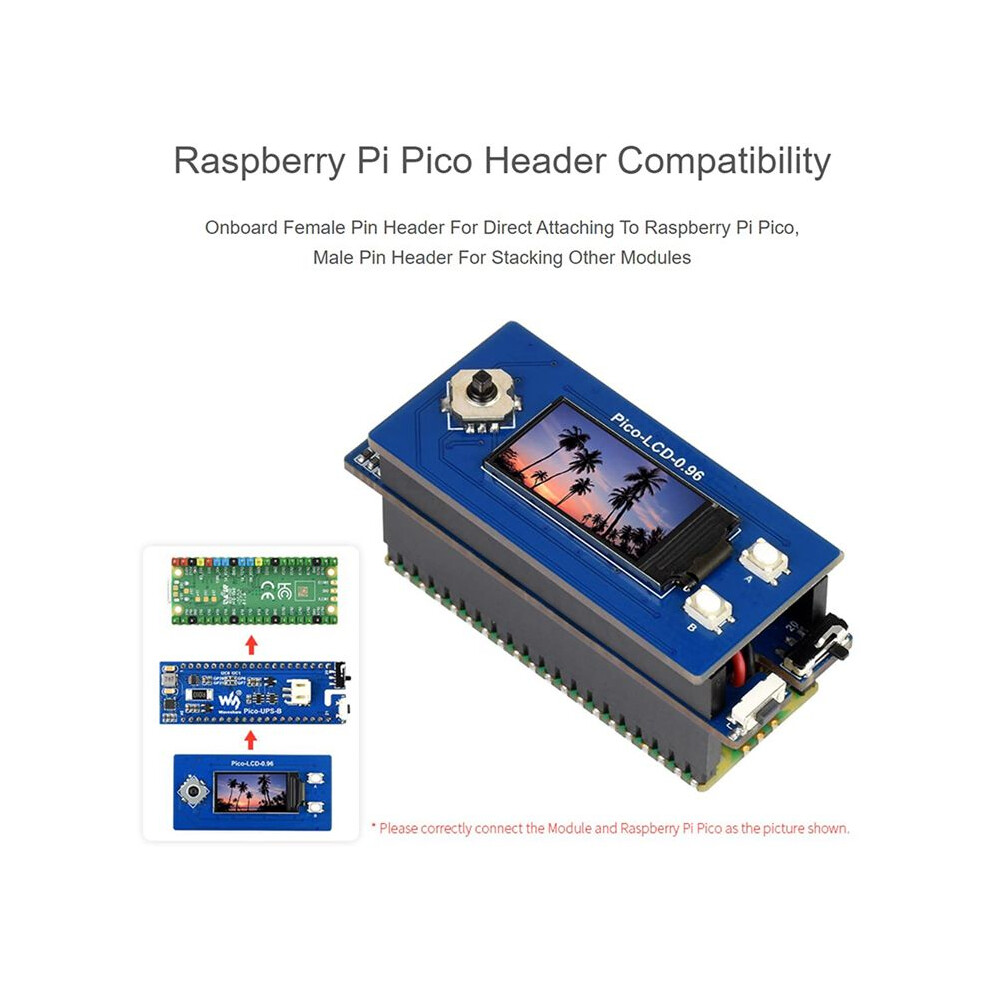

Raspberry Pi Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi ,Male Pin Header For Stacking Other Modules
RECHARGE VOLTAGE:5V
CONTROL BUS:I2C
BATTERY SUPPORT:600mAh 3.7V Li-po battery

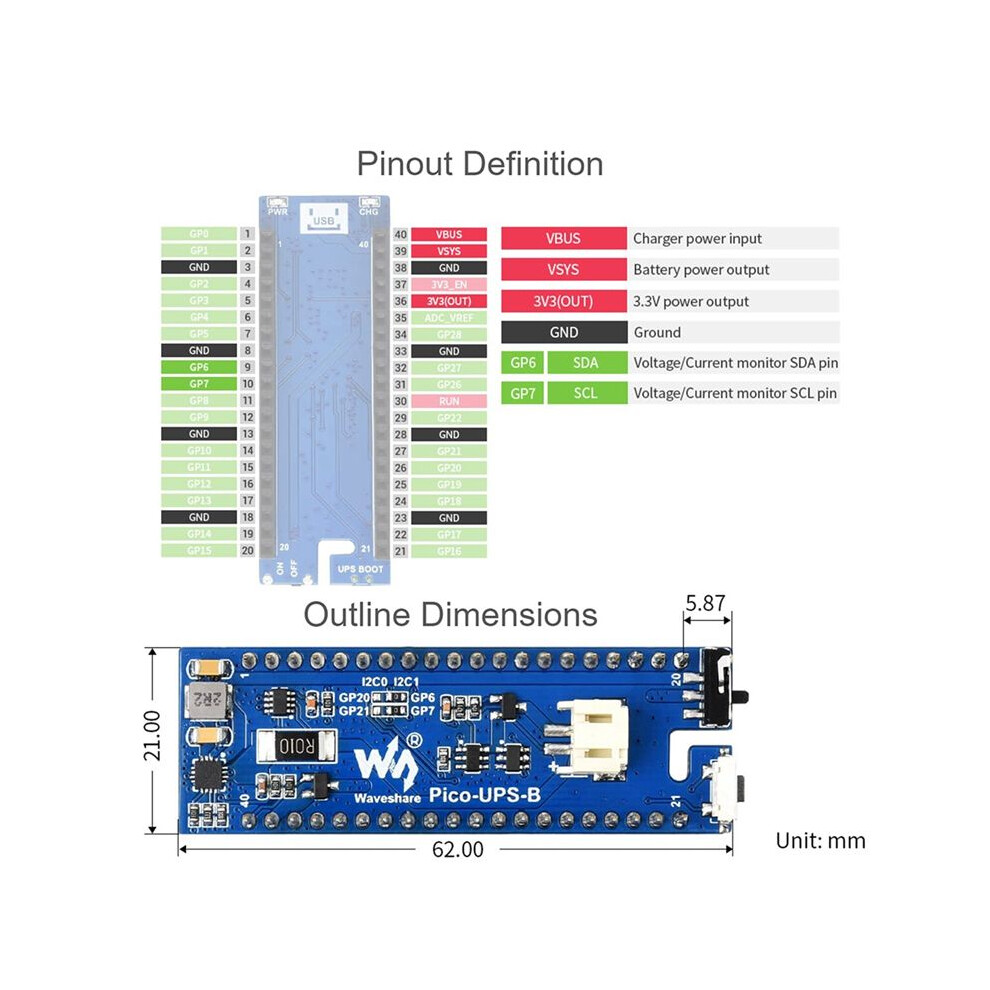

DIMENSION:62 x 21mm
Note

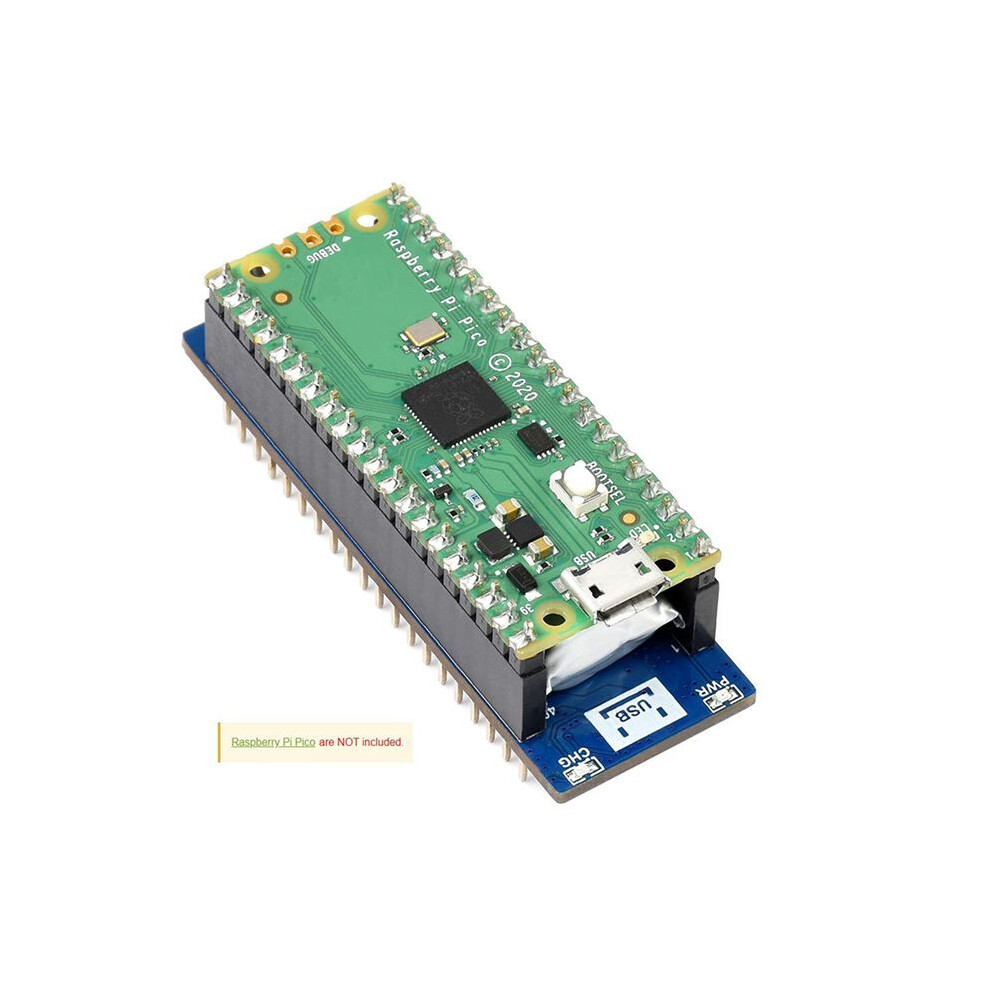

Raspberry Pi and Li-ion battery are NOT included.
Colour:
Material:PCB
Package Contents:
1 x -UPS-B Board
Detalii
| OPC | PSF2F7R |
|---|---|
| Brand | Typecat |
| Coduri | 4713643336905 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 3cm |
|---|---|
| Width | 7cm |
| Length | 8cm |
| Weight | 0.0175kg |
| Colour | Blue |
| Material | PCB |
