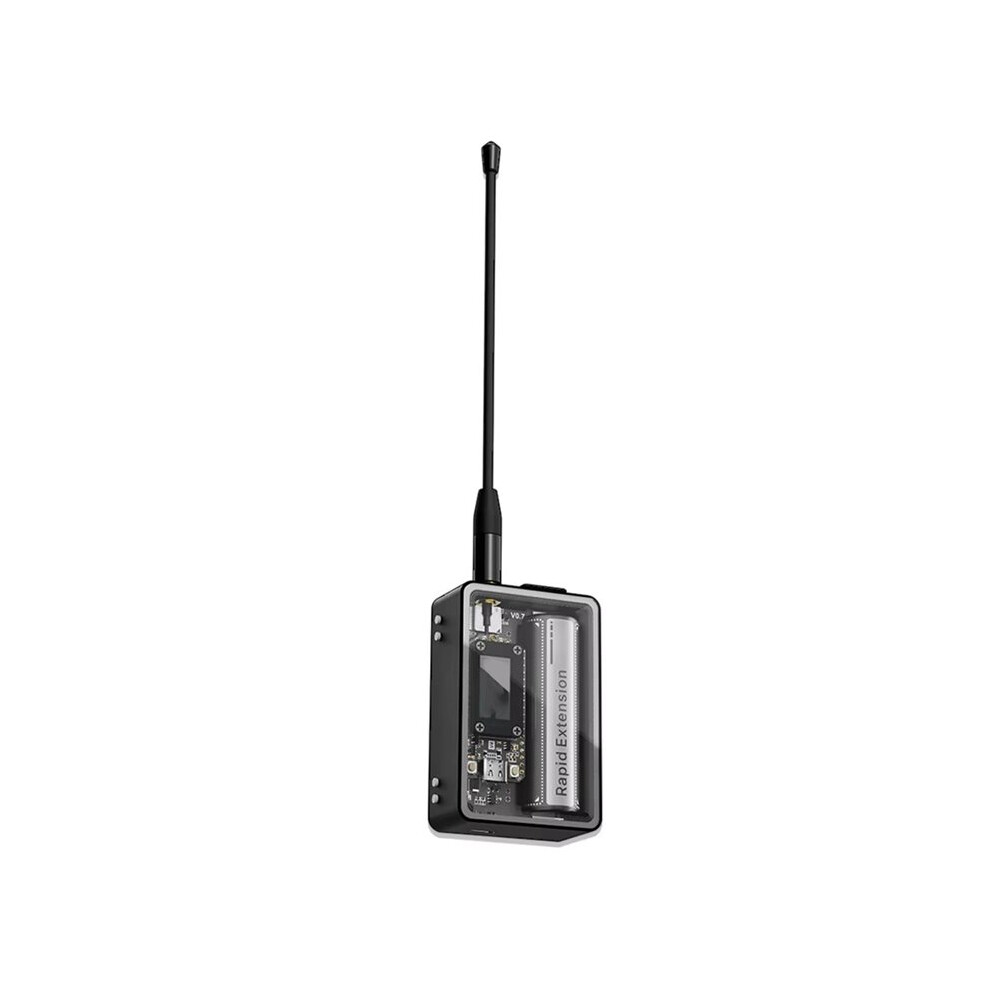

WiFi LoRa 32 Expansion Kit WiFi LoRa 32 Dev-Board ESP32 SX1262 BLE Tempered Glass Panel with GNSS Module Without Battery

Descriere WiFi LoRa 32 Expansion Kit WiFi LoRa 32 Dev-Board ESP32 SX1262 BLE Tempered Glass Panel with GNSS Module Without Battery

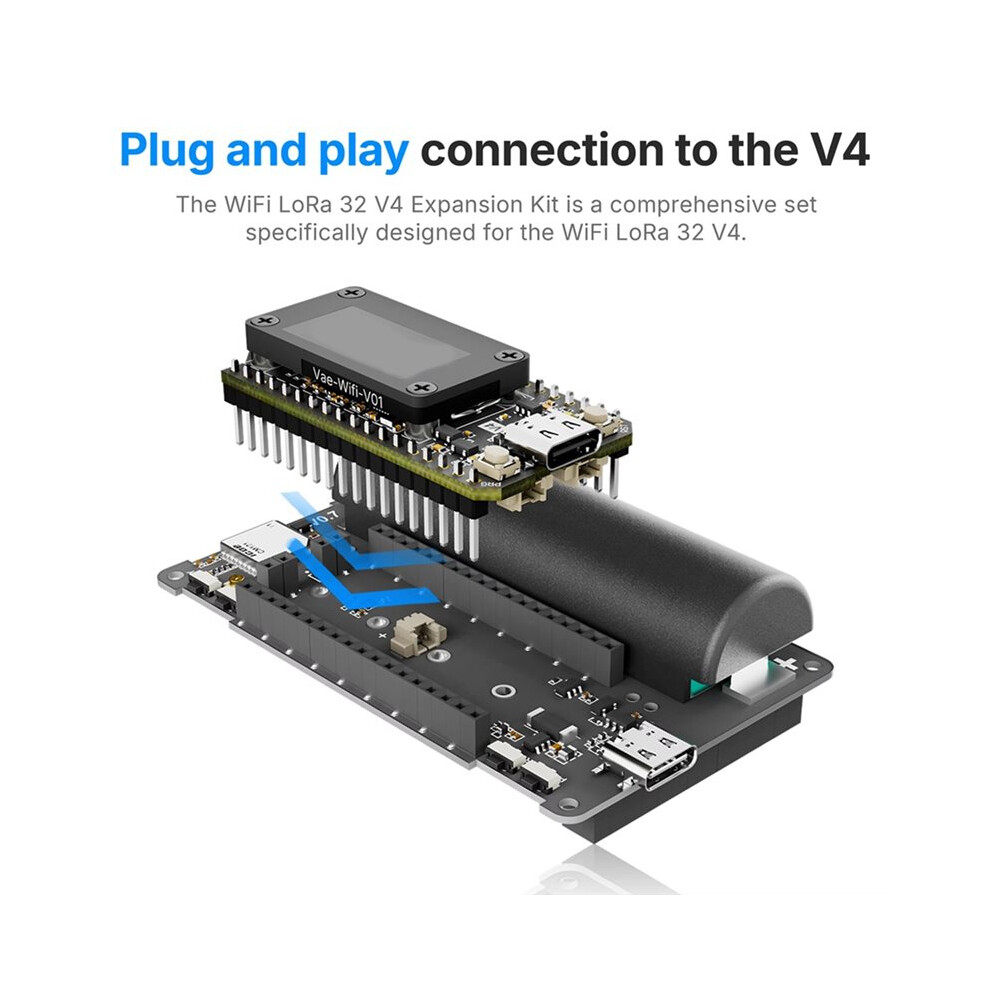

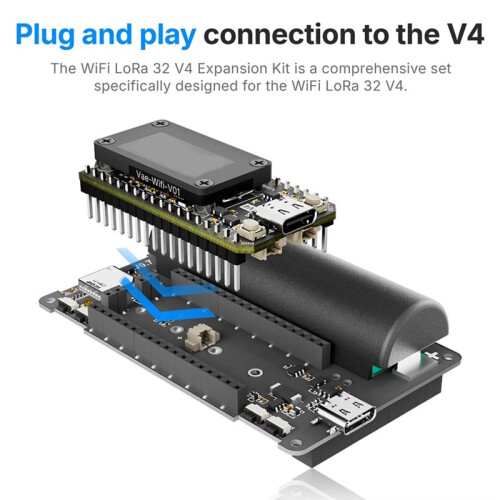

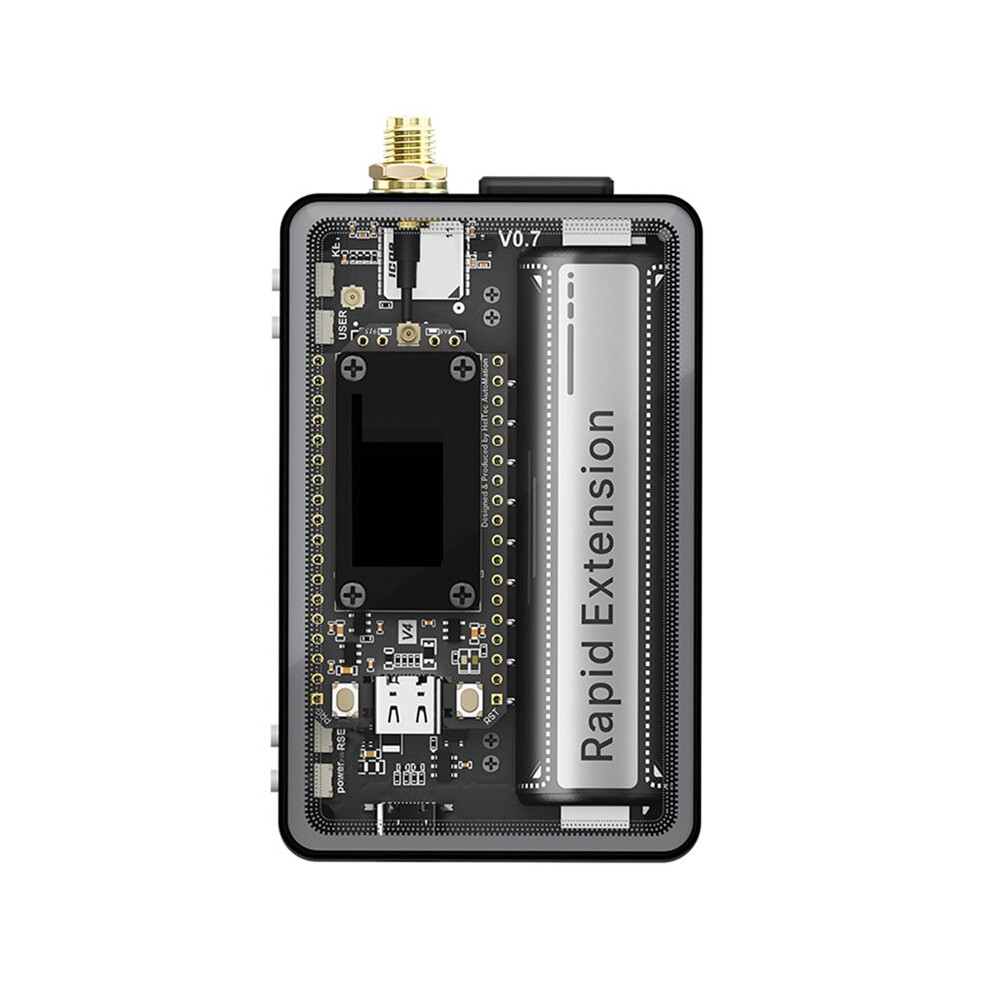

The WiFi LoRa 32 V4 Expansion Kit is a comprehensive set specifically designed for the WiFi LoRa 32 V4, with Tempered Glass Panel, including protective cases, expansion carrier boards, and more. (Note: Battery not included.)

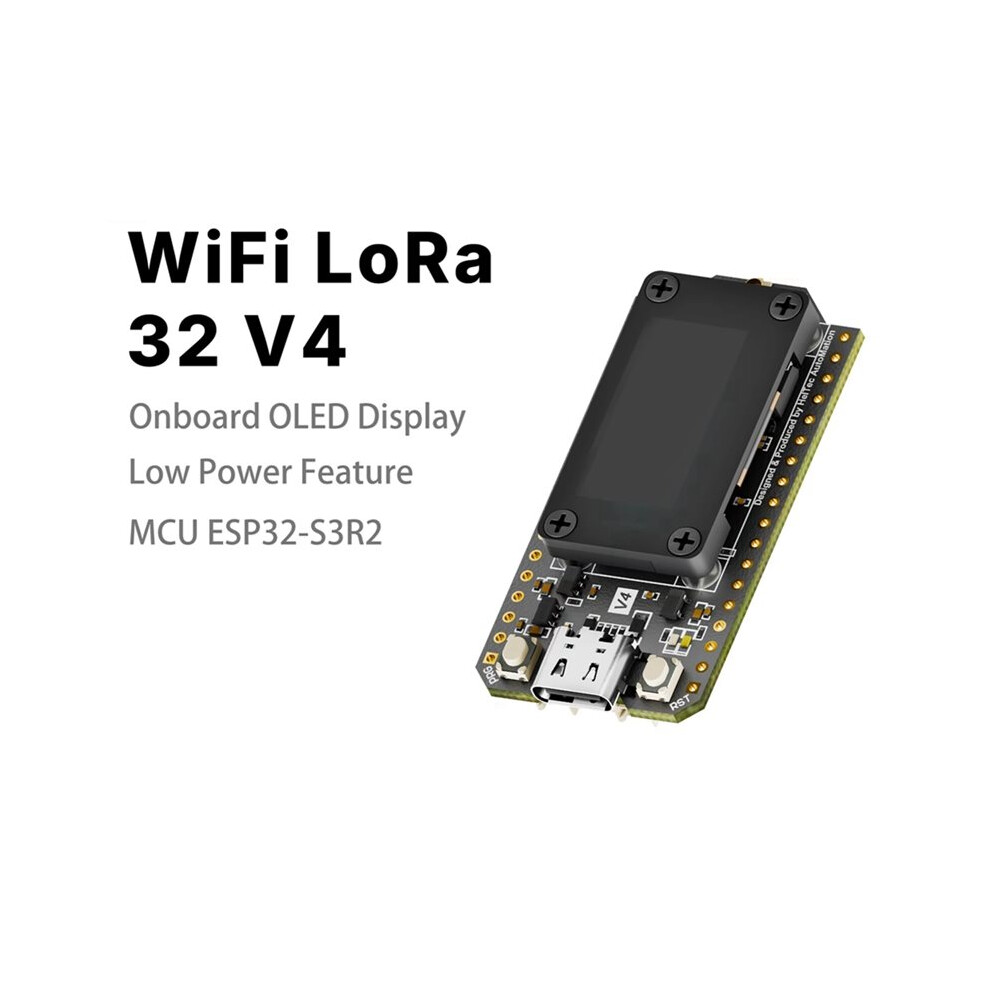

WiFi LoRa 32 V4 is a fully upgraded version of the classic LoRa development board. Building upon the powerful features of its predecessors, the V4 version introduces comprehensive optimizations in Transmit Power, power management, expandability and other hardware design.
It is suitable for various IoT applications such as cities, agricultural monitoring, homes, industrial control, security systems, and wireless meter reading, providing developers with a more efficient and flexible development experience.
Base ESP32-S3R2 & SX-1262, supports Wi-Fi b/g/n, BLE, and LoRa communication.
2MB PSRAM and 16MB external Flash, more suitable for UI and complex system.
PC casing protects the screen and integrates FPC 2.4G antenna.
Form factor and pin compatibility with WiFi LoRa 32 V3.
PC casing protects the screen and integrates FPC 2.4G antenna.
Added SH1.25-2Pin solar panel interface, and SH1.25-8Pin GNSS interface.
Optimized lithium battery management.
Low power consumption is less than 20μA.

Parameters:
LoRa Freq: 863-928MHz
LoRa TX Power:281dBm

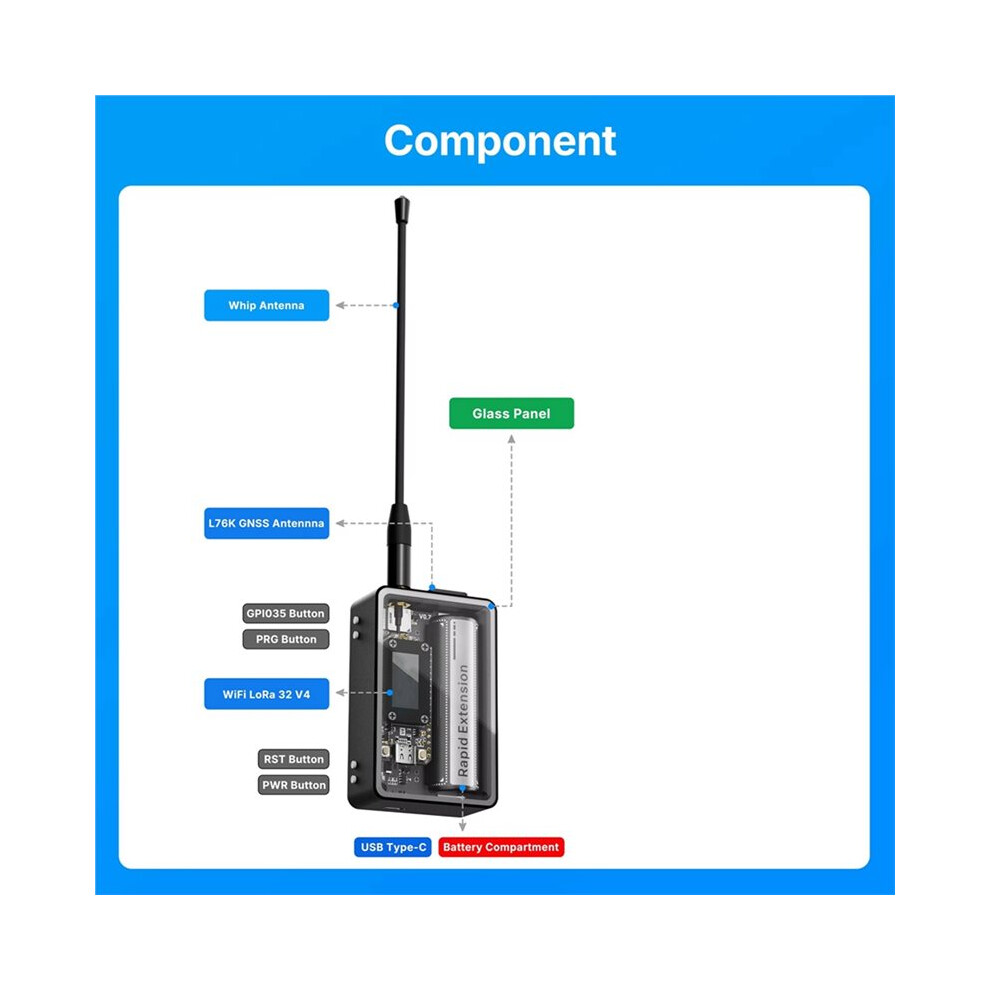

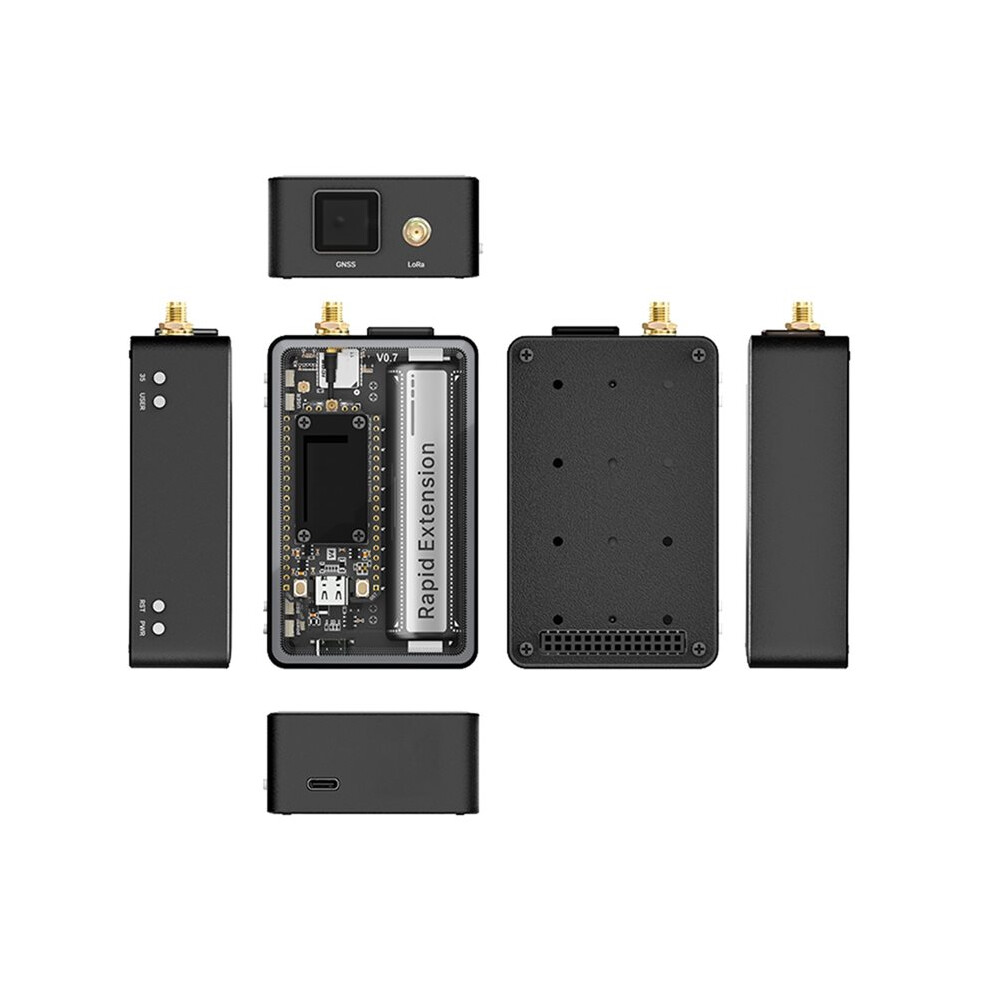

Front Cover: Tempered Glass;
Side Cover: Aluminum Alloy;
Rear Cover: Polycarbonate (PC)
Battery: 2800mAh 18650 Li-Ion Battery (not included)
GNSS Module: Quectel L76K
Triaxial Accelerometer:DA217

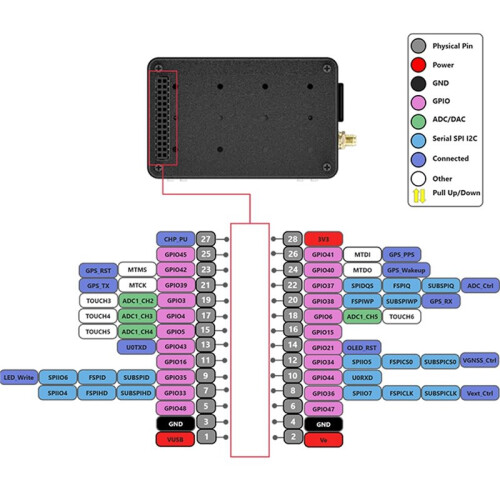

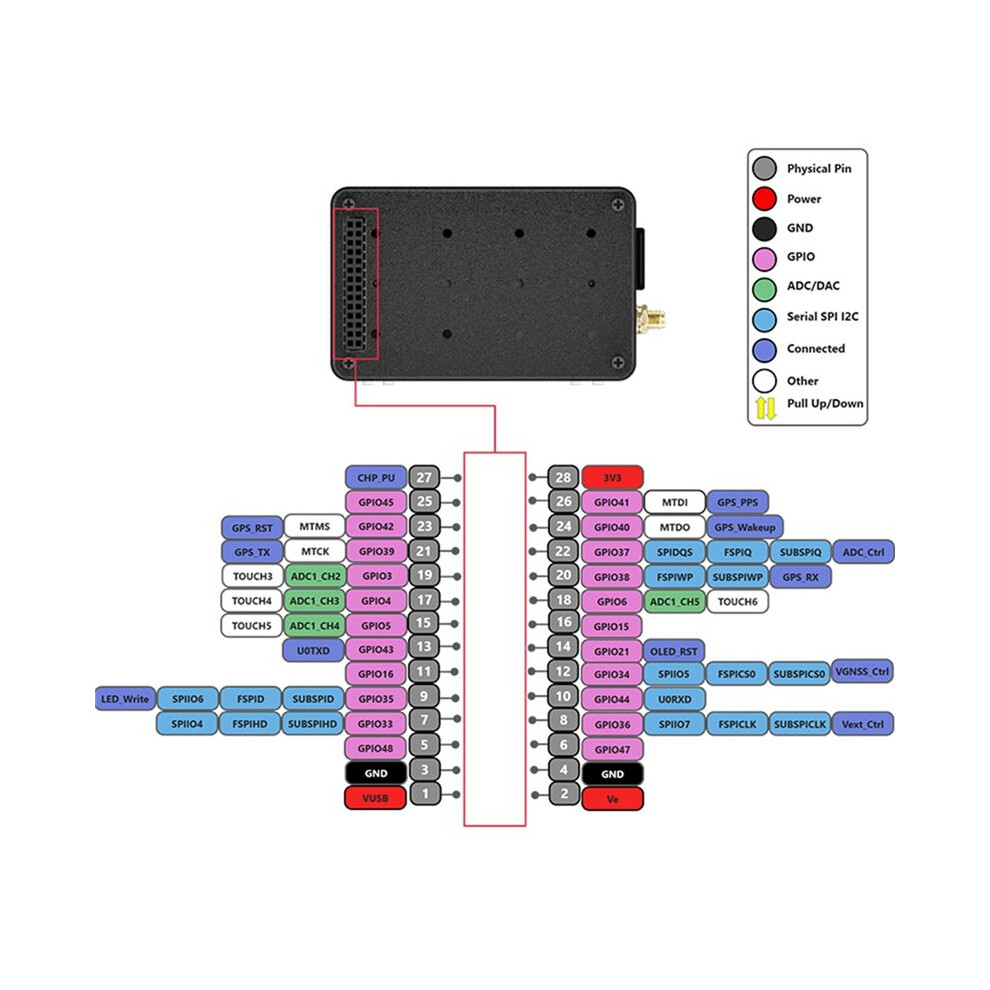

Expansion Socket: B2B Female
Antenna Socket: SMA Female

Note: Battery not included.
Color: Black & Transparent
Material: PC + Aluminum Alloy

Package Contents:
1*Main Unit
1*Back Clip
1*Antenna
