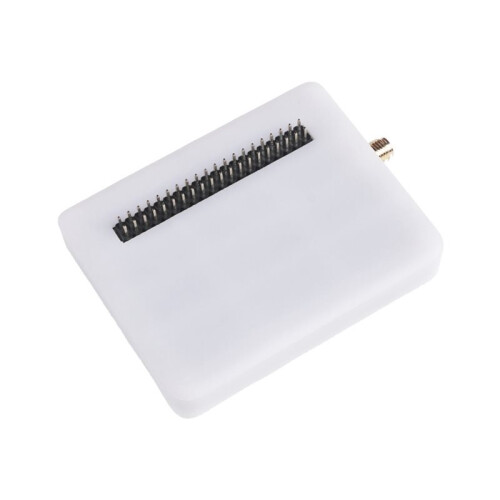

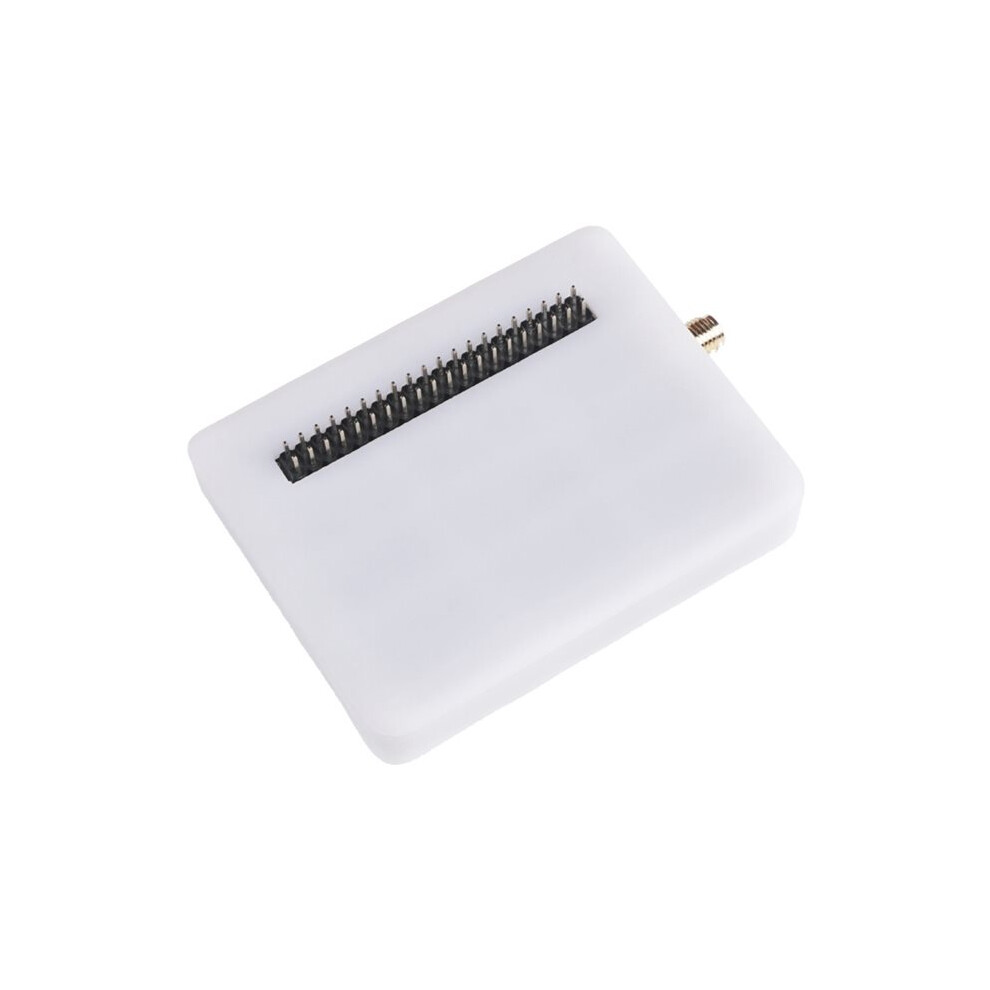

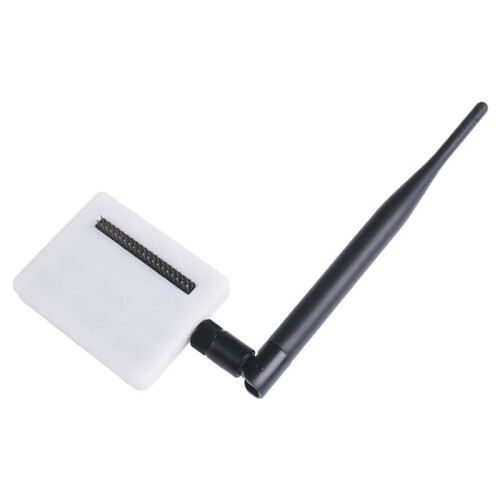

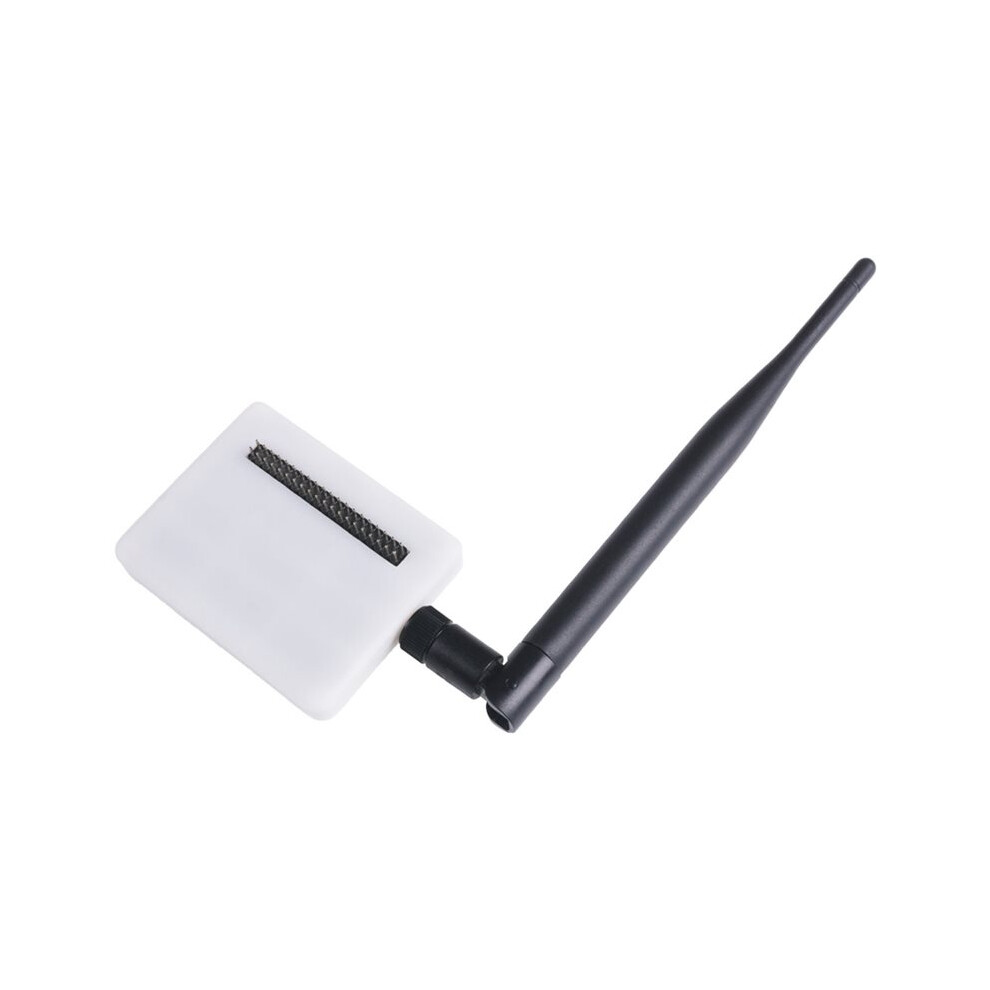

Wio Terminal Chassis - Wio-E5 and GNSS LoRaWAN Communication Extension Board for Seeed Wio-Terminal Dev Board
Brand Torribaly
Nou
În stoc
De ce îți va plăcea să cumperi de la OnBuy:
- Câștigi Cashback la fiecare achiziție – folosește-l la următoarea comandă
- Livrare gratuită – la milioane de produse de pe site
- Clienții ne iubesc – 131,000 de recenzii cu evaluare “Excelent”
469,42 RON
591,84 RON
Reducere de 21%!
Livrare GRATUITĂ
1%
Câștigați 4,69 RON instant
Află mai multe
Prețurile articolelor vândute de OnBuy includ TVA.
Opțiuni de plată în rate fără dobândă disponibile
Vezi descrierea completă și detaliile produsului
Livrare: Standard (Gratuit) | vin 28 aug. - mie 2 sept.
Vândut de: JJBRDZ
Returnări: 30 zile
Protecție la plată pentru 180 de zile
Descriere & Detalii
Rezumat
- Wio Terminal Chassis-Wio-E5 and GNSS is a plug-and-play Long Range communication expansion board for the Wio Terminal development board. It supports the global Long Range frequency plan. With built-in GNSS, you can easily use it for Long Range IoT applications such as Long Range signal analyzer.
- It is embedded with the LoRa-E5 STM32WLE5JC Module. It is powered by Cortex-M4 core and SX126X LoRa chip, supports both LoRaWAN and LoRa protocol on the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.
- The GNSS module is the Quectel L76-LB. It supports concurrent reception of GPS, GLONASS, BeiDou and QZSS. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, it can acquire and track any mix of GPS, GLONASS (or BeiDou) and SBAS signals.
- With Wio-Terminal + Wio Terminal Battery Chassis + Wio Terminal Chassis - LoRa-E5 and GNSS, you can easily build the a powerful compact, and cost-effective IoT device with the extended Grove Ports, you can enjoy the plug-and-play features of the Grove Ecosystem with over 300 Grove modules!
- LoRaWAN extension board
Descriere Wio Terminal Chassis - Wio-E5 and GNSS LoRaWAN Communication Extension Board for Seeed Wio-Terminal Dev Board
Wio Terminal Chassis-Wio-E5 and GNSS is a plug-and- Long Range communication expansion board for the Wio Terminal development board. It supports the global Long Range frequency plan. With built-in GNSS, you can easily use it for Long Range IoT applications such as Long Range signal analyzer.
It is embedded with the LoRa-E5 STM32WLE5JC Module. It is powered by Cortex-M4 core and SX126X LoRa chip, supports both LoRaWAN and LoRa protocol the worldwide frequency and (G)FSK, BPSK, (G)MSK, and LoRa modulations.
The GNSS module is the Quectel L76-LB. It supports concurrent reception of GPS, GLONASS, BeiDou and QZSS. With 33 tracking channels, 99 acquisition channels and 210 PRN channels, it can acquire and track any mix of GPS, GLONASS (or BeiDou) and SBAS signals.
With Wio-Terminal + Wio Terminal Battery Chassis + Wio Terminal Chassis - LoRa-E5 and GNSS, you can easily build the a powerful compact, and cost-effective IoT device with the extended Grove , you can enjoy the plug-and- features of the Grove Ecosystem with over 300 Grove modules!
Features:
Powerful LoRa module: use extremely compact, and high-performance LoRa-E5 module
Embedded LoRaWAN protocol, AT command, support global LoRaWAN frequency plan
Worldwide Compatibility: wide frequency range including EU868/US915/AU915/AS923/KR920/IN865
Long-distance transmission range to 10km (ideal value in open area)
GNSS module(Quectel L76-LB) support GPS, GLONASS and BeiDou
Compatible for
Ultra-low-power design
Specifications:
Voltage - supply: 3V3
Interfaces: Wio Terminal 40-PIN(2x20 Male Headers)
LoRa-E5:
Frequency: EU868 / US915 / AU915 / AS923 / KR920 / IN865
Protocol: LoRaWAN
Sensitivity: -116.5dBm ~ -136dBm
modulation: LoRa, (G)FSK, (G)MSK, BPSK
Quectel L76-LB:
Receivi
Detalii
| OPC | PX59YTD |
|---|---|
| Brand | Torribaly |
| Coduri | 6032609041461 (EAN) |
| Informații despre produs și siguranță |
Date despre produs
| Height | 4cm |
|---|---|
| Width | 10cm |
| Length | 12cm |
| Weight | 0.15kg |
| Colour | White |
| Material | ABS |
