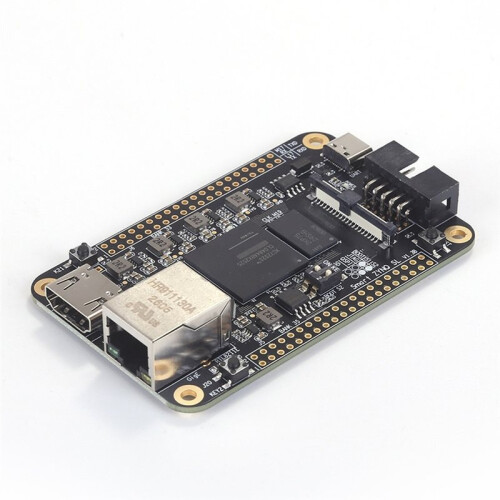

ZYNQ7020 Minimum System Development Board FPGA XILINX ( Zynq SL ) XC7Z020-CLG484 Development Board

Descriere ZYNQ7020 Minimum System Development Board FPGA XILINX ( Zynq SL ) XC7Z020-CLG484 Development Board

The Zynq SL V1.3B is a high-performance minimum system development board based the Xilinx Zynq-7020 chip, designed for FPGA developers, embedded system engineers, and university research projects.
The core board utilizes an industrial-grade main chip and features 512MB DDR3 memory, 16MB QSPI Flash, a TF card slot, Gigabit Ethernet, -compatible output, and a newly added 40-pin RGB LCD interface, offering abundant resources and strong expandability.
This version (V1.3B) builds upon the V1.3 model by adding a 40-pin FPC RGB LCD interface. It is compatible with ALIENTEK RGB screens and provides 35 FPGA I/O pins to support a wider range of display applications.

Board resources
1. The main chip ZYNQ has been upgraded to 7020(new industrial-grade chip)
2.512MB DDR3 (4Gbit)
3. TF Card slot (responsible for TF boot)
4. 128Mbit (16MB) QSPI FLASH (capable of booting)
5. One EEPROM 2KB(PL)
6. Two-channel LED lights (PL
7. Two buttons (PL) + one button for resetting the control system POR
8. One UART (PL) Type-C interface

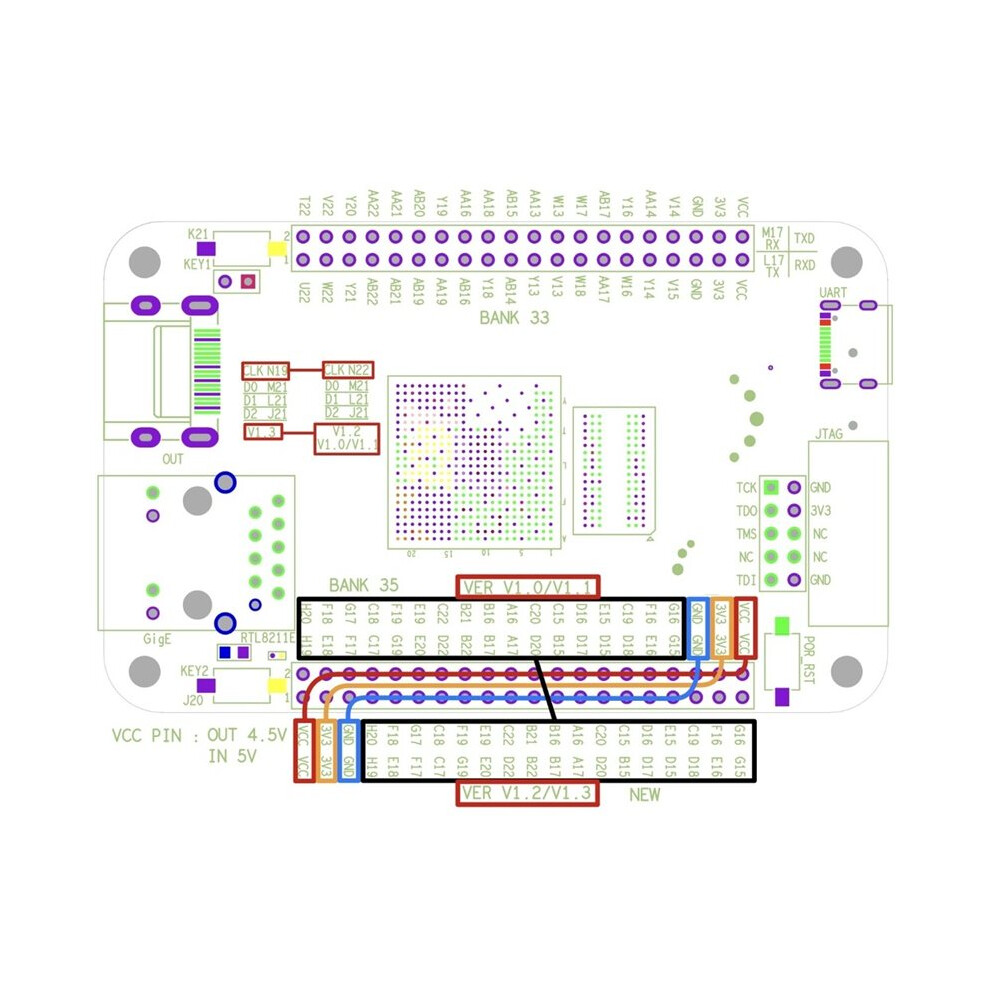

9. 68 GPIOs (all led out from the PL terminal) (34 groups) are all connected in pairs through differential lines, with equal lengths within the differential lines
10. One side of the BANK is independently powered and the BANK voltage can be adjusted through a resistor
11. Gigabit Ethernet (connected to the PL end)
12.-compatible output interface
13.PL is connected to a 50M active crystal oscillator
Color: Black
Material: PCB+Plastic+Metal

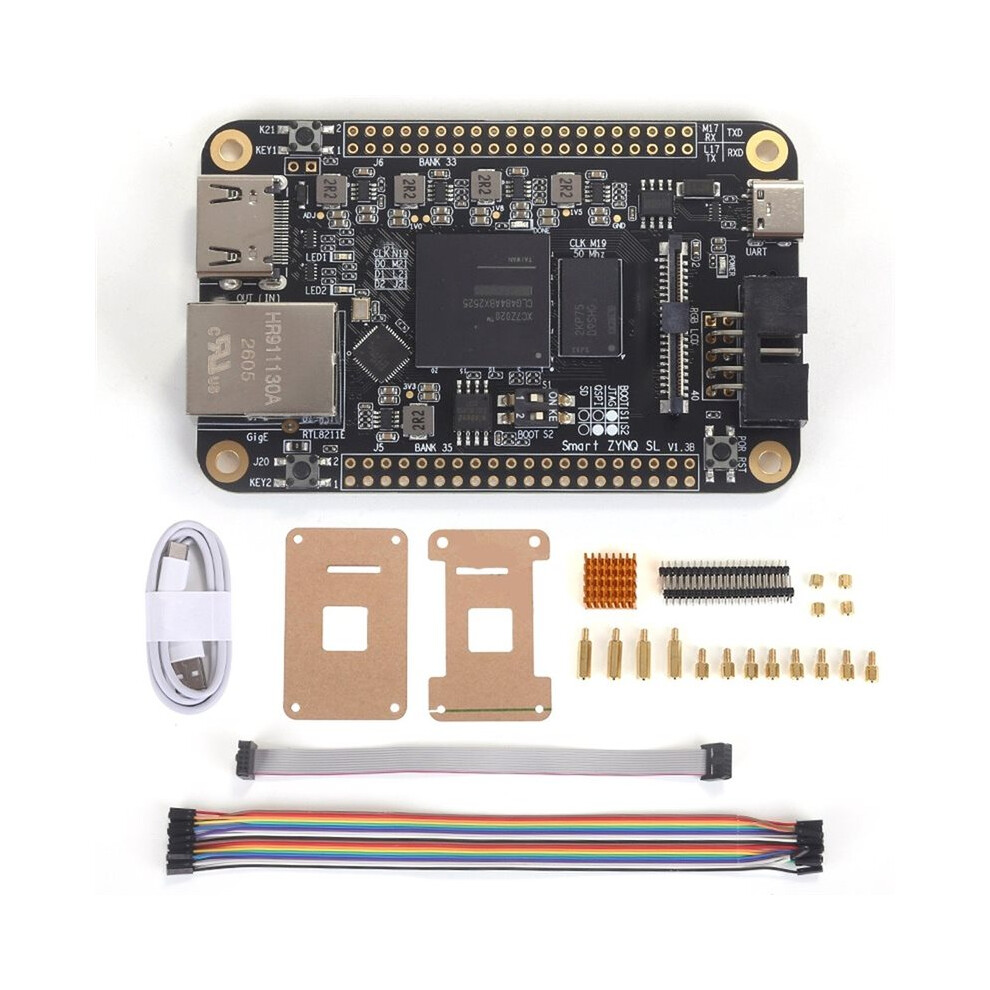

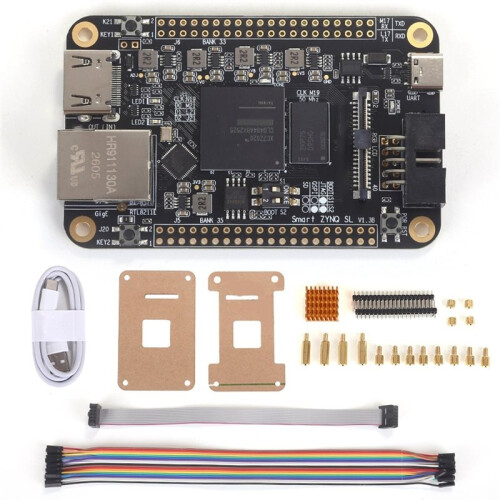

Package Contents:
1 x Development board
1 x Case
1 x USB cable (random color)
2 x Connecting cables
1 x Set of accessories.
