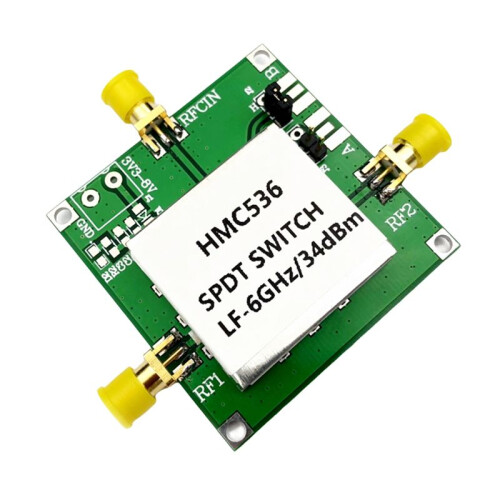

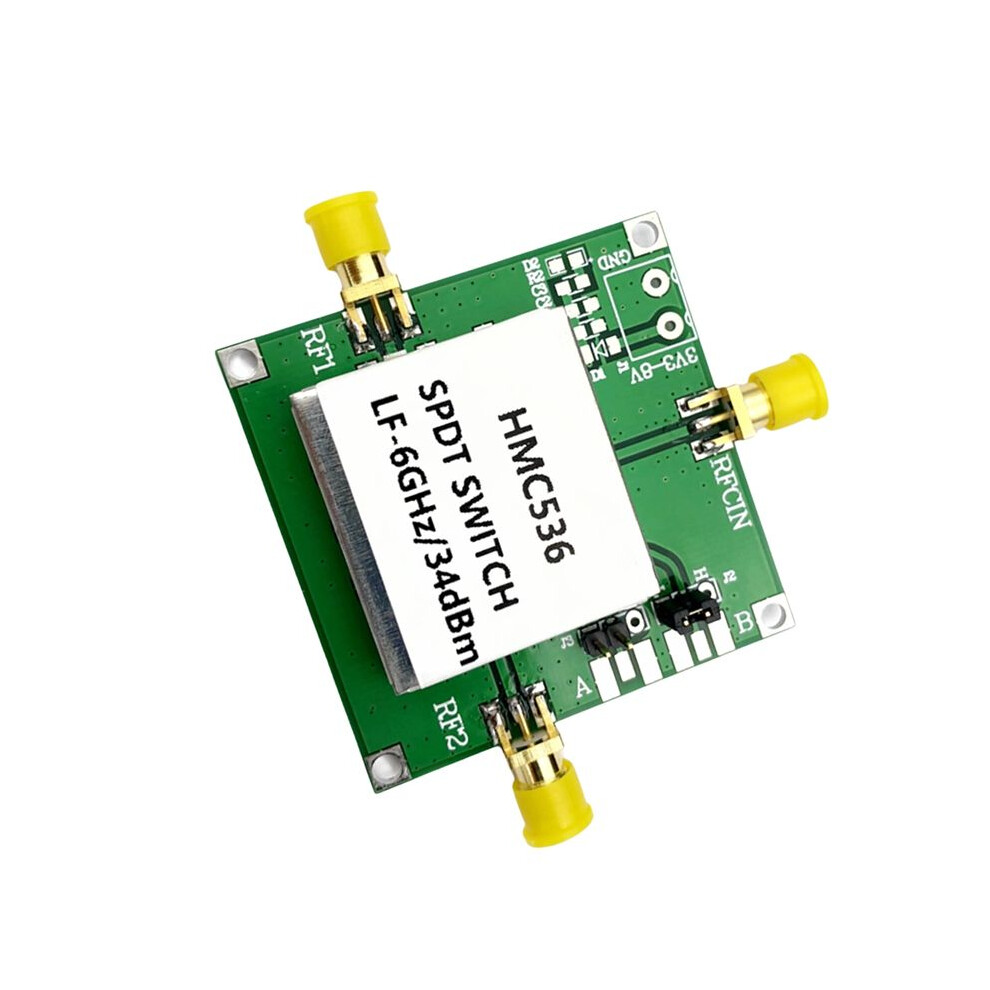

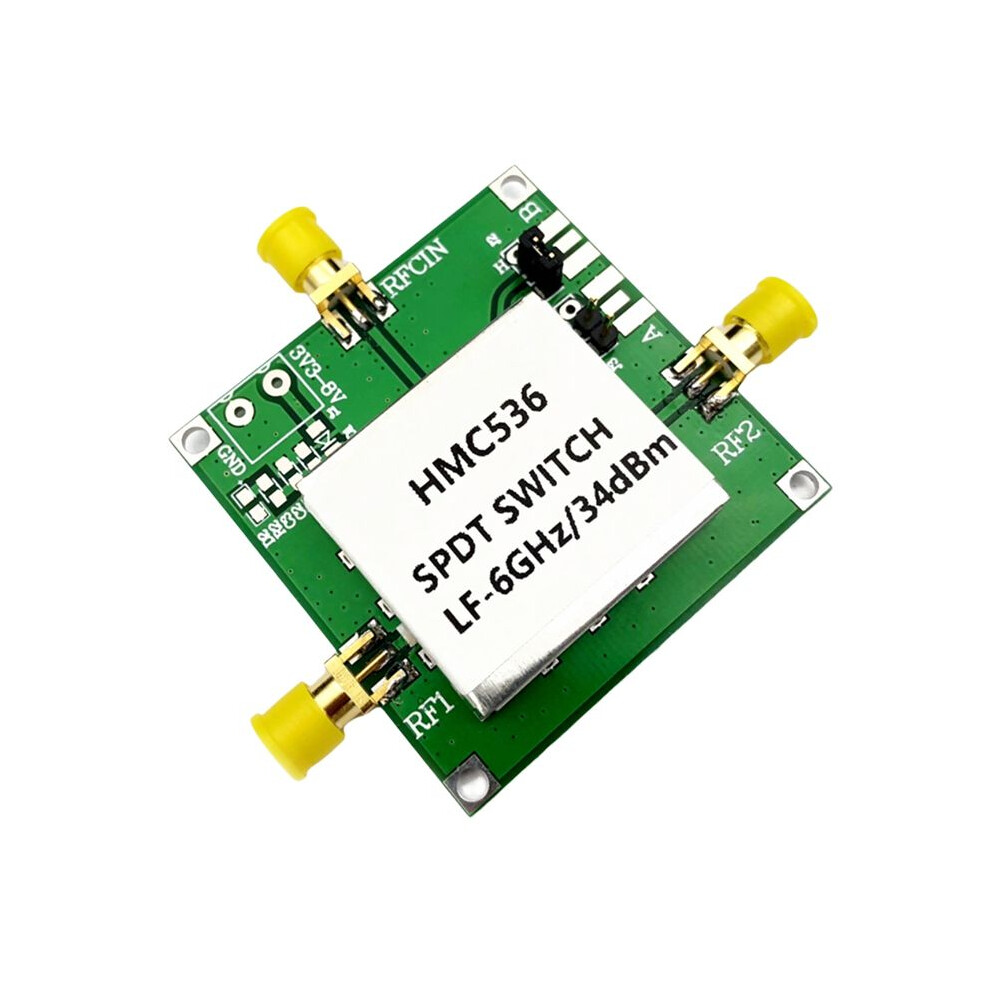

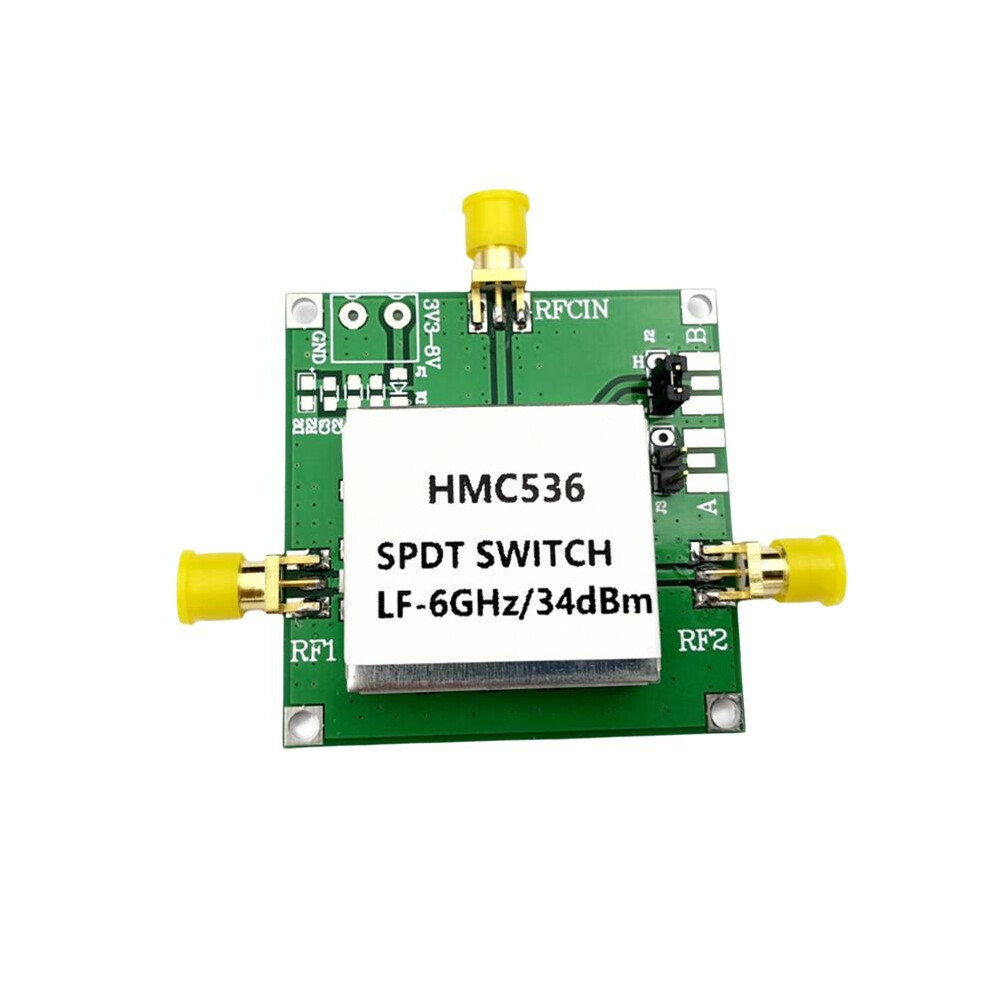

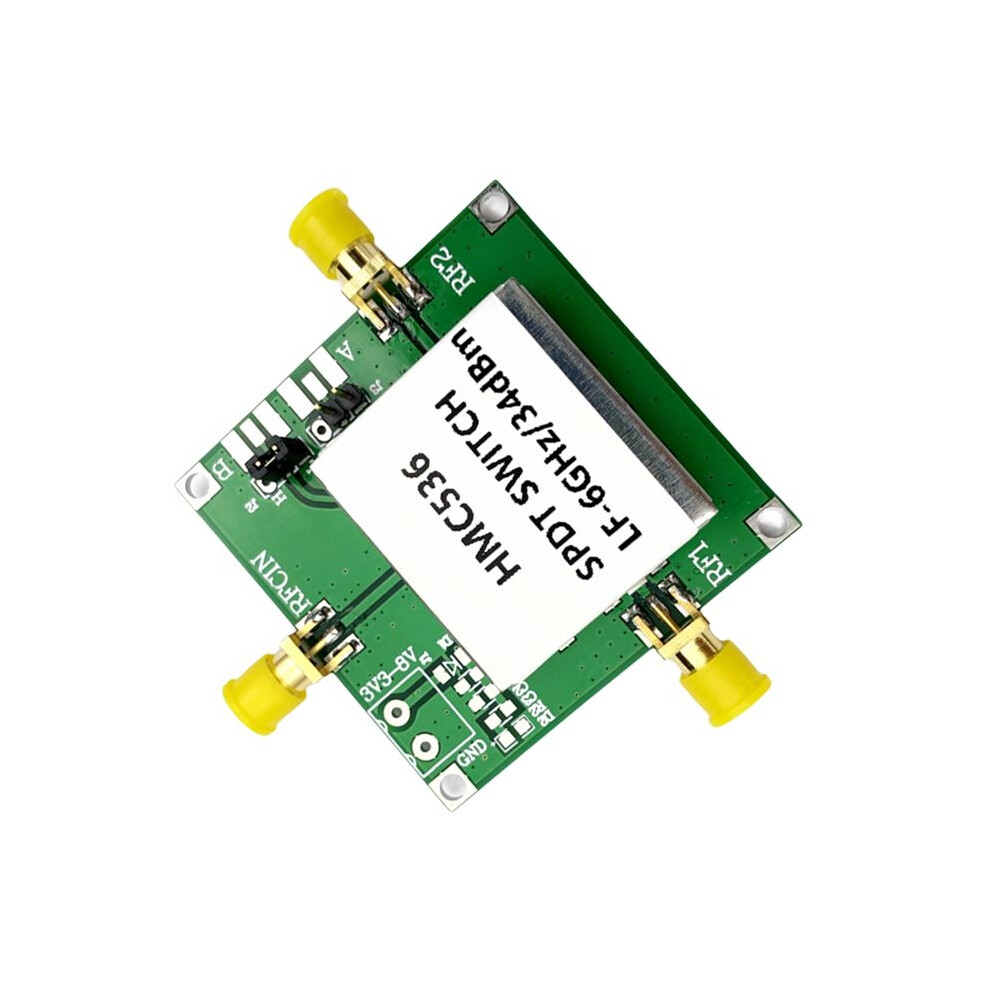

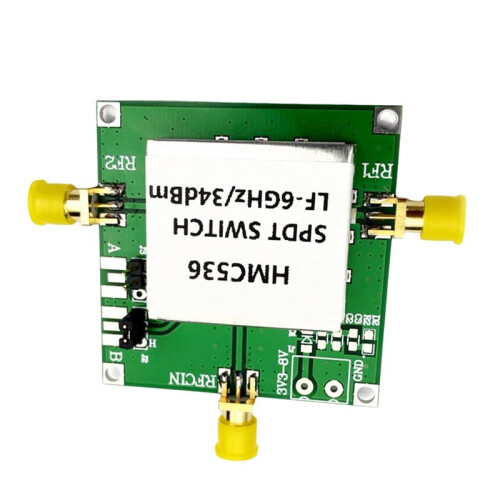

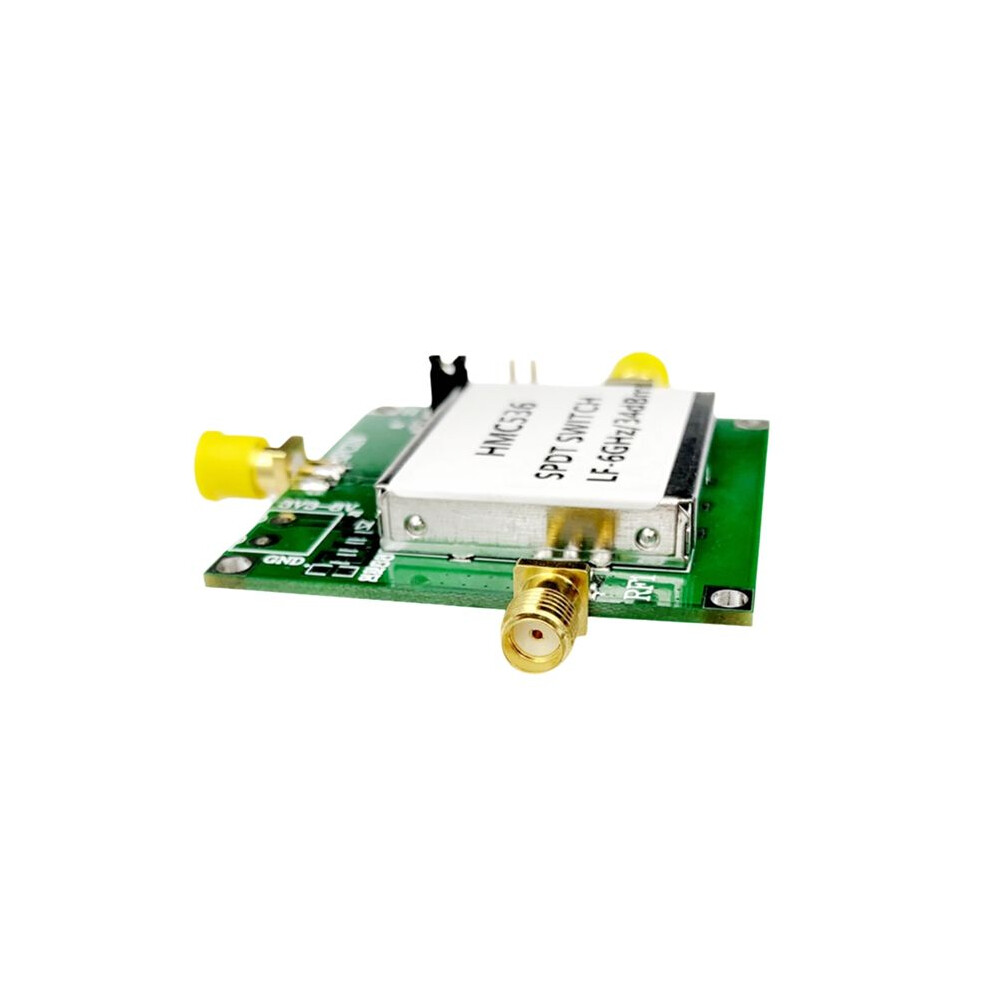

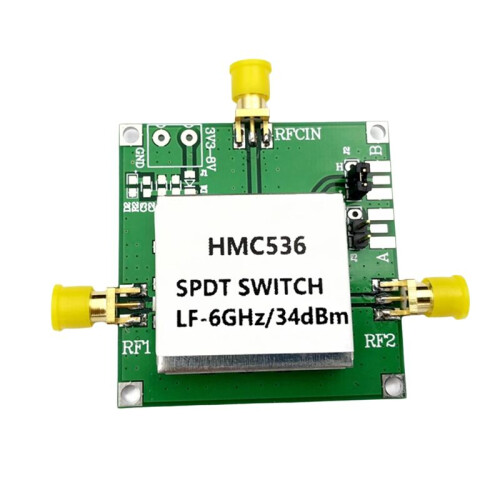

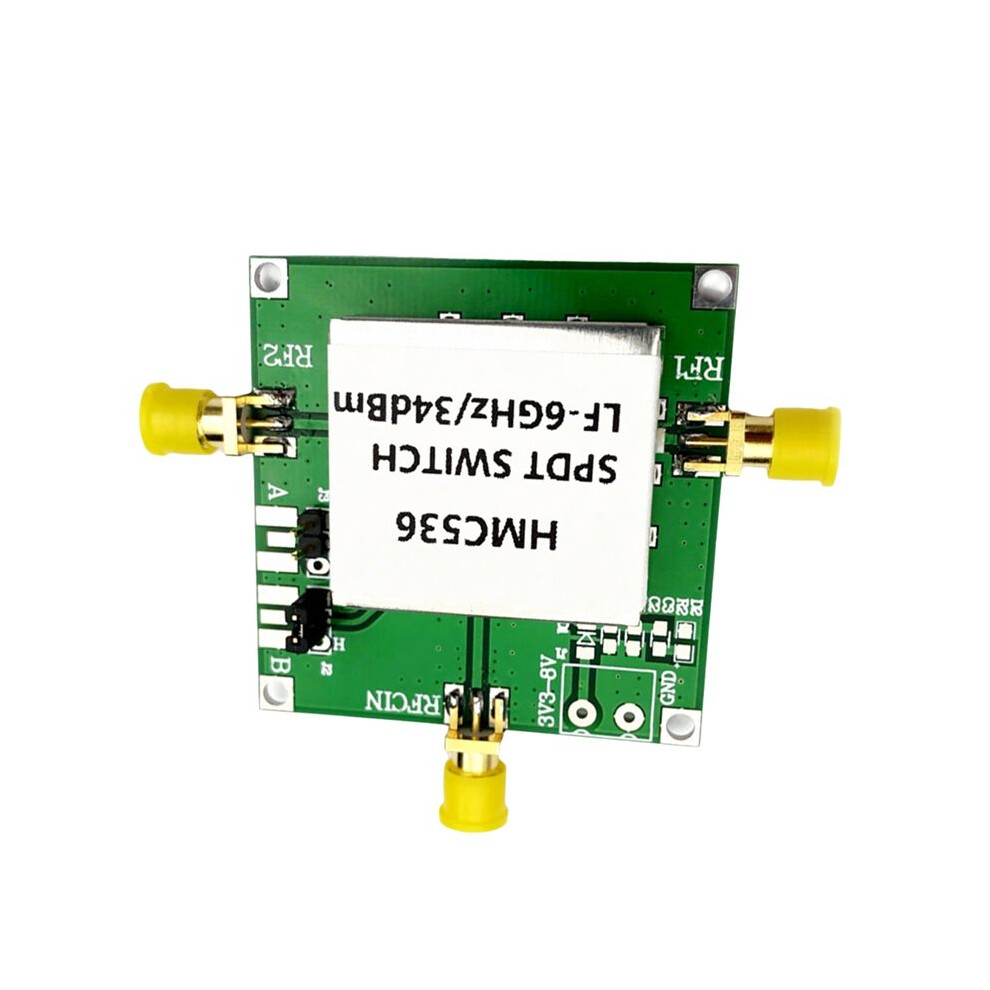

1pcs HMC536 to 6 GHz GaAs MMIC T/R Power+34 DBm RF Module

1pcs HMC536 to 6 GHz GaAs MMIC T/R Power+34 DBm RF Module Beskrivning

HMC536MS8G (E) is a to 6 GHz GaAs MMIC T/R , packaged in an 8-pin MSOP8G surface mount with an exposed grounding pad.
This is very suitable for cellular/PCS/3G base station applications, with a low insertion loss of 0.5 dB and an input IP3 of+55 dBm.
This provides excellent power processing performance at 6 GHz, with a P0.1dB compression point of+29 dBm (+3V control voltage). chip circuits can achieve positive voltage control of 0/+3V or 0/+5V at very low currents.

Input P0.1dB:+34 dBm (+5V)
Insertion loss: 0.5 dB
Positive control voltage:+3V or+5V
MS8G SMT package, 14.8 mm²
Isolation: 27 dB
Faster switching speed
Application:
for Cellular/for PCS/for 3G infrastructure
for ISM/for MMDS/for WiMAX
for CATV/for CMTS
Testing instruments and meters
Color: As Shown
Material: ABS

Package Contents:
1 x RF module
