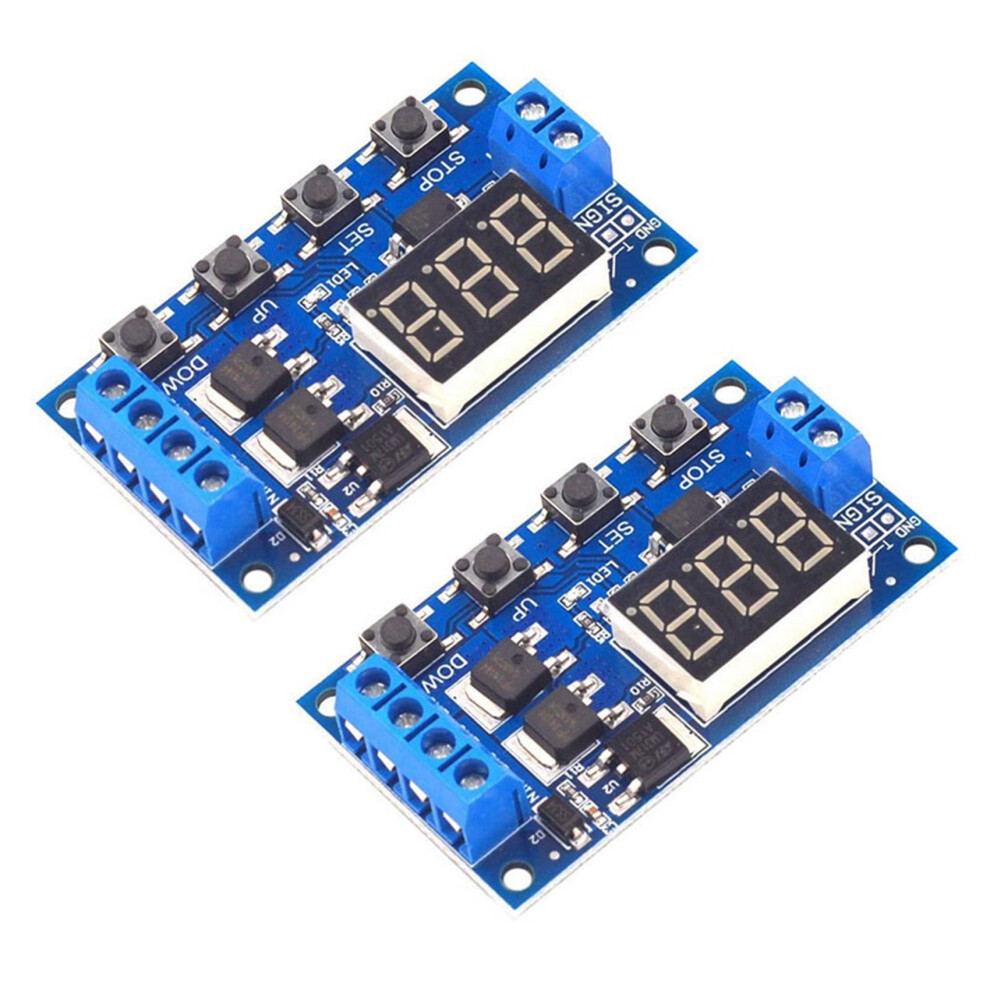

2X 12V 24V LED Light Digital Delay Timing Delay Relay Circuit Dual Mos Tube Control Board Module

2X 12V 24V LED Light Digital Delay Timing Delay Relay Circuit Dual Mos Tube Control Board Module Beskrivning

Pay attention: The module is an active output, the output voltage equal to the input voltage. ' + 'and' load + 'This is an internal short circuit of the poles, but' - 'and' load - 'poles during use can not be shorted, otherwise the load can not be controlled and off, which is equivalent load is been carrying electricity.
0.1 seconds (min) to 999 minutes (max) continuously adjustable. To achieve fast turn- and off the circuit, an unlimited number of switching; Conducting and cutting process does not produce noise, no spark, no electromagnetic interference; Compared with electromagnetic relay products, longer life; The dual-MOS parallel drive, lower resistance, more current, strong power; at room temperature, operating current of to 15A, power to 400W, to meet the most use of the equipment
You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved; After the module is powered down, all parameter settings are not lost.
Highlights: Wide voltage input (5 - 36V), most devices can be used, very convenient; The interface is clear and simple, powerful, easy to understand, meet almost all your needs; The emergency stop function ("STOP" key);With reverse polarity , reverse polarity will not burn the product. Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-

Colour:
Material: PCB
Size: 6 x 3.4 x 1.2cm

Package Contents:
2 x Dual MOS tube control board
