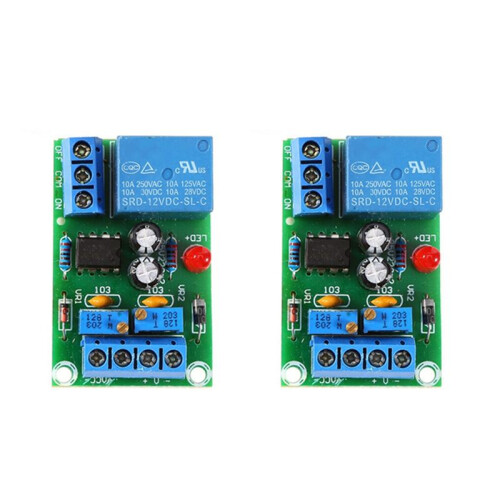

2X 12V Battery Automatic Charging Controller Module Protection Board Relay Board Module Charger Hot Sale

2X 12V Battery Automatic Charging Controller Module Protection Board Relay Board Module Charger Hot Sale Beskrivning

12 V automatic charging power control protection board will automatically charge when the battery voltage drop to about 10.5 V (low voltage adjustable) , and shut off when the power is about 14.4 V (adjustable). Red light when charging, off when fully charged. Relay disconnect and 220 V input end charging, thereby save .
Assembled with special voltage control IC and special automobile relay.
Small volume and large current.
Voltage shutoff accurate and stable.
Complete functions and reliable performance.Automatically charge and shut off.

Connect any wire of 220 V with the COM port of relay, and connect charger with OFF port.
The charger must be full bridge rectified output.
The output voltage can be between 13.8 and 14.8 V.
Charging test for the first : battery voltage should be about 10 V.
Function 1: Current cannot be larger than 10 A.
Function 2: The board has reverse connect protection function. There is no output if no battery is connected. No output if the polarity of battery is wrong.
Output short circuit automatically shut down: It is a practical protection. As long as the output short circuit, the charger will automatically shut down output, so protect the charger from burning.
Color as shown
Material: pc+ metal

Package Contents:

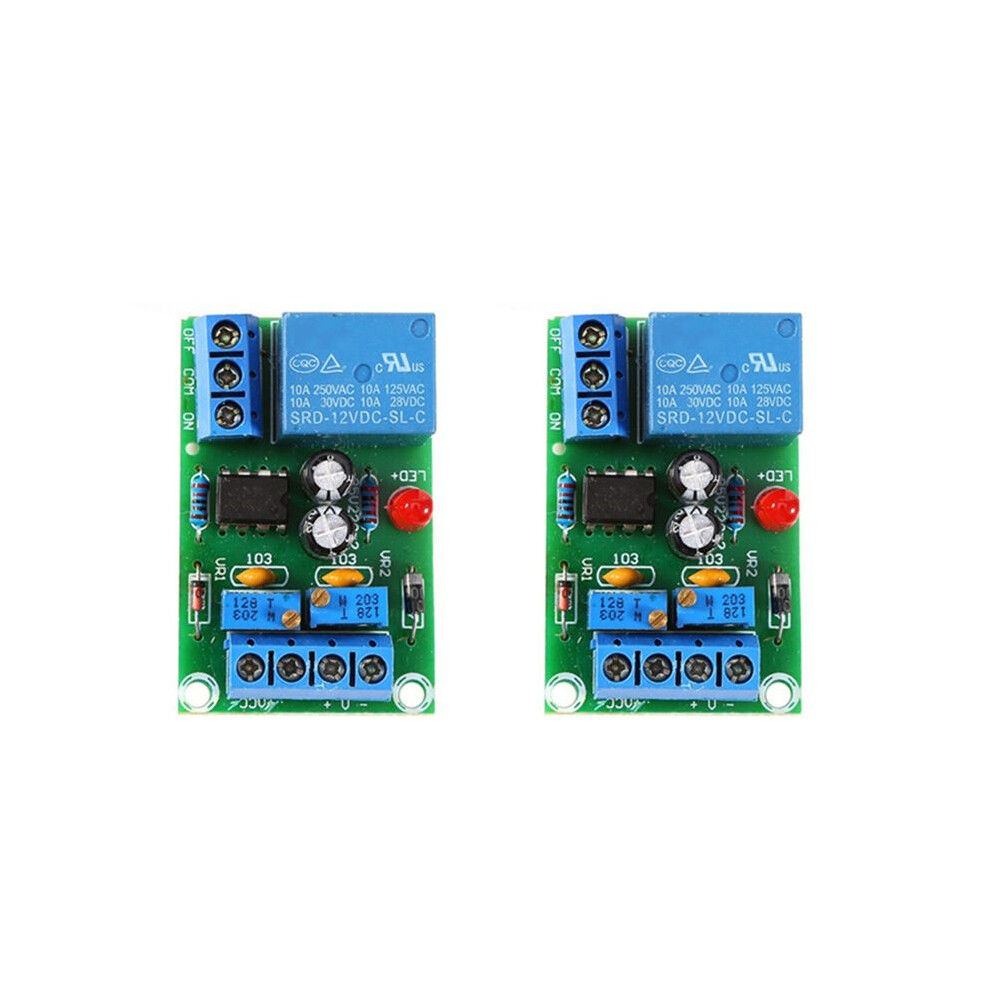

2 * 12V Battery Automatic Charging Controller Module
